BODY SIDE TRIM

Installation is in the reverse order of removal.

REAR KICKING PLATE INNER

Removal

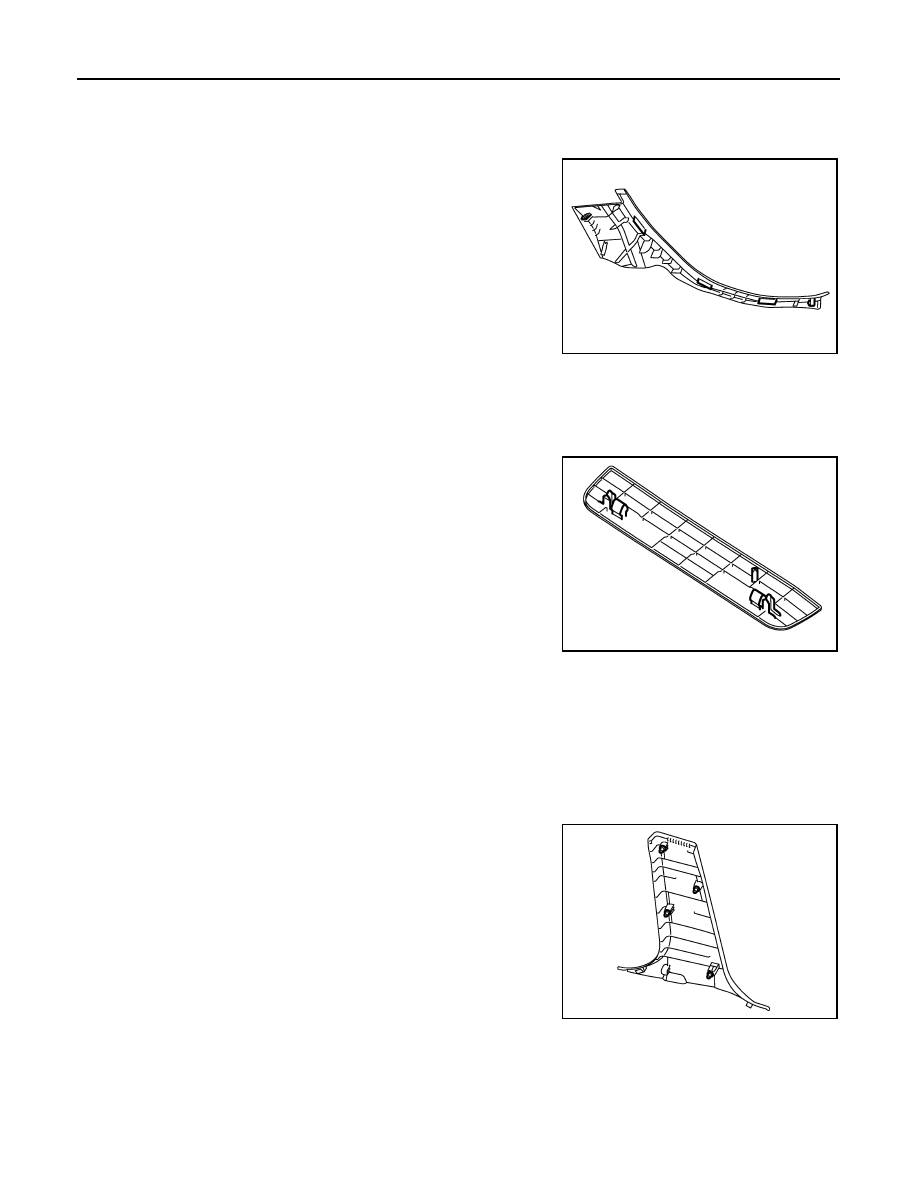

Release the clips, then remove rear kicking plate inner.

Installation

Installation is in the reverse order of removal.

REAR KICKING PLATE OUTER

Removal

Release the clips, then remove rear kicking plate outer.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR LOWER GARNISH

Removal

1.

Remove front kicking plate inner. Refer to "FRONT KICKING PLATE INNER".

2.

Remove rear kicking plate inner. Refer to "REAR KICKING PLATE INNER".

3.

Remove front and rear body side welts.

4.

Release the clips, then remove center pillar lower garnish.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER GARNISH

Removal

WARNING:

PIIB2573J

PIIB2572J

PIIB2574J

BODY SIDE TRIM

INT-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Do not reuse center pillar upper garnish if removed.

1.

Remove center pillar lower garnish. Refer to "CENTER PILLAR LOWER GARNISH".

2.

Remove front seat belt shoulder anchor. Refer to

SB-6,

"Removal and Installation of Front Seat Belt"

.

3.

Remove front and rear body side welts.

4.

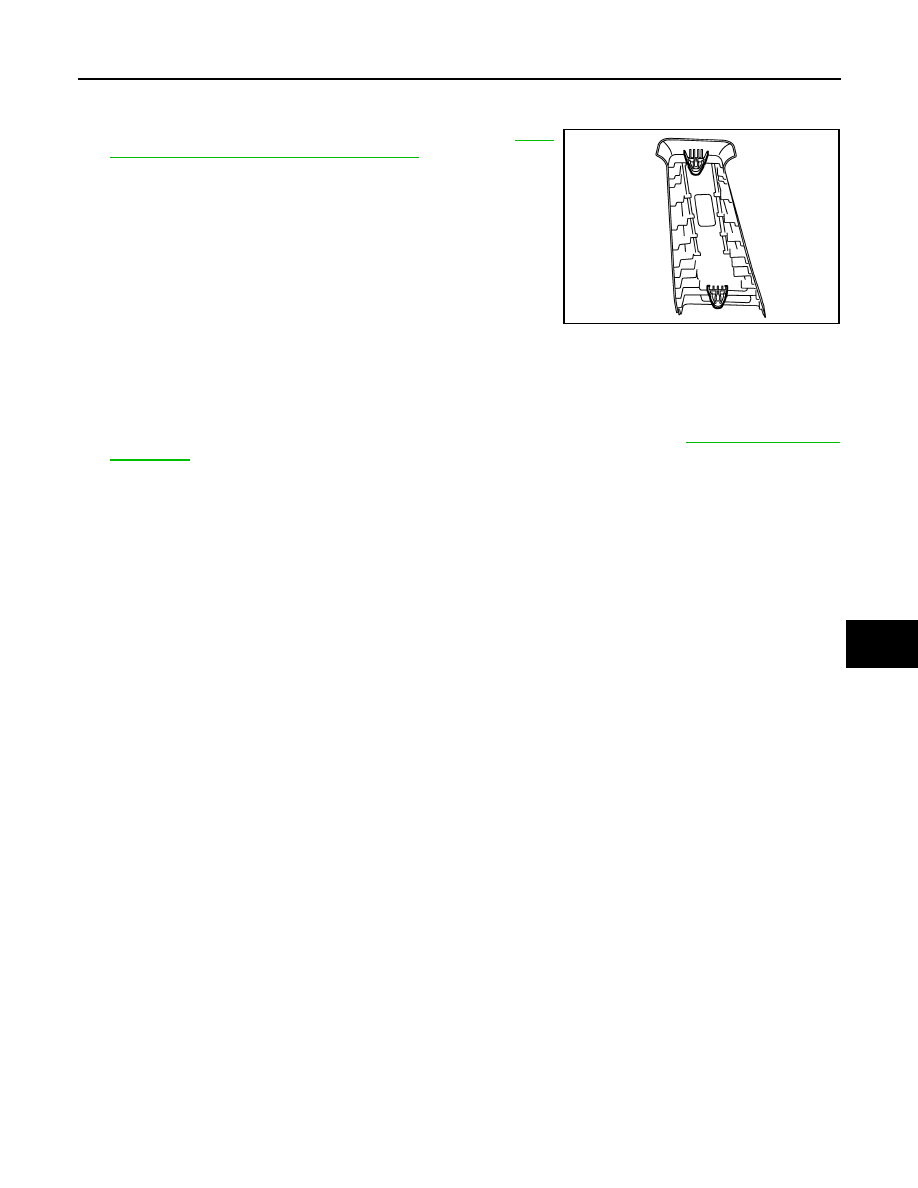

Release the resin clips, then remove center pillar upper garnish.

Installation

Installation is in the reverse order of removal.

REAR PILLAR FINISHER

Removal

1.

Remove rear seat cushion, rear seatback, and seatback side cushions. Refer to

SE-18, "Removal and

Installation"

.

2.

Remove rear body side welt.

3.

Release the clips, then remove rear pillar finisher.

Installation

Installation is in the reverse order of removal.

PIIB2575J

INT-24

< ON-VEHICLE REPAIR >

LUGGAGE FLOOR TRIM

LUGGAGE FLOOR TRIM

Removal and Installation

INFOID:0000000001329113

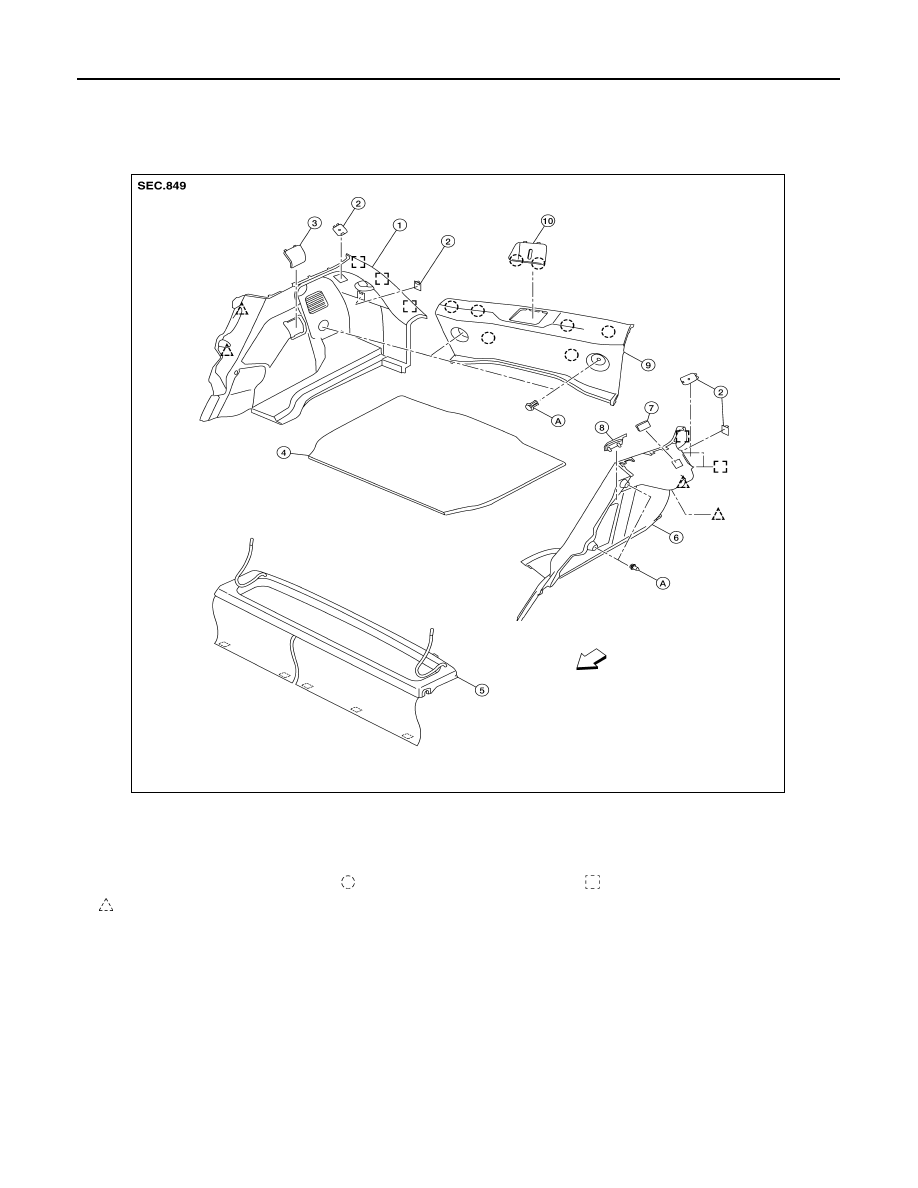

REMOVAL

CAUTION:

1.

Luggage side lower finisher RH

2.

Access cover

3.

Shock absorber cover RH

4.

Luggage floor center board

5.

Tonneau board

6.

Luggage side lower finisher LH

7.

Cargo lamp

8.

Shock absorber cover LH

9.

Luggage rear plate

10. Striker cover plate

Pawl

Metal clip

Clip C101

⇐

Vehicle front

AWJIA0062ZZ

LUGGAGE FLOOR TRIM

INT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

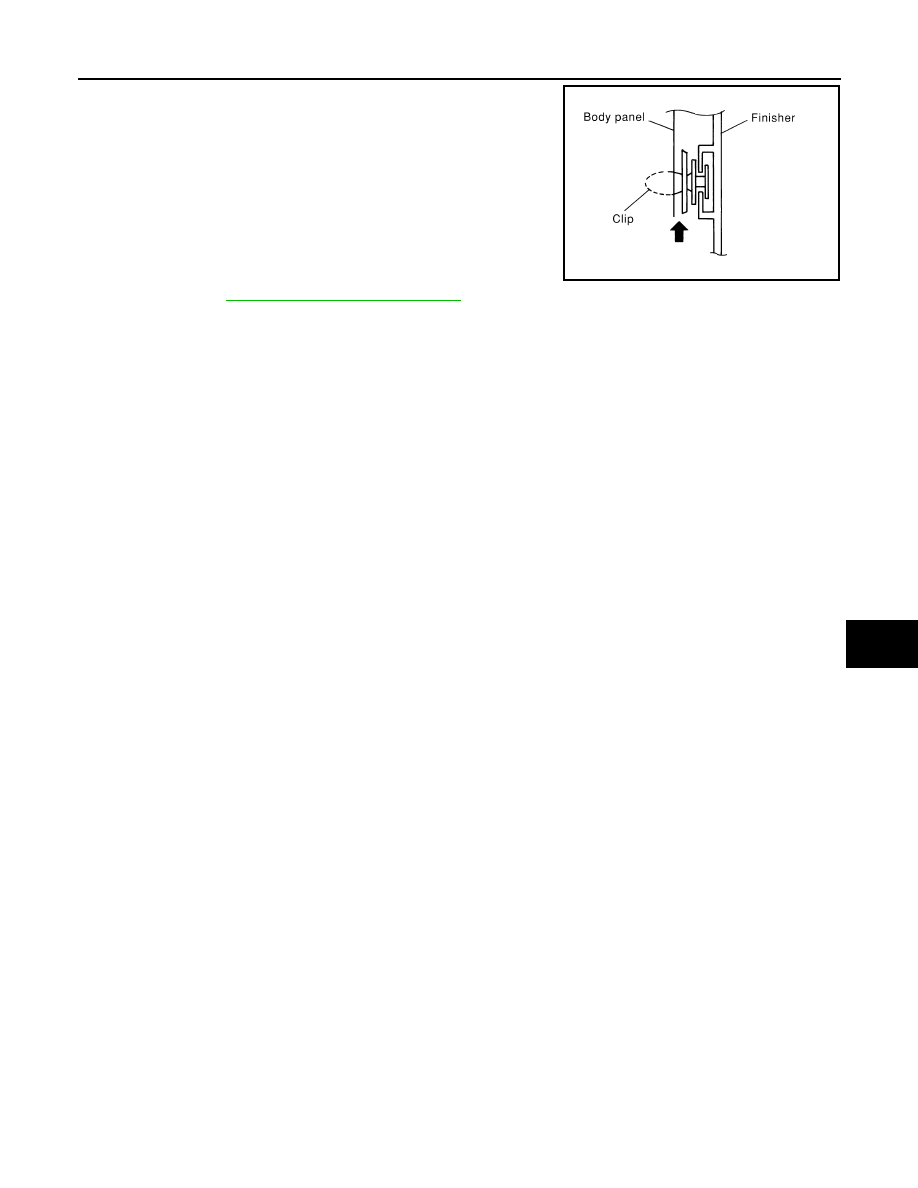

• Insert a trim stick or suitable tool between panel on vehicle

and clips (as indicated with arrow) to release clips.

• Use a trim stick or suitable tool when removing metal clips

from garnishes.

• Be careful not to damage the body while prying to release

clips.

• Make sure clips are properly aligned in panel holes on body

when installing, then press them in completely.

1.

Disconnect the negative and positive battery cables.

2.

Open the rear doors and the back door.

3.

Remove the rear seat cushion and seatback and seatback side
RH/LH. Refer to

SE-18, "Removal and Installation"

.

4.

Lift and remove the luggage floor center board.

5.

Detach the tethers, then pull upward to remove the tonneau board.

6.

Release the clips, then remove the striker cover and luggage rear plate.

7.

Release the clips, then remove the luggage side lower finisher RH/LH.
• For LH side, disconnect cargo lamp connector.

INSTALLATION

Installation is in the reverse order of removal.

SIIA0810E
