Nissan Tiida C11. Manual - part 913

HRN-2

< PRECAUTION >

PRECAUTION

PRECAUTION

PRECAUTION

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001702210

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

HORN

HRN-3

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

COMPONENT DIAGNOSIS

HORN

Wiring Diagram

INFOID:0000000001702207

AWMWA0025GB

HRN-4

< ON-VEHICLE REPAIR >

HORN

ON-VEHICLE REPAIR

HORN

Removal and Installation

INFOID:0000000001728320

REMOVAL

NOTE:
Front grille, front bumper fascia and front bumper shown removed for clarity.
1.

Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

2.

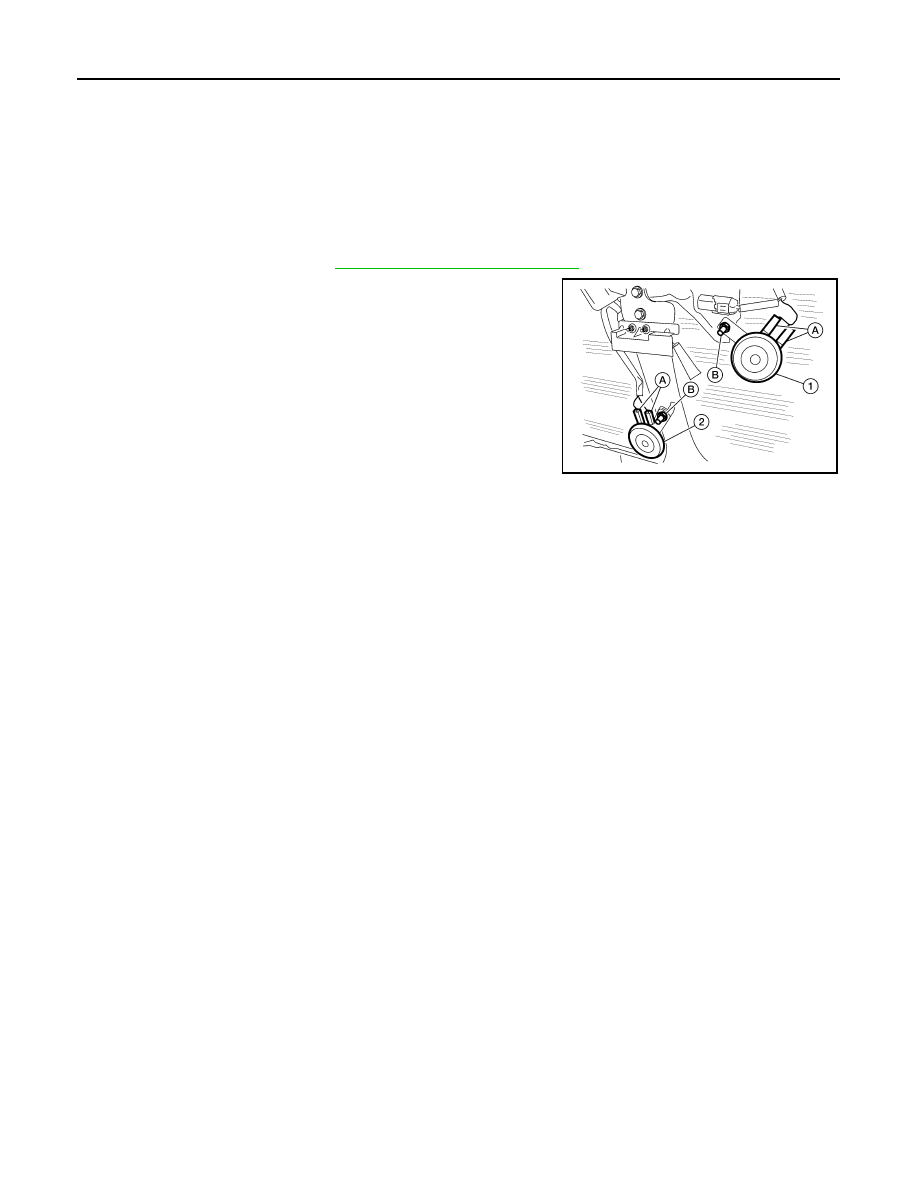

Disconnect the horn connectors (A).

3.

Remove the horn nuts (B), then remove the horns (1) and (2).

INSTALLATION

Installation is in the reverse order of removal.

ALLIA0657ZZ
