HAC-252

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

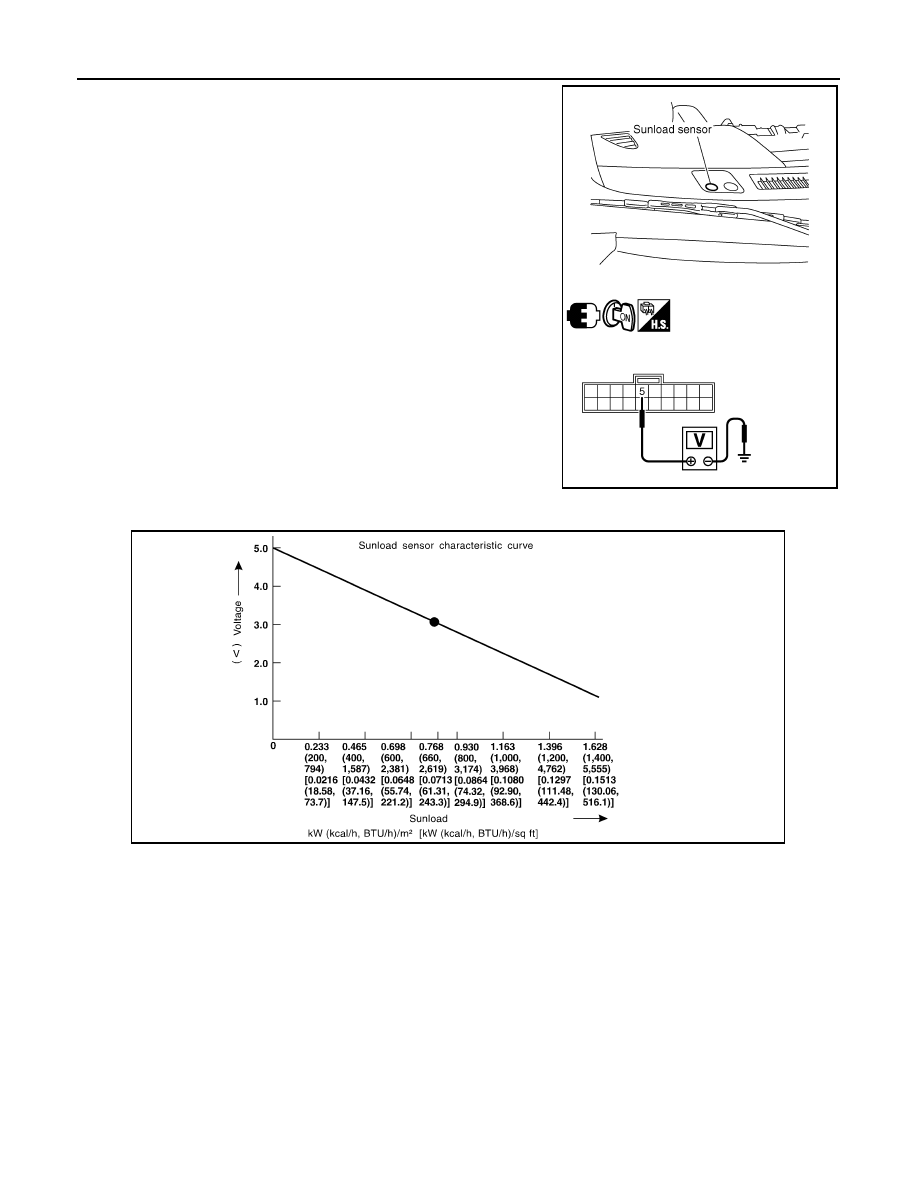

SUNLOAD SENSOR

Measure voltage between front air control harness connector M86
terminal 5 and ground.
If NG, replace sunload sensor. Refer to XXXX

• When checking sunload sensor, select a place where sun shines directly on it.

SJIA0995E

SHA930E

INTAKE SENSOR

HAC-253

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

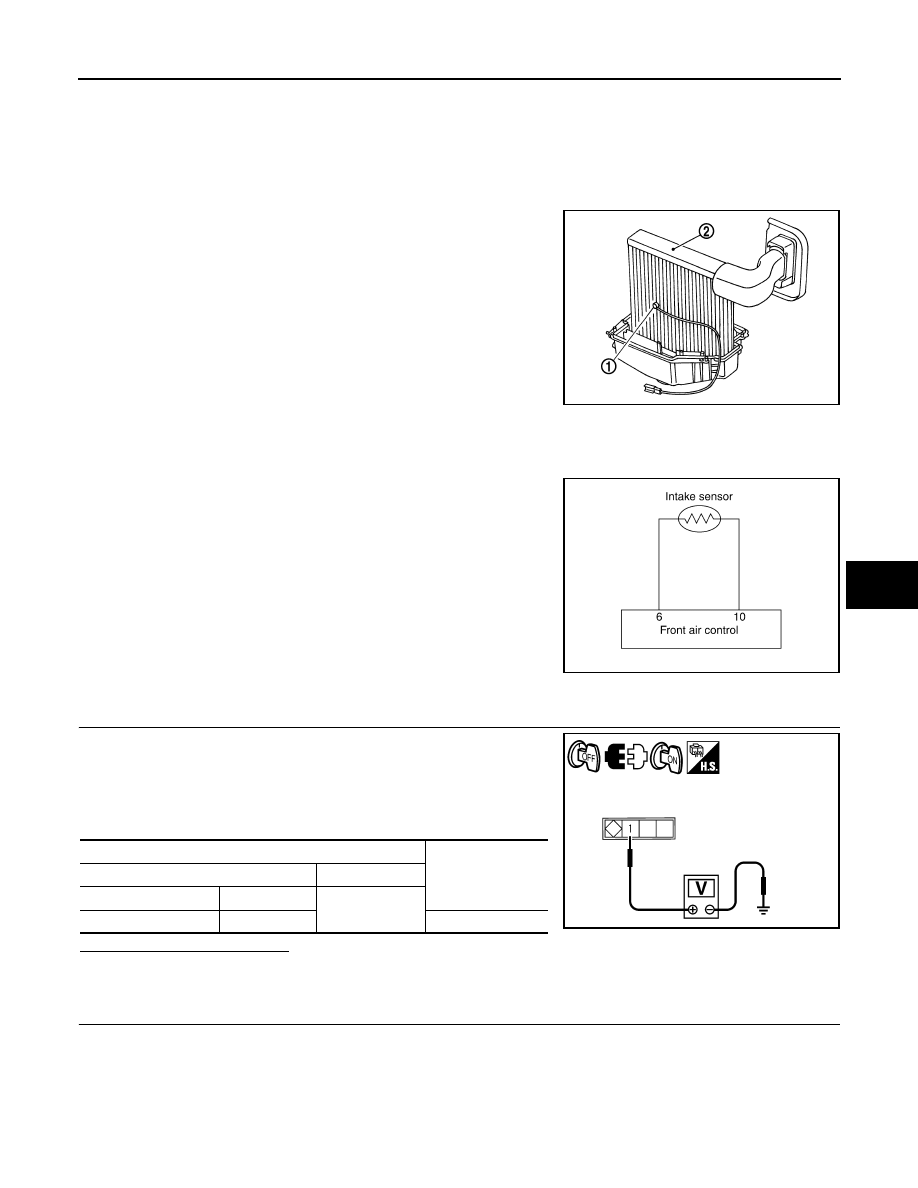

INTAKE SENSOR

System Description

INFOID:0000000001547365

COMPONENT DESCRIPTION

Intake Sensor

The intake sensor (1) is located on the A/C unit. It converts tempera-
ture of air after it passes through the evaporator (2) into a resistance
value which is then input to the front air control.

Intake Sensor Diagnosis Procedure

INFOID:0000000001547366

DIAGNOSTIC PROCEDURE FOR INTAKE SENSOR

SYMPTOM: Intake sensor circuit is open or shorted.
LEDs of intake switch (FRE, REC) does not illuminate as a result of
performing self-diagnosis STEP-2.

1.

CHECK VOLTAGE BETWEEN INTAKE SENSOR AND GROUND

1.

Turn ignition switch OFF.

2.

Disconnect intake sensor connector.

3.

Turn ignition switch ON.

4.

Check voltage between intake sensor harness connector M92
terminal 1 and ground.

Is the inspection result normal

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND FRONT AIR CONTROL

ZJIA0798J

AWIIA0348GB

Terminals

Voltage

(Approx.)

(+)

(

−

)

Connector

Terminal

Ground

Intake sensor: M92

1

5V

SJIA0825E

HAC-254

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

INTAKE SENSOR

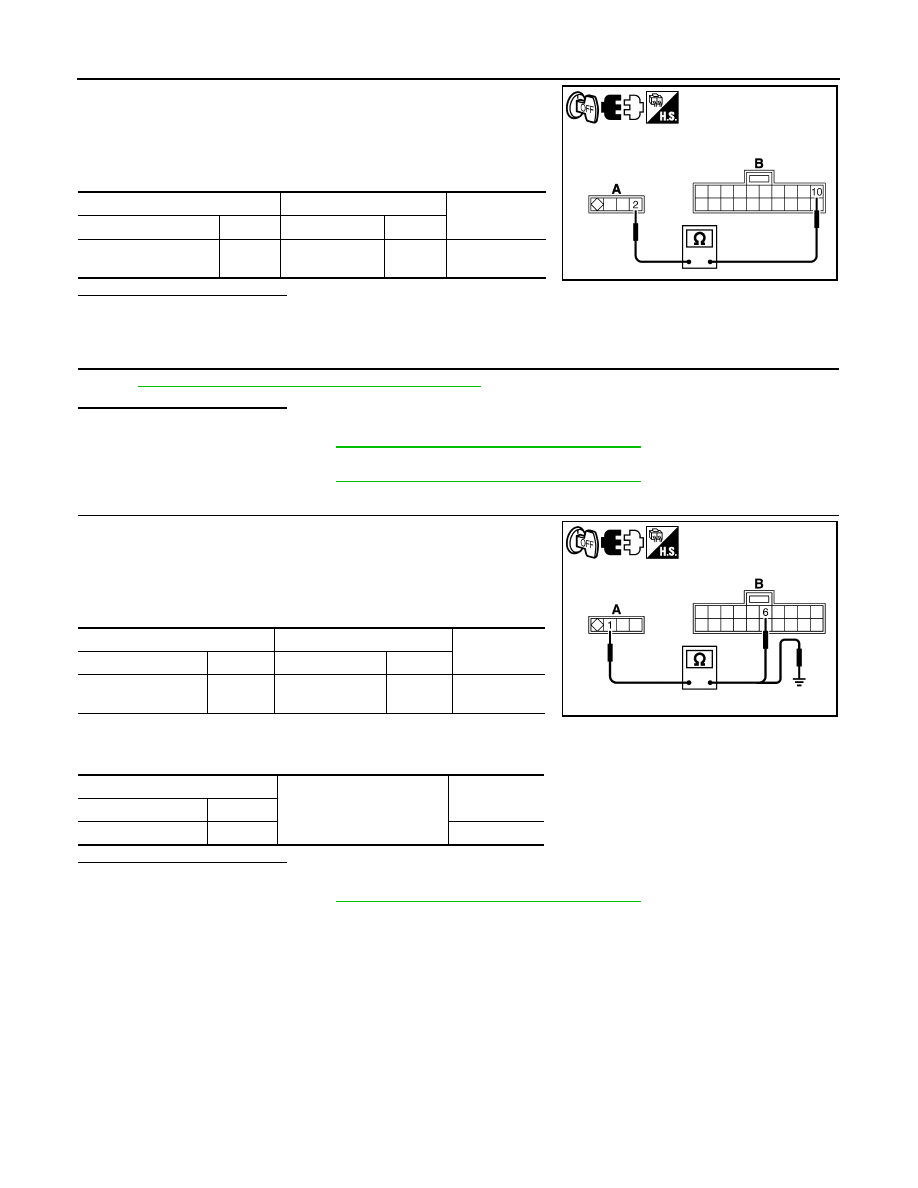

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector.

3.

Check continuity between intake sensor harness connector M92
(A) terminal 2 and front air control harness connector M86 (B)
terminal 10.

Is the inspection result normal

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK INTAKE SENSOR

Refer to

HAC-254, "Intake Sensor Component Inspection"

.

Is the inspection result normal

YES

>> 1.

Replace front air control. Refer to XXXX

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

NO

>> 1.

Replace intake sensor. Refer to XXXX

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

4.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND FRONT AIR CONTROL

1.

Turn ignition switch OFF.

2.

Disconnect front air control connector.

3.

Check continuity between intake sensor harness connector M92
(A) terminal 1 and front air control harness connector M86 (B)
terminal 6.

4.

Check continuity between intake sensor harness connector M92
(A) terminal 1 and ground.

Is the inspection result normal

YES

>> 1.

Replace front air control. Refer to XXXX

2.

Go to self-diagnosis

HAC-213, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

NO

>> Repair harness or connector.

Intake Sensor Component Inspection

INFOID:0000000001547367

COMPONENT INSPECTION

Intake Sensor

A

B

Continuity

Connector

Terminal

Connector

Terminal

Intake sensor: M92

2

Front air control:

M86

10

Yes

SJIA0903E

A

B

Continuity

Connector

Terminal

Connector

Terminal

Intake sensor: M92

1

Front air control:

M86

6

Yes

A

Ground

Continuity

Connector

Terminal

Intake sensor: M92

1

No

SJIA0904E

INTAKE SENSOR

HAC-255

< COMPONENT DIAGNOSIS >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

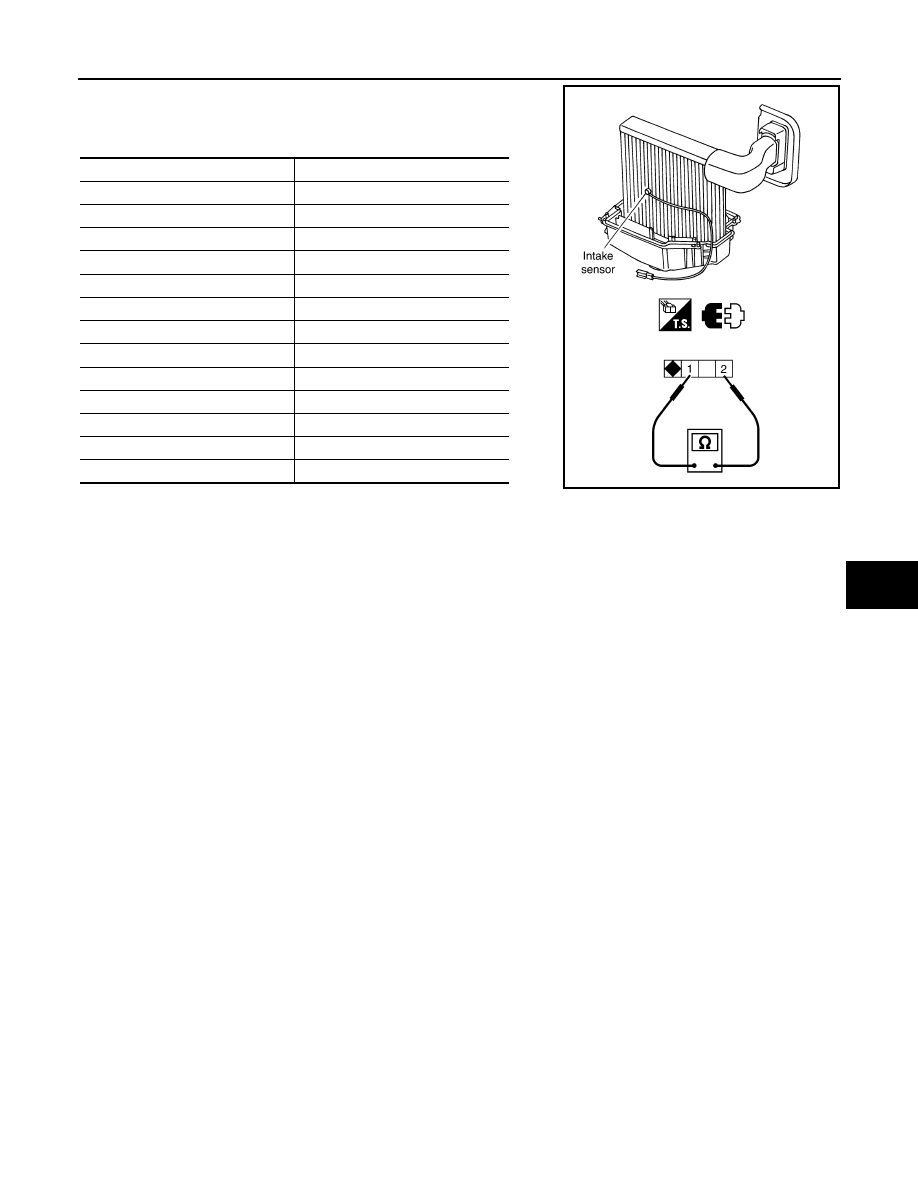

After disconnecting intake sensor connector M42, measure resis-
tance between terminals 1 and 2 at sensor side, using the table
below.

If NG, replace intake sensor. Refer to XXXX

Temperature

°

C (

°

F)

Resistance k

Ω

−

15 (5)

12.34

−

10 (14)

9.62

−

5 (23)

7.56

0 (32)

6.00

5 (41)

4.80

10 (50)

3.87

15 (59)

3.15

20 (68)

2.57

25 (77)

2.12

30 (86)

1.76

35 (95)

1.47

40 (104)

1.23

45 (113)

1.04

SJIA0828E
