Nissan Tiida C11. Manual - part 884

HAC-200

< PRECAUTION >

[AUTO AIR CONDITIONER (W/O NAVI)]

PRECAUTIONS

- Do not allow A/C oil to come in contact with styrofoam parts. Damage may result.

CONTAMINATED REFRIGERANT

If a refrigerant other than pure HFC-134a (R-134a) is identified in a vehicle, your options are:
• Explain to the customer that environmental regulations prohibit the release of contaminated refrigerant into

the atmosphere.

• Explain that recovery of the contaminated refrigerant could damage your service equipment and refrigerant

supply.

• Suggest the customer return the vehicle to the location of previous service where the contamination may

have occurred.

• If you choose to perform the repair, recover the refrigerant using only dedicated equipment and contain-

ers. Do not recover contaminated refrigerant into your existing service equipment. If your facility does
not have dedicated recovery equipment, you may contact a local refrigerant product retailer for available ser-
vice. This refrigerant must be disposed of in accordance with all federal and local regulations. In addition,
replacement of all refrigerant system components on the vehicle is recommended.

• If the vehicle is within the warranty period, the air conditioner warranty is void. Please contact NISSAN Cus-

tomer Affairs for further assistance.

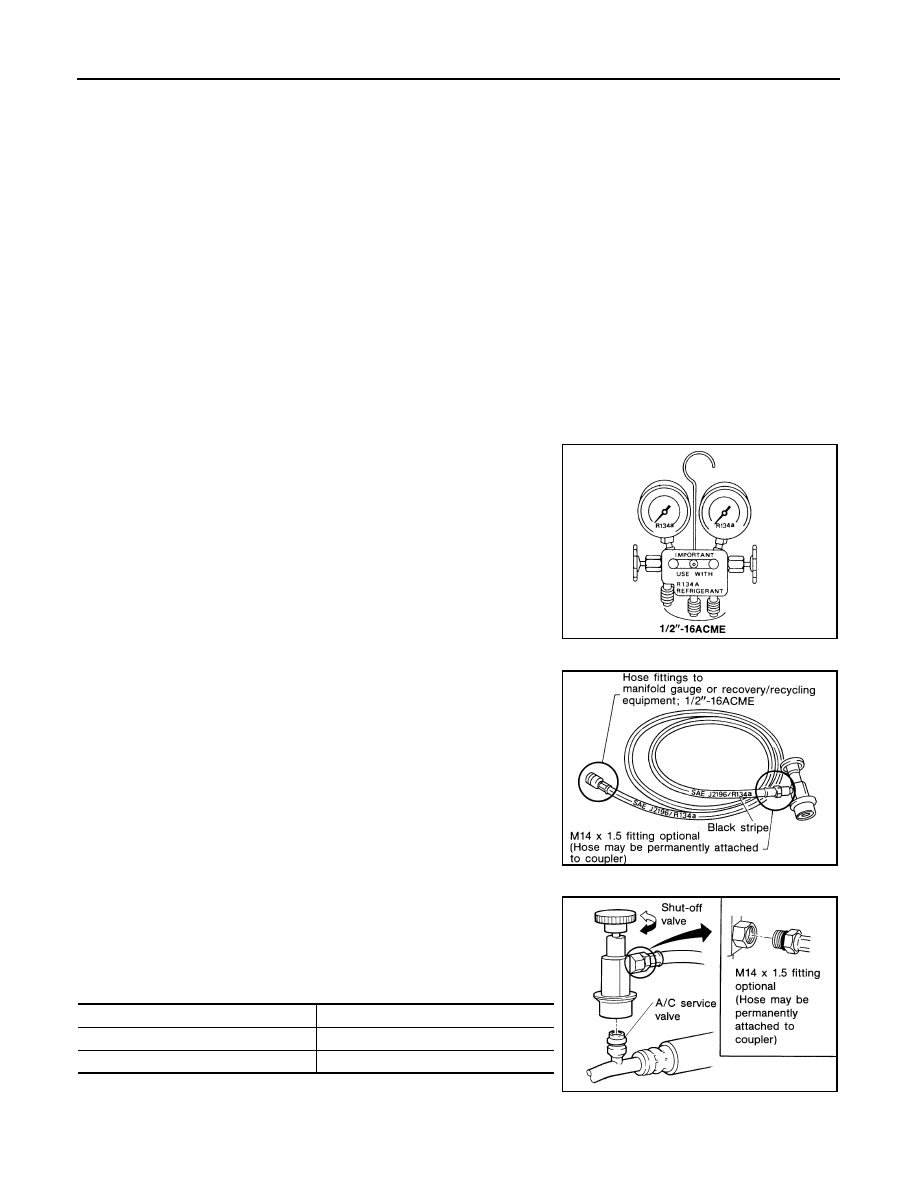

Precaution for Service Equipment

INFOID:0000000001547462

MANIFOLD GAUGE SET

Be certain that the gauge face indicates R-134a or 134a. Make sure
the gauge set has 1/2

″

-16 ACME threaded connections for service

hoses. Confirm the set has been used only with refrigerant HFC-
134a (R-134a) along with specified oil.

SERVICE HOSES

Be certain that the service hoses display the markings described
(colored hose with black stripe). All hoses must include positive shut-
off devices (either manual or automatic) near the end of the hoses
opposite the manifold gauge.

SERVICE COUPLERS

Never attempt to connect HFC-134a (R-134a) service couplers to a
CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.

SHA533D

RHA272D

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

Close

RHA273D

DIAGNOSIS AND REPAIR WORKFLOW

HAC-201

< BASIC INSPECTION >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

How to Perform Trouble Diagnosis For Quick And Accurate Repair

INFOID:0000000001547305

WORK FLOW

1.

LISTEN TO CUSTOMER COMPLAINT

Listen to customer complaint. Get detailed information about the conditions and environment when the symp-
tom occurs.

>> GO TO 2

2.

CHECK FOR SERVICE BULLETINS

Check for any service bulletins.

>> GO TO 3.

3.

VERIFY THE SYMPTOM WITH OPERATIONAL CHECK

Verify the symptom with operational check. Refer to

HAC-202, "Operational Check"

.

Can a symptom be duplicated?

YES

>> GO TO 4

NO

>> GO TO 5

4.

GO TO APPROPRIATE TROUBLE DIAGNOSIS

Go to appropriate trouble diagnosis. Refer to

HAC-298, "Symptom Matrix Chart"

.

Can a symptom be duplicated?

>> GO TO 5.

5.

PERFORM THE FRONT AIR CONTROL SELF-DIAGNOSIS

Perform front air control self-diagnosis. Refer to

HAC-213, "Front Air Control Self-Diagnosis"

.

>> If any diagnostic trouble codes set. Refer to

HAC-218, "Front Air Control Self-Diagnosis Code

Chart"

.

>> Confirm the repair by performing operational check. Refer to

HAC-202, "Operational Check"

.

HAC-202

< BASIC INSPECTION >

[AUTO AIR CONDITIONER (W/NAVI)]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

Operational Check

INFOID:0000000001547306

The purpose of the operational check is to confirm that the system operates properly.

CHECKING BLOWER

1.

Turn blower control dial to 1st speed. Blower should operate on low speed.

2.

Turn blower control dial to 2nd speed, and continue checking blower motor until all speed are checked.

3.

Leave blower on max. speed.

If NG, go to trouble diagnosis procedure for

HAC-234, "Front Blower Motor Diagnosis Procedure"

.

If OK, continue the check.

CHECKING DISCHARGE AIR

1.

Turn mode control dial to each position.

2.

Confirm that discharge air comes out according to the air distribution table. Refer to

HAC-208, "Discharge

Air Flow"

.

Intake door position is checked in the next step.
If NG, go to trouble diagnosis procedure for

HAC-222, "Mode Door Motor Diagnosis Procedure"

.

If OK, continue the check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at
FRESH when the DEF is selected.

CHECKING INTAKE DOOR

1.

Press intake switch. Recirculation indicator should illuminate.

2.

Press intake switch again. Fresh indicator should illuminate.

3.

Listen for intake door position change (you should hear blower sound change slightly).

If NG, go to trouble diagnosis procedure for

HAC-230, "Intake Door Motor Diagnosis Procedure"

.

If OK, continue the check.

CHECKING TEMPERATURE DECREASE

1.

Turn temperature control dial counterclockwise until 18

°

C (64

°

F).

2.

Check for cold air at discharge air outlets.

If NG, go to trouble diagnosis procedure for

HAC-299, "Component Function Check"

.

If OK, continue the check.

CHECKING TEMPERATURE INCREASE

1.

Turn temperature control dial clockwise until 32

°

C (90

°

F).

2.

Check for hot air at discharge air outlets.

If NG, go to trouble diagnosis procedure for

HAC-307, "Component Function Check"

.

If OK, continue the check.

CHECKING A/C SWITCH

1.

Turn blower control dial to ON.

2.

Press A/C switch.

3.

A/C switch indicator will turn ON.
• Confirm that the compressor clutch engages (sound or visual inspection).

If NG, go to trouble diagnosis procedure for

HAC-239, "Magnet Clutch Diagnosis Procedure"

.

If OK, continue the check.

CHECKING AUTO MODE

1.

Set mode control dial and blower control dial to AUTO position.

2.

Press A/C switch.

Conditions

: Engine running at usual operating temperature

INSPECTION AND ADJUSTMENT

HAC-203

< BASIC INSPECTION >

[AUTO AIR CONDITIONER (W/NAVI)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

• Confirm that discharge air and blower speed will depend on ambient, in-vehicle, and set temperatures.

• If NG, go to trouble diagnosis procedure for

HAC-278, "A/C Auto Amp Power and Ground Diagnosis Proce-

dure"

, then if necessary, trouble diagnosis procedure for

HAC-239, "Magnet Clutch Diagnosis Procedure"

.

• If all operational checks are OK (symptom cannot be duplicated), go to

HAC-201, "How to Perform Trouble

Diagnosis For Quick And Accurate Repair"

 and perform tests as outlined to simulate driving conditions envi-

ronment.

• If symptom appears, refer to

HAC-298, "Symptom Matrix Chart"

 and perform applicable trouble diagnosis

procedures.
