HAC-52

< COMPONENT DIAGNOSIS >

[MANUAL AIR CONDITIONER]

PTC HEATER CONTROL SYSTEM

If NG, replace ambient sensor. Refer to XX.

AIR CONDITIONER CONTROL

HAC-53

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ECU DIAGNOSIS

AIR CONDITIONER CONTROL

Reference Value

INFOID:0000000001203072

VALUES ON THE DIAGNOSIS TOOL

Display Item List

Monitor item name

“operation or unit”

Contents

FAN ON SIG

“ON/OFF”

Displays “FAN (ON)/FAN (OFF)” status as judged from blower fan motor switch signal.

AIR COND SW

“ON/OFF”

Displays “COMP (ON)/COMP (OFF)” status as judged from air conditioner switch signal.

HAC-54

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

AIR CONDITIONER CONTROL

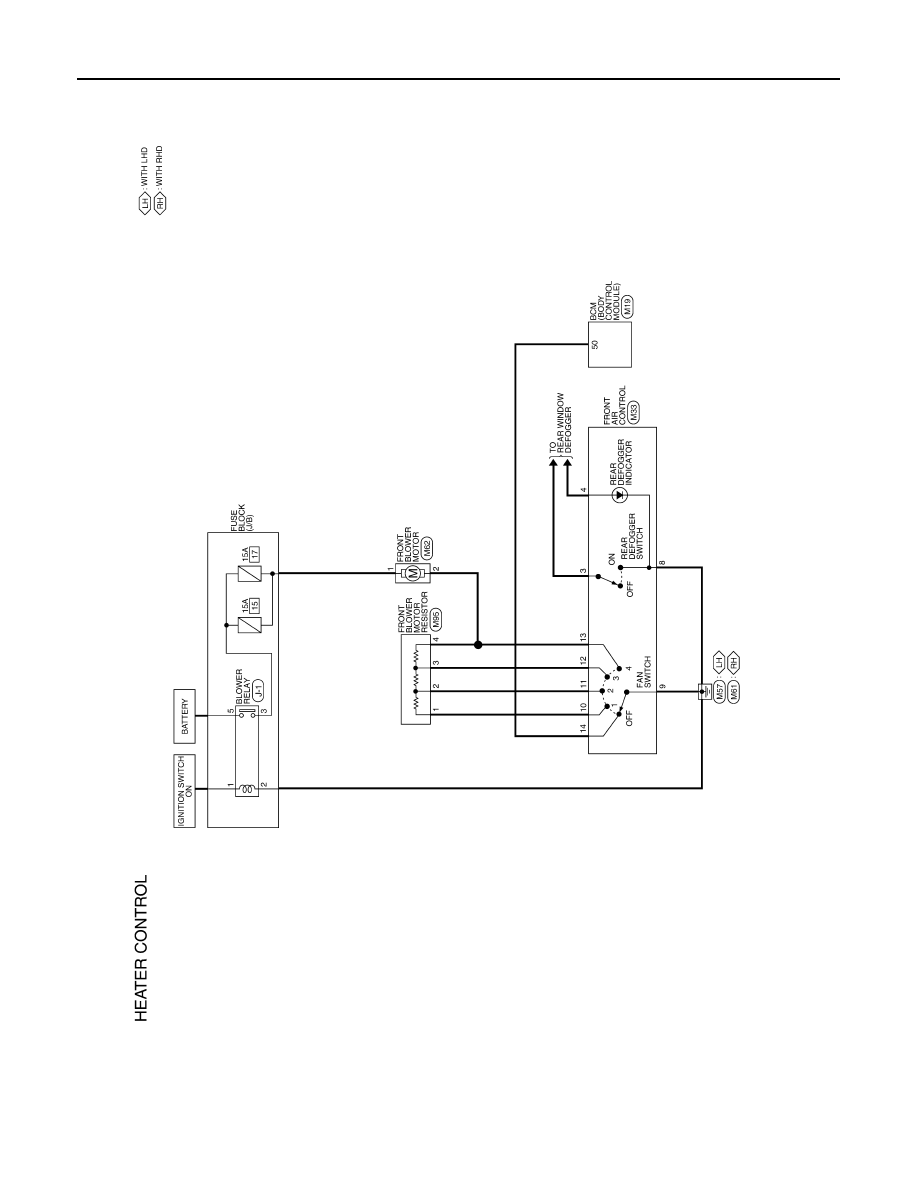

Wiring Diagram - Heater Control (without A/C) -

INFOID:0000000001683778

ALIWA0033GB

AIR CONDITIONER CONTROL

HAC-55

< ECU DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

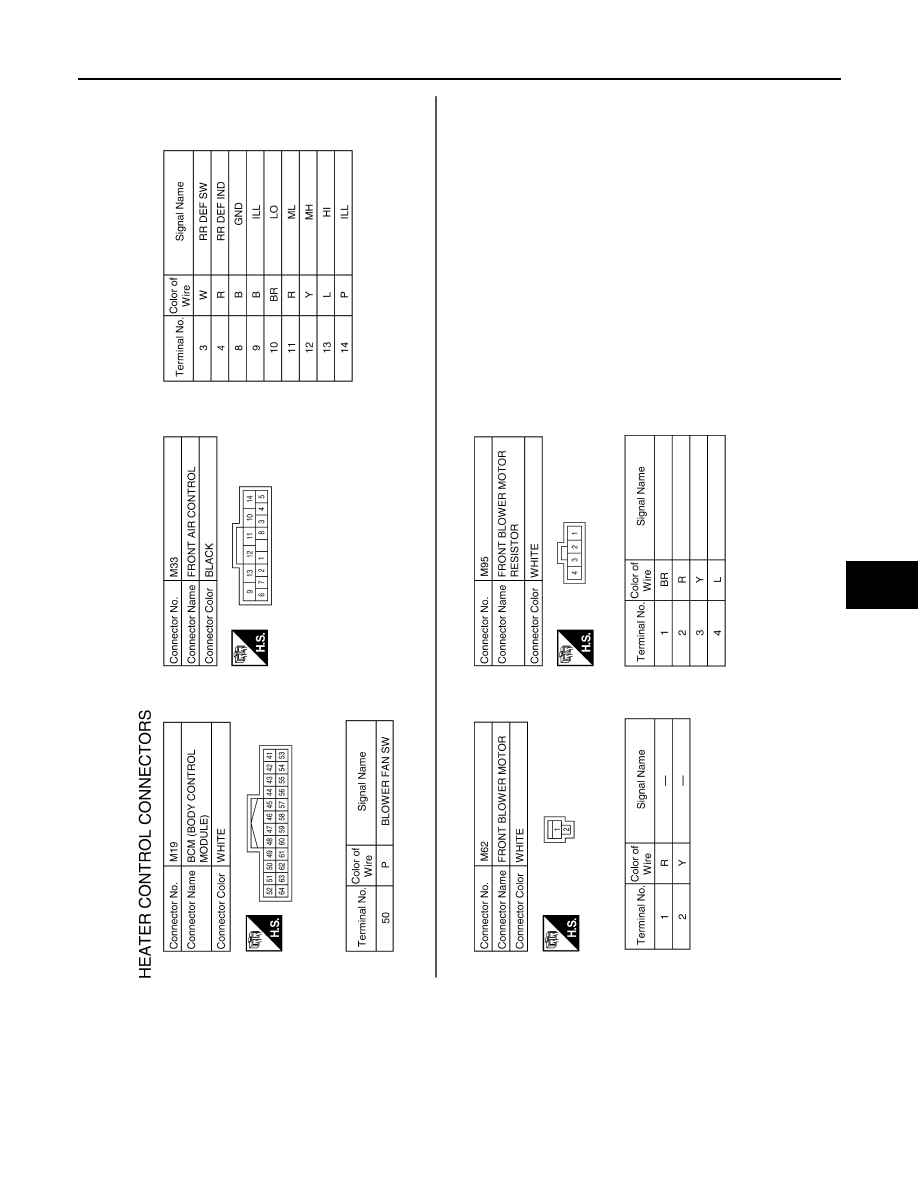

ALIIA0139GB
