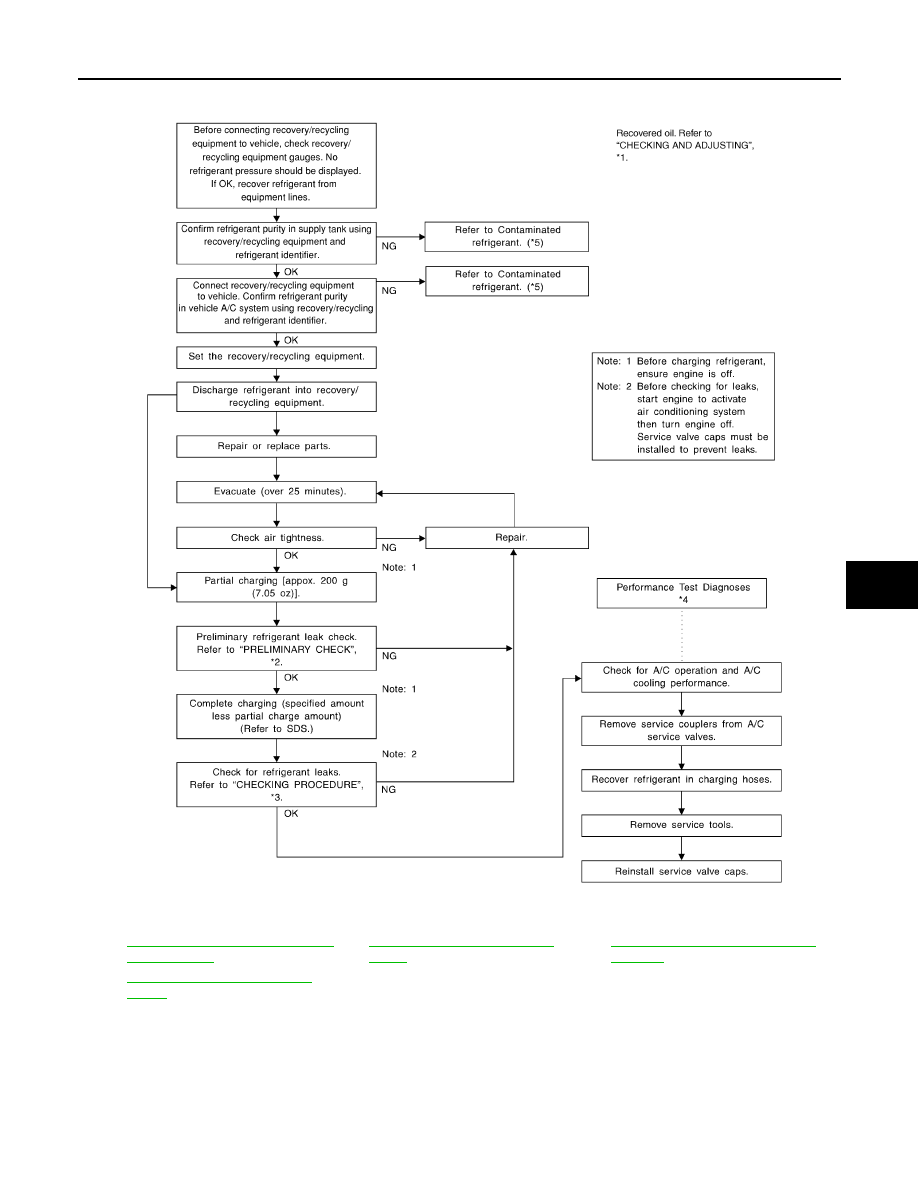

REFRIGERATION SYSTEM

HA-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

*1

HA-19, "Maintenance of Oil Quantity
in Compressor"

*2

HA-22, "Checking of Refrigerant
Leaks"

*3

HA-25, "Electronic Refrigerant Leak
Detector"

*4

HAC-299, "Component Function
Check"

WJIA1923E

HA-32

< ON-VEHICLE REPAIR >

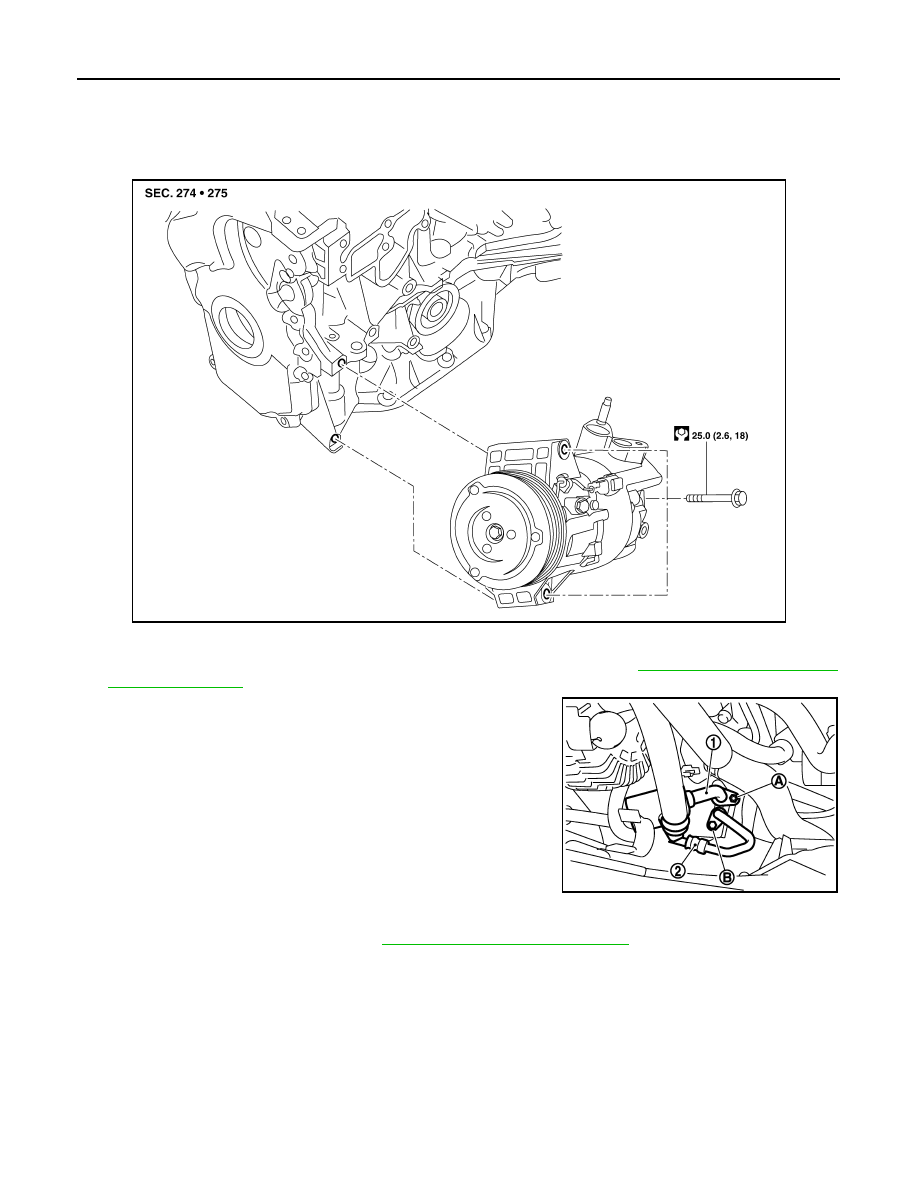

COMPRESSOR

COMPRESSOR

Removal and Installation of Compressor - MR18DE

INFOID:0000000001404149

MR18DE

REMOVAL

1.

Use the recovery/recycling equipment to evacuate the refrigerant. Refer to

HA-29, "HFC-134a (R-134a)

Service Procedure"

.

2.

Remove the nut (A) for the low-pressure flexible hose (1) and
the bolt (B) for the high-pressure flexible hose (2) and remove
the hoses from the compressor.

CAUTION:

Cap or wrap the joint of compressor, low-pressure flexible
hose and high-pressure flexible hose with suitable material
such as vinyl tape to avoid the entry of air.

3.

Remove the engine undercover, using power tools.

4.

Remove A/C compressor belt. Refer to

EM-142, "Removal and Installation"

.

5.

Disconnect compressor connector.

ALIIA0092GB

E1KIA0067ZZ

COMPRESSOR

HA-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

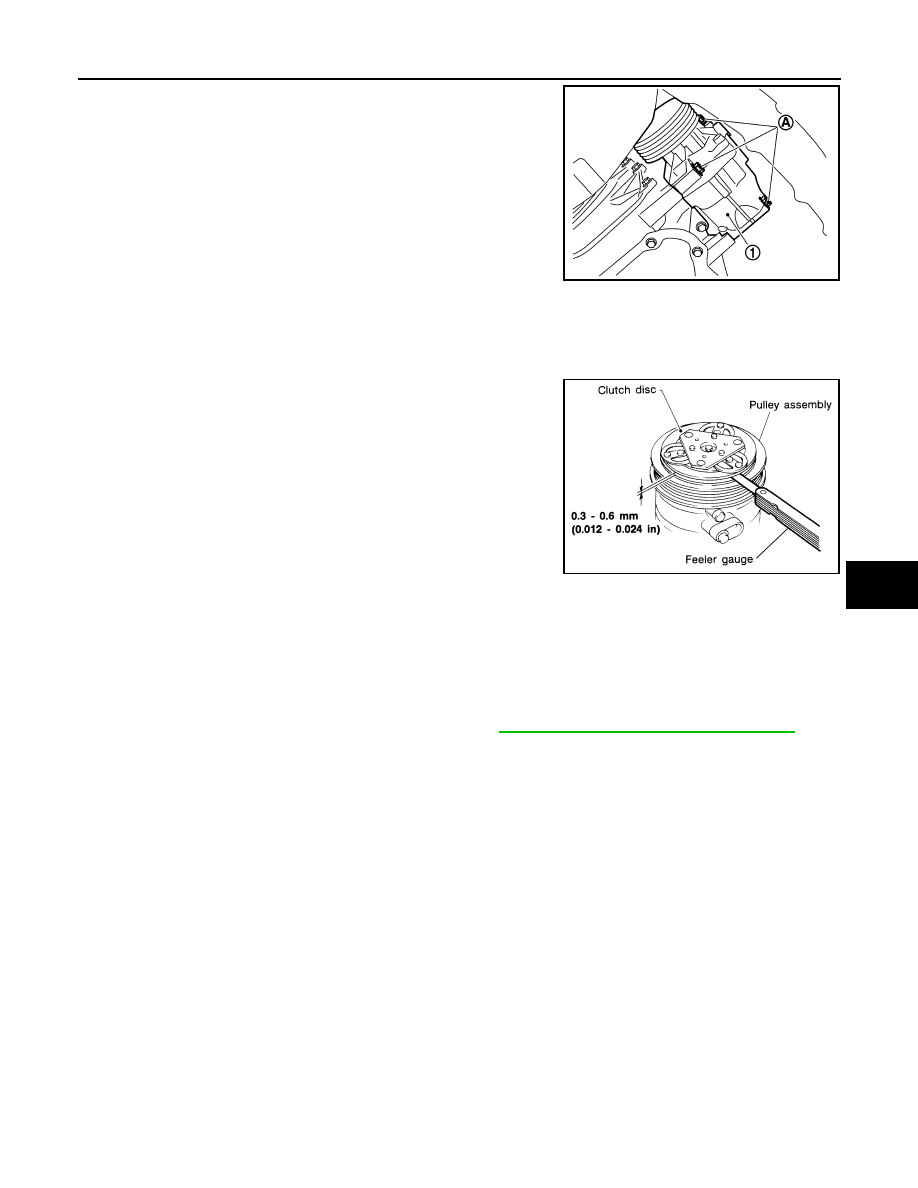

6.

Remove bolts (A) from compressor (1), using power tools.

7.

Remove compressor (1) downward from the engine compart-
ment.

INSPECTION FOR CLUTCH DISC TO PULLEY CLEARANCE

1.

Check the clearance around the entire periphery of the clutch disc.

• Measure the clearance for the compressor as shown.

2.

If specified clearance is not obtained, replace compressor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure flexible hose and high-pressure flexible hose with a new ones, and

apply compressor oil when installing.

• When recharging refrigerant, check for leaks. Refer to

HA-22, "Checking of Refrigerant Leaks"

.

SJIA0672E

Clutch disc to pulley clearance

: 0.3 - 0.6 mm (0.012 - 0.024 in)

RHA087E

HA-34

< ON-VEHICLE REPAIR >

COMPRESSOR

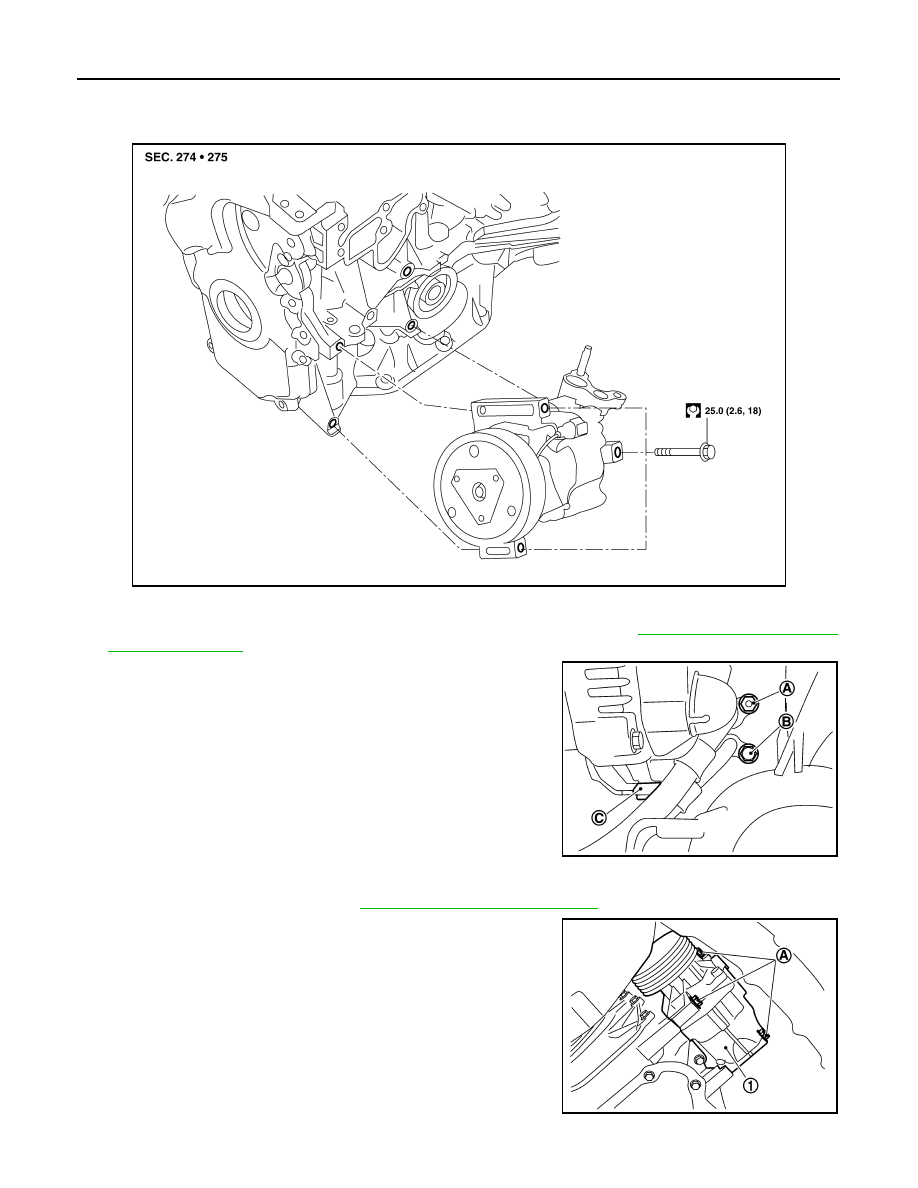

Removal and Installation of Compressor - HR16DE

INFOID:0000000001523298

HR16DE

REMOVAL

1.

Use the recovery/recycling equipment to evacuate the refrigerant. Refer to

HA-29, "HFC-134a (R-134a)

Service Procedure"

.

2.

Disconnect the low-pressure flexible hose nut (A) and high-pres-
sure flexible hose bolt (B)  and remove the hoses from compres-
sor.

CAUTION:

Cap or wrap the joint of compressor, low-pressure flexible
hose and high-pressure flexible hose with suitable material
such as vinyl tape to avoid the entry of air.

3.

Disconnect the compressor harness connector (C)

4.

Remove the engine undercover, using power tools.

5.

Remove the A/C drive belt. Refer to

EM-16, "Removal and Installation"

.

6.

Remove the bolts (A) from the compressor (1), using power
tools.

7.

Remove the compressor (1) downward from the engine com-
partment.

INSPECTION FOR CLUTCH DISC TO PULLEY CLEARANCE

ALIIA0093GB

SJIA0671E

SJIA0672E
