PRECAUTIONS

HA-11

< PRECAUTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

• Do not spray the fluorescent dye cleaning agent on hot surfaces (engine exhaust manifold, etc.).
• Do not use more than one refrigerant dye bottle (1/4 ounce /7.4 cc) per A/C system.
• Leak detection dyes for HFC-134a (R-134a) and CFC-12 (R-12) A/C systems are different. Do not use HFC-

134a (R-134a) leak detection dye in CFC-12 (R-12) A/C system or CFC-12 (R-12) leak detector dye in HFC-
134a (R-134a) A/C system or A/C system damage may result.

• The fluorescent properties of the dye will remain for over three (3) years unless a compressor malfunction

occurs.

IDENTIFICATION LABEL FOR VEHICLE

Vehicles with factory installed fluorescent dye have this identification label on the front side of hood.
NOTE:
• Vehicles with factory installed fluorescent dye have a green label.
• Vehicles without factory installed fluorescent dye have a blue label.

HA-12

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

HFC-134a (R-134a) Service Tool and Equipment

INFOID:0000000001396437

Never mix HFC-134a refrigerant and/or its specified oil with CFC-12 (R-12) refrigerant and/or its oil.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/oil.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or oil) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid mixed
use of the refrigerants/oil.
Adapters that convert one size fitting to another must never be used refrigerant/oil contamination will occur
and compressor failure will result.

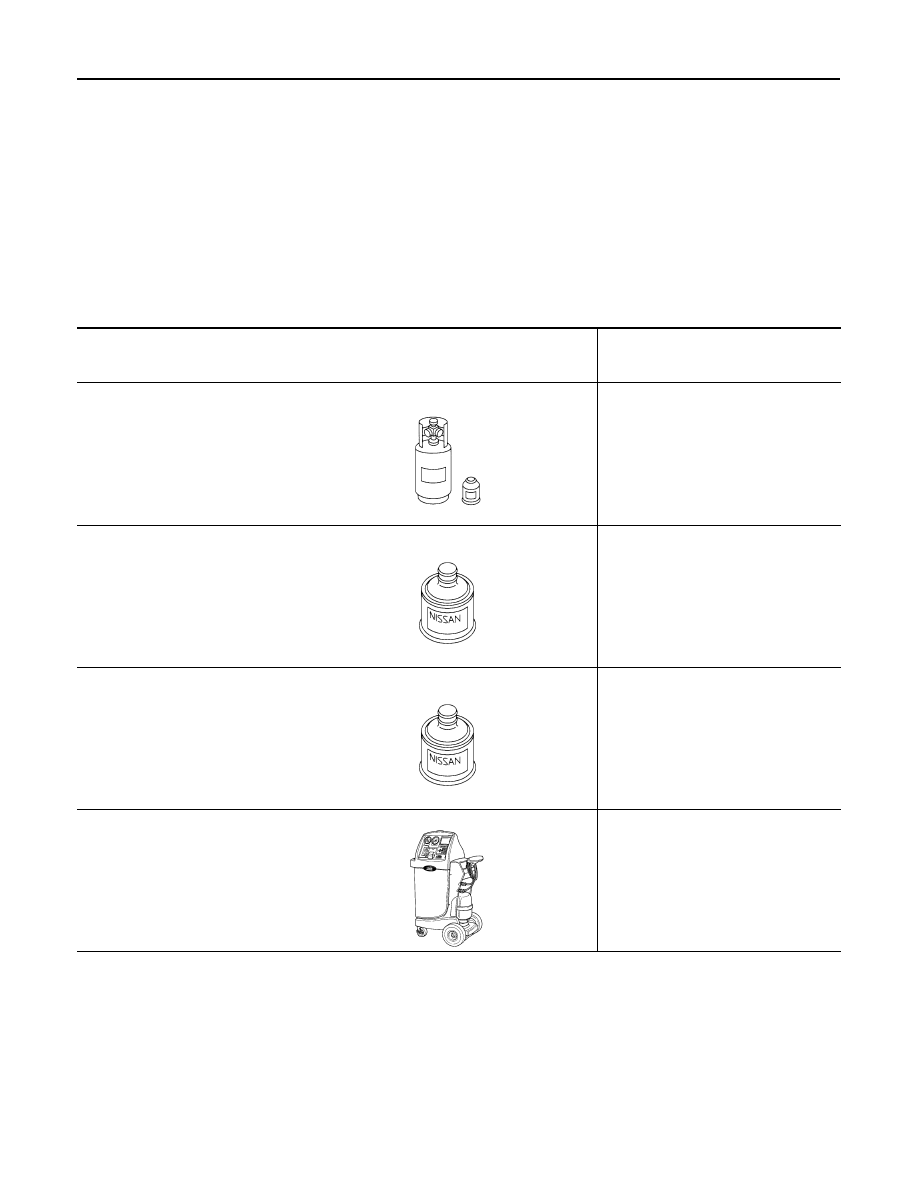

Tool number
(Kent-Moore No.)
Tool name

Description

HFC-134a (R-134a)
(

—

)

Refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
• large container 1/2”-16 ACME

—

(

—

)

NISSAN A/C System Oil Type R

Type: Poly Alkylene glycol oil (PAG),
type R
Application: HFC-134a (R-134a) vane
rotary compressors (NISSAN only)

—

(

—

)

NISSAN A/C System Oil Type S

Type: Poly Alkylene glycol oil (PAG),
type S
Application: HFC-134a (R-134a) vari-
able displacement swash plate com-
pressors (NISSAN only)

KV991J0130
(ACR2005-NI)
ACR5 A/C Service Center

Refrigerant recovery, recycling and re-
charging

S-NT196

S-NT197

S-NT197

WJIA0293E

PREPARATION

HA-13

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

—

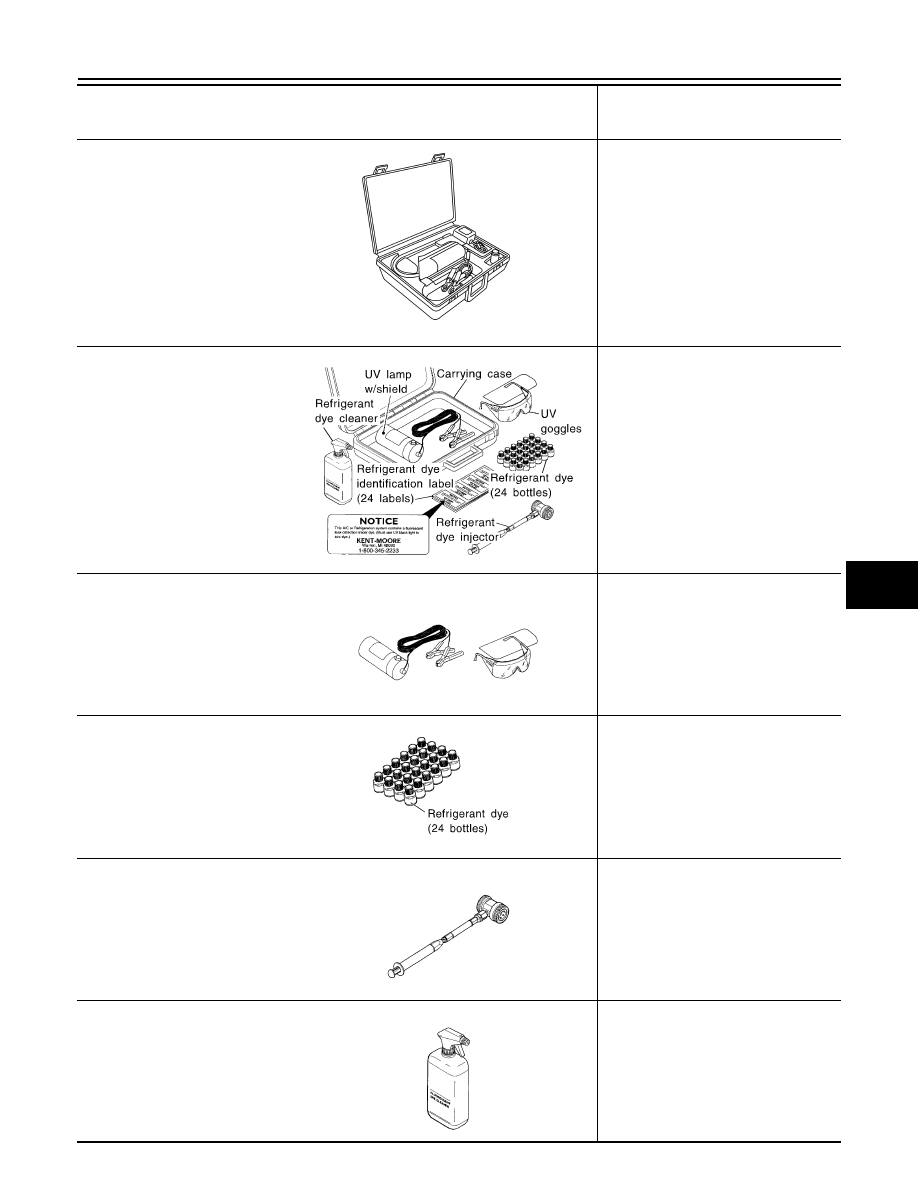

(J-41995)
Electronic refrigerant leak detector

Checking for refrigerant leaks
Power supply: DC 12V (battery termi-
nal)

—

(J-43926)
Refrigerant dye leak detection kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
Refrigerant dye injector
(J-41447)
Quantity 24, 1/4 ounce bottles of
HFC-134a (R-134a) fluorescent
leak detection dye
(J-43872)
Refrigerant dye cleaner

Leak detection dye
Power supply: DC 12V (battery termi-
nal)

—

(J-42220)
Fluorescent dye leak detector

Checking for refrigerant leaks when flu-
orescent dye is installed in A/C system.
Includes: UV lamp and UV safety gog-
gles
Power supply: DC 12V (battery termi-
nal)

—

(J-41447)
HFC-134a (R-134a) fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)

Application: For HFC-134a (R-134a)
PAG oil
Container: 1/4 ounce (7.4cc) bottle
(Includes self-adhesive dye identifica-
tion labels for affixing to vehicle after
charging system with dye.)

—

(J-41459)
HFC-134a (R-134a) Dye injector
Use with (J-41447) 1/4 ounce bot-
tles

For injecting 1/4 ounce of fluorescent
leak detection dye into A/C system.

—

(J-43872)
Refrigerant dye cleaner

For cleaning dye spills.

Tool number
(Kent-Moore No.)
Tool name

Description

AHA281A

ZHA200H

SHA438F

SHA439F

SHA440F

SHA441F

HA-14

< PREPARATION >

PREPARATION

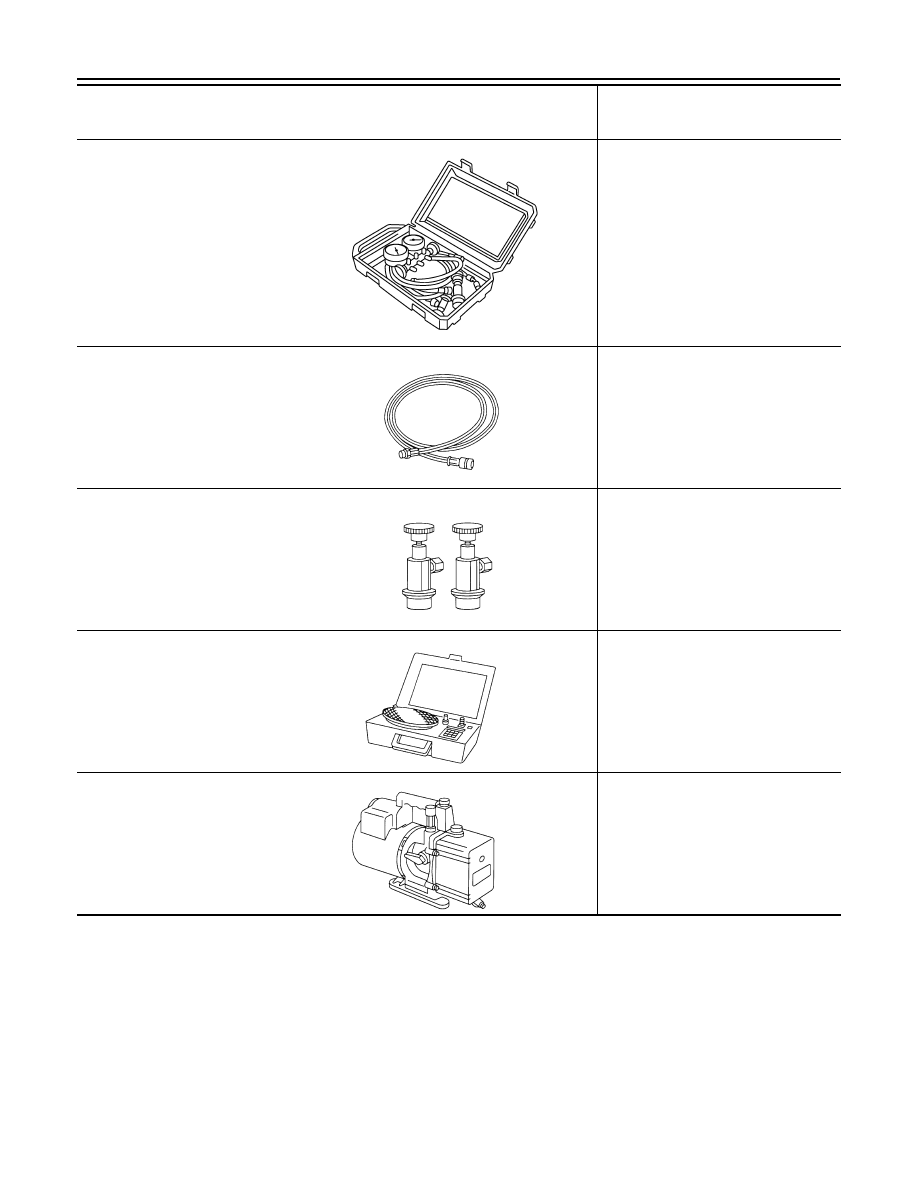

Commercial Service Tool

INFOID:0000000001396438

—

(J-39183-C)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates R-134a.

Fitting size: Thread size

• 1/2”-16 ACME

Service hoses:
• (J-39500-72B)

High side hose

• (J-39500-72R)

Low side hose

• (J-39500-72Y)

Utility hose

Hose colors:
• Low side hose: Blue with black stripe
• High side hose: Red with black stripe
• Utility hose: Yellow with black stripe

or green with black stripe
Hose fitting to gauge:

• 1/2”-16 ACME

Service couplers:
• (J-39500-20A)

High side coupler

• (J-39500-24A)

Low side coupler

Hose fitting to service hose:
• M14 x 1.5 fitting is optional or perma-

nently attached.

—

(J-39699)
Refrigerant weight scale

For measuring of refrigerant
Fitting size - thread size:
• 1/2” - 16 ACME

—

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz)

Fitting size: Thread size

• 1/2”-16 ACME

Tool number
(Kent-Moore No.)
Tool name

Description

RJIA0196E

S-NT201

S-NT202

S-NT200

S-NT203
