ROOF SIDE MOLDING

Component

INFOID:0000000001568933

Hatchback Models

Sedan Models

Removal and Installation

INFOID:0000000001568934

REMOVAL

1.

Using a suitable tool, release the rear roof side molding clip and remove.

2.

Lift up rear edge of roof side molding working forward.

3.

Release front roof side molding clip, then remove roof side molding.

INSTALLATION

Installation is in the reverse order of removal.
NOTE:

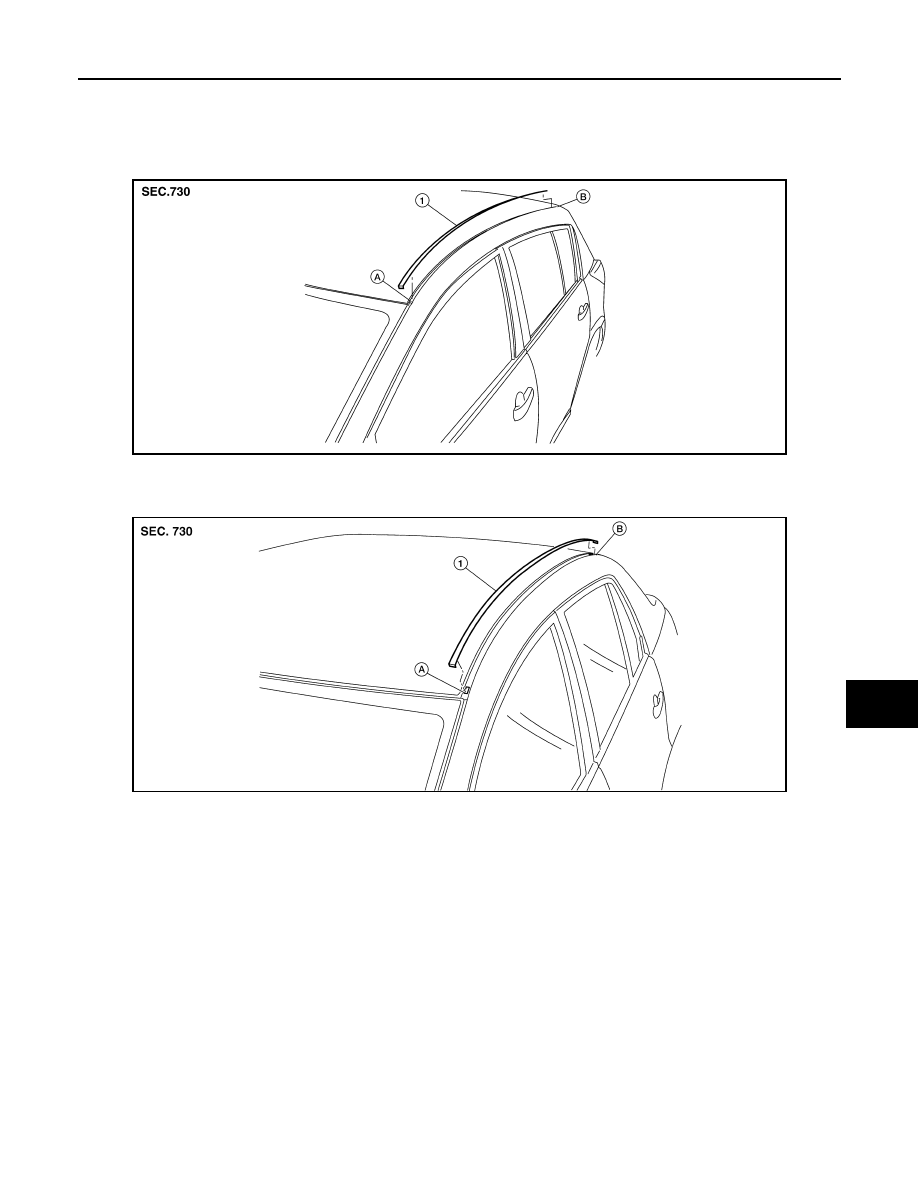

WIIA1408E

1.

Roof side molding

A.

Front roof side molding clip

B.

Rear roof side molding clip

WIIA1409E

1.

Roof side molding

A.

Front roof side molding clip

B.

Rear roof side molding clip

EXT-24

< ON-VEHICLE REPAIR >

ROOF SIDE MOLDING

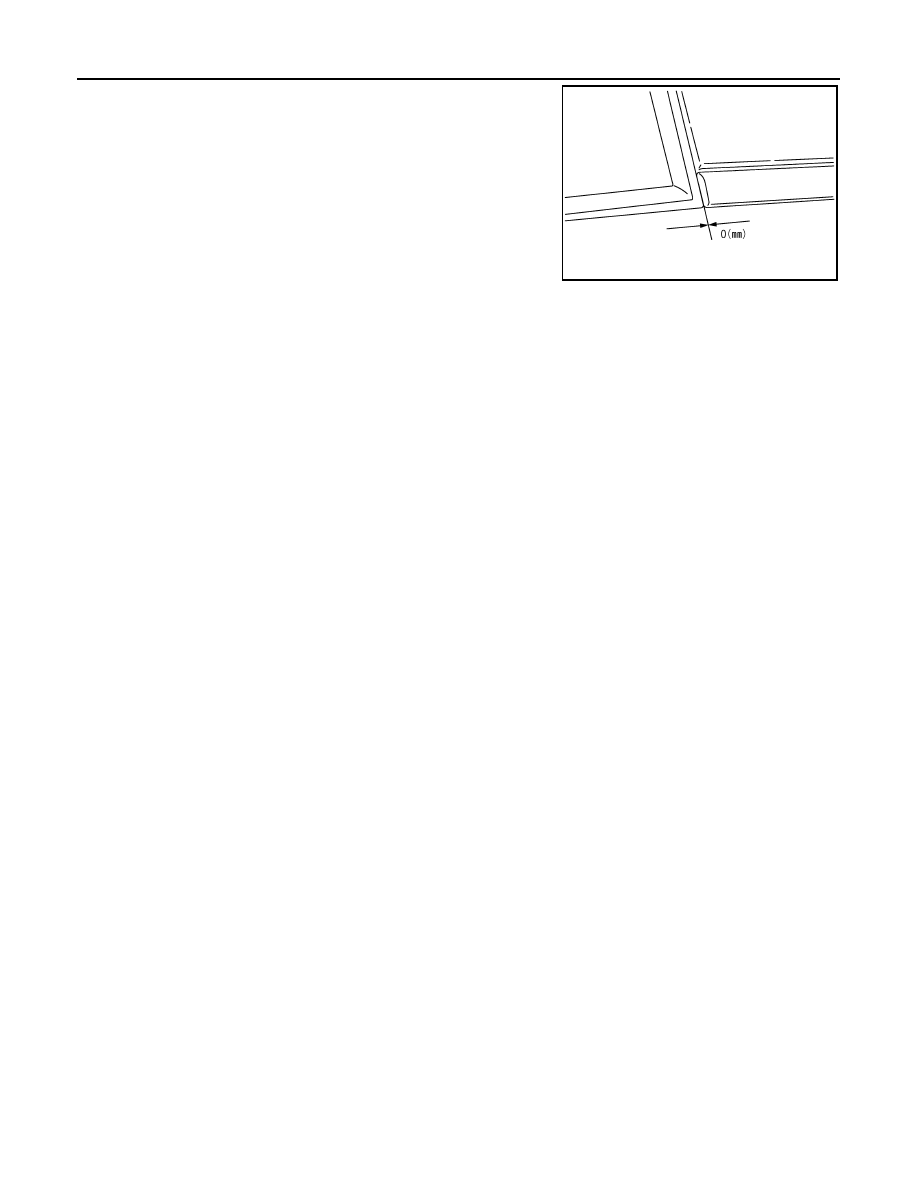

Make sure front edge of roof side molding contacts windshield mold-
ing with no gap.
NOTE:
For Setting the new clip A or B, use EPoxy Adhesive DP-100C made
by 3M. For adhesive DP-100C application use an applicator 9170
EPX W 1:1 and mixer nozzle 9742 EPX 50ML made by 3M.

PIIB2599J

DOOR OUTSIDE MOLDING

EXT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

DOOR OUTSIDE MOLDING

Component

INFOID:0000000001568935

Hatchback Models

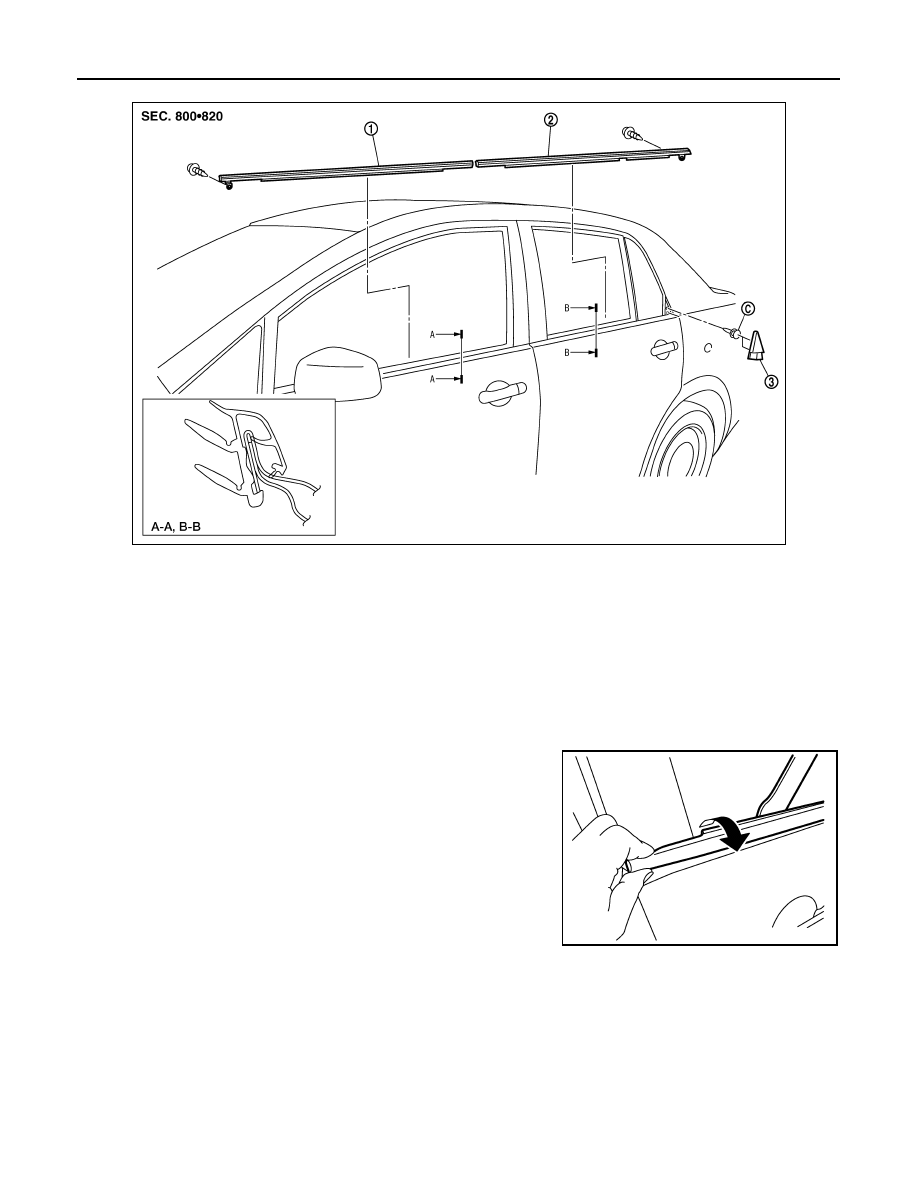

WIIA1410E

1.

Front door outside molding

2.

Rear door outside molding

3.

Rear door corner cover

C.

Clip C101

EXT-26

< ON-VEHICLE REPAIR >

DOOR OUTSIDE MOLDING

Sedan Models

Removal and Installation

INFOID:0000000001568936

FRONT DOOR OUTSIDE MOLDING

Removal

1.

Open front door window.

2.

Remove front door outside molding screw.

3.

While pulling up on front of front door outside molding, insert a
suitable tool beneath the molding and release it from the door
top edge.

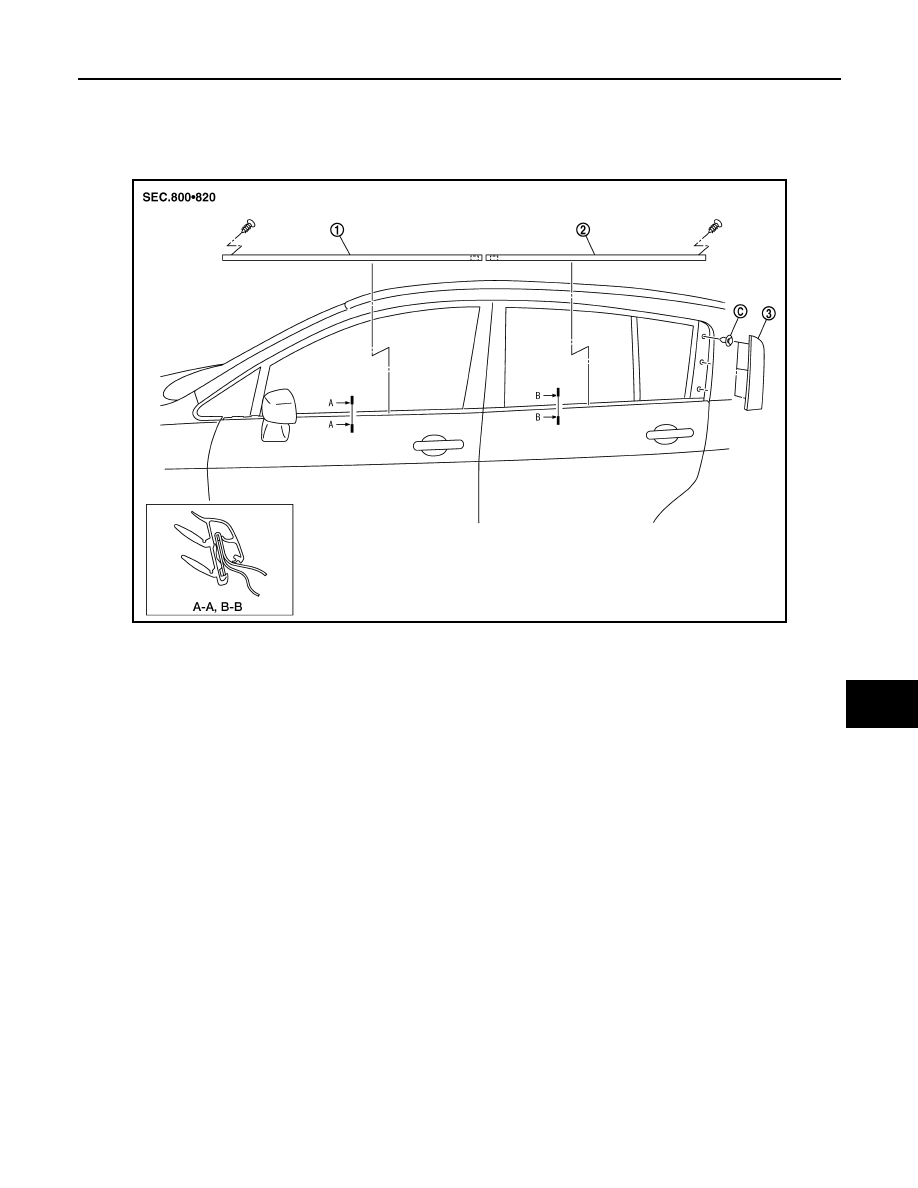

WIIA1411E
