EXL-14

< FUNCTION DIAGNOSIS >

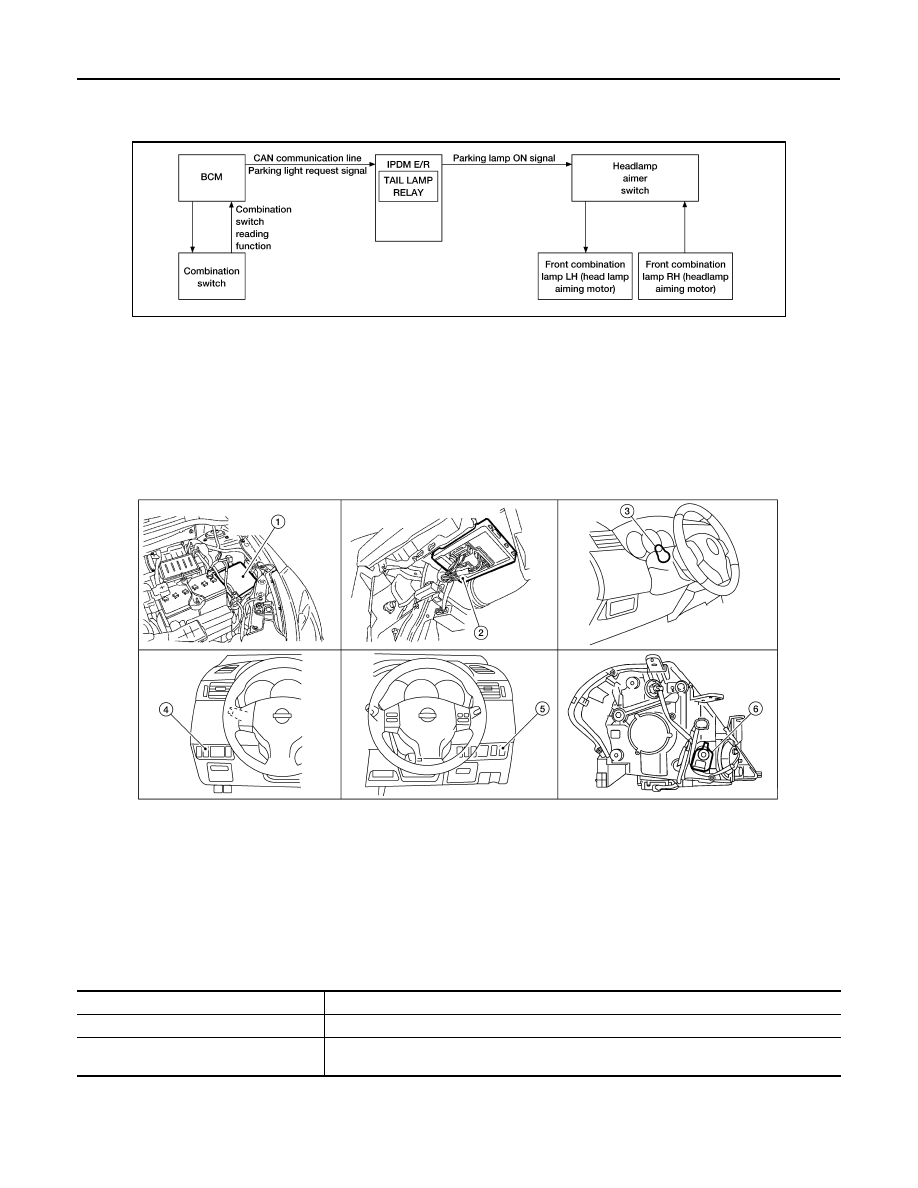

HEADLAMP AIMING SYSTEM (MANUAL)

HEADLAMP AIMING SYSTEM (MANUAL)

System Diagram

INFOID:0000000001527662

System Description

INFOID:0000000001527663

The headlamp aiming system (manual) controls the headlamp light axis height according to input from the
headlamp aimer switch.  The variable internal resistance of the headlamp aimer switch controls the signal
ground of the headlamp aiming motors located on the front combination lamp LH and RH.

Component Parts Location

INFOID:0000000001527664

Component Description

INFOID:0000000001527665

AWLIA0023GB

1.

IPDM E/R E46, E47, E48

2.

BCM M16, M17, M18, M19 (view
with glove box removed)

3.

Combination switch M28

4.

Headlamp aimer switch M56 (LHD
models)

5.

Headlamp aimer switch M56 (RHD
models)

6.

Front combination lamp (headlamp
aiming motor)
• LH E36 (shown)
• RH E37 (similar)

AWLIA0024GB

Part

Description

Headlamp aiming motor

Moves the headlamp up/down based on input from the headlamp aimer switch.

Headlamp aimer switch

Controls variable ground to the headlamp aiming motor signal to move the headlamp aim-
ing motor up/down.

HEADLAMP AIMING SYSTEM (AUTOMATIC)

EXL-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

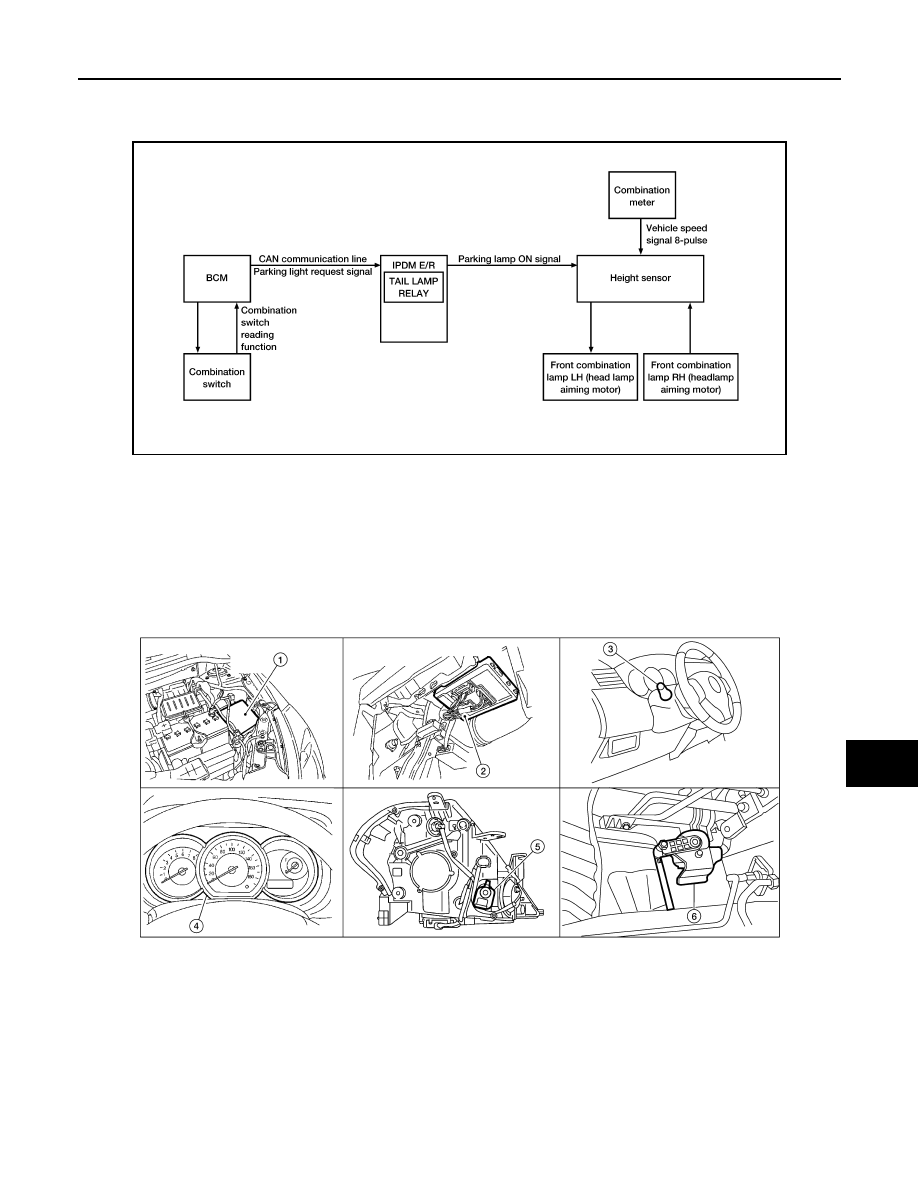

HEADLAMP AIMING SYSTEM (AUTOMATIC)

System Diagram

INFOID:0000000001527658

System Description

INFOID:0000000001527659

The headlamp aiming system (automatic) controls the headlamp light axis height appropriately according to
the vehicle height and vehicle speed as determined by the height sensor. The height sensor controls the sig-
nal ground of the headlamp aiming motors located on the front combination lamp LH and RH.

Component Parts Location

INFOID:0000000001527660

Component Description

INFOID:0000000001527661

AWLIA0025GB

1.

IPDM E/R E46, E47, E48

2.

BCM M16, M17, M18, M19 (view
with glove box removed)

3.

Combination switch M28

4.

Combination meter M24

5.

Front combination lamp (headlamp
aiming motor)
• E36 LH (shown)
• E37 RH (similar)

6.

Height sensor B47 (view above cen-
ter of rear axle)

AWLIA0026GB

EXL-16

< FUNCTION DIAGNOSIS >

HEADLAMP AIMING SYSTEM (AUTOMATIC)

Part

Description

Height sensor

Controls the headlamp aiming motor signal ground based on vehicle height and vehicle
speed.

Headlamp aiming motor

Moves the headlamp up/down based on input from the height sensor.  Located in the front
combination lamp LH and RH.

DAYTIME LIGHT SYSTEM

EXL-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

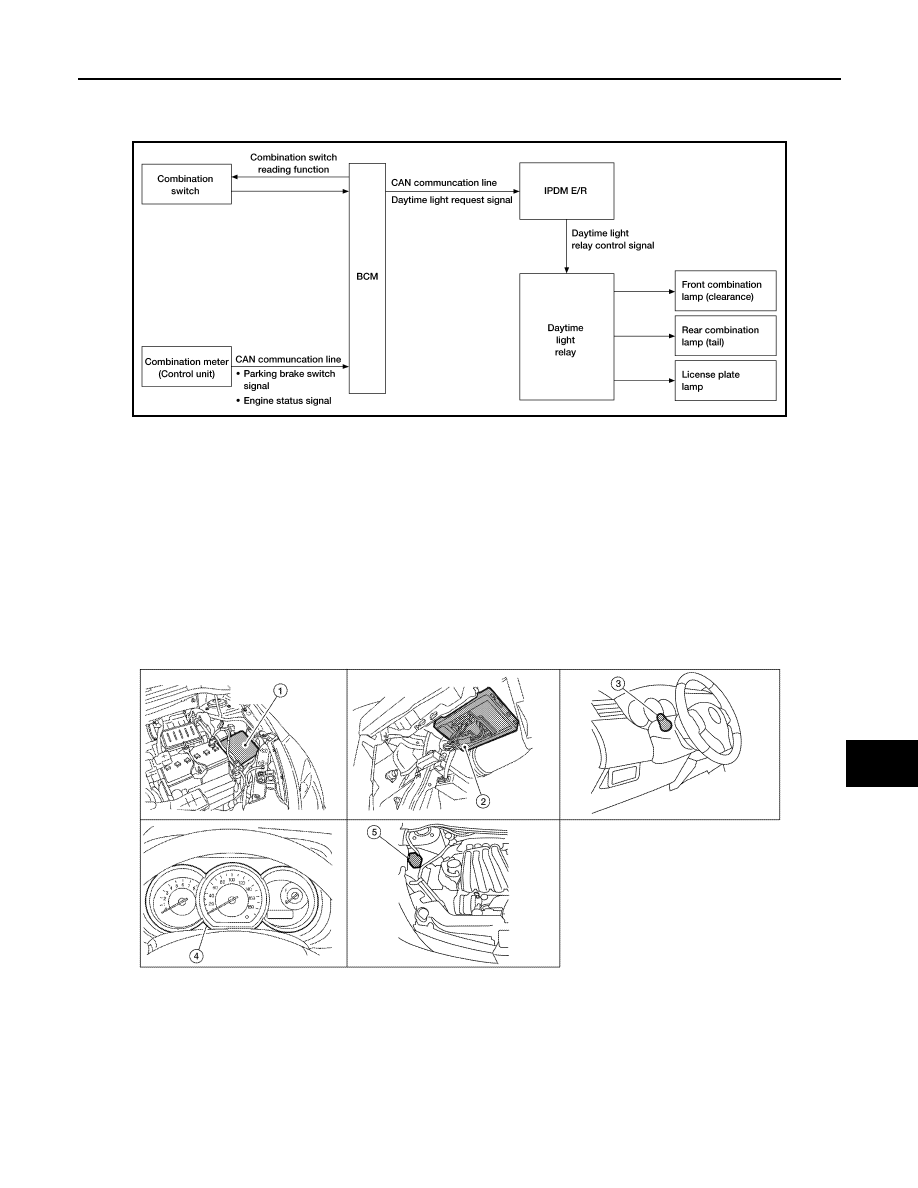

DAYTIME LIGHT SYSTEM

System Diagram

INFOID:0000000001527654

System Description

INFOID:0000000001527655

The daytime light system operates the front clearance lamps, rear tail lamps and license plate lamps. The
BCM monitors the engine running status and lighting switch (combination switch) signal to determine whether
the daytime light system should be activated. With the engine running and the lighting switch OFF, the BCM
sends a signal via CAN communication to the IPDM E/R (Intelligent Power Distribution Module Engine Room)
to activate the headlamp low relay and the daytime light relay. The IPDM E/R supplies ground to the headlamp
low relay coil and daytime light relay coil which then energize to send power to the low beam headlamps, front
clearance lamps, rear tail lamps and license plate lamps.

Component Parts Location

INFOID:0000000001527656

AWLIA0027GB

1.

IPDM E/R E46, E47, E48

2.

BCM M16, M17, M18, M19 (view with
glove box removed)

3.

Combination switch M28

4.

Combination meter M24

5.

Daytime light relay E67
