EM-260

< PREPARATION >

[K9K]

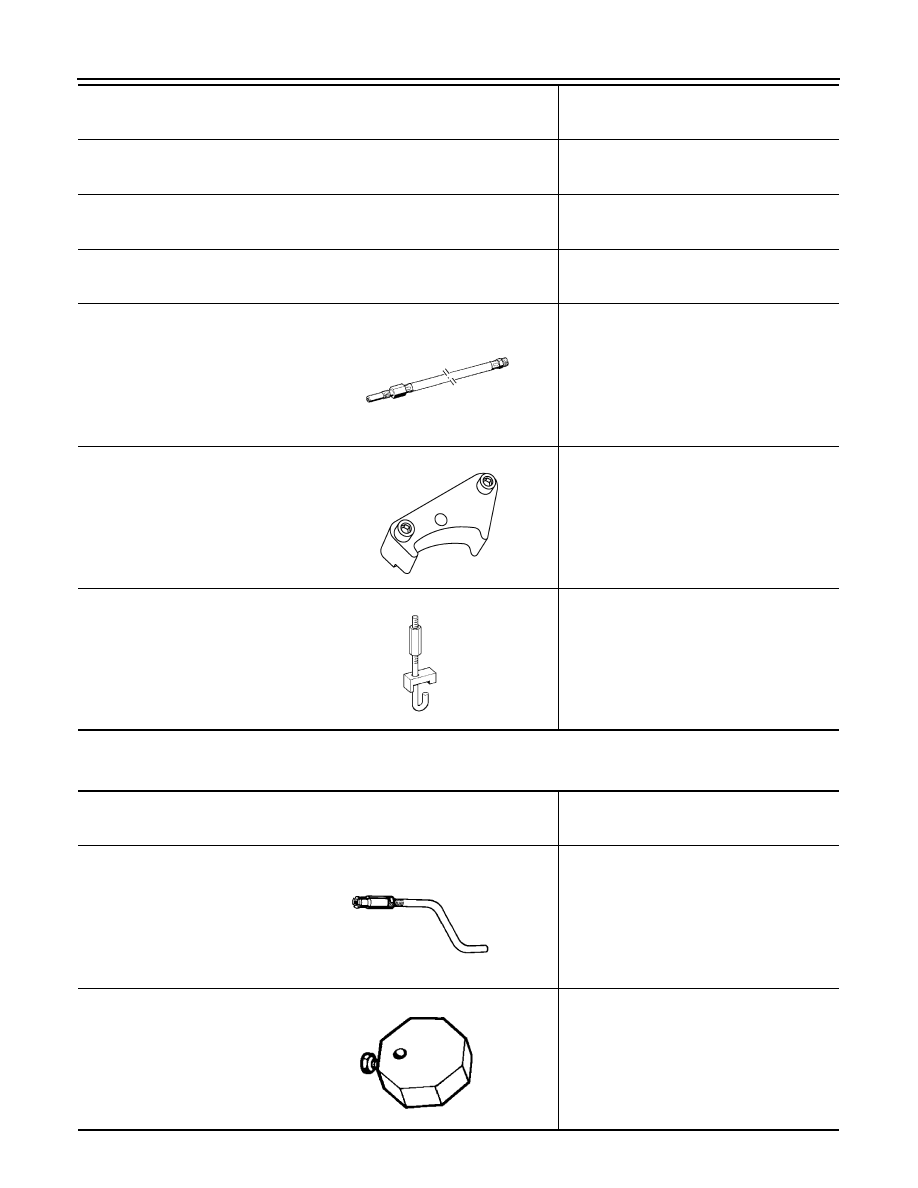

PREPARATION

Commercial Service Tools

INFOID:0000000001381460

KV113B0220
(Mot. 1586)
Front oil seal drift set

Tool for installing crankshaft seals, timing end

KV113B0230
(Mot. 1632)
Camshaft seal insert

Tool for installing inlet camshaft seals

KV113B0240
(Rou. 15-01)
Shaft protector

Internal shaft protector
16 mm (0.63 in) dia.

KV113B0400
(Mot. 1592)
Compression gauge attachment

Connecting compression gauge and glow
plug holex

—
(Mot. 1606-A)
Camshaft pulley holder

Tool for locking sprockets for toothed timing
belt

—
(Mot. 1638)
Belt tension gauge

Setting drive belt tension

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

MBIB0712E

E1BIA0053ZZ

MBIB0382E

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

KV113B0030
(Mot. 11)
Crankshaft bearing remover

Crankshaft bearing extractor

KV113B0040
(Mot. 251-01)
Dial gauge stand set

Gauge stand used with KV113B0050 (Mot.
252-01)

MBIB0359E

MBIB0360E

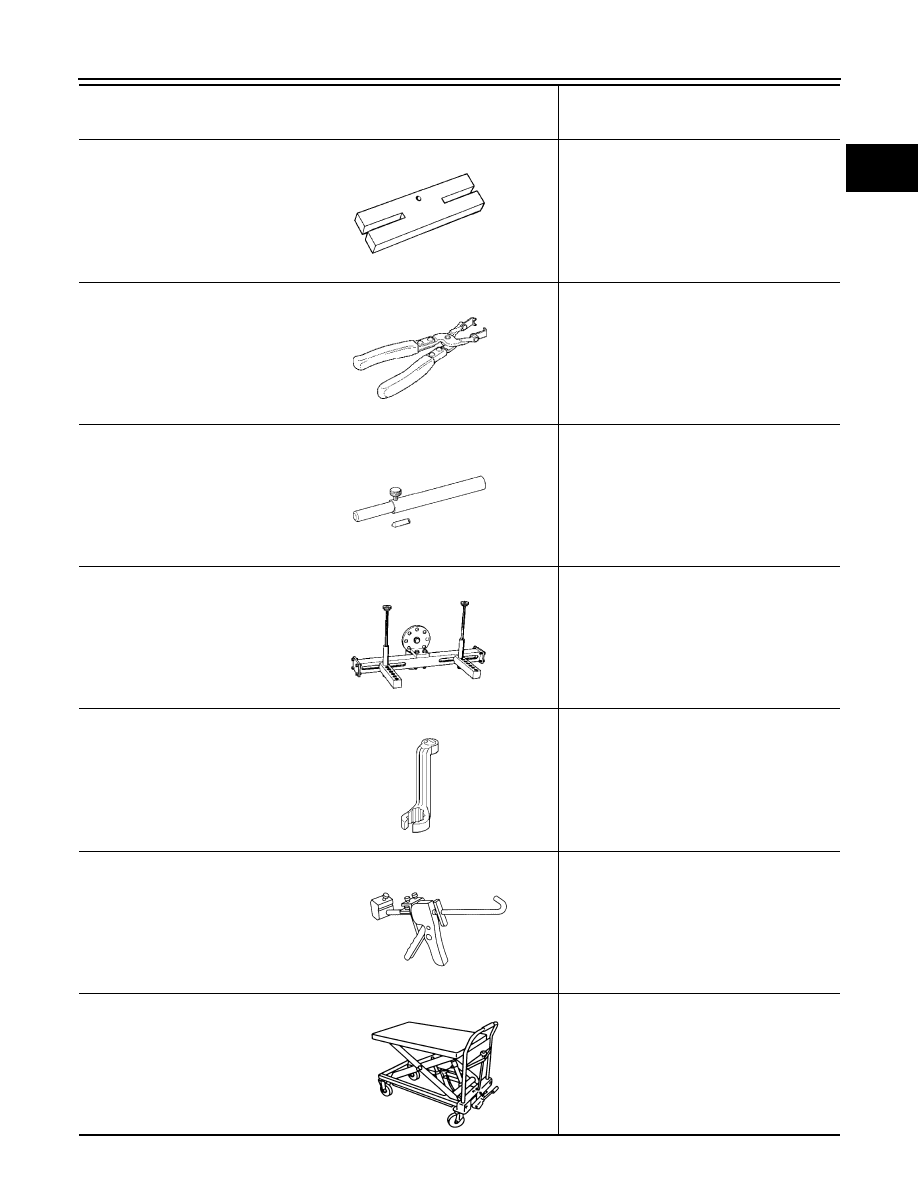

PREPARATION

EM-261

< PREPARATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

KV113B0050
(Mot. 252-01)
Dial gauge stand set

Thrust plate for measuring the protrusion of
cylinder liners used with KV113B0040 (Mot.
251-01).

KV113B0090
(Mot. 1335)
Valve seal remover

Tool for removing valve stem seals

KV113B0180
(Mot. 1511-01)
Valve seal drift

Tool for installing valve stem seals

KV113B0200
(Mot. 1573)
Cylinder head stand

Cylinder head support

KV113E0010
(Mot. 1566)
Fuel spill tube spanner

Spanner for installing and removing injection
tubes

WS39930000
(

—

)

Tube presser

Pressing the tube of liquid gasket

Manual lift table caddy

Removing and installing engine

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

MBIB0361E

MBIB0370E

MBIB0378E

MBIB0380E

MBIB0379E

NT052

ZZA1210D

EM-262

< PREPARATION >

[K9K]

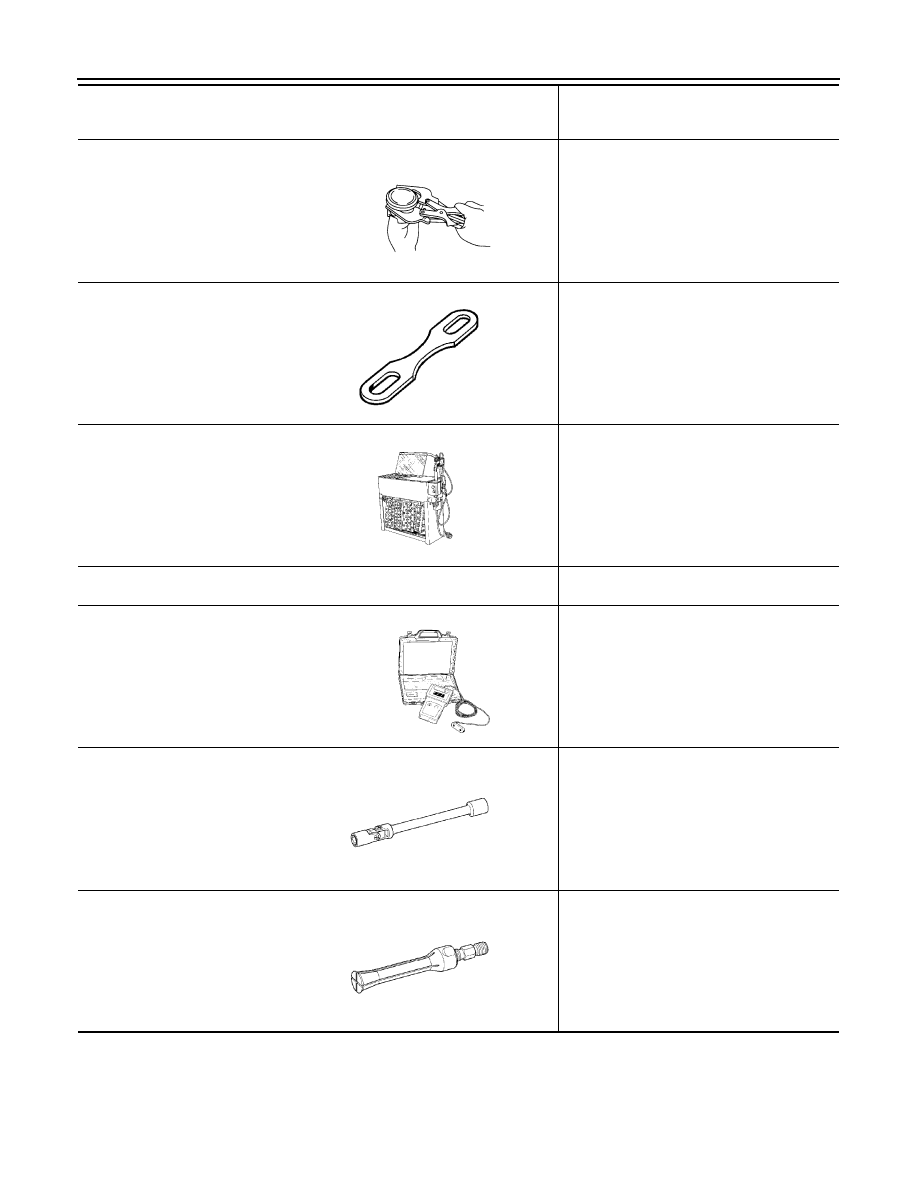

PREPARATION

Piston ring expander

Removing and installing piston ring

(Mot. 588)

Liner retaining strap

(664000)
Cylinder head test container

Tool for testing the cylinder head, including: a
tray and the various kits suited for each model
of cylinder head (plug, sealing plate, blanking
plate).

Torx socket

Standard 1/2" (12.7 mm) square drive 8/12 /14
female torx socket.

(Mot. 1505)
(Mot. 1715)
Frequency meter

Tool for belt tension checking with frequency

Glow plug wrench

Articulated wrench for removing and installing
the glow plugs

Main bearing wrench

Wrench for removing main bearings

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

NT030

MBIB0364E

MBIB0383E

MBIB1423E

MBIB0387E

MBIB0388E

DRIVE BELTS

EM-263

< ON-VEHICLE MAINTENANCE >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

ON-VEHICLE MAINTENANCE

DRIVE BELTS

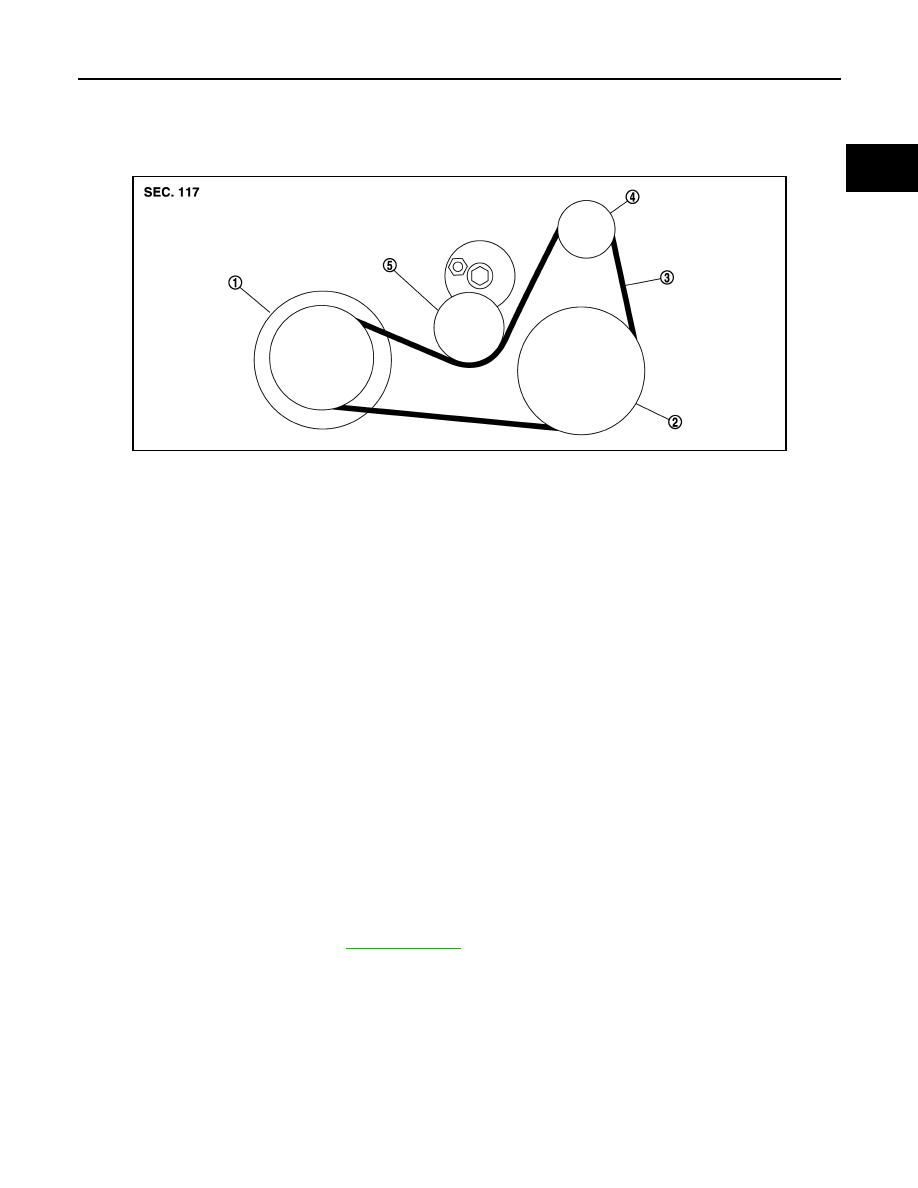

Exploded View

INFOID:0000000001381461

Inspection and Adjustment

INFOID:0000000001381462

INSPECTION

WARNING:

Be sure to perform when the engine is stopped.
1.

Inspect drive belt for cracks, fraying, wear and oil. Replace drive belt if necessary.

2.

Manually evaluate the drive belt tension (tension cannot be measured using frequency meter).

3.

Replace drive belt when tension is beyond normal operating limit.

CAUTION:

Auto-tensioner must be replaced with a new one when the belt is replaced.

ADJUSTMENT

Belt tensioning is not necessary, as it is automatically adjusted by auto-tensioner.

Removal and Installation

INFOID:0000000001381463

CAUTION:

• Replace any drive belt that has been removed with a new one.
• Auto-tensioner must be replaced with new one when the drive belt is replaced.
• Do not run the engine without the drive belt to avoid damaging the crankshaft pulley.

REMOVAL

1.

Remove engine undercover using power tool.

2.

Remove RH front wheel. Refer to

WT-6, "Rotation"

.

3.

Remove right side splash cover.

E1BIA0021ZZ

1.

Crankshaft pulley

2.

A/C compressor

3.

Drive belt

4.

Generator

5.

Drive belt auto-tensioner
