EM-172

< ON-VEHICLE REPAIR >

[MR18DE]

IGNITION COIL

IGNITION COIL

Component

INFOID:0000000001346465

Removal and Installation

INFOID:0000000001346466

REMOVAL

1.

Remove intake manifold. Refer to

EM-156, "Removal and Installation"

.

2.

Remove ignition coil.

CAUTION:

• Handle it carefully and avoid impacts.
• Never disassemble.

INSTALLATION

1.

Install ignition coil.

CAUTION:

• Handle it carefully and avoid impacts.
• Never disassemble.

2.

Install intake manifold. Refer to

EM-156, "Removal and Installation"

.

1.

PCV hose

2.

Rocker cover

3.

Spark plug

4.

Ignition coil

5.

PCV hose

6.

PCV valve

7.

O-ring

8.

Gasket

A.

To air duct

B.

Refer to

EM-173

.

C.

To intake manifold

PBIC3536J

ROCKER COVER

EM-173

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

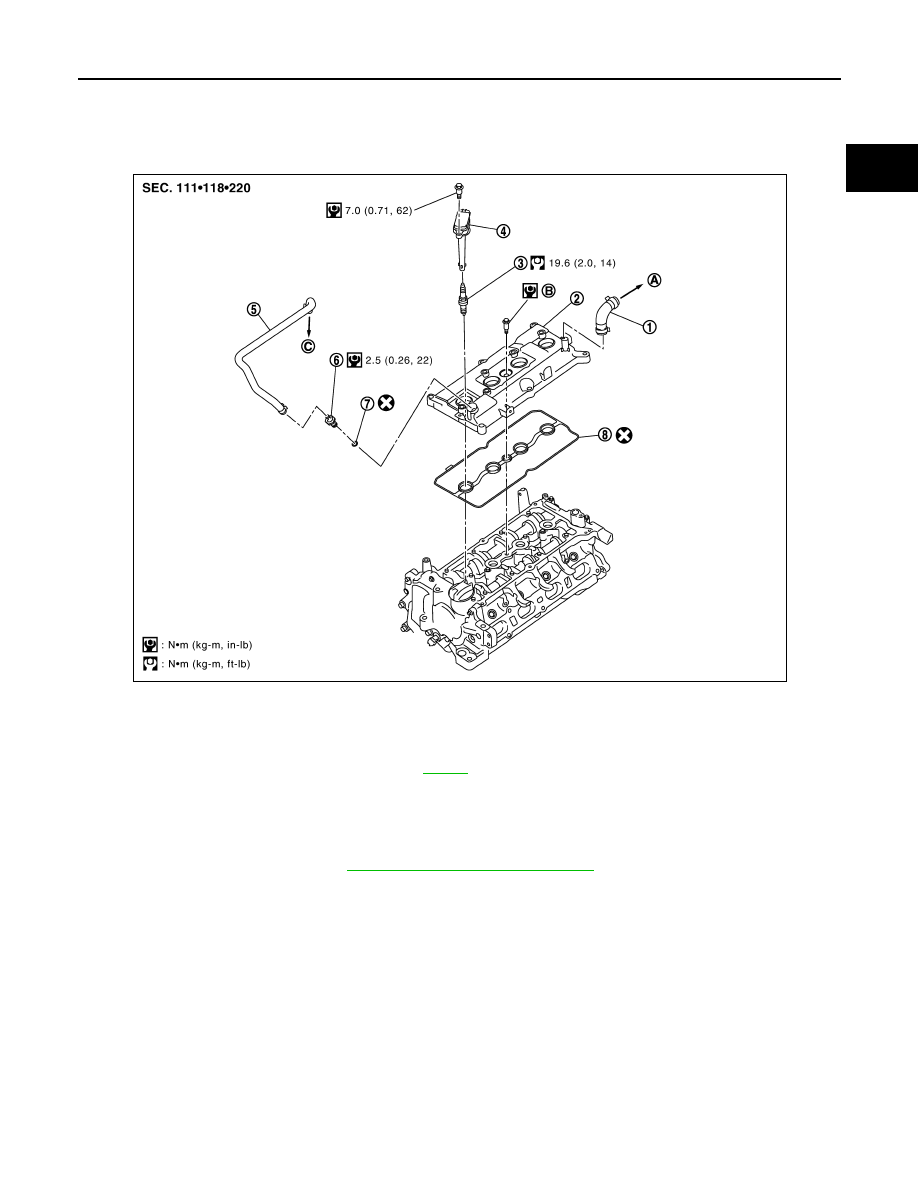

ROCKER COVER

Component

INFOID:0000000001346467

Removal and Installation

INFOID:0000000001346468

REMOVAL

1.

Remove intake manifold. Refer to

EM-156, "Removal and Installation"

.

2.

Remove ignition coil.

CAUTION:

• Handle it carefully and avoid impacts.
• Never disassemble.

1.

PCV hose

2.

Rocker cover

3.

Spark plug

4.

Ignition coil

5.

PCV hose

6.

PCV valve

7.

O-ring

8.

Gasket

A.

To air duct

B.

Refer to

EM-173

.

C.

To intake manifold

PBIC3536J

EM-174

< ON-VEHICLE REPAIR >

[MR18DE]

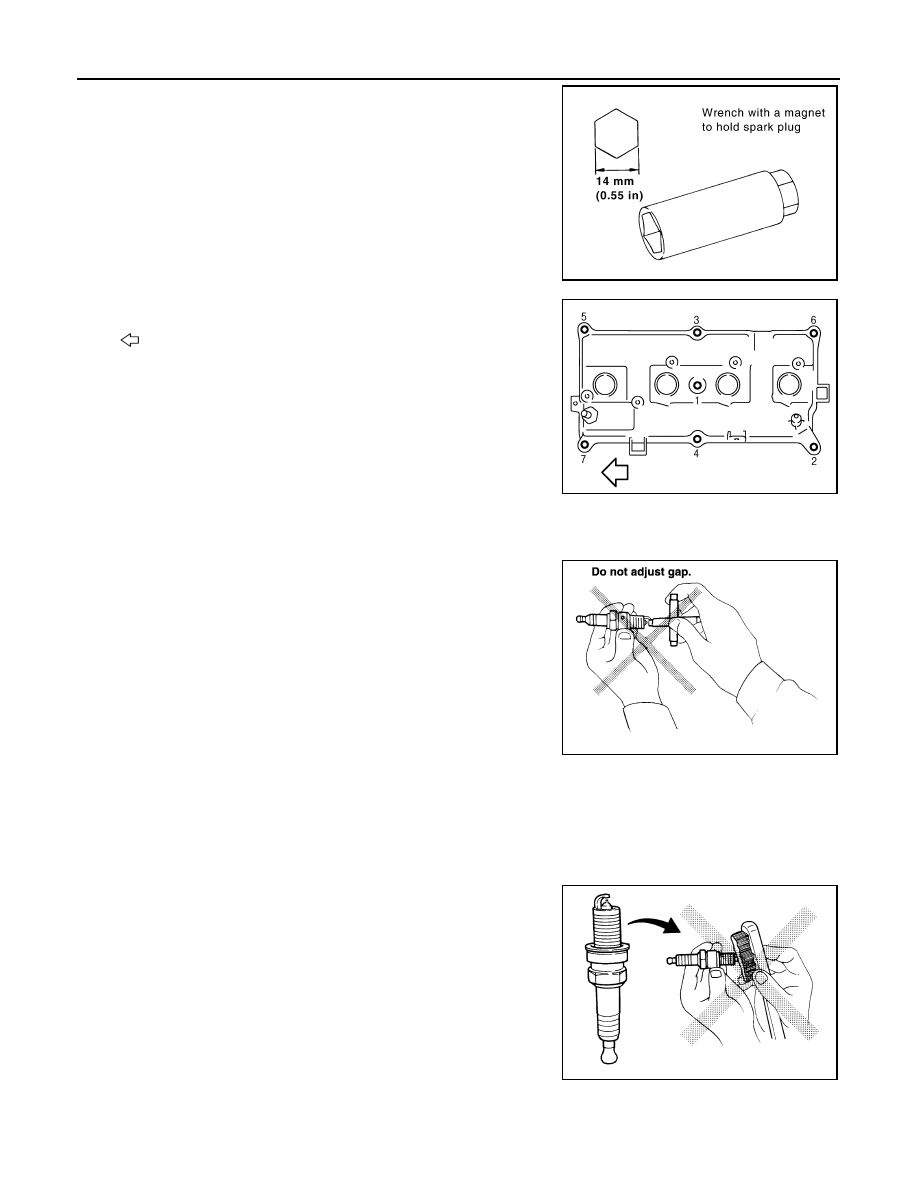

ROCKER COVER

3.

Remove spark plug using suitable tool.

CAUTION:

Never drop or shock it.

4.

Remove rocker cover.
• Loosen bolts in reverse order as shown.
•

 Engine front

INSPECTION AFTER REMOVAL

CAUTION:

• Never drop or shock spark plug.
• Checking and adjusting spark plug gap is not required

between change intervals.

• If spark plug tip is covered with carbon, a spark plug cleaner may be used.

• Never use wire brush for cleaning spark plug.

INSTALLATION

1.

Install rocker cover gasket to rocker cover.

PBIC3871E

PBIC3151J

SMA806CA

Cleaner air pressure

: Less than 588 kPa (5.88 bar, 6 kg/cm

2

, 85 psi)

Cleaning time

: Less than 20 seconds

SMA773C

ROCKER COVER

EM-175

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

Install rocker cover.
• Tighten bolts in two steps separately in numerical order as

shown.

•

 Engine front

CAUTION:

Check if rocker cover gasket is not dropped from the instal-
lation groove of rocker cover.

3.

Install spark plug using suitable tool.

CAUTION:

Never drop or shock it.

4.

Install ignition coil.

CAUTION:

• Handle it carefully and avoid impacts.
• Never disassemble.

5.

Install intake manifold. Refer to

EM-156, "Removal and Installation"

.

 1st step

: 1.96 N·m (0.20 kg-m, 17 in-lb)

 2nd step

: 8.33 N·m (0.85 kg-m, 73 in-lb)

PBIC3151J

PBIC3871E
