COMPRESSION PRESSURE

• If compression pressure is below minimum value, check valve clearances and parts associated with

combustion chamber (Valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure the compression pressure again.

• If some cylinder has low compression pressure, pour small amount of engine oil into the spark plug hole

of the cylinder to re-check it for compression.

- If the added engine oil improves the compression, piston rings may be worn out or damaged. Check pis-

ton rings and replace if necessary.

- If the compression pressure remains at low level despite the addition of engine oil, valves may be mal-

functioning. Check valves for damage. Replace valve or valve seat accordingly.

• If two adjacent cylinders have respectively low compression pressure and their compression remains

low even after the addition of engine oil, cylinder head gasket is leaking. In such a case, replace cylinder
head gasket.

9.

After inspection is completed, install removed parts.

10. Start the engine, and confirm that the engine runs smoothly.

11. Perform trouble diagnosis. If DTC appears, erase it. Refer to

EC-781, "Description"

.

DRIVE BELT AUTO TENSIONER

EM-153

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

ON-VEHICLE REPAIR

DRIVE BELT AUTO TENSIONER

Component

INFOID:0000000001337780

Removal and Installation of Drive Belt Auto Tensioner

INFOID:0000000001337781

REMOVAL

1.

Remove drive belt. Refer to

EM-142, "Removal and Installation"

.

2.

Release the fixed drive belt auto-tensioner pulley.

3.

Loosen bolt and remove drive belt auto-tensioner.
NOTE:
Use TORX socket (size T50).

4.

Remove idler pulley and bracket (models without A/C).

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

• When installing drive belt auto-tensioner, be careful not to interfere with water pump pulley.
• If there is damage greater than peeled paint, replace drive belt auto-tensioner and/or idler pulley.

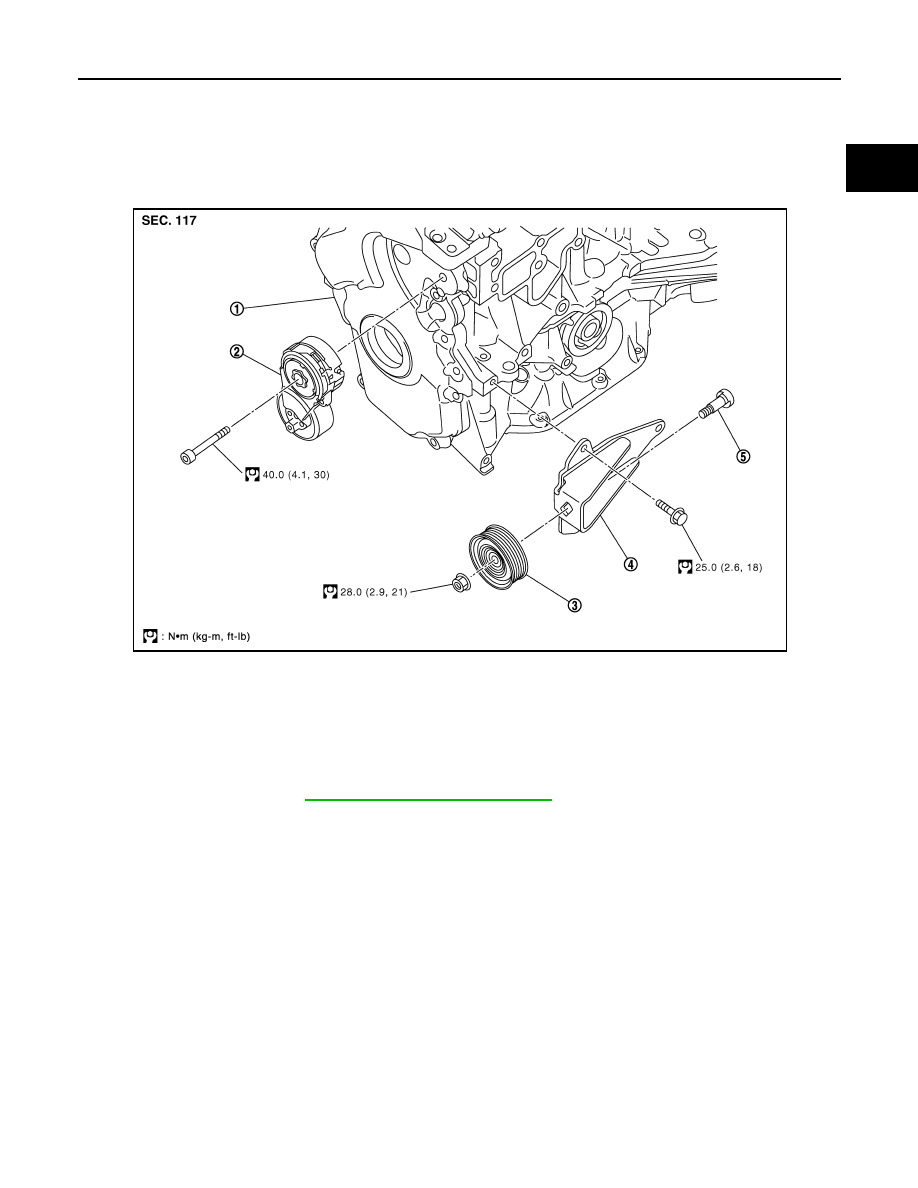

1.

Front cover

2.

Drive belt auto–tensioner

3.

Idler pulley (models without A/C)

4.

Bracket (models without A/C)

5.

Shaft (models without A/C)

PBIC4698E

EM-154

< ON-VEHICLE REPAIR >

[MR18DE]

AIR CLEANER AND AIR DUCT

AIR CLEANER AND AIR DUCT

Component

INFOID:0000000001337782

Removal and Installation

INFOID:0000000001337783

REMOVAL

1.

Remove the air duct (inlet).

2.

Remove the air cleaner filter from the air cleaner case. Refer to

EM-144, "Removal and Installation"

.

3.

Remove the air duct [between air duct (inlet) and air cleaner case] from the air cleaner case.

4.

Remove the PCV hose.

5.

Remove the air duct (between air cleaner case and electronic throttle control actuator).
• Add marks as necessary for easier installation.

6.

Remove air cleaner case with the following procedure.

a.

Remove battery. Refer to

PG-6, "Removal and Installation"

.

b.

Disconnect harness connector from mass air flow sensor.

c.

Remove the air cleaner case.

7.

Remove the mass air flow sensor from the air cleaner case, if necessary.

CAUTION:

• Handle it carefully and avoid impacts.
• Do not touch sensor part.

INSTALLATION

Installation is in the reverse order of removal.

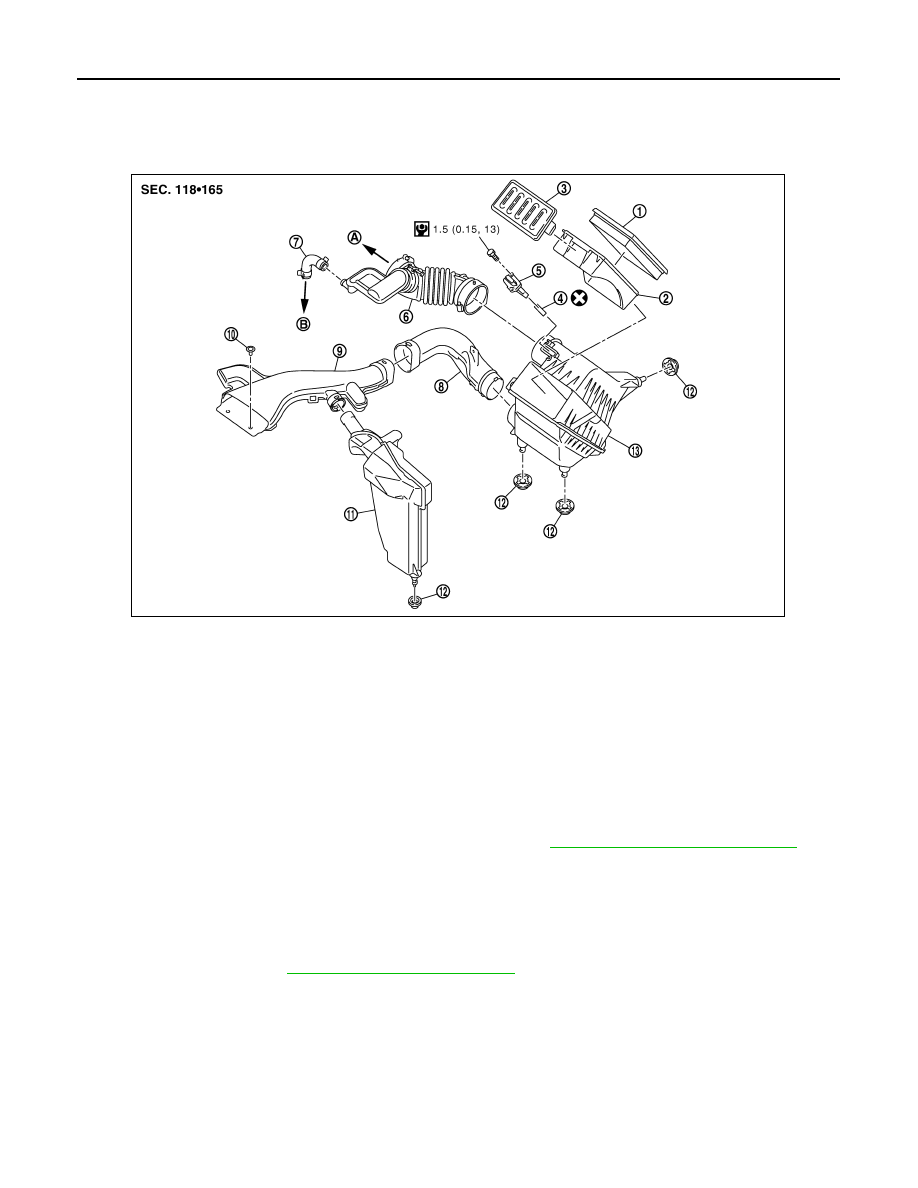

1.

Air cleaner filter

2.

Holder

3.

Air cleaner cover

4.

Seal

5.

Mass air flow sensor

6.

Air duct

7.

PCV hose

8.

Air duct (Inlet)

9.

Air duct (Front)

10. Clip

11. Resonator

12. Grommet

13. Air cleaner case

A.

To electronic throttle control actuator

B.

To rocker cover

WBIA0770E

AIR CLEANER AND AIR DUCT

EM-155

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Align marks.
• Attach each joint securely.
• Screw clamps firmly.
