EM-64

< ON-VEHICLE REPAIR >

[HR16DE]

CAMSHAFT

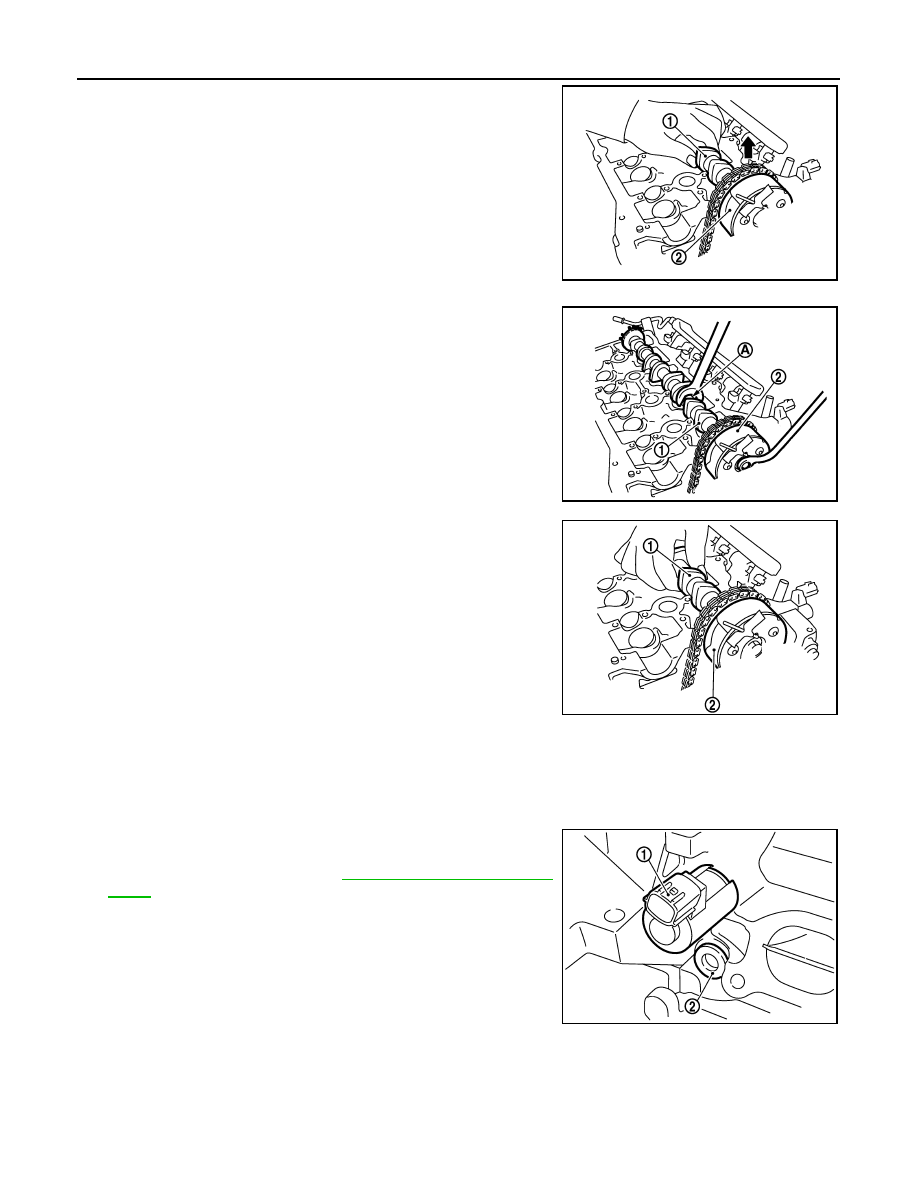

15. Remove the camshaft (INT) (1) and the camshaft sprocket (INT)

(2) with the following procedure.

a.

Keeping the camshaft hexagonal part (A) still with the wrench,
loosen the bolts for the camshaft sprocket (INT) (2).

b.

Disassemble the camshaft (1) from the camshaft sprocket (INT)
(2).

c.

Remove camshaft (INT).

CAUTION:

Never damage the signal plate of rear end.

16. Remove valve lifter.

• Identify installation positions, and store them without mixing them up.

17. Remove intake valve timing control solenoid valve (1).
18. Remove the generator and bracket, remove the plug (2), and

then remove the oil filter. Refer to

CHG-15, "Removal and Instal-

lation"

.

INSTALLATION

AWBIA0108ZZ

1

:Camshaft (INT)

AWBIA0109ZZ

AWBIA0110ZZ

PBIC3692E

CAMSHAFT

EM-65

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1.

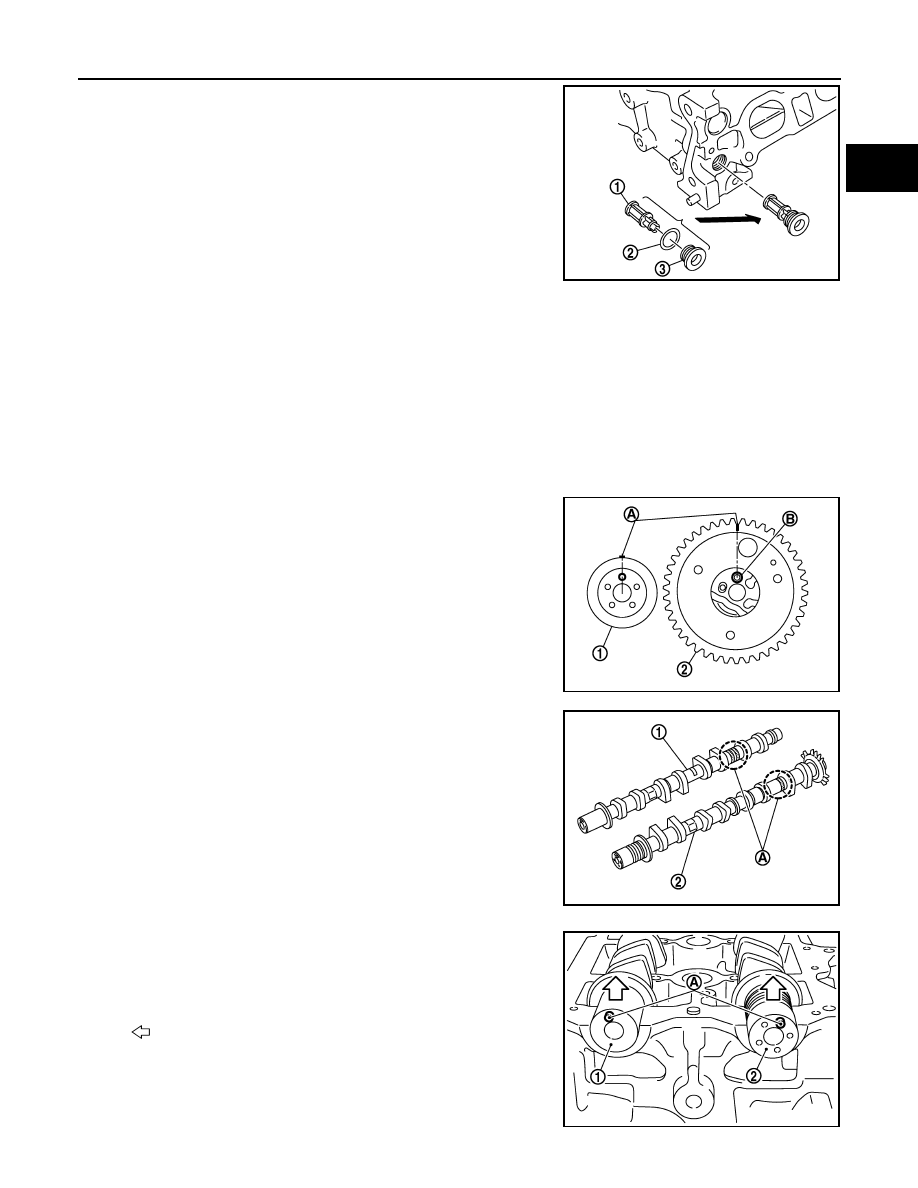

Install the oil filter (1).

• The oil filter is assembled to the plug (3), and then install it to

the cylinder head.

2.

Install intake valve timing control solenoid valve.
• Insert it straightly into the cylinder head.
• Tighten bolts after placing it completely.

3.

Install valve lifter.
• If it is reused, install in its original positions.

4.

Put a matching mark for positioning the camshaft (INT) and the camshaft sprocket (INT) with the following
procedure.
NOTE:
It prevents the knock pin from engaging with the incorrect pin hole after installing the camshaft (INT) and
the camshaft sprocket (INT).

a.

Put the matching marks (A) on a line extending from the knock
pin position of camshaft (INT) (1) front surface.
• Put the marks on the visible position with the camshaft

sprocket installed. (Example shown)

b.

Put the matching marks on a line extending from the knock pin
hole (B) position of camshaft sprocket (INT) (2). (Example
shown)
• Put the marks on the visible position with it installed to the

camshaft.

5.

Install camshaft.

• Distinction between camshaft (INT and EXH) is performed with

the different shapes of rear end.

• Install camshafts to the cylinder head so that knock pins (A) on

front end are positioned as shown.

NOTE:
Though camshaft does not stop at the portion as shown, for the
placement of cam nose, it is generally accepted camshaft is
placed for the same direction.

2

:  Washer

PBIC3695E

PBIC3696E

1

: Camshaft (EXH)

2

: Camshaft (INT)

A

: Identification mark

PBIC3698E

1

: Camshaft (EXH)

2

: Camshaft (INT)

: Upper side

PBIC3699E

EM-66

< ON-VEHICLE REPAIR >

[HR16DE]

CAMSHAFT

6.

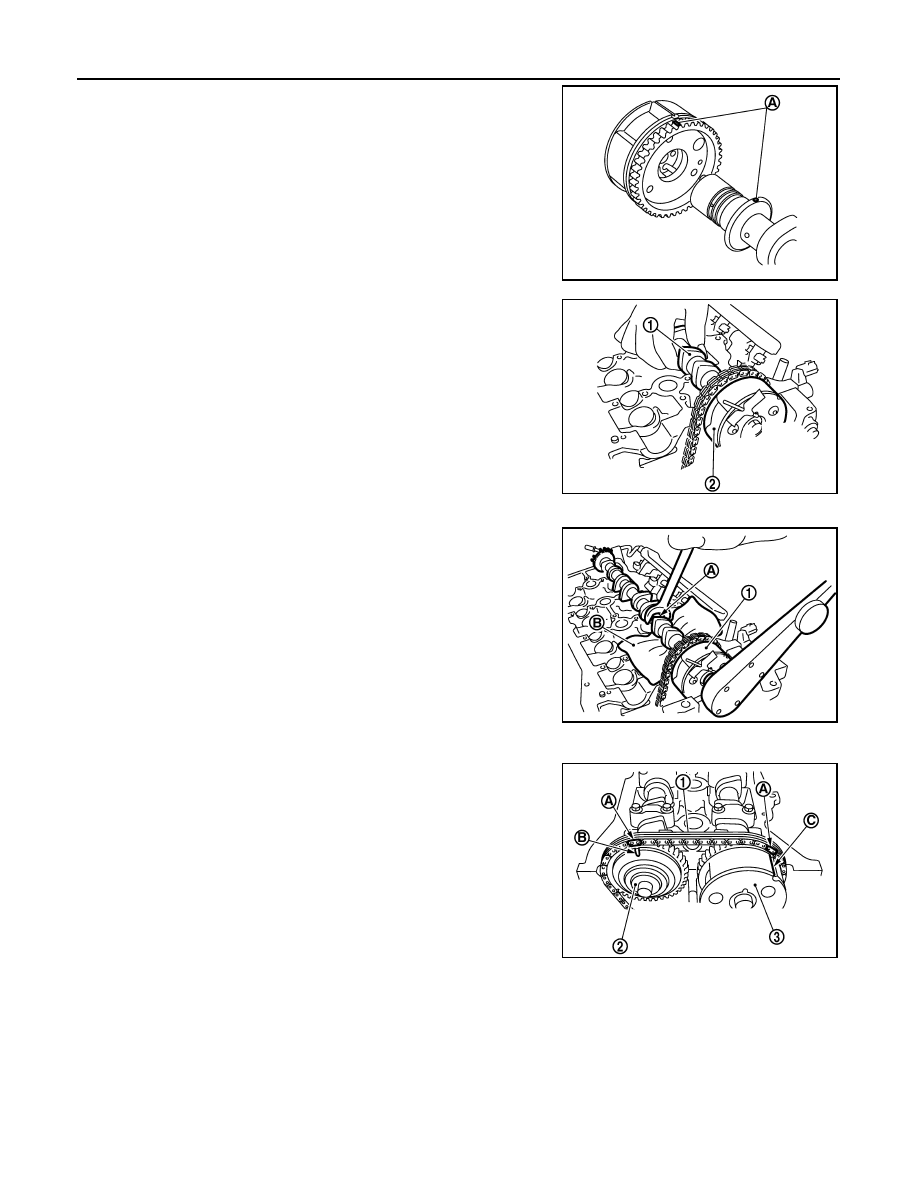

Install the camshaft sprocket (INT) to the camshaft (INT) with the
following procedure.

a.

Align the matching mark (A) put according to step “4”. Securely
align the knock pin and the pin hole, and then install them.

b.

Temporarily tighten the bolt on the front side of camshaft (INT)
(1).

7.

Put a thick shop cloth (B) to the lower surface, and then set the
tools to the bolt camshaft (INT) (1).

8.

Tighten the mounting bolt.

CAUTION:

Hold the camshaft hexagonal part (A), and then secure the
camshaft.

9.

Return the camshaft (INT) to the cylinder head carefully.

10. Install the camshaft (EXH) to the camshaft sprocket (EXH) (2)

while aligning the matching make (marked when timing chain is
removed) (A) and the matching mark (stamp) (B) of camshaft
sprocket (EXH).

• If the positions of knock pin and pin groove are not aligned,

move the camshaft (EXH) slightly to correct these positions.

PBIC3700E

2

: Camshaft sprocket (INT)

AWBIA0110ZZ

PBIC3701E

1

: Timing chain

3

: Camshaft sprocket (INT)

C

: Matching mark (peripheral stamp line)

AWBIA0112ZZ

CAMSHAFT

EM-67

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

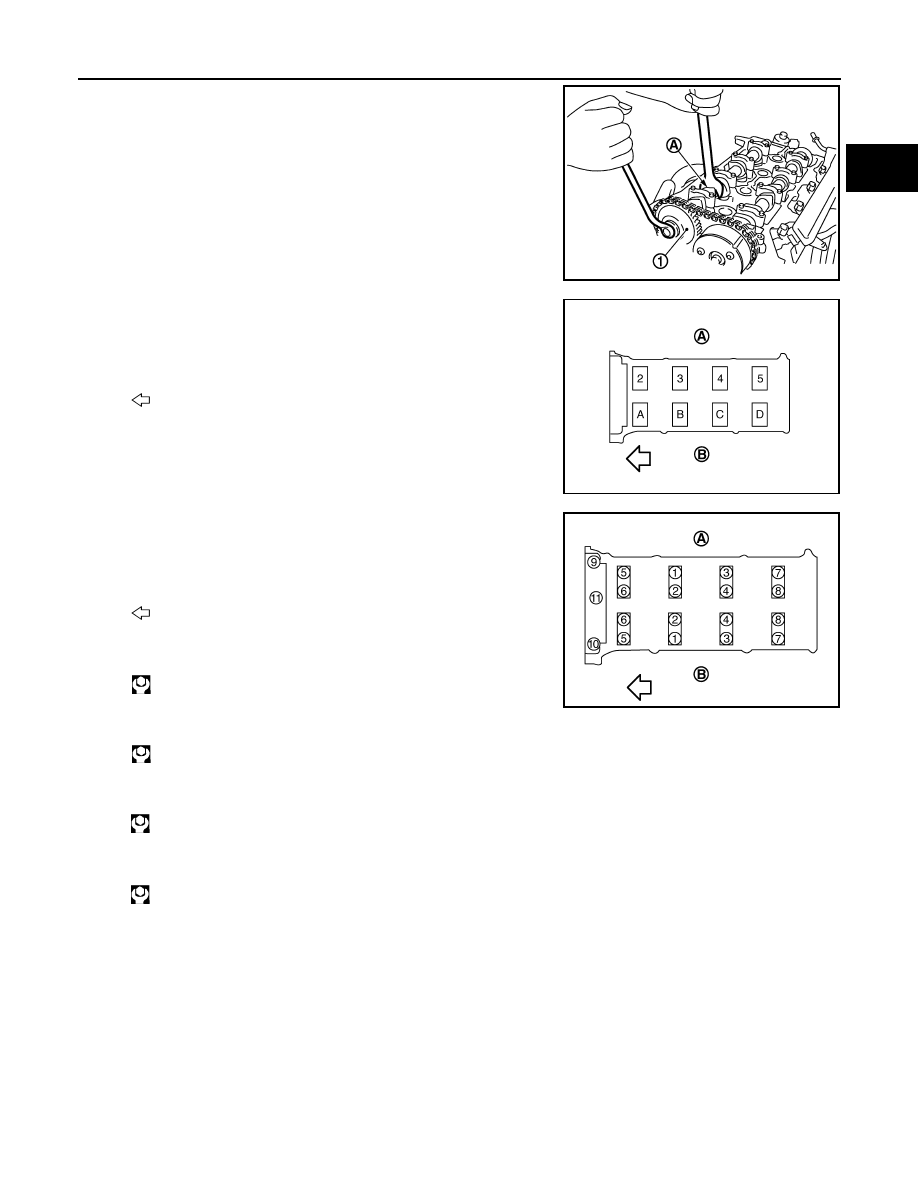

11. Tighten the mounting bolt.

CAUTION:

• Hold the camshaft hexagonal part (A), and then secure the

camshaft.

• Make sure that the matching mark (marked when timing

chain is removed) and each camshaft sprocket matching
mark are in the correct location.

12. Install camshaft brackets (No. 2 to 5) aligning the identification

marks on upper surface as shown.

• Install so that identification mark can be correctly read when

viewed from the INT side.

13. Tighten mounting bolts of camshaft brackets in the following

steps, in numerical order as shown.

a.

Tighten No. 9 to 11 in numerical order.

b.

Tighten No. 1 to 8 in numerical order.

c.

Tighten all bolts in numerical order.

d.

Tighten all bolts in numerical order.

1

: Camshaft sprocket (EXH)

AWBIA0102ZZ

A

: EXH side

B

: INT side

: Engine front

PBIC3703E

A

: EXH side

B

: INT side

: Engine front

 : 2.0 N·m (0.2 kg-m, 1 ft-lb)

 : 2.0 N·m (0.2 kg-m, 1 ft-lb)

 : 5.9 N·m (0.6 kg-m, 4 ft-lb)

 : 10.4 N·m (1.1 kg-m, 8 ft-lb)

PBIC3686E
