ENGINE EMITS WHITE SMOKE (ESPECIALLY WHEN STARTING)

ENGINE EMITS WHITE SMOKE (ESPECIALLY WHEN STARTING)

Description

INFOID:0000000001162739

CHART 21: ENGINE EMITS WHITE SMOKE (ESPECIALLY WHEN STARTING)

Diagnosis Procedure

INFOID:0000000001162740

1.

CHECK FUEL

Check that the fuel reservoir is correctly filled and with the right fuel.

>> GO TO 2.

2.

CHECK COOLING SYSTEM

Check the cooling system. Refer to

CO-53, "Troubleshooting Chart"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace.

3.

CHECK GLOW SYSTEM

Check the glow system. Refer to

EC-1156, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace glow system. Refer to

EM-279, "Removal and Installation"

4.

CHECK MAJOR LEAK IN FUEL INJECTOR/FUEL INJECTORS OPEN

Perform the TEST 6: MAJOR LEAK IN FUEL INJECTOR/FUEL INJECTORS OPEN. Refer to

EC-1052,

"BASIC INSPECTION : Special Repair Requirement (TEST 6: Major Leak in Fuel Injectors/Fuel Injectors
Open)"

.

>> GO TO 5.

5.

CHECK INCORRECT FUEL INJECTION QUANTITY

Perform the TEST 7: INCORRECT FUEL INJECTION QUANTITY. Refer to

EC-1053, "BASIC INSPECTION :

Special Repair Requirement (TEST 7: Incorrect Fuel Injection Quantity)"

.

>> INSPECTION END

EMISSION CONTROL NOT SATISFACTORY

EC-1291

< SYMPTOM DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

EMISSION CONTROL NOT SATISFACTORY

Description

INFOID:0000000001162741

CHART 22: EMISSION CONTROL NOT SATISFACTORY

Diagnosis Procedure

INFOID:0000000001162742

1.

CHECK ECM POWER SUPPLY AND GROUND CIRCUIT

Check ECM power supply and ground circuit. Refer to

EC-1106, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connector.

2.

CHECK WIRING HARNESS

Visually check the condition of the engine wiring harness.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connector.

3.

CHECK AIR INTAKE SYSTEM

Check air intake system. Refer to

EM-269, "Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace air intake system.

4.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR

Check electric throttle control actuator. Refer to

EC-1134, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace.

5.

CHECK MASS AIR FLOW SENSOR

Check mass air flow sensor. Refer to

EC-1125, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace.

6.

CHECK TURBOCHARGER

Check that the turbocharger is working properly. Refer to

EC-1195, "Diagnosis Procedure"

.

Is the turbocharger correct?

Yes

>> GO TO 7.

No

>> Repair or replace.

7.

CHECK EGR SYSTEM

Check EGR system. Refer to

EC-1202, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace.

8.

CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE)

Perform the TEST 3: HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE). Refer to

EC-1044,

"BASIC INSPECTION : Special Repair Requirement [TEST 3: High Pressure Supply Pump (Pressure Control
Valve) Check]"

.

>> GO TO 9.

EC-1292

< SYMPTOM DIAGNOSIS >

[K9K]

EMISSION CONTROL NOT SATISFACTORY

9.

CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE)

Perform the TEST 4: HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE). Refer to

EC-

1045, "BASIC INSPECTION : Special Repair Requirement [TEST 4: High Pressure Supply Pump (Volumetric
Control Valve) Check]"

.

>> GO TO 10.

10.

CHECK RAIL HIGH PRESSURE CONTROL CIRCUIT

Perform the TEST 5: RAIL HIGH PRESSURE CONTROL CIRCUIT CHECK. Refer to

EC-1048, "BASIC

INSPECTION : Special Repair Requirement (TEST 5: Rail High Pressure Regulation Check)"

.

>> GO TO 11.

11.

CHECK MAJOR LEAK IN FUEL INJECTOR/FUEL INJECTORS OPEN

Perform the TEST 6: MAJOR LEAK IN FUEL INJECTOR/FUEL INJECTORS OPEN. Refer to

EC-1052,

"BASIC INSPECTION : Special Repair Requirement (TEST 6: Major Leak in Fuel Injectors/Fuel Injectors
Open)"

.

>> GO TO 12.

12.

CHECK INCORRECT FUEL INJECTION QUANTITY

Perform the TEST 7: INCORRECT FUEL INJECTION QUANTITY. Refer to

EC-1053, "BASIC INSPECTION :

Special Repair Requirement (TEST 7: Incorrect Fuel Injection Quantity)"

.

>> INSPECTION END

PRECAUTIONS

EC-1293

< PRECAUTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001706108

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000001162744

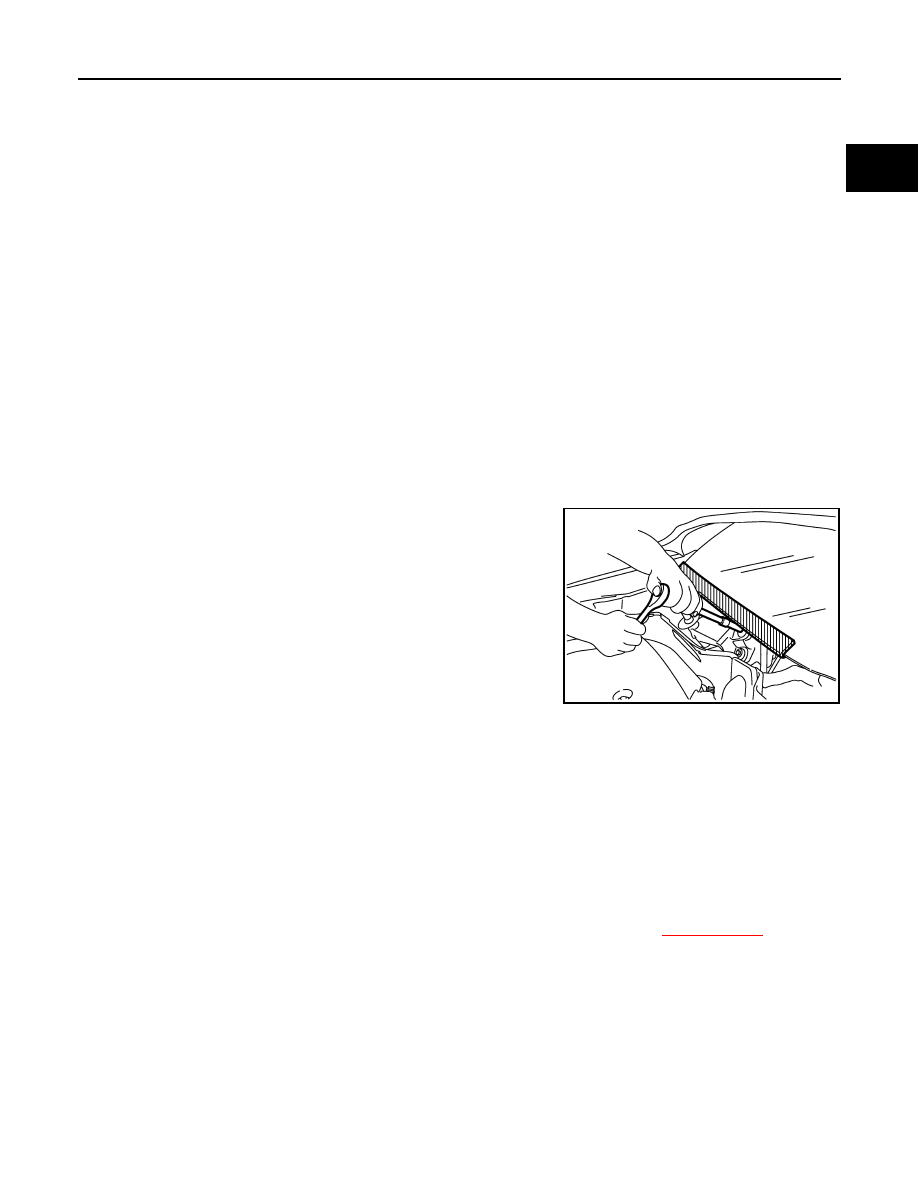

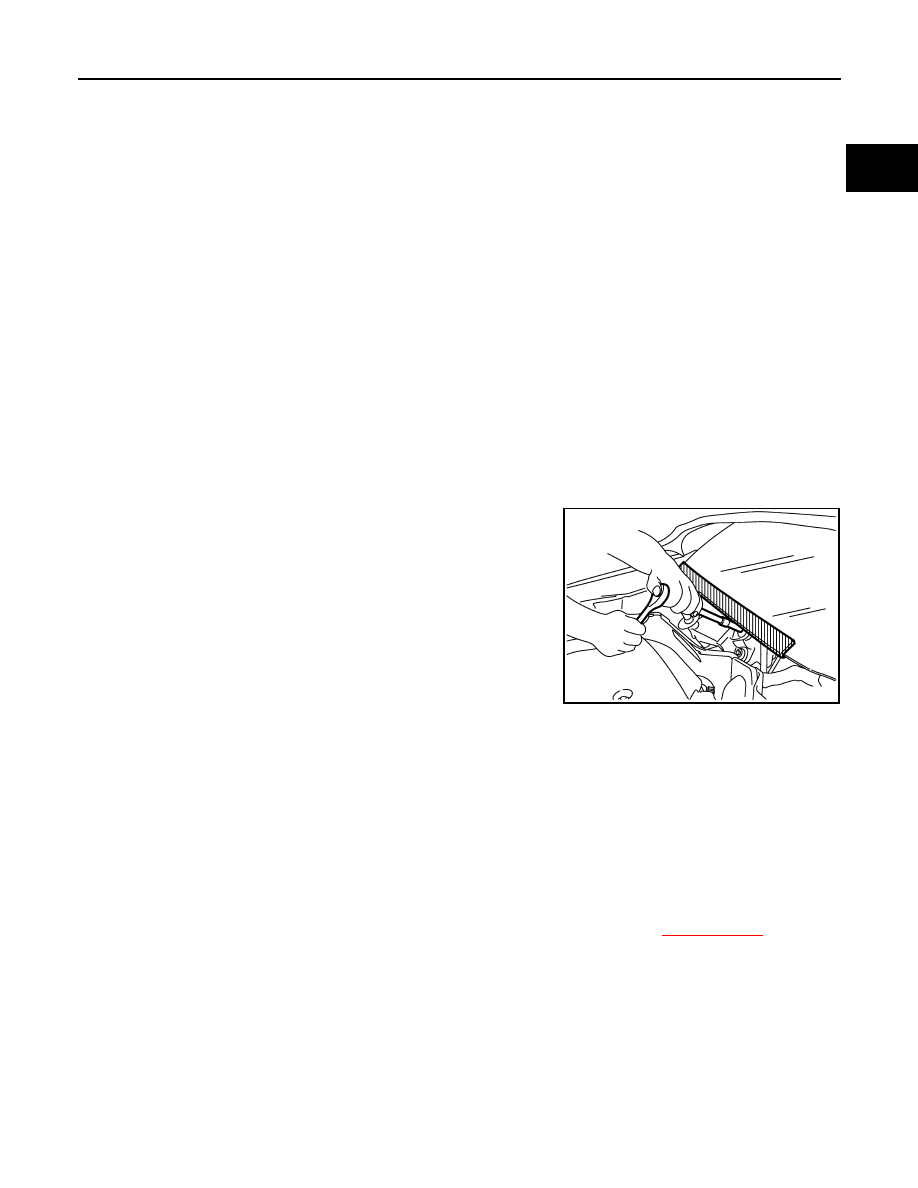

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

On Board Diagnostic (OBD) System of Engine

INFOID:0000000001162745

The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver of
a malfunction causing emission deterioration.

CAUTION:

• Be sure to turn the ignition switch OFF and disconnect the battery negative cable before any repair

or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will
cause the MI to light up.

• Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will

cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

• Certain systems and components, especially those related to OBD, may use a new style slide-lock-

ing type harness connector. For description and how to disconnect, refer to

XX-XX, "*****"

.

• Be sure to route and secure the harnesses properly after work. The interference of the harness with

a bracket, etc. may cause the MI to light up due to the short circuit.

• Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube

may cause the MI to light up due to the malfunction of the fuel system, etc.

• Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM before

returning the vehicle to the customer.

PIIB3706J
