EC-1090

< FUNCTION DIAGNOSIS >

[K9K]

ENGINE TORQUE CONTROL

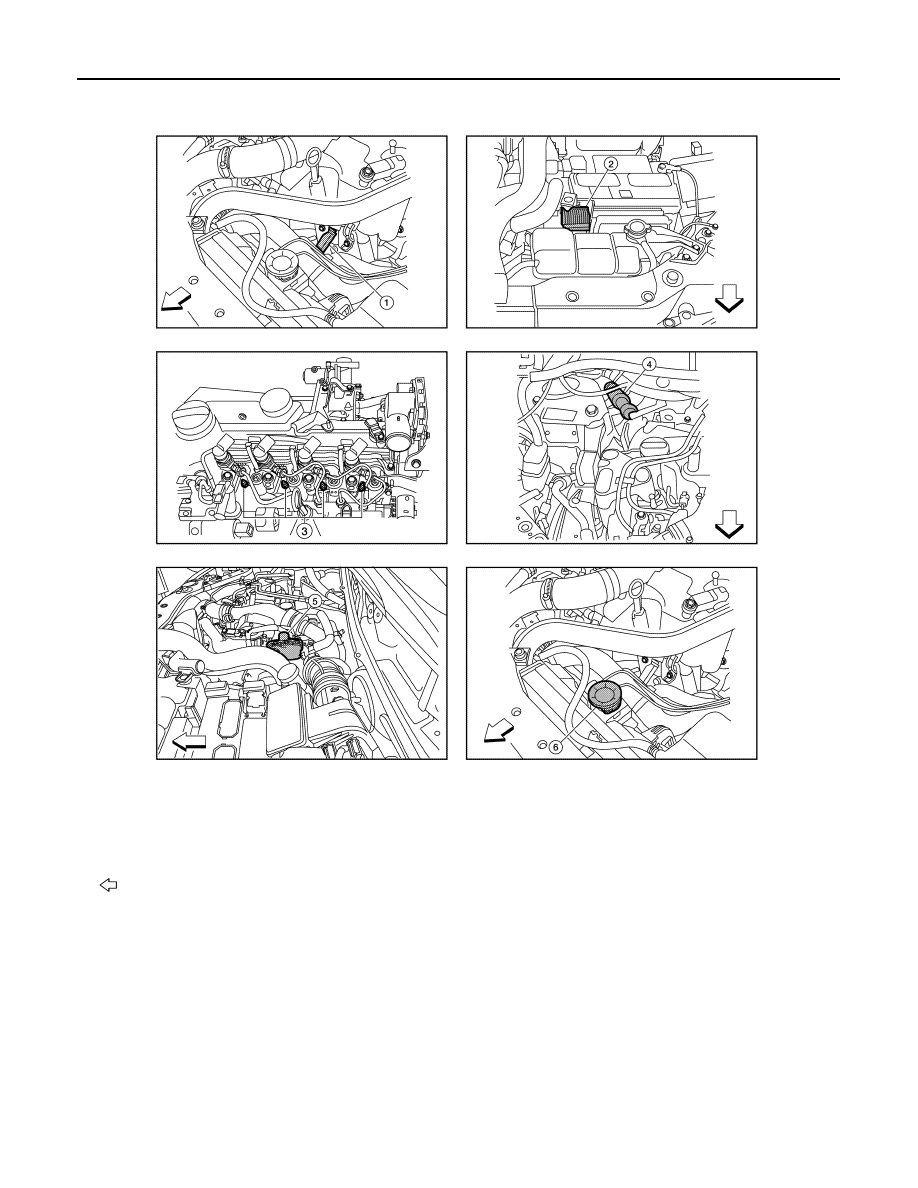

1.

Fuel rail pressure sensor

2.

Glow relay

3.

Glow plug

4.

Priming pump

5.

Electronic throttle control actuator

6.

Turbocharger boost control solenoid
valve

: Vehicle front

ALBIA0303ZZ

ENGINE TORQUE CONTROL

EC-1091

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

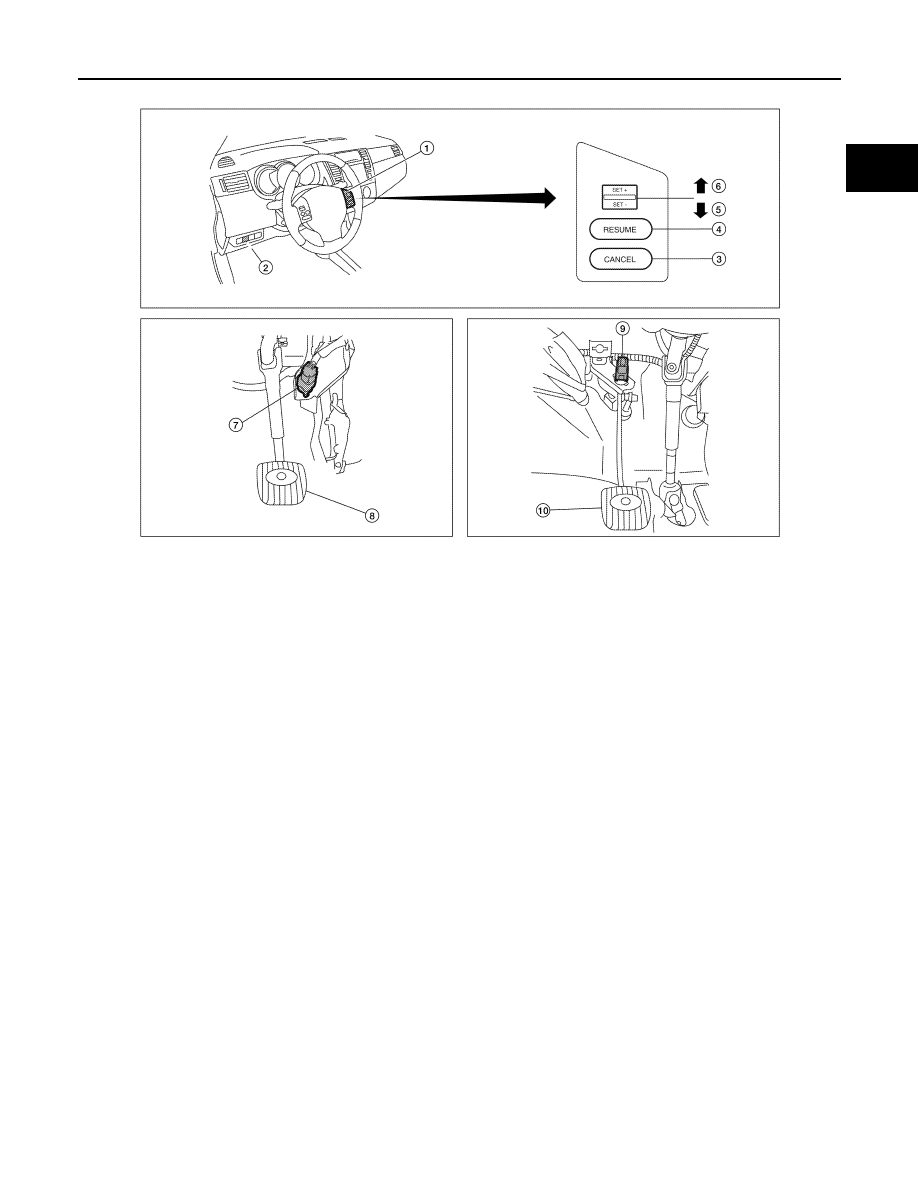

1.

ASCD steering switch

2.

ASCD switch

3.

CANCEL switch

4.

RESUME switch

5.

SET - switch

6.

SET + switch

7.

Stop lamp switch

8.

Brake pedal

9.

ASCD clutch switch

10. Clutch pedal

AWBIA0056ZZ

EC-1092

< FUNCTION DIAGNOSIS >

[K9K]

GLOW CONTROL

GLOW CONTROL

System Description

INFOID:0000000001162542

Glow control involves controlling the glow plugs and the glow plugs "on" indicator light on the instrument panel
(via the can communication). The glow plugs are activated by a relay box and the power is provided by the
battery.
After the ignition is switched on. Preheating is activated for a period of time. The indicator light comes on for
the activation period which is dependent on the battery voltage, barometric pressure and engine coolant tem-
perature. When the engine coolant temperature is below a certain threshold, a postheating function enables
combustion stability, and thereby engine operation, to be improved (reduction in unburnt fuel and pollutant
emissions).

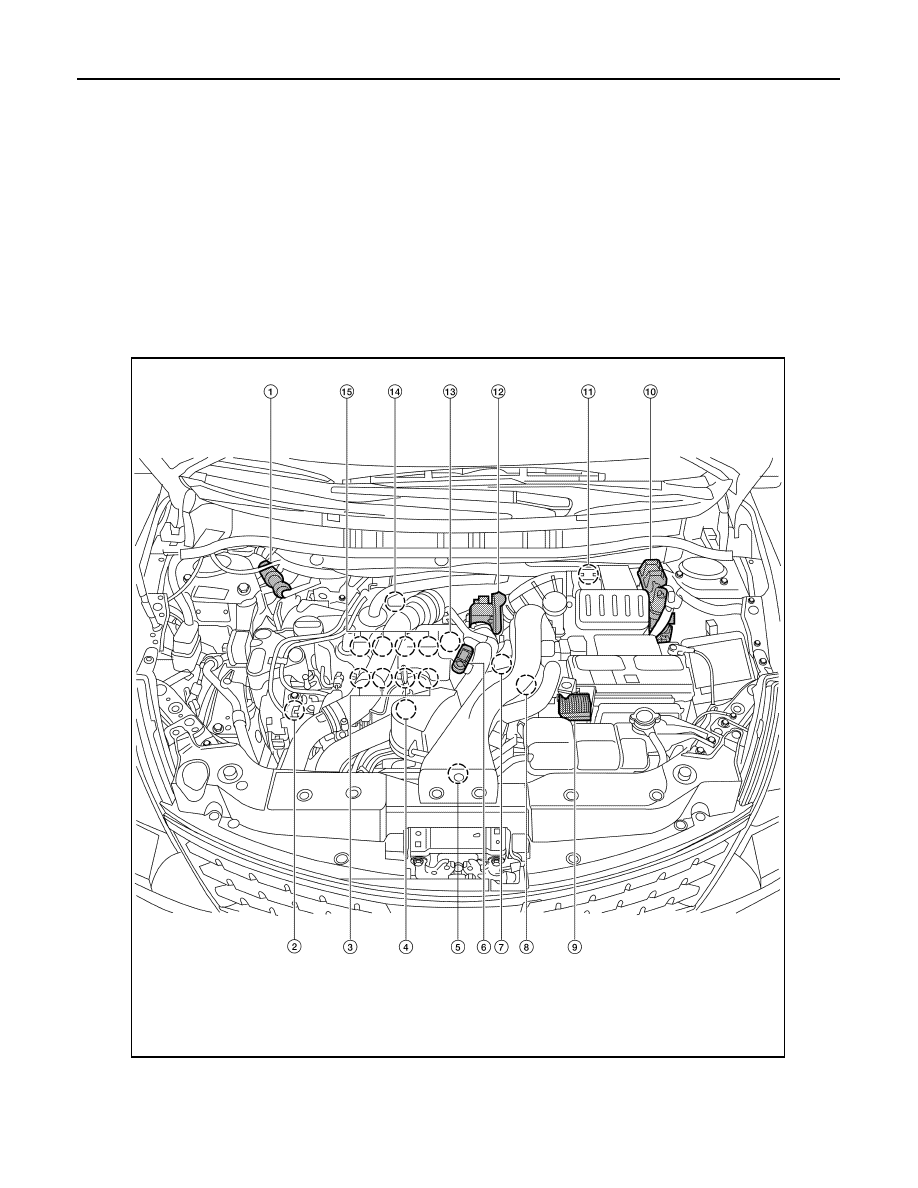

Component Parts Location

INFOID:0000000001611149

1.

Priming pump

2.

Fuel pump

3.

Glow plug

4.

Fuel rail

5.

Turbocharger boost control solenoid
valve

6.

Turbocharger boost sensor

ALBIA0296ZZ

GLOW CONTROL

EC-1093

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

7.

Engine coolant temperature sensor

8.

Crankshaft position sensor

9.

Glow relay

10. ECM

11.

Mass air flow sensor

12. Electric throttle control actuator

13. Camshaft position sensor

14. EGR volume control valve

15. Fuel injector

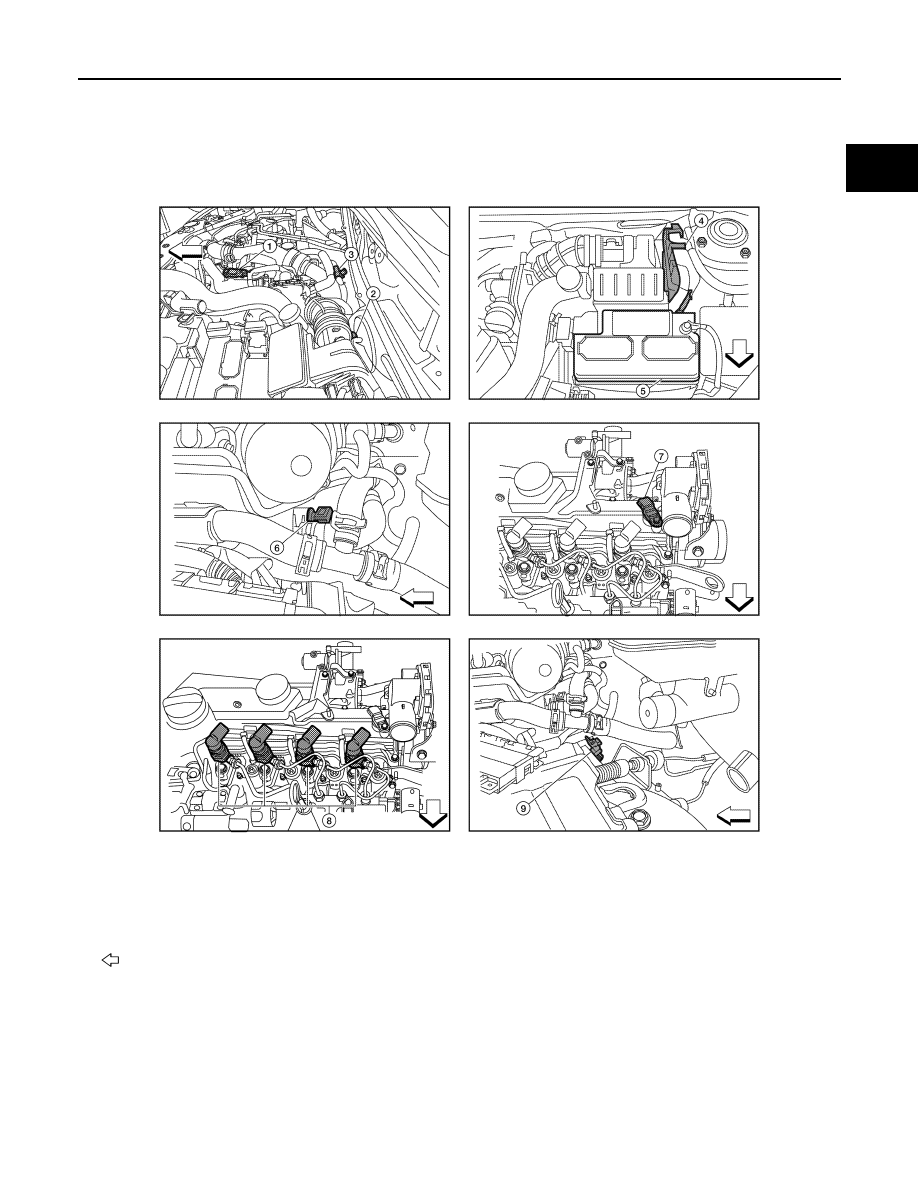

1.

Turbocharger boost sensor

2.

Mass air flow sensor

3.

EGR volume control valve

4.

ECM

5.

Battery

6.

Engine coolant temperature sensor

7.

Camshaft position sensor

8.

Fuel injector

9.

Crankshaft position sensor

: Vehicle front

ALBIA0297ZZ
