EC-878

< COMPONENT DIAGNOSIS >

[MR18DE]

P0500 VSS

P0500 VSS

Description

INFOID:0000000001161844

The vehicle speed signal is sent to the combination meter from the “ABS actuator and electric unit (control
unit)” by CAN communication line. The combination meter then sends a signal to the ECM by CAN communi-
cation line.

DTC Logic

INFOID:0000000001161845

DTC DETECTION LOGIC

NOTE:
• If DTC P0500 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC

U1000, U1001.Refer to

EC-793, "DTC Logic"

.

• If DTC P0500 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer

to

EC-794, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

INSPECTION START

Do you have CONSULT-III?

Do you have CONSULT-III?

YES

>> GO TO 2.

NO

>> GO TO 5.

2.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 3.

3.

CHECK VEHICLE SPEED SENSOR FUNCTION

NOTE:
This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.

With CONSULT-III

1.

Start engine.

2.

Read “VHCL SPEED SE” in “DATA MONITOR” mode with CONSULT-III. The vehicle speed on CON-
SULT-III should exceed 10 km/h (6 mph) when rotating wheels with suitable gear position.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Go to

EC-879, "Diagnosis Procedure"

.

4.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Select “DATA MONITOR” mode with CONSULT-III.

2.

Warm engine up to normal operating temperature.

3.

Maintain the following conditions for at least 50 consecutive seconds.

CAUTION:

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0500

Vehicle speed sensor

The almost 0 km/h (0 MPH) signal from
vehicle speed sensor is sent to ECM even
when vehicle is being driven.

• Harness or connectors

(The CAN communication line is open or short-
ed)

• Harness or connectors

(The vehicle speed signal circuit is open or
shorted)

• Wheel sensor
• Combination meter
• ABS actuator and electric unit (control unit)

P0500 VSS

EC-879

< COMPONENT DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Always drive vehicle at a safe speed.

4.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-879, "Diagnosis Procedure"

.

NO

>> INSPECTION END

5.

PERFORM COMPONENT FUNCTION CHECK

Perform component function check. Refer to

EC-879, "Component Function Check"

.

Use component function check to check the overall function of the vehicle speed sensor circuit. During this
check, a 1st trip DTC might not be confirmed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-879, "Diagnosis Procedure"

.

Component Function Check

INFOID:0000000001161846

1.

PERFORM COMPONENT FUNCTION CHECK

 With GST

1.

Lift up drive wheels.

2.

Start engine.

3.

Read vehicle speed sensor signal in Service $01 with GST.
The vehicle speed sensor on GST should be able to exceed 10 km/h (6 MPH) when rotating wheels with
suitable gear position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-879, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001161847

1.

CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”

Refer to

BRC-105, "CONSULT-III Function (ABS)"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace.

2.

CHECK COMBINATION METER

Refer to

MWI-22, "CONSULT-III Function (METER/M&A)"

.

>> INSPECTION END

ENG SPEED

1,600 - 6,000 rpm

COOLAN TEMP/S

More than 70

°

C (158

°

F)

B/FUEL SCHDL

7.2 - 31.8 msec

Shift lever

Except Neutral position

PW/ST SIGNAL

OFF

EC-880

< COMPONENT DIAGNOSIS >

[MR18DE]

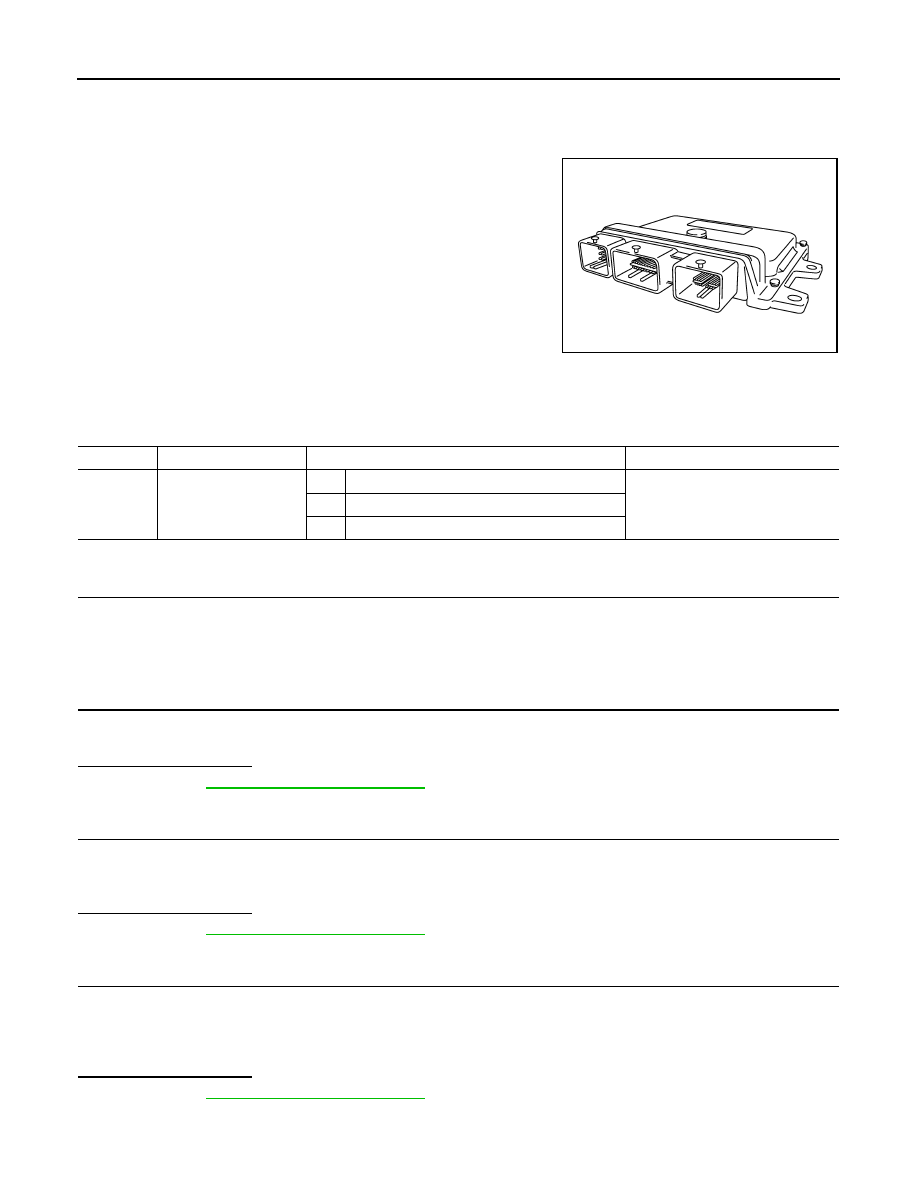

P0605 ECM

P0605 ECM

Description

INFOID:0000000001161848

The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.

DTC Logic

INFOID:0000000001161849

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A

1.

Turn ignition switch ON.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-881, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B

1.

Wait at least 1 second.

2.

Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

3.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-881, "Diagnosis Procedure"

.

NO

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION C

1.

Wait at least 1 second.

2.

Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

3.

Repeat step 2 for 32 times.

4.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-881, "Diagnosis Procedure"

.

NO

>> INSPECTION END

PBIA9222J

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0605

Engine control module

A)

ECM calculation function is malfunctioning.

• ECM

B)

ECM EEP-ROM system is malfunctioning.

C)

ECM self shut-off function is malfunctioning.

P0605 ECM

EC-881

< COMPONENT DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Diagnosis Procedure

INFOID:0000000001161850

1.

INSPECTION START

With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “SELF-DIAG RESULTS” mode with CONSULT-III.

3.

Touch “ERASE”.

4.

Perform DTC CONFIRMATION PROCEDURE.
See

EC-880, "DTC Logic"

.

With GST

1.

Turn ignition switch ON.

2.

Select Service $04 with GST.

3.

Perform DTC CONFIRMATION PROCEDURE.
See

EC-880, "DTC Logic"

.

Is the 1st trip DTC P0605 displayed again?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

REPLACE ECM

1.

Replace ECM.

2.

Go to

EC-692, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

>> INSPECTION END
