P1226 TP SENSOR

3.

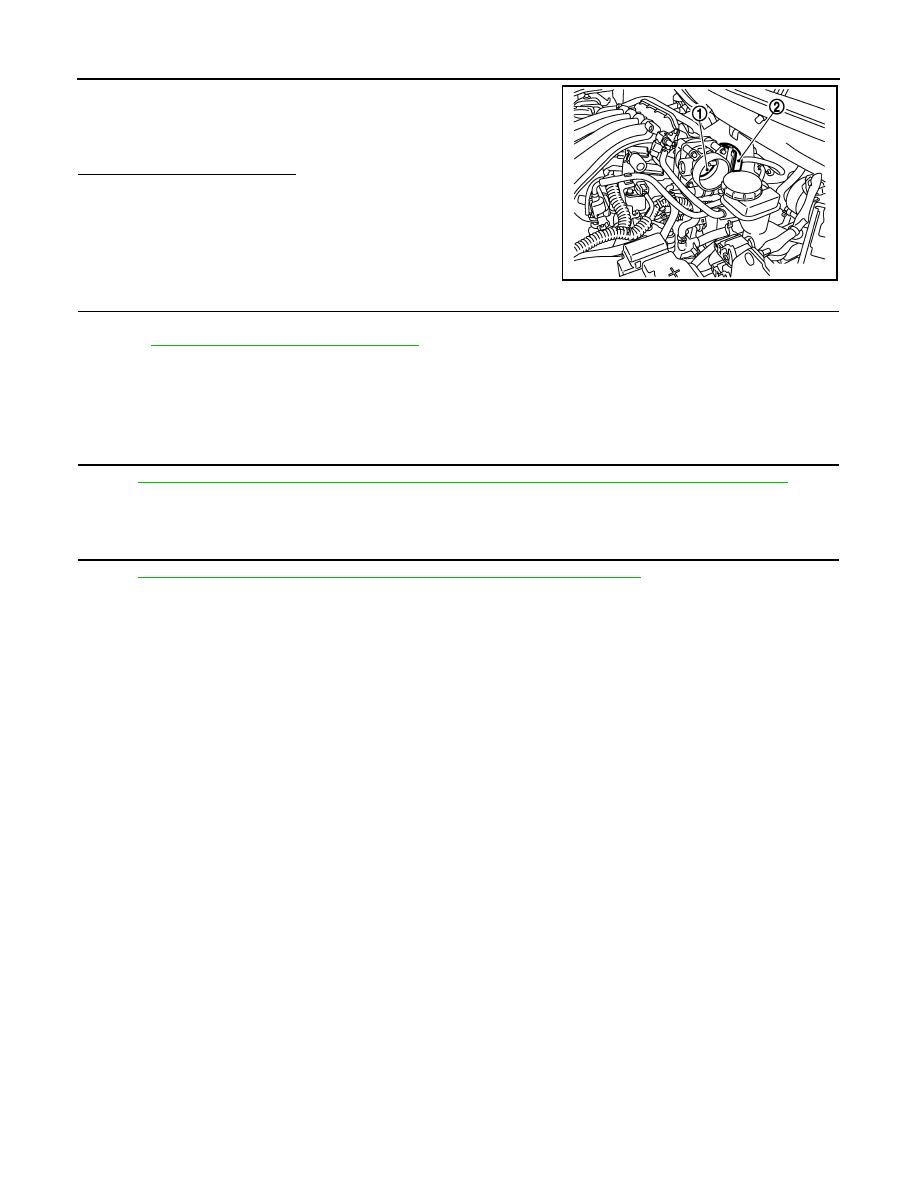

Check if foreign matter is caught between the throttle valve (1)
and the housing.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Go to

EC-548, "Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000001693372

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-390, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-390, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

.

>> END

2.

Electric throttle control actuator

JMBIA0447ZZ

P1229 SENSOR POWER SUPPLY

EC-551

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1229 SENSOR POWER SUPPLY

DTC Logic

INFOID:0000000001693373

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for 1 second.

2.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-551, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001693374

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E15. Refer to Ground Inspection in

GI-58, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect accelerator pedal position (APP) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between APP sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 3.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

P1229

Sensor power supply
circuit short

ECM detects a voltage of power source for
sensor is excessively low or high.

• Harness or connectors

(APP sensor 1 circuit is shorted.)
(TP sensor circuit is shorted.)
[Camshaft position sensor (PHASE) circuit is
shorted.]

• Accelerator pedal position sensor

(APPS 1)

• Throttle position sensor
• Camshaft position sensor (PHASE)

APP sensor

Ground

Voltage

Connector

Terminal

E12 (LHD models)

M204 (RHD models)

4

Ground

Approx. 5V

EC-552

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

P1229 SENSOR POWER SUPPLY

3.

CHECK SENSOR POWER SUPPLY CIRCUITS

Check harness for short to power and short to ground, between the following terminals.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair short to ground or short to power in harness or connectors.

4.

CHECK COMSHAFT POSITION SENSOR

Refer to

EC-522, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace malfunctioning component.

5.

CHECK TP SENSOR

Refer to

EC-582, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Go to

EC-582, "Component Inspection"

.

>> INSPECTION END

7.

CHECK APP SENSOR

Refer to

EC-574, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> GO TO 8.

8.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1.

Replace accelerator pedal assembly.

2.

Go to

EC-389, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-

ment"

.

>> INSPECTION END

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-55, "Intermittent Incident"

.

>> INSPECTION END

ECM

Sensor

Connector

Terminal

Item

Connector

Terminal

F11

72

Electric throttle control actuator

F7

1

78

CMP sensor (PHASE)

F21

1

E16

106

APP sensor

E12 (LHD models)

M204 (RHD models)

4

P1564 ASCD STEERING SWITCH

EC-553

< COMPONENT DIAGNOSIS >

[HR16DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1564 ASCD STEERING SWITCH

Description

INFOID:0000000001693375

ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to

EC-424, "System Diagram"

 for the ASCD function.

DTC Logic

INFOID:0000000001693376

DTC DETECTION LOGIC

NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to

EC-524, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Wait at least 10 seconds.

3.

Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.

4.

Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.

5.

Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 sec-
onds.

6.

Press SET/COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.

7.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-553, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001693377

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E15. Refer to Ground Inspection in

GI-58, "Circuit Inspection"

.

Is the inspection result normal?

YS

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK ASCD STEERING SWITCH CIRCUIT

 With CONSULT-III

1.

Turn ignition switch ON.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

P1564

ASCD steering switch

• An excessively high voltage signal from the

ASCD steering switch is sent to ECM.

• ECM detects that input signal from the

ASCD steering switch is out of the specified
range.

• ECM detects that the ASCD steering switch

is stuck ON.

• Harness or connectors

(The switch circuit is open or shorted.)

• ASCD steering switch
• ECM
