EC-22

< BASIC INSPECTION >

[HR16DE (WITH EURO-OBD)]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

BASIC INSPECTION

BASIC INSPECTION : Special Repair Requirement

INFOID:0000000001161123

1.

INSPECTION START

1.

Check service records for any recent repairs that may indicate a related malfunction, or a current need for
scheduled maintenance.

2.

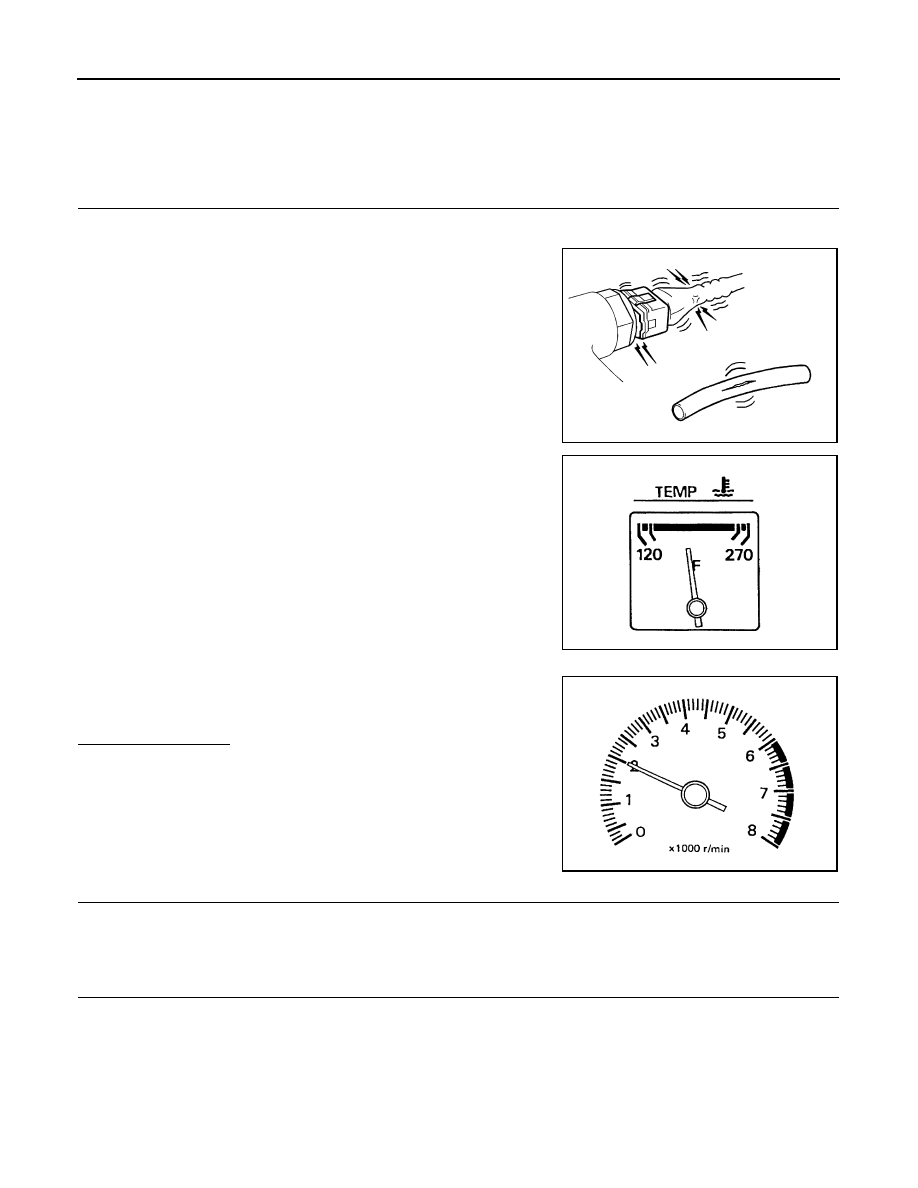

Open engine hood and check the following:

-

Harness connectors for improper connections

-

Wiring harness for improper connections, pinches and cut

-

Vacuum hoses for splits, kinks and improper connections

-

Hoses and ducts for leaks

-

Air cleaner clogging

-

Gasket

3.

Confirm that electrical or mechanical loads are not applied.

-

Headlamp switch is OFF.

-

Air conditioner switch is OFF.

-

Rear window defogger switch is OFF.

-

Steering wheel is in the straight-ahead position, etc.

4.

Start engine and warm it up until engine coolant temperature
indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.

5.

Run engine at about 2,000 rpm for about 2 minutes under no
load.

6.

Make sure that no DTC is displayed with CONSULT-III or GST.

Is any DTC detected?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

REPAIR OR REPLACE

Repair or replace components as necessary according to corresponding Diagnostic Procedure.

>> GO TO 3

3.

CHECK TARGET IDLE SPEED

1.

Run engine at about 2,000 rpm for about 2 minutes under no load.

SEF983U

SEF976U

SEF977U

INSPECTION AND ADJUSTMENT

EC-23

< BASIC INSPECTION >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

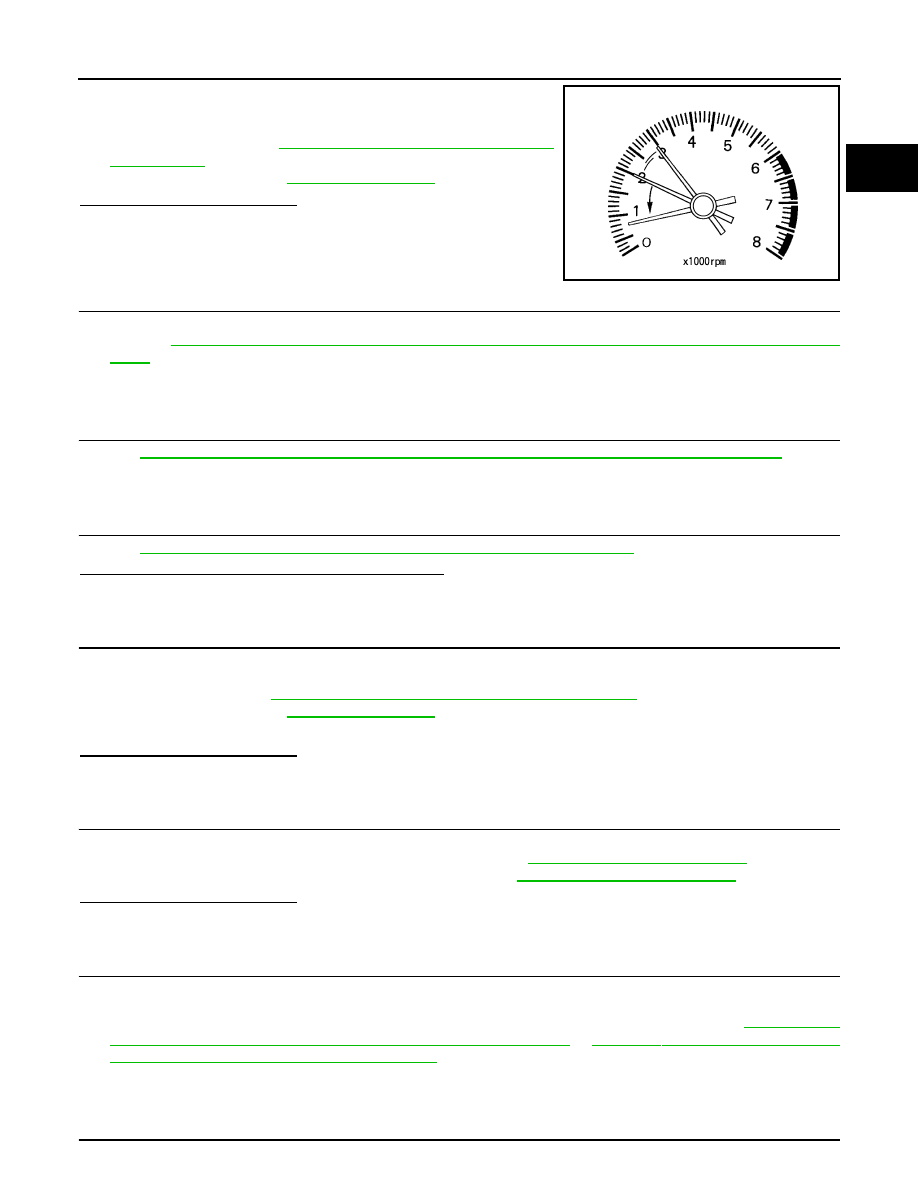

2.

Rev engine (2,000 to 3,000 rpm) two or three times under no
load, then run engine at idle speed for about 1 minute.

3.

Check idle speed.
For procedure, refer to

EC-26, "IDLE SPEED : Special Repair

Requirement"

.

For specification, refer to

EC-380, "Idle Speed"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 4.

4.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1.

Stop engine.

2.

Perform

EC-26, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-

ment"

.

>> GO TO 5.

5.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform

EC-27, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> GO TO 6.

6.

PERFORM IDLE AIR VOLUME LEARNING

Perform

EC-27, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

.

Is Idle Air Volume Learning carried out successfully?

YES

>> GO TO 7.

NO

>> Follow the instruction of Idle Air Volume Learning. Then GO TO 4.

7.

CHECK TARGET IDLE SPEED AGAIN

1.

Start engine and warm it up to normal operating temperature.

2.

Check idle speed.
For procedure, refer to

EC-26, "IDLE SPEED : Special Repair Requirement"

.

For specification, refer to

EC-380, "Idle Speed"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the Following.
• Check camshaft position sensor (PHASE) and circuit. Refer to

EC-202, "Diagnosis Procedure"

.

• Check crankshaft position sensor (POS) and circuit. Refer to

EC-198, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace. Then GO TO 4.

9.

CHECK ECM FUNCTION

1.

Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)

2.

Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to

SEC-7, "ECM

RE-COMMUNICATING FUNCTION : Special Repair Requirement"

 or

SEC-83, "ECM RE-COMMUNICAT-

ING FUNCTION : Special Repair Requirement"

.

>> GO TO 4.

10.

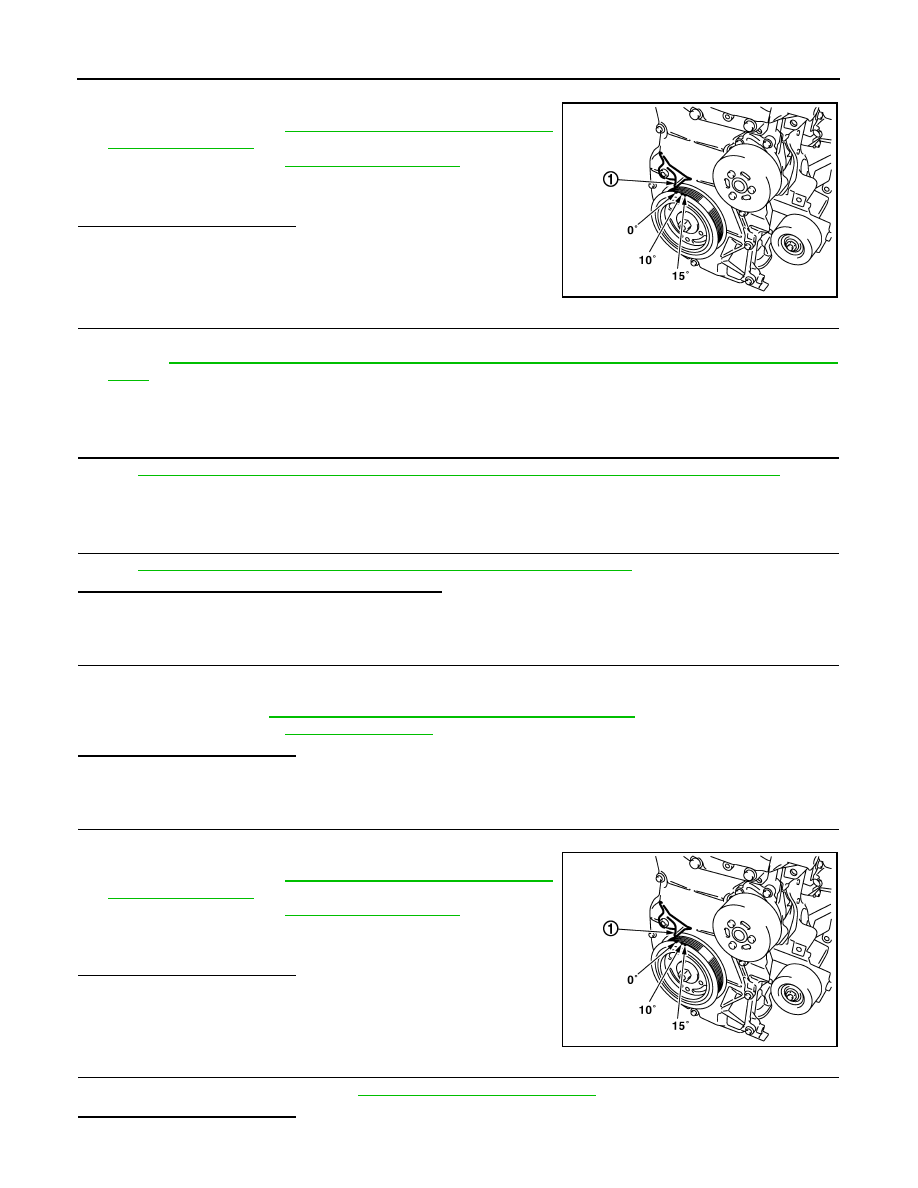

CHECK IGNITION TIMING

PBIA8513J

EC-24

< BASIC INSPECTION >

[HR16DE (WITH EURO-OBD)]

INSPECTION AND ADJUSTMENT

1.

Run engine at idle.

2.

Check ignition timing with a timing light.
For procedure, refer to

EC-26, "IGNITION TIMING : Special

Repair Requirement"

.

For specification, refer to

EC-380, "Ignition Timing"

.

Is the inspection result normal?

YES

>> GO TO 19.

NO

>> GO TO 11.

11.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1.

Stop engine.

2.

Perform

EC-26, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-

ment"

.

>> GO TO 12.

12.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform

EC-27, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> GO TO 13.

13.

PERFORM IDLE AIR VOLUME LEARNING

Perform

EC-27, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

.

Is Idle Air Volume Learning carried out successfully?

YES

>> GO TO 14.

NO

>> Follow the instruction of Idle Air Volume Learning. Then GO TO 4.

14.

CHECK TARGET IDLE SPEED AGAIN

1.

Start engine and warm it up to normal operating temperature.

2.

Check idle speed.
For procedure, refer to

EC-26, "IDLE SPEED : Special Repair Requirement"

.

For specification, refer to

EC-380, "Idle Speed"

.

Is the inspection result normal?

YES

>> GO TO 15.

NO

>> GO TO 17.

15.

CHECK IGNITION TIMING AGAIN

1.

Run engine at idle.

2.

Check ignition timing with a timing light.
For procedure, refer to

EC-26, "IGNITION TIMING : Special

Repair Requirement"

.

For specification, refer to

EC-380, "Ignition Timing"

.

Is the inspection result normal?

YES

>> GO TO 19.

NO

>> GO TO 16.

16.

CHECK TIMING CHAIN INSTALLATION

Check timing chain installation. Refer to

EM-50, "Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 17.

1

: Timing indicator

MBIB1331E

1

: Timing indicator

MBIB1331E

INSPECTION AND ADJUSTMENT

EC-25

< BASIC INSPECTION >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NO

>> Repair the timing chain installation. Then GO TO 4.

17.

DETECT MALFUNCTIONING PART

Check the following.
• Check camshaft position sensor (PHASE) and circuit. Refer to

EC-202, "Diagnosis Procedure"

.

• Check crankshaft position sensor (POS) and circuit. Refer to

EC-198, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 18.

NO

>> Repair or replace. Then GO TO 4.

18.

CHECK ECM FUNCTION

1.

Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)

2.

Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to

SEC-7, "ECM

RE-COMMUNICATING FUNCTION : Special Repair Requirement"

 or

SEC-83, "ECM RE-COMMUNICAT-

ING FUNCTION : Special Repair Requirement"

.

>> GO TO 4.

19.

INSPECTION END

If ECM is replaced during this BASIC INSPECTION procedure, go to

EC-25, "ADDITIONAL SERVICE WHEN

REPLACING CONTROL UNIT : Special Repair Requirement"

.

>> INSPECTION END

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001161124

When replacing ECM, this procedure must be performed.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001161125

1.

PERFORM INITIALIZATION OF NATS SYSTEM AND REGISTRATION OF ALL NATS IGNITION KEY IDS

Refer to

SEC-7, "ECM RE-COMMUNICATING FUNCTION : Special Repair Requirement"

.

>> GO TO 2.

2.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

Refer to

EC-26, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Requirement"

.

>> GO TO 3.

3.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-27, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> GO TO 4.

4.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-27, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

.

>> END

IDLE SPEED
