Nissan Tiida C11. Manual - part 323

DLK-702

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

BCM (BODY CONTROL MODULE)

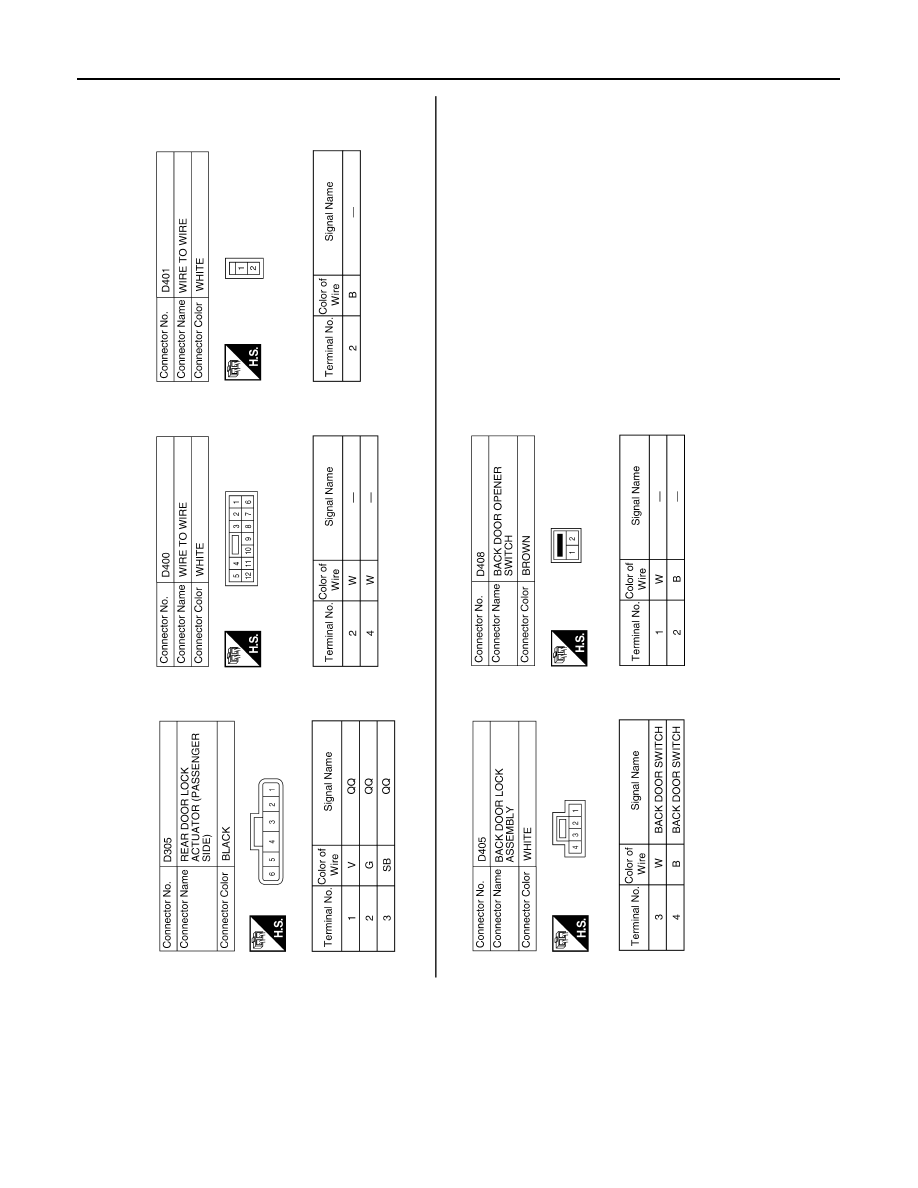

ALKIA1134GB

BCM (BODY CONTROL MODULE)

DLK-703

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

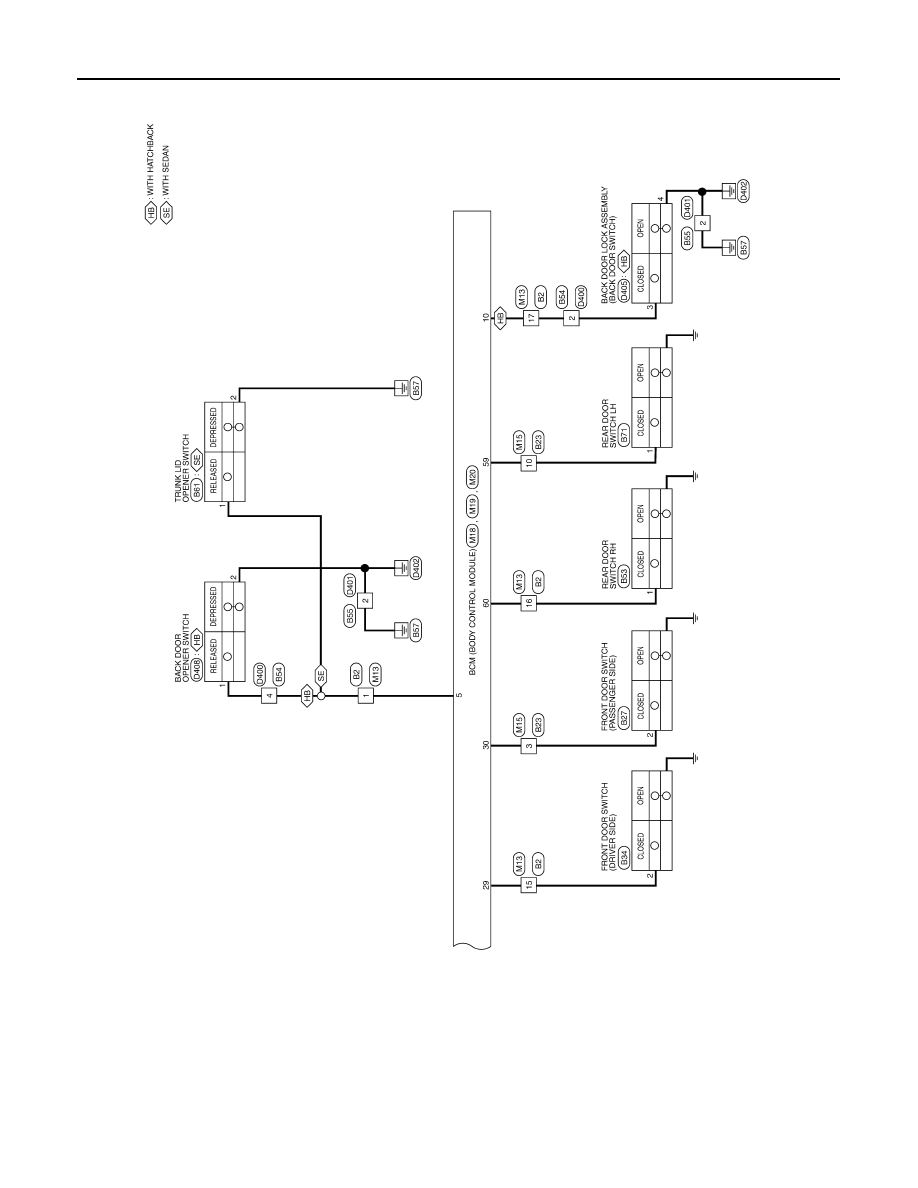

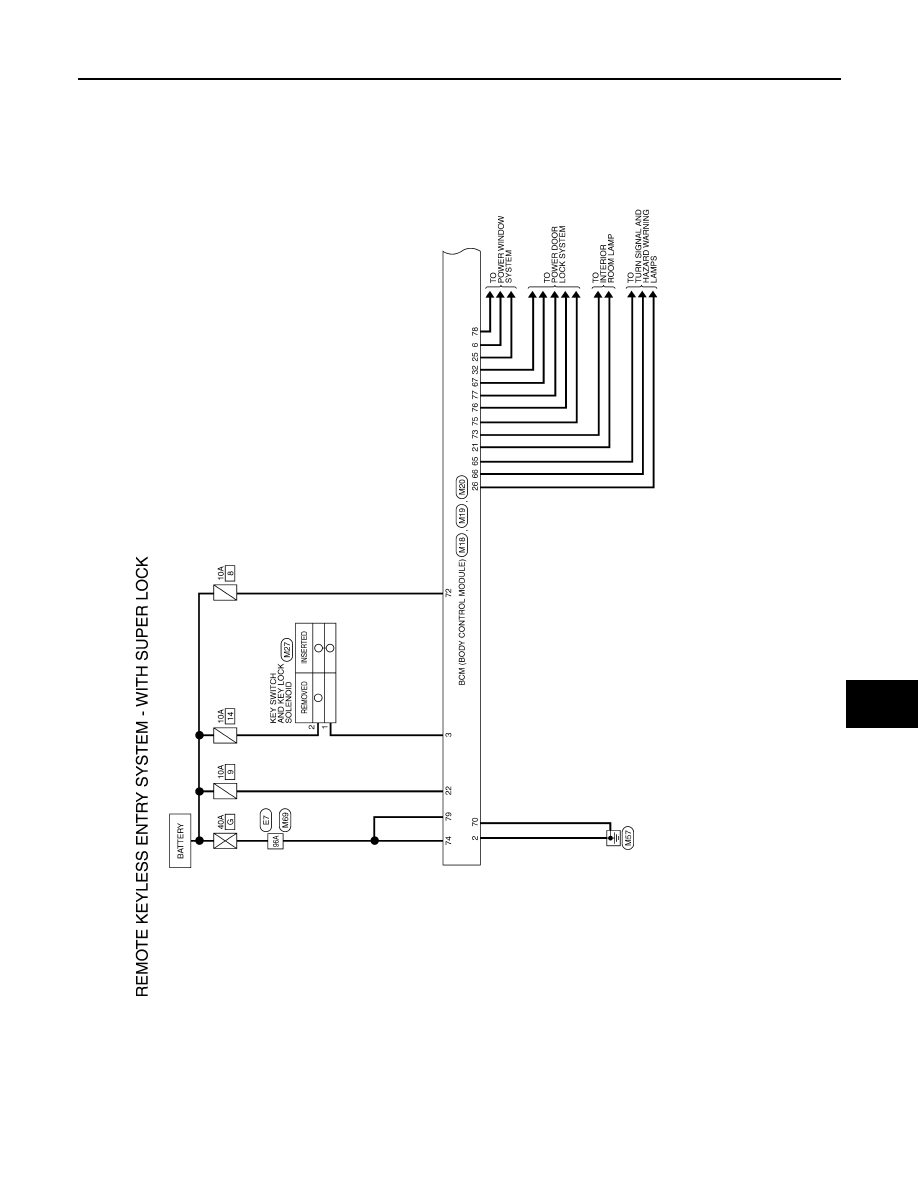

Wiring Diagram - REMOTE KEYLESS ENTRY SYSTEM -

INFOID:0000000001397327

ALKWA0097GB

DLK-704

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

BCM (BODY CONTROL MODULE)

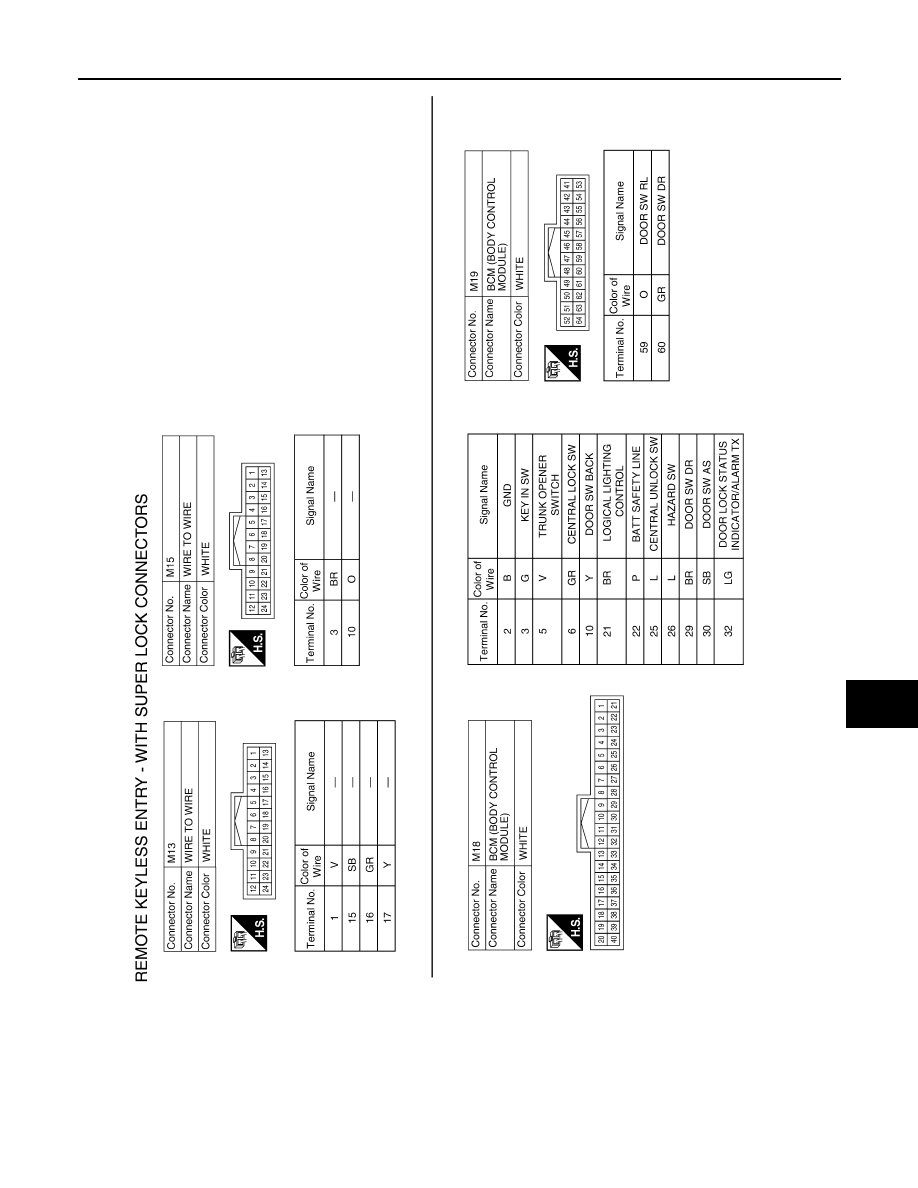

ALKWA0098GB

BCM (BODY CONTROL MODULE)

DLK-705

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ALKIA1104GB
