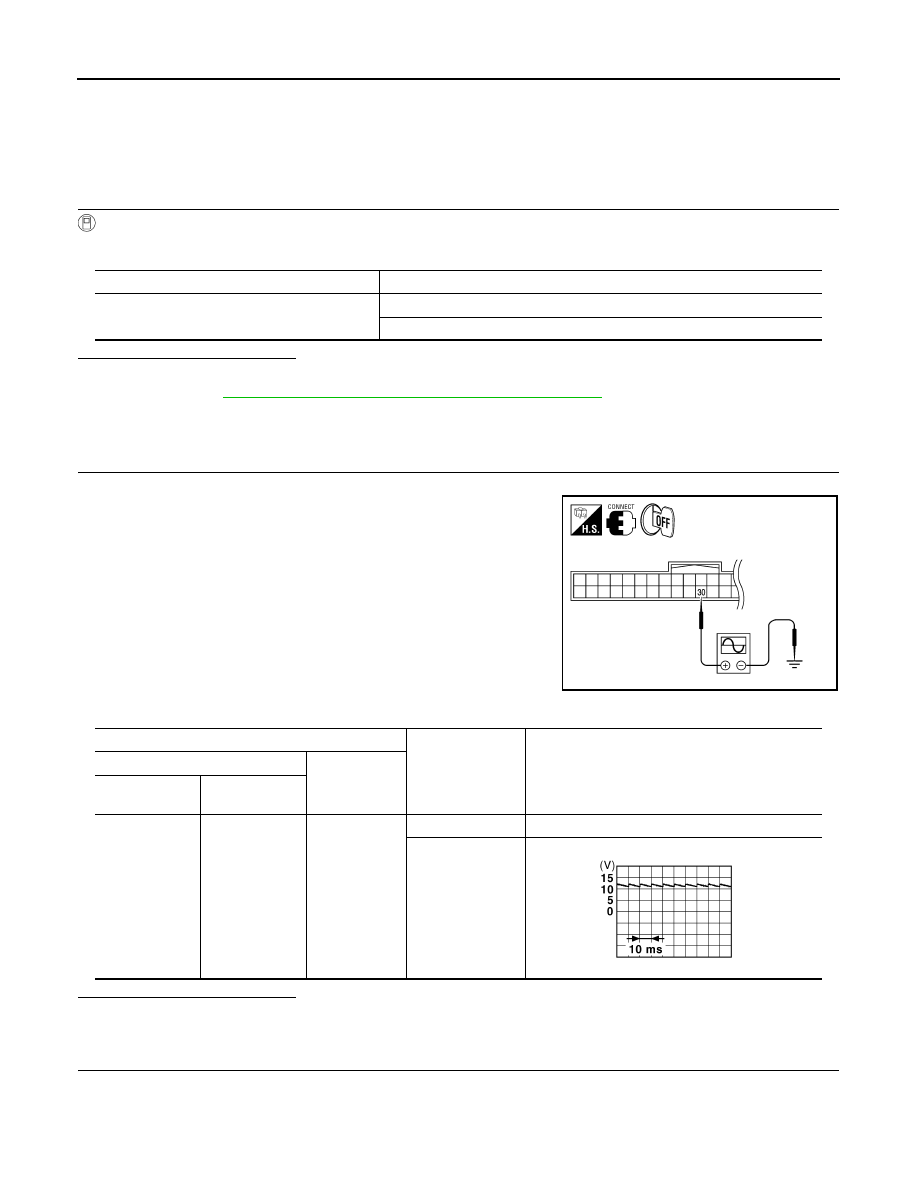

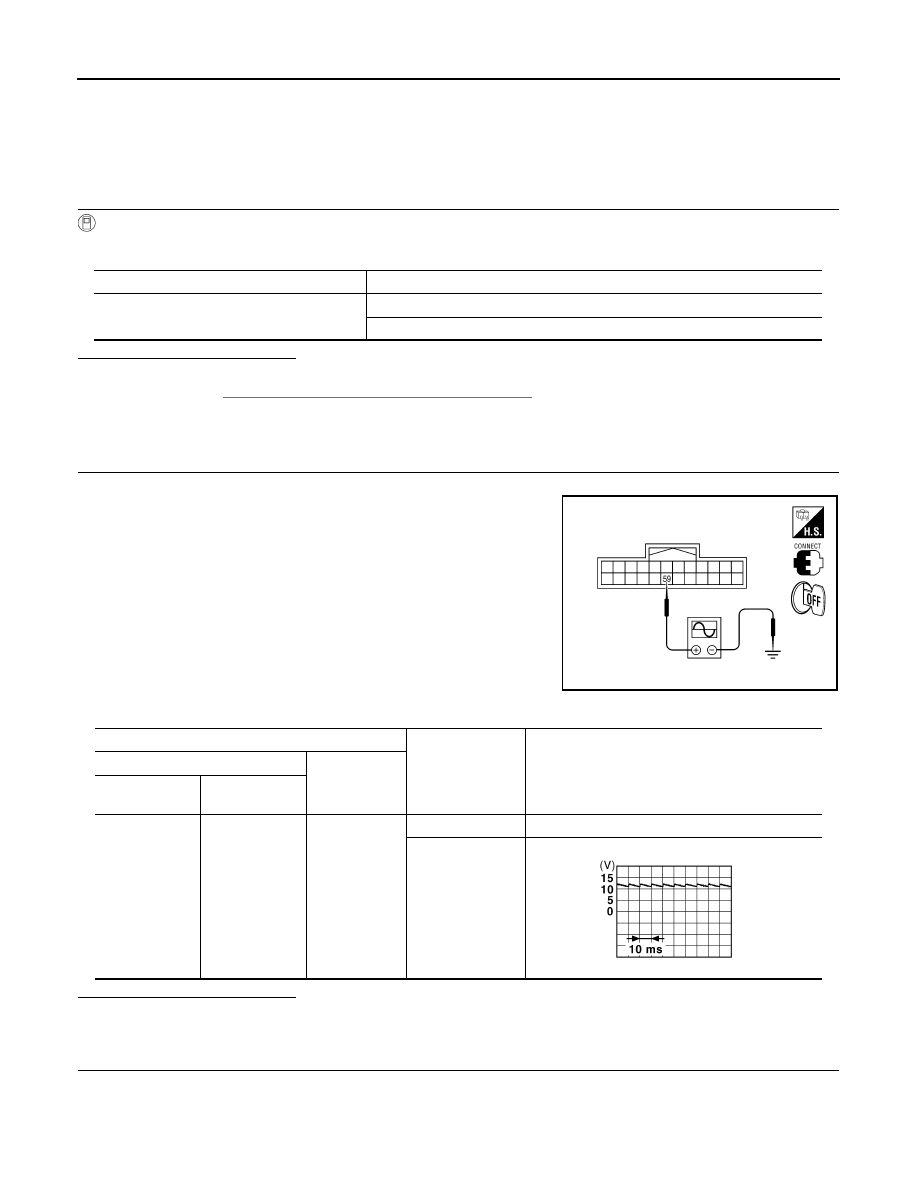

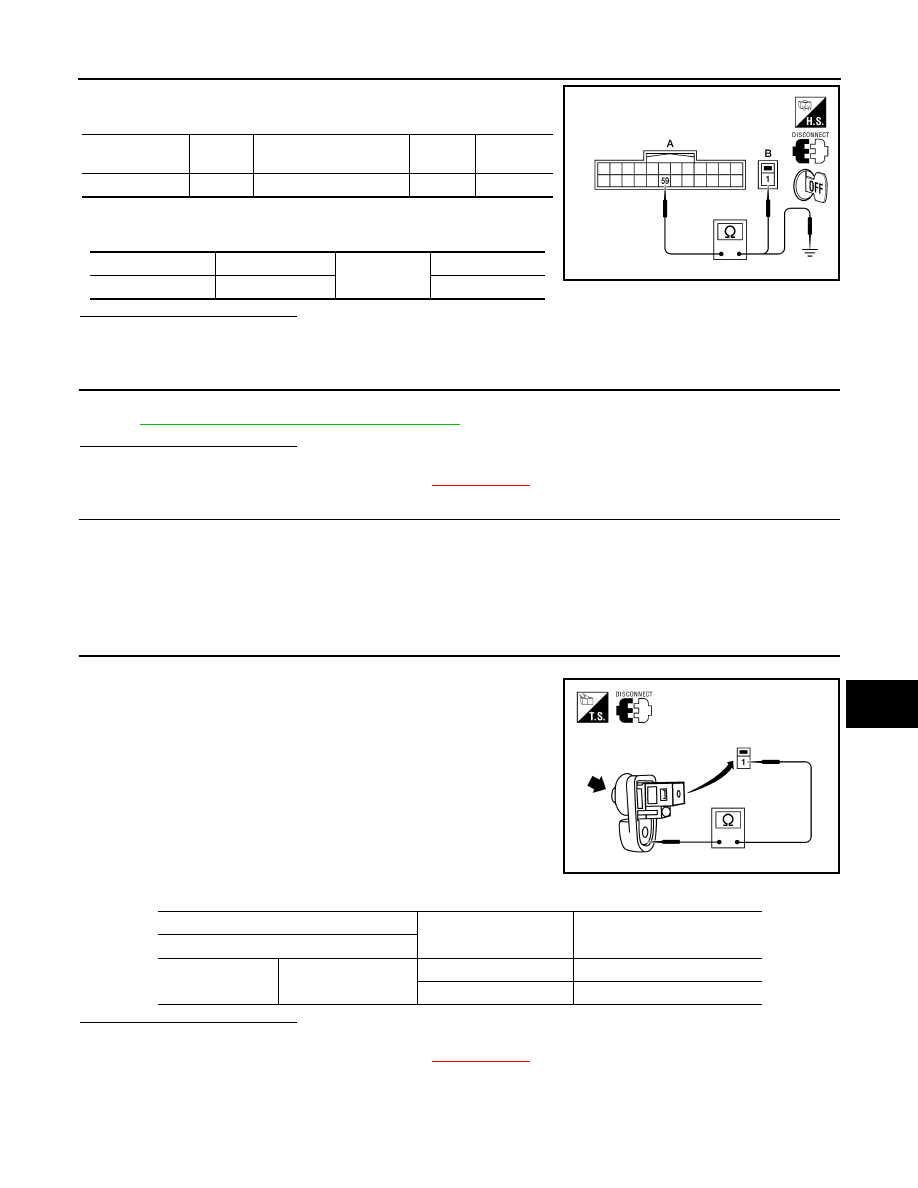

DLK-646 < COMPONENT DIAGNOSIS > [WITHOUT I-KEY, WITH SUPER LOCK] DOOR SWITCH PASSENGER SIDE : Description INFOID:0000000001530763 Detects door open/closed condition. PASSENGER SIDE : Component Function Check INFOID:0000000001530764 1. CHECK FUNCTION With CONSULT-III Check door switches “DOOR SW-AS” in “Data Monitor” mode with CONSULT-III. Is the inspection result normal? YES >> Door switch is OK. NO >> Refer to DLK-646, "PASSENGER SIDE : Diagnosis Procedure" PASSENGER SIDE : Diagnosis Procedure INFOID:0000000001530765 1. CHECK DOOR SWITCH INPUT SIGNAL 1. Turn ignition switch OFF. 2. Check signal between BCM connector and ground with oscillo- Is the inspection result normal? YES >> GO TO 4. NO >> GO TO 2. 2. CHECK DOOR SWITCH CIRCUIT 1. Disconnect BCM and passenger door switch connectors. Monitor item Condition DOOR SW-AS OPEN : ON CLOSE : OFF ALKIA0749ZZ Terminals Door condition Voltage (V) (Approx.) (+) (–) BCM connector Terminal M18 30 Ground OPEN 0 CLOSE JPMIA0011GB |
