DLK-598

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

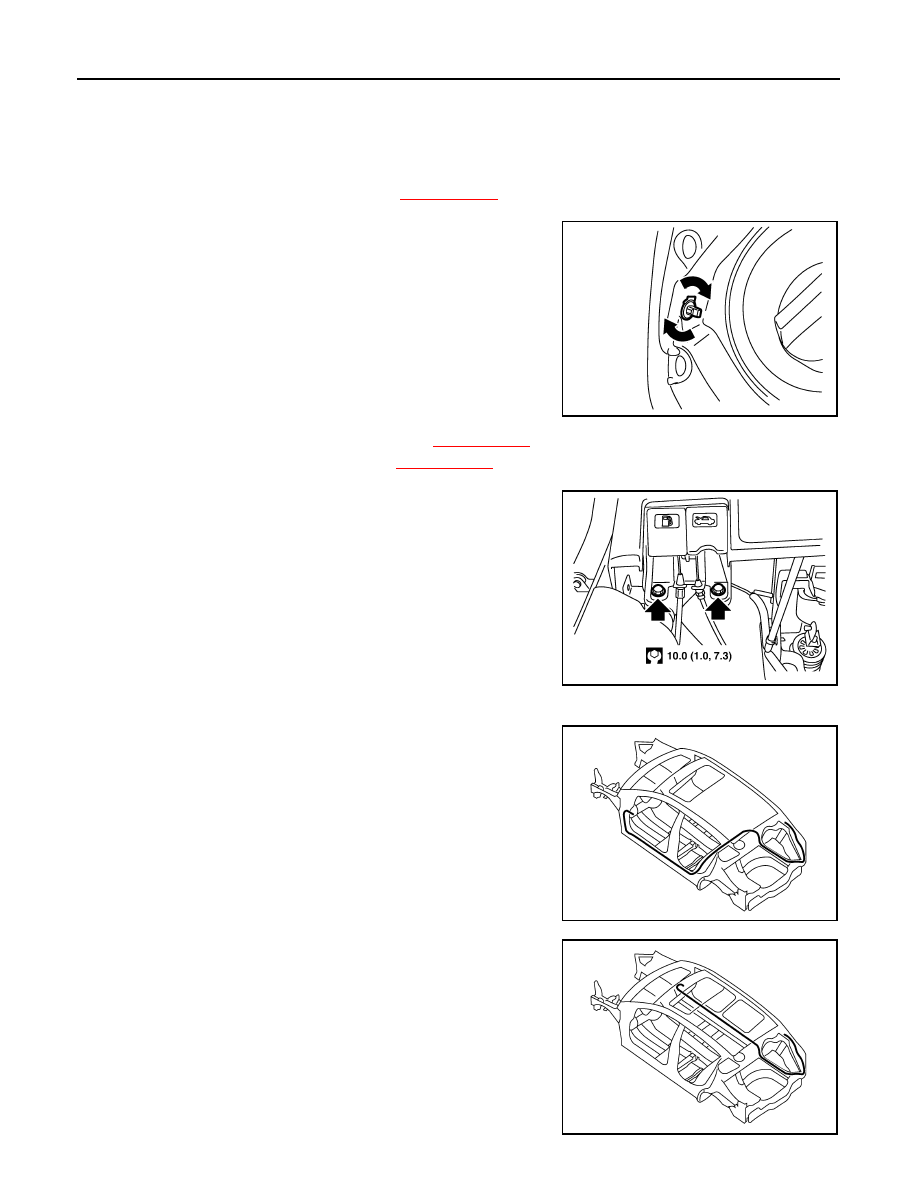

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

Removal and Installation of Fuel Filler Lid Opener

INFOID:0000000001732043

REMOVAL

1.

Remove trunk side finisher (RH). Refer to

XX-XX, "*****"

.

2.

Remove fuel filler lid opener cable lock ring.

3.

Remove front and rear kicking plates. Refer to

XX-XX, "*****"

.

4.

Remove rear cushion assembly. Refer to

XX-XX, "*****"

.

5.

Remove the bolts and the fuel filler lid opener handle.

6.

Remove fuel filler lid opener cable clips from the vehicle.

7.

Remove the fuel filler lid opener cable (LH drive).

8.

Remove the fuel filler lid opener cable (RH drive).

PIIB3831J

LIIA2670E

LIIA2629E

ALKIA0651GB

FUEL FILLER LID OPENER

DLK-599

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

DLK-600

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

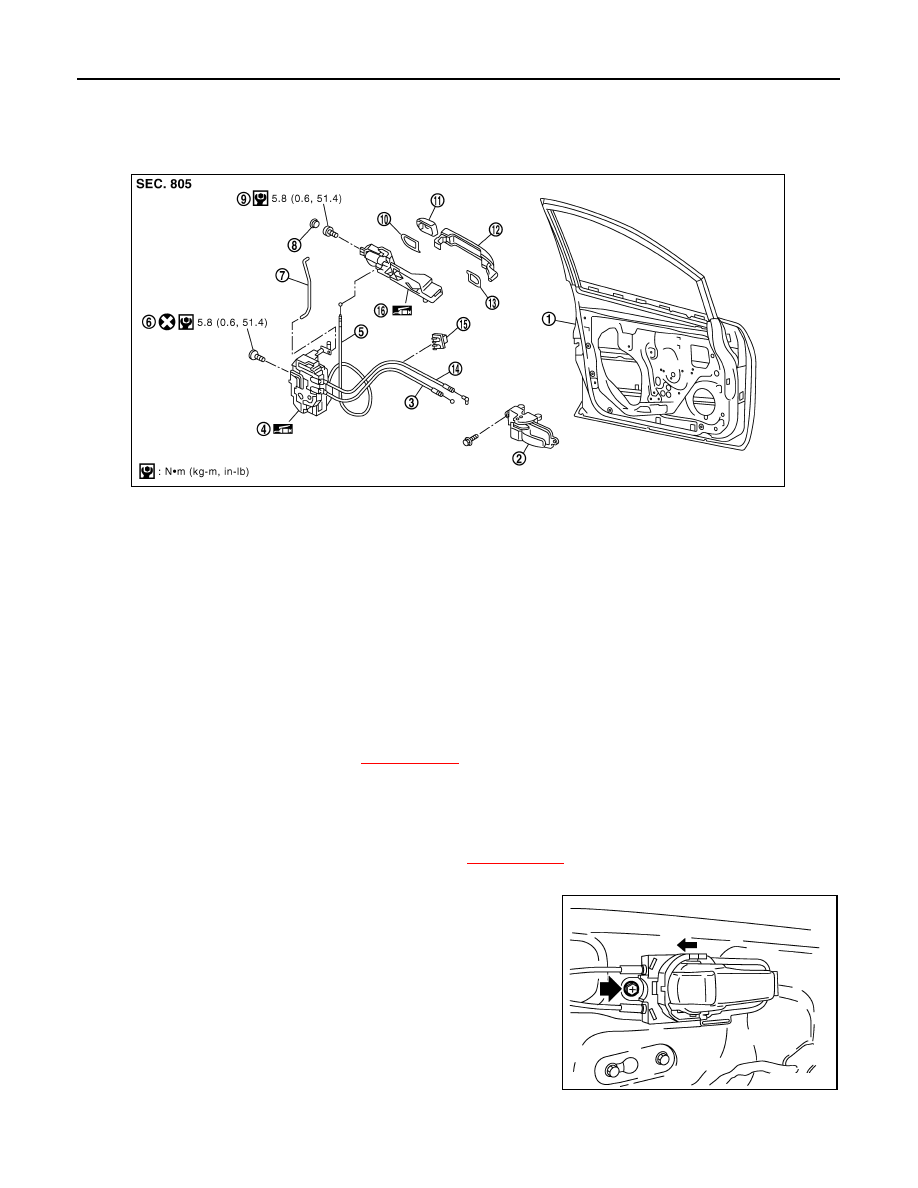

FRONT DOOR LOCK

FRONT DOOR LOCK

Component Parts Location

INFOID:0000000001732044

Removal and Installation

INFOID:0000000001732045

REMOVAL

1.

Remove front door finisher. Refer to

XX-XX, "*****"

 .

2.

Fully close front door window.

3.

Remove the front door sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on the sealing screen.

4.

Remove front door rear glass run channel. Refer to

XX-XX, "*****"

 .

5.

Remove the cables from the holder.

6.

Remove inside handle bolt, and slide the handle toward the rear
of the vehicle. disengage the handle from the door panel, and
remove the inside handle.

7.

Disengage the handle from the door panel, and remove the inside handle.

1.

Front door

2.

Inside handle

3.

Inside handle cable

4.

Door lock assembly

5.

Outside handle cable

6.

TORX bolt (T30)

7.

Key cylinder connecting rod

8.

Grommet

9.

TORX bolt (T30)

10. Rear gasket

11. Door key cylinder assembly

(Driver's side)
Outside handle escutcheon
(passenger's side)

12. Outside handle

13. Front gasket

14. Lock knob cable

15. Holder

16. Outside handle bracket

PIIB6523E

PIIB6524E

FRONT DOOR LOCK

DLK-601

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

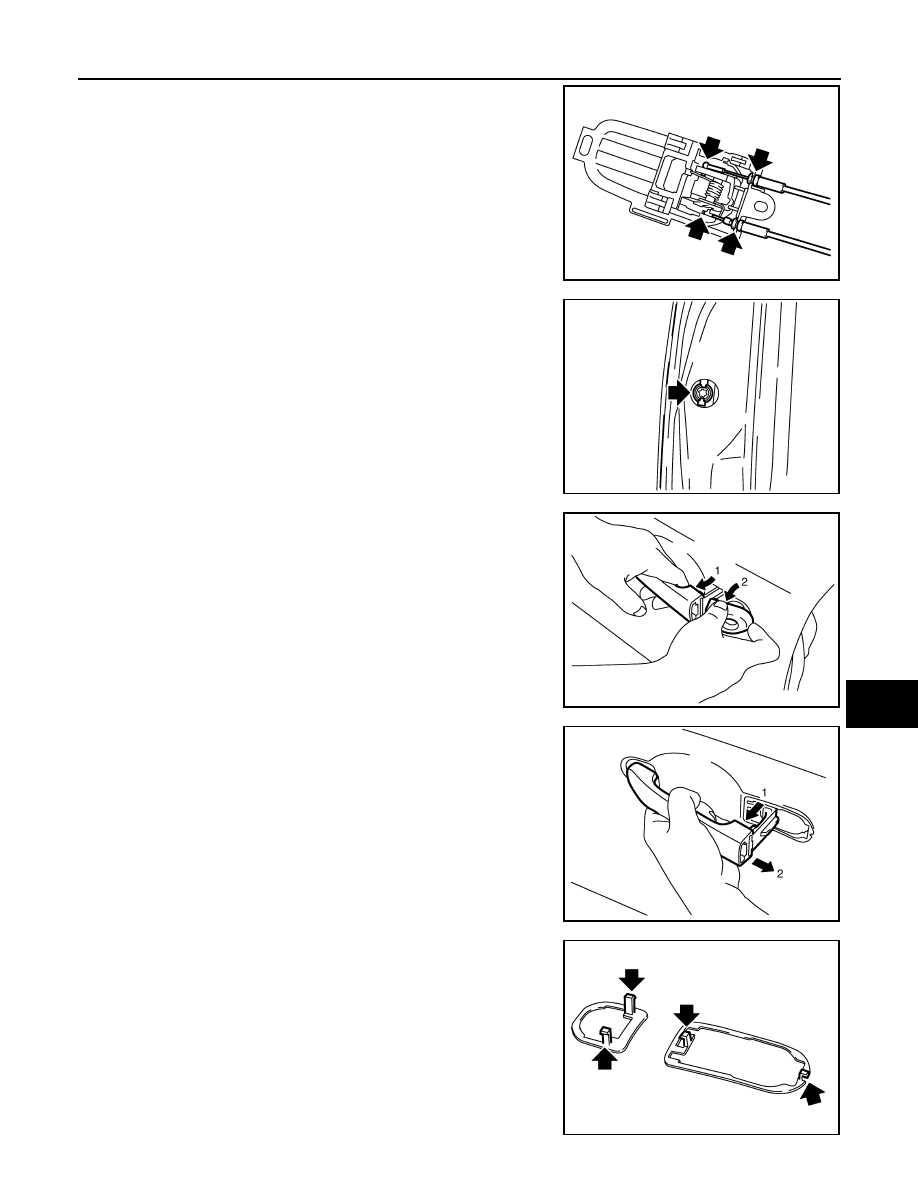

8.

Disconnect the inside handle cable and lock knob cable from the
inside handle.

CAUTION:

During removal and installation, work so as not to bend the
ends of the lock knob cable and inside handle cable.

9.

Remove the door side grommet, and the door key cylinder
assembly (escutcheon) bolt.

10. Remove the key cylinder connecting rod (key cylinder side).

11. If equipped, disconnect the door antenna, the door request

switch connector and remove the harness clamp. (Vehicle with
intelligent key systems only).

12. Remove the door cylinder assembly while pulling the outside

handle forward.

13. Pull the outside door handle forward and then slide it toward the

rear of the vehicle to remove.

14. Remove the front and rear gaskets.

PIIB6525E

PIIB5808E

PIIB5809E

PIIB5810E

PIIB6526E
