DLK-582

< ON-VEHICLE MAINTENANCE >

[WITHOUT I-KEY & SUPER LOCK]

PRE-INSPECTION FOR DIAGNOSTIC

ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000001397122

BASIC INSPECTION

1.

CHECK DOOR LOCK AND UNLOCK SWITCH OPERATION

Check door lock and unlock operation by operating door lock and unlock switch.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

DLK-567, "DOOR LOCK AND UNLOCK SWITCH : Symptom Table"

.

2.

CHECK KEYFOB OPERATION

Check door lock and unlock operation by operationg lock and unlock button of keyfob.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

DLK-567, "KEYFOB : Symptom Table"

.

3.

CHECK AUTO DOOR LOCK OPERATION

Check auto door lock operation. Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Refer to

XX-XX, "*****"

.

4.

CHECK VEHICLE SPEED SENSING AUTO DOOR LOCK OPERATION

Check vehicle speed sensing auto door lock. Refer to

XX-XX, "*****"

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Refer to

XX-XX, "*****"

.

5.

CHECK BACK DOOR OPENER SWITCH OPERATION

Check back door opener operation by operating back door opener switch.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Refer to

DLK-569, "BACK DOOR OPENER SWITCH : Symptom Table"

.

6.

CHECK HAZARD REMINDER FUNCTION

Check hazard reminder function by operating the following switches.
• Lock and unlock button of keyfob.
Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Refer to

DLK-572, "HAZARD WARNING LAMP : Symptom Table"

.

7.

CHECK WARNING FUNCTION

Check that warning function operate properly. Refer to

DLK-482, "System Description"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Refer to

DLK-571, "BACK DOOR : Symptom Table"

.

8.

CHECK OUT

CHECK OUT.

>> INSPECTION END

HOOD

DLK-583

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL AND INSTALLATION

HOOD

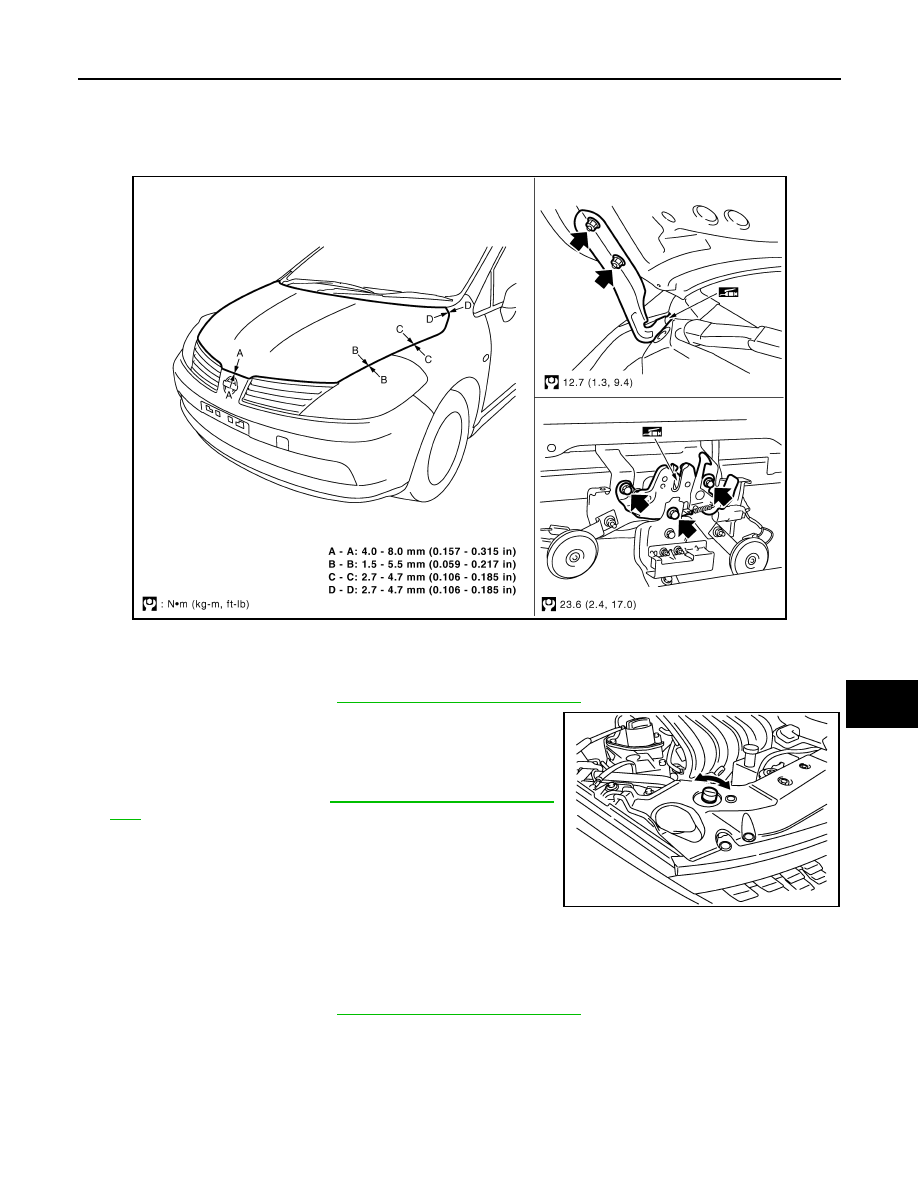

Fitting Adjustment

INFOID:0000000001732035

FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDINAL CLEARANCE ADJUST-
MENT

1.

Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove hood lock. Rotate bumper rubber to adjust height until
hood becomes 1.0 to 1.5 mm lower than the fender.

3.

Position hood lock and engage striker. Check hood lock and
striker for looseness. Tighten lock bolts to the specified torque.

4.

Install the front grille. Refer to

EXT-19, "Removal and Installa-

tion"

.

CAUTION:

Adjust the clearance between hood and other parts so that the
dimensional difference left and right is as follows.

SURFACE MISMATCH ADJUSTMENT

1.

Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

2.

Release hood lock, and adjust surface level difference of hood, fender, and headlamp according to the fit-
ting standard dimension, using RH and LH bumper rubbers.

3.

Install and align the hood lock until the center of the striker and the hood lock are vertically aligned.

PIIB6508E

Hood and headlamp (B - B)

: Less than 2.0 mm (0.08 in)

Hood and fender (C - C)

: Less than 1.5 mm (0.06 in)

Hood and fender (D - D)

: Less than 1.5 mm (0.06 in)

PIIB2526J

Hood and front bumper (A - A)

: -1.3 - 2.7 mm (-0.05 - 0.11 in)

Hood and fender (D - D)

: -0.4 - 1.7 mm (-0.16 - 0.07 in)

DLK-584

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

HOOD

4.

Press the hood lightly with [approx. 29 N (3 kg] of force and adjust A and B as shown.

5.

After adjustment tighten lock bolts to the specified torque.

6.

Install the front grille. Refer to

EXT-19, "Removal and Installation"

.

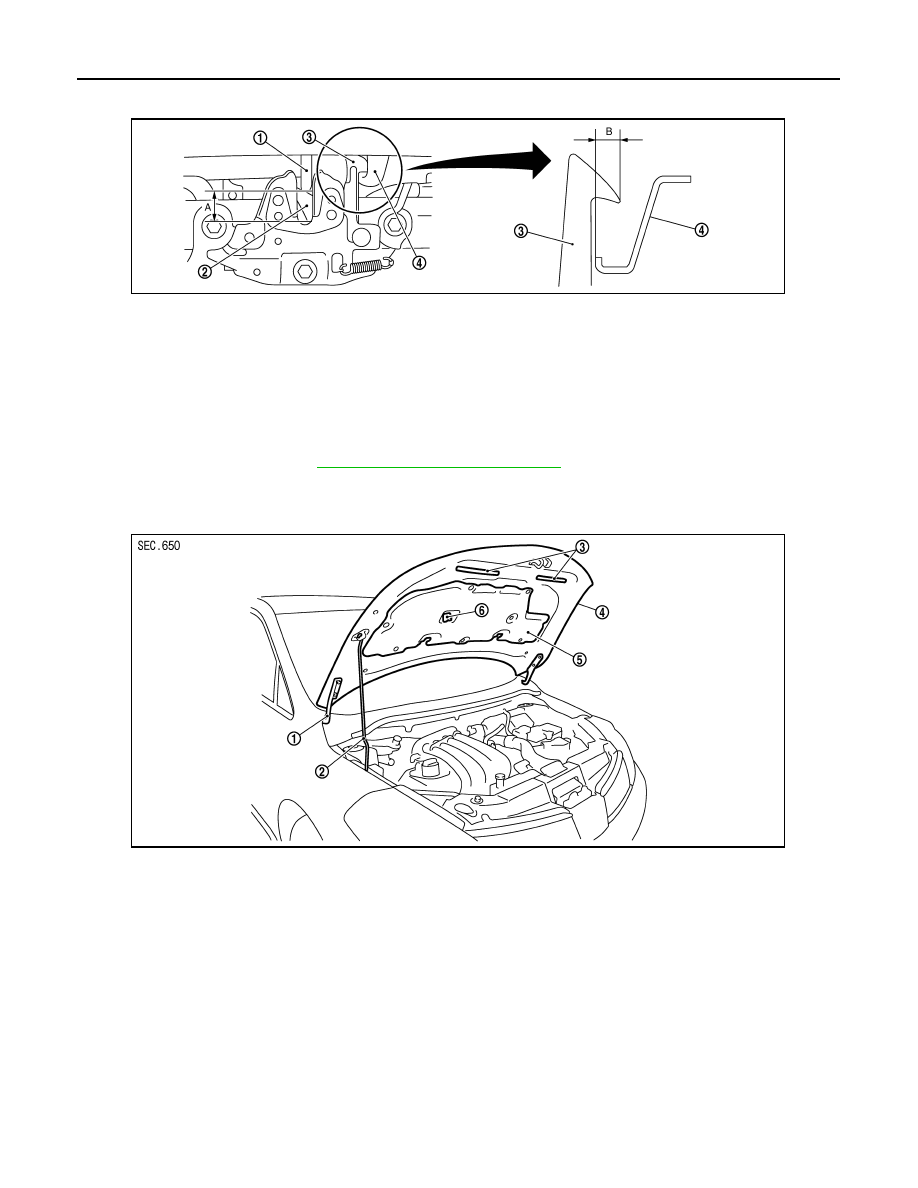

Removal and Installation

INFOID:0000000001732036

HOOD ASSEMBLY

Removal

1.

Hood striker

2.

Primary latch

3.

Secondary striker

4.

Secondary latch

A

: 20 mm (0.79 in)

B

: 6.8 mm (0.268 in) min.

PIIB5794E

1.

Hood hinge

2.

Hood stay

3.

Radiator core seal rubber

4.

Hood assembly

5.

Hood insulator

6.

Hood stay holder

PIIB2528J

HOOD

DLK-585

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Remove hinge nuts on hood and remove hood assembly.

CAUTION:

Two technicians should be used to avoid damaging the
hood during removal.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Before installing hood hinge, apply anticorrosive agent onto the surfaces that make contact with the

vehicle body.

• After installing, perform hood fitting adjustment. Refer to

DLK-583, "Fitting Adjustment"

.

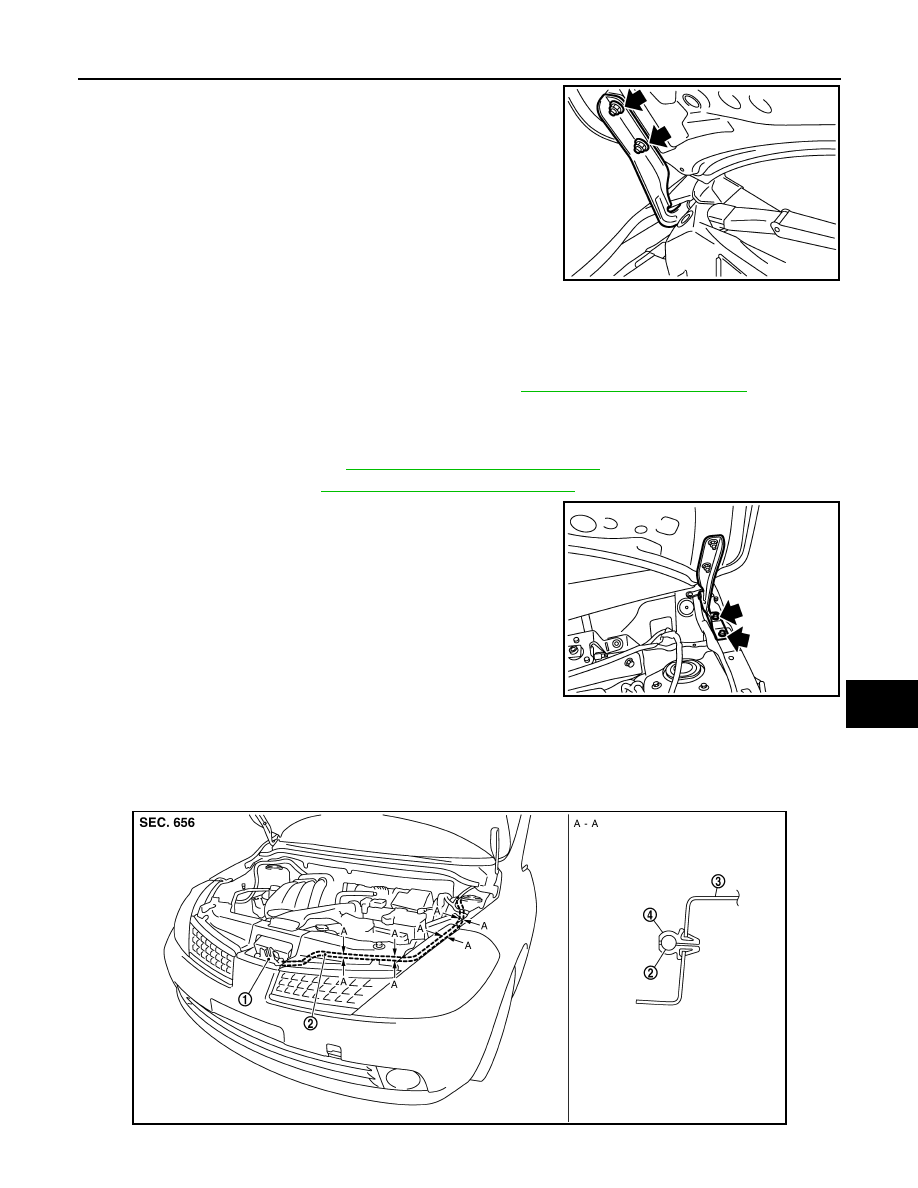

HOOD HINGE

Removal

1.

Remove hood assembly. Refer to

DLK-584, "Removal and Installation"

.

2.

Remove front fender. Refer to

DLK-591, "Removal and Installation"

.

3.

Remove bolts and the hood hinge.

Installation

Installation is in the reverse order of removal.

Removal and Installation of Hood Lock Control

INFOID:0000000001732037

LH Drive

 12.7 N·m (1.3 kg-m, 9.4 ft-lb)

PIIB2529J

  12.7 N·m (1.3 kg-m, 9.4 ft-lb)

PIIB2530J

PIIB6509E
