Nissan Tiida C11. Manual - part 269

DLK-486

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

HAZARD REMINDER FUNCTION

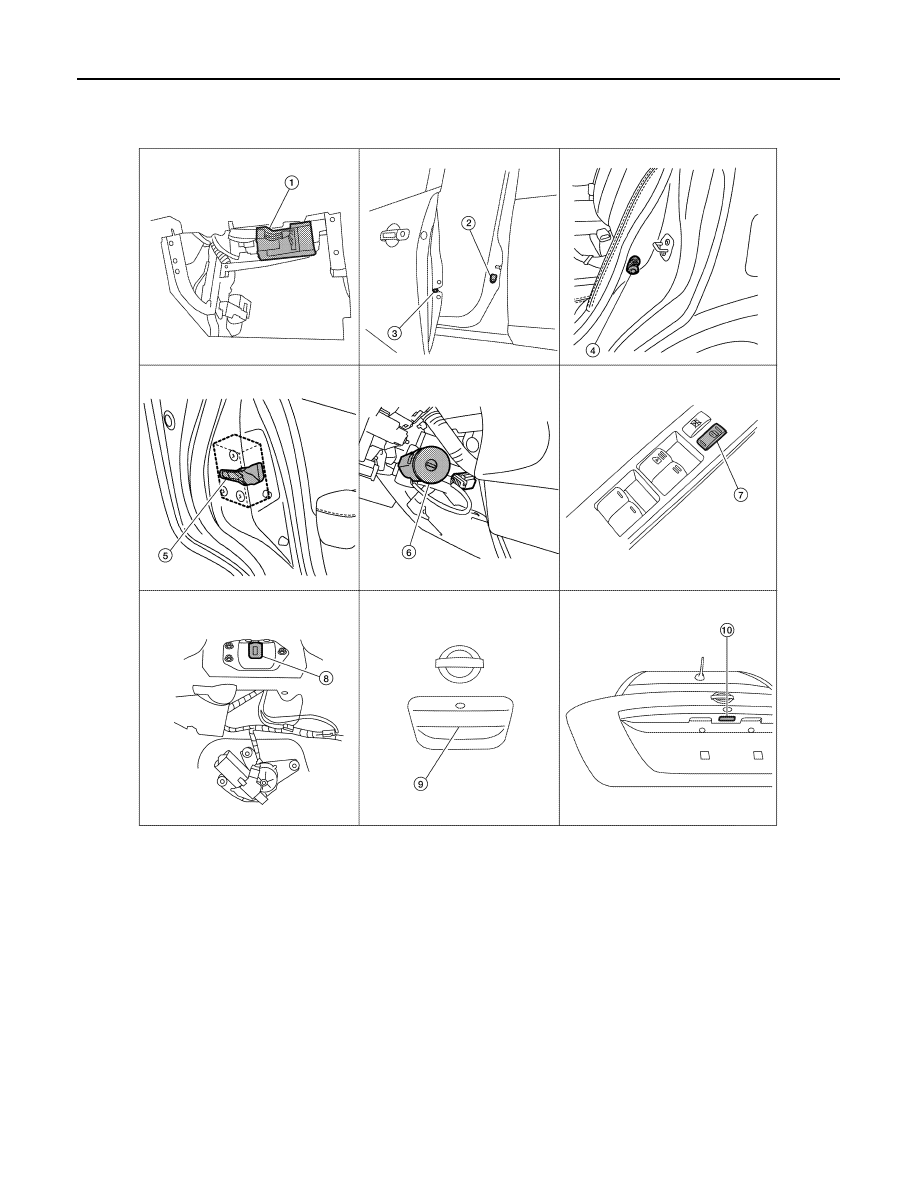

Component Parts Location

INFOID:0000000001397018

ALKIA0812ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Front door switch (driver side) B34
(Passenger side) B27

3.

Front door lock actuator (driver side)
D14
(Passenger side) D114
Door unlock sensor (driver side) D14

4.

Rear door switch LH B71
RH B53

5.

Rear door lock actuator LH D205
RH D305

6.

Key switch and key lock solenoid
M27

7.

Main power window and door lock/unlock
switch D7, D8

8.

Back door lock assembly (back
door switch) D405 (hatchback view
with back door open)

9.

Back door opener switch (hatchback)
D408

10. Trunk lid opener switch (sedan) B61

HAZARD REMINDER FUNCTION

DLK-487

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Component Description

INFOID:0000000001397019

Item

Function

BCM

Controls the hazard reminder system.

Combination meter

Turns ON the turn signal indicator (built in combination meter) by the request from
BCM via CAN communication.

Keyfob

Transmits key ID to BCM when lock and unlock button is pressed.

DLK-488

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001397020

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

DOOR LOCK

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000001397021

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

XX-XX, "*****"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

—

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

PTC heater system

PTC HEATER

×

×

DIAGNOSIS SYSTEM (BCM)

DLK-489

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

MULTIREMOTE ENT

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

Monitor Item

Condition

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

CDL LOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch (driver side).

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch (passenger side).

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

BACK DOOR SW

Indicates [ON/OFF] condition of back door switch.

BACK DOOR OPNR SW

Indicates [ON/OFF] condition of back door opener switch.

KEYLESS LOCK

Indicates [ON/OFF] condition of lock signal from key fob.

KEYLESS UNLOCK

Indicates [ON/OFF] condition of unlock signal from key fob.

UNLOCK WITH DR

This item is indicated, but not monitored.

UNLOCK SHOCK

Indicates [ON/OFF] condition of signal from air bag diagnosis unit.
• ON: During the unlock operation interlock with air bag.
• OFF: Other than above.

SHOCK SENSOR

Indicates [NOMAL/ON/OFF] condition of circuit between BCM and air bag diagnosis sen-
sor unit.
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag di-

agnosis sensor unit.)

• ON: During the receiving of air bag deployment signal from air bag diagnosis sensor

unit.

• OFF: After the receiving of air bag deployment signal from air bag diagnosis sensor unit.

VEHICLE SPEED

Displays the vehicle speed signal received from combination meter by numerical value
[km/h].

Test item

Description

DOOR LOCK IND

This test is able to check door lock indicator (built in door lock and unlock switch on center
console) operation [ON/OFF].

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].

Test item

Description

SECURITY DOOR LOCK SET

Anti hijack function mode can be changed in this mode.
• ON: Anti hijack mode is active.
• OFF: Anti hijack mode is inactive.
