Nissan Tiida C11. Manual - part 264

DLK-466

< REMOVAL AND INSTALLATION >

[WITH I-KEY & SUPER LOCK]

TRUNK LID

TRUNK LID

Fitting Adjustment

INFOID:0000000001732031

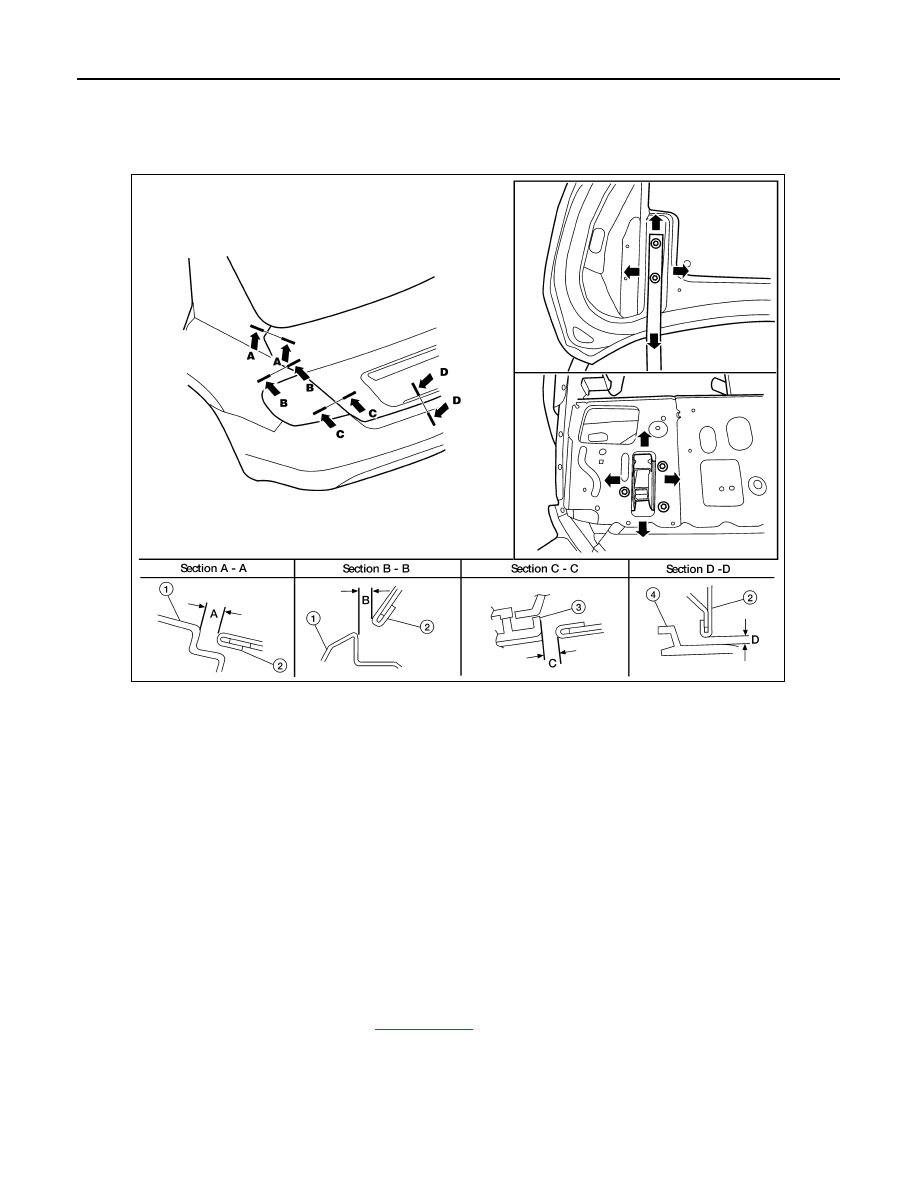

Longitudinal and lateral clearance adjustment

1.

With the striker released, loosen the trunk lid hinge nuts and close the trunk lid.

2.

Make the lateral clearance and the clearance to the rear window glass equal. Then open the trunk lid to
tighten the nuts.

Surface height adjustment

1.

Loosen the striker bolts. Raise the striker to the top position, and temporarily tighten the upper bolt.

2.

Close the trunk lid lightly and adjust the surface height. Then open the trunk lid and tighten the striker
bolts.

Trunk Lid Assembly

INFOID:0000000001732032

REMOVAL

1.

Remove the trunk lid finisher. Refer to

XX-XX, "*****"

 .

2.

Remove the trunk lid wire harness.

1.

Rear fender

2.

Trunk lid

3.

Rear combination lamp

4.

Rear bumper fascia

a.

4.0

±

 1.0 mm (0.16

±

 0.04 in)

b.

3.5

±

 1.0 mm (0.14

±

  0.04 in)

c.

4.5

±

 1.7 mm (0.03

±

 0.06 in)

d.

7.0

±

 2.2 mm (0.28

±

 0.09 in)

LIIA2932E

TRUNK LID

DLK-467

< REMOVAL AND INSTALLATION >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

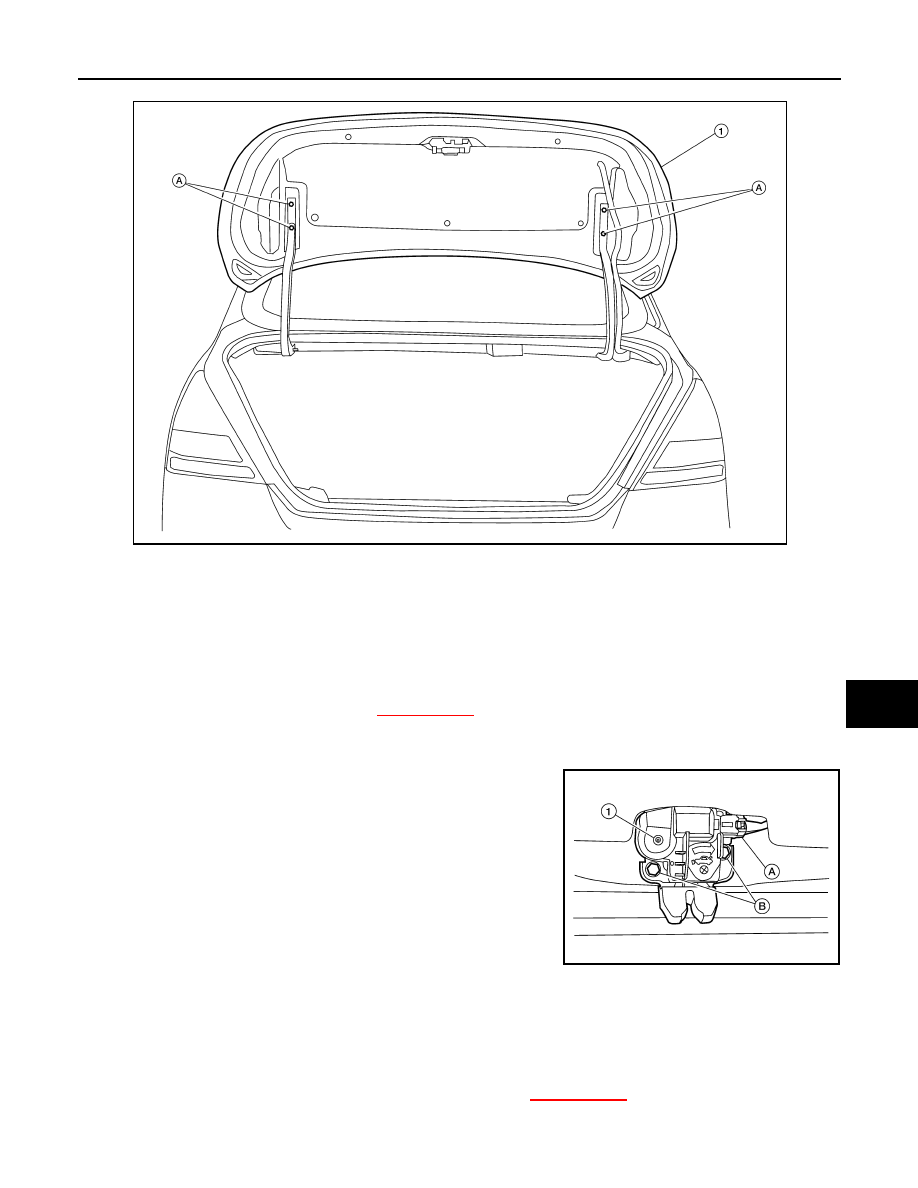

Remove the nuts (a) and the trunk lid assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing, apply touch-up paint (body color) to the head of the hinge nuts.

Trunk Lid Lock

INFOID:0000000001732033

REMOVAL

1.

Remove the trunk lid finisher. Refer to

XX-XX, "*****"

.

2.

If equipped, disconnect the trunk lid lock cylinder rod.

3.

Remove the release cable.

4.

Disconnect the electrical connector (a), remove the bolts (b) and
the trunk lid lock (1).

INSTALLATION

Installation is in the reverse order of removal.

Trunk Lid Striker

INFOID:0000000001732034

REMOVAL

1.

Remove the trunk rear plate and trunk rear finisher. Refer to

XX-XX, "*****"

.

2.

Remove the bolts, disconnect the electrical connector and remove the trunk lock actuator.

3.

Remove the bolt and disconnect the trunk lid release cable.

LIIA2933E

LIIA2935E

DLK-468

< REMOVAL AND INSTALLATION >

[WITH I-KEY & SUPER LOCK]

TRUNK LID

4.

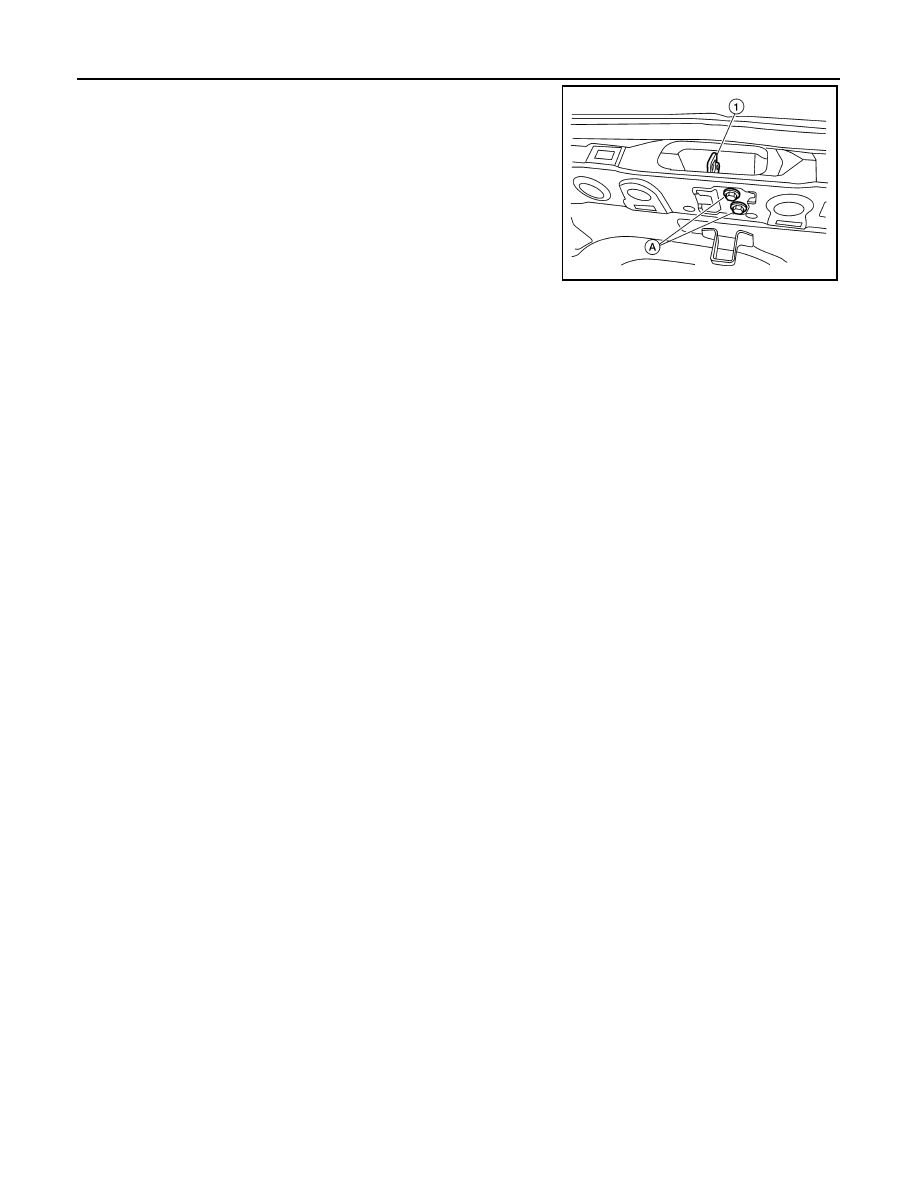

Remove the bolts (a) and the trunk lid striker (1).

INSTALLATION

Installation is in the reverse order of removal.

LIIA2934E

DIAGNOSIS AND REPAIR WORKFLOW

DLK-469

< BASIC INSPECTION >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

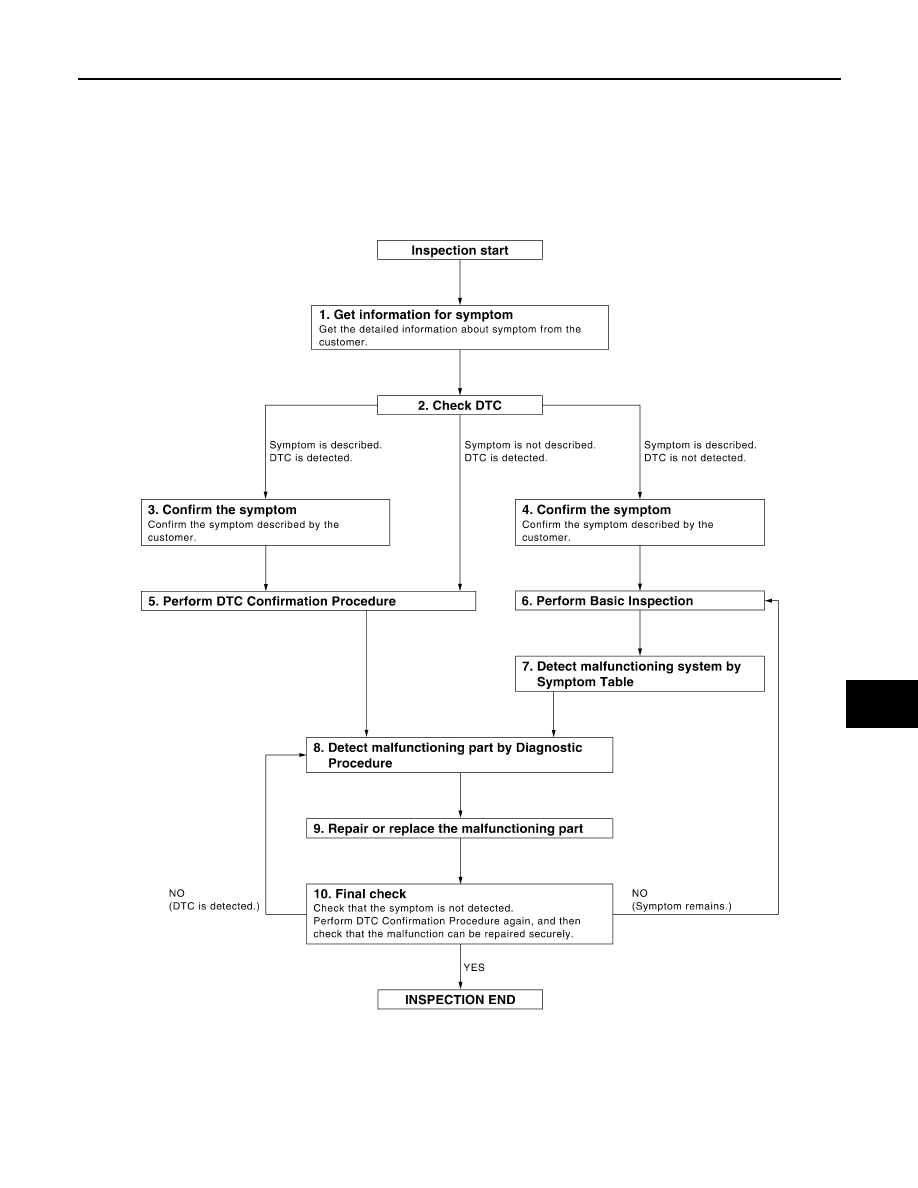

Work Flow

INFOID:0000000001396985

OVERALL SEQUENCE

DETAILED FLOW

ALKIA0246GB
