Nissan Tiida C11. Manual - part 251

DLK-414

< ECU DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

BCM (BODY CONTROL MODULE)

ALKIA1154GB

BCM (BODY CONTROL MODULE)

DLK-415

< ECU DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

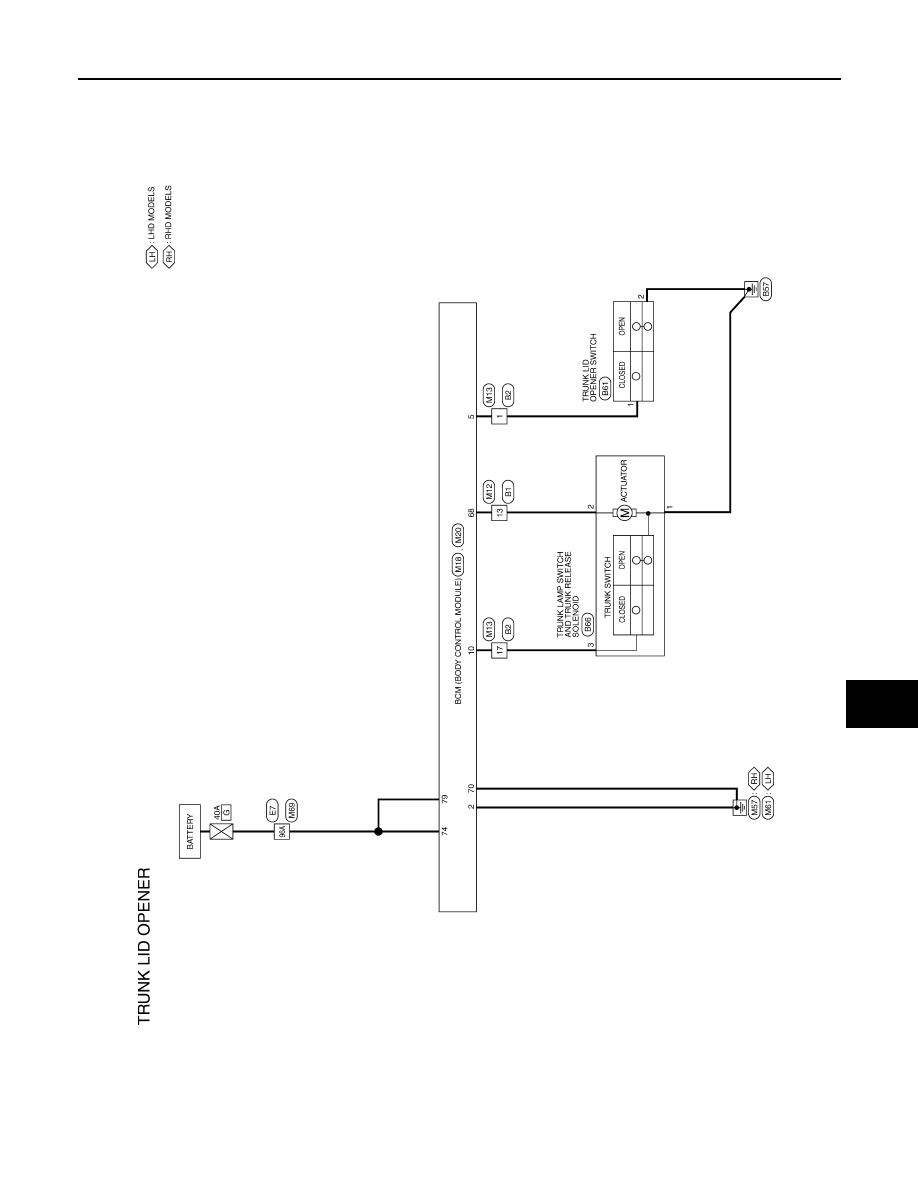

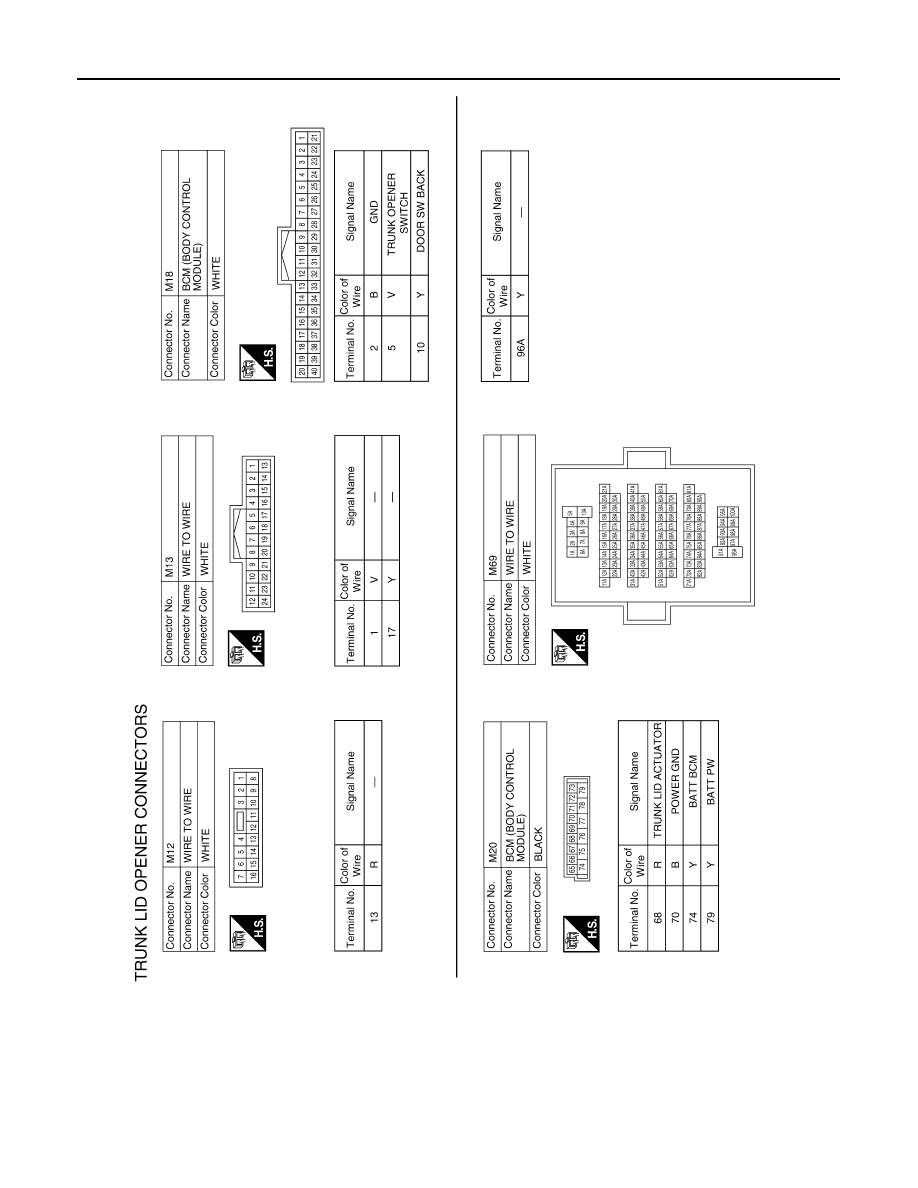

Wiring Diagram - TRUNK LID OPENER SYSTEM -

INFOID:0000000001530552

ALKWA0119GB

DLK-416

< ECU DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

BCM (BODY CONTROL MODULE)

ALKIA1155GB

BCM (BODY CONTROL MODULE)

DLK-417

< ECU DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Fail Safe

INFOID:0000000001530553

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

ALKIA1156GB
