Nissan Tiida C11. Manual - part 232

DLK-338

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR LOCK ACTUATOR

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK BACK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and back door lock assembly.

2.

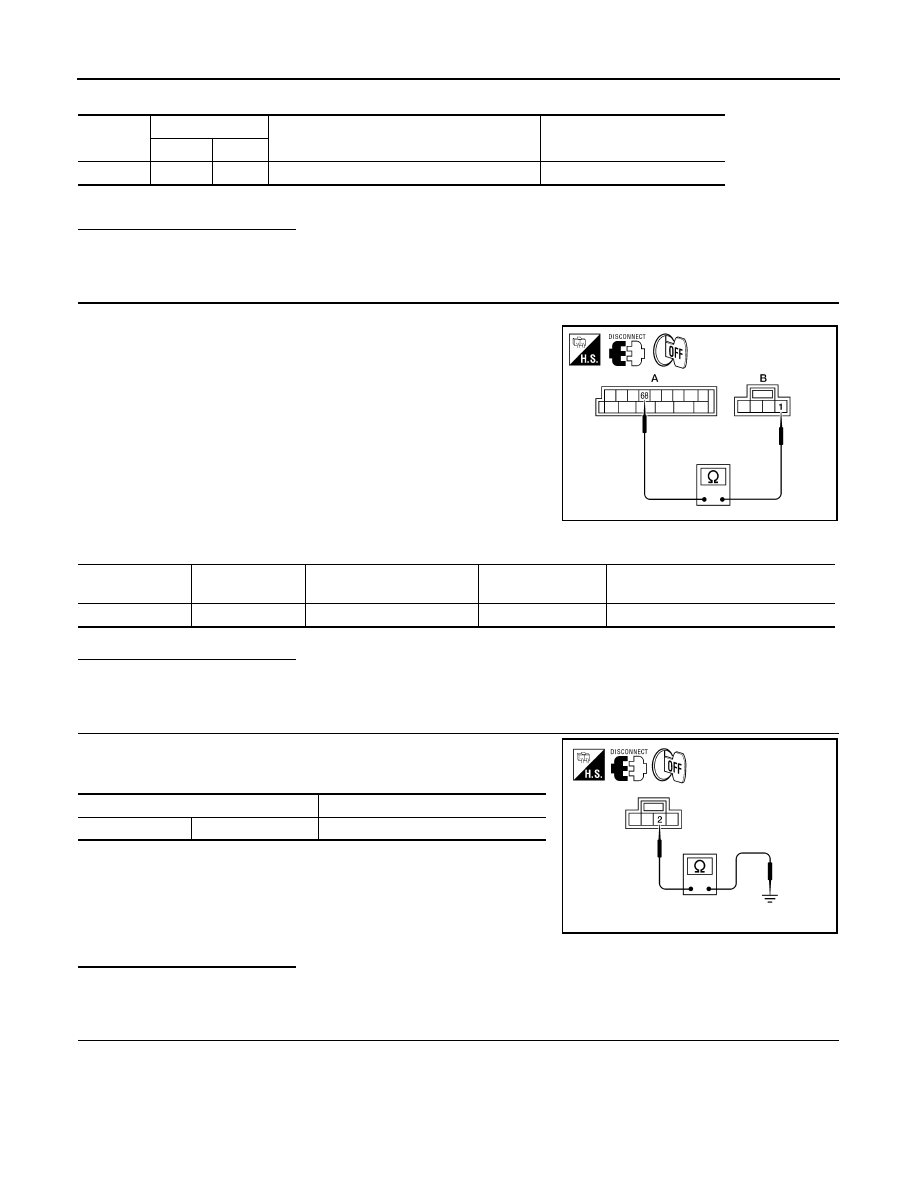

Check continuity between BCM connector (A) M20 terminal 68
and back door lock assembly connector (B) D405 terminal 1.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK BACK DOOR LOCK ACTUATOR GROUND CIRCUIT

Check continuity between back door lock assembly connector D405
terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace back door lock assembly.

NO

>> Repair or replace harness.

4.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and back door lock actuator.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

68

Ground

Door lock opener switch is pressed

0

→

 Battery voltage

→

 0

ALKIA0780ZZ

BCM connector

Terminal

Back door lock assembly

connector

Terminal

Continuity

M20

68

D405

1

Yes

Terminals

Continuity

2

Ground

Yes

ALKIA0781ZZ

DOOR LOCK ACTUATOR

DLK-339

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Check continuity between BCM connector M20 terminals 68 and
ground.

Is the inspection result normal?

YES

>> Harness is OK. Refer to

DLK-339, "BACK DOOR : Component Inspection"

.

NO

>> Repair or replace harness.

BACK DOOR : Component Inspection

INFOID:0000000001530335

1.

CHECK TRUNK LAMP SWITCH

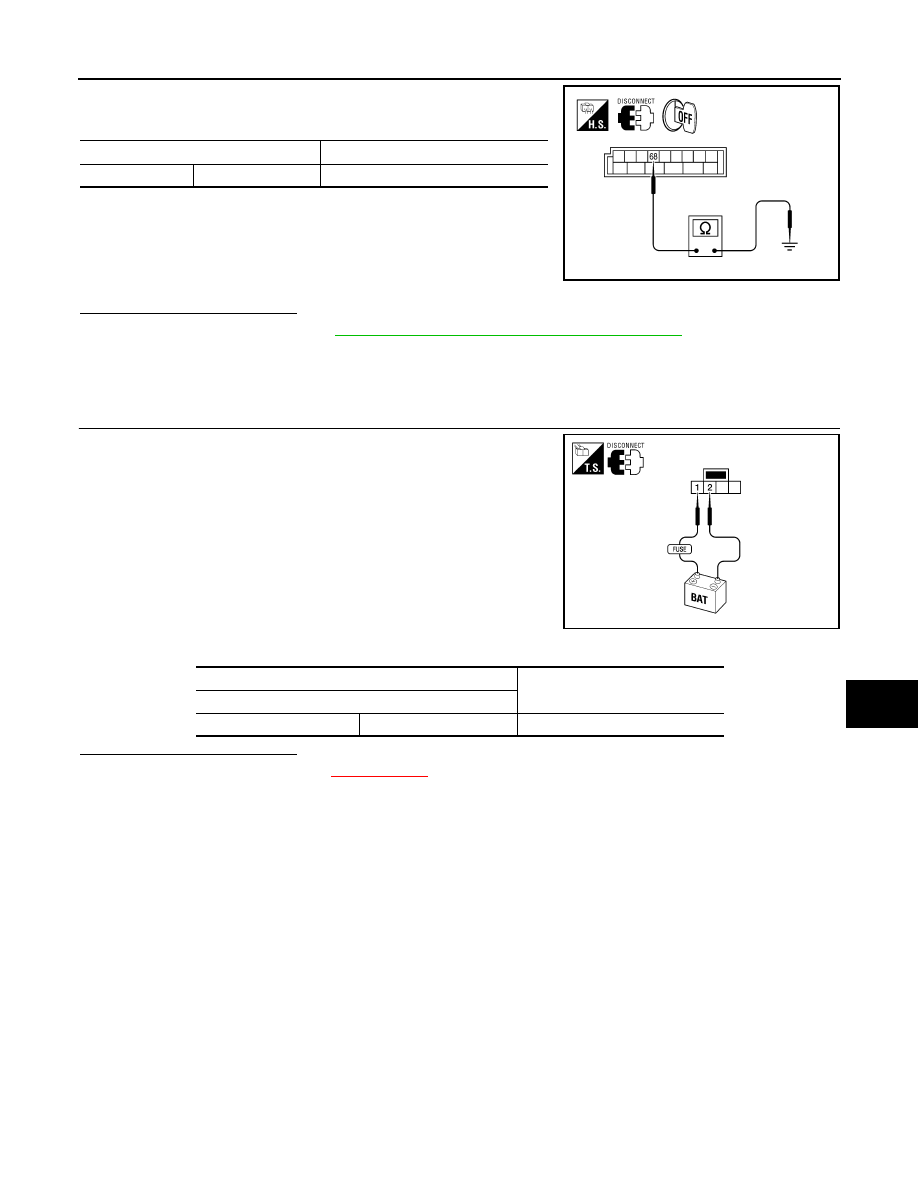

Momentarilly, connect battery power supply to back door lock
assembly terminals and check for actuator operation.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Replace back door lock assembly.

Terminals

Continuity

68

Ground

No

ALKIA0782ZZ

ALKIA0779ZZ

Terminal

Back door condition

Back door lock assembly (actuator)

1 BAT (+)

2 BAT (-)

Actuator operates

DLK-340

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

SUPER LOCK ACTUATOR

SUPER LOCK ACTUATOR

DRIVER SIDE

DRIVER SIDE : Description

INFOID:0000000001530411

The super lock system is controlled by the BCM.

DRIVER SIDE : Component Function Check

INFOID:0000000001530412

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "SUPER LOCK".

2.

Touch “LOCK” or “UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Front super lock actuator (driver side) is OK.

NO

>> Refer to

DLK-340, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000001530413

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between BCM connector M20 terminals 75, 76
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (driver side).

ALKIA0822ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

75

Ground

Driver door lock/unlock switch is
turned to LOCK

0

→

 Battery voltage

→

 0

76

Driver door lock/unlock switch is
turned to UNLOCK

0

→

 Battery voltage

→

 0

SUPER LOCK ACTUATOR

DLK-341

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

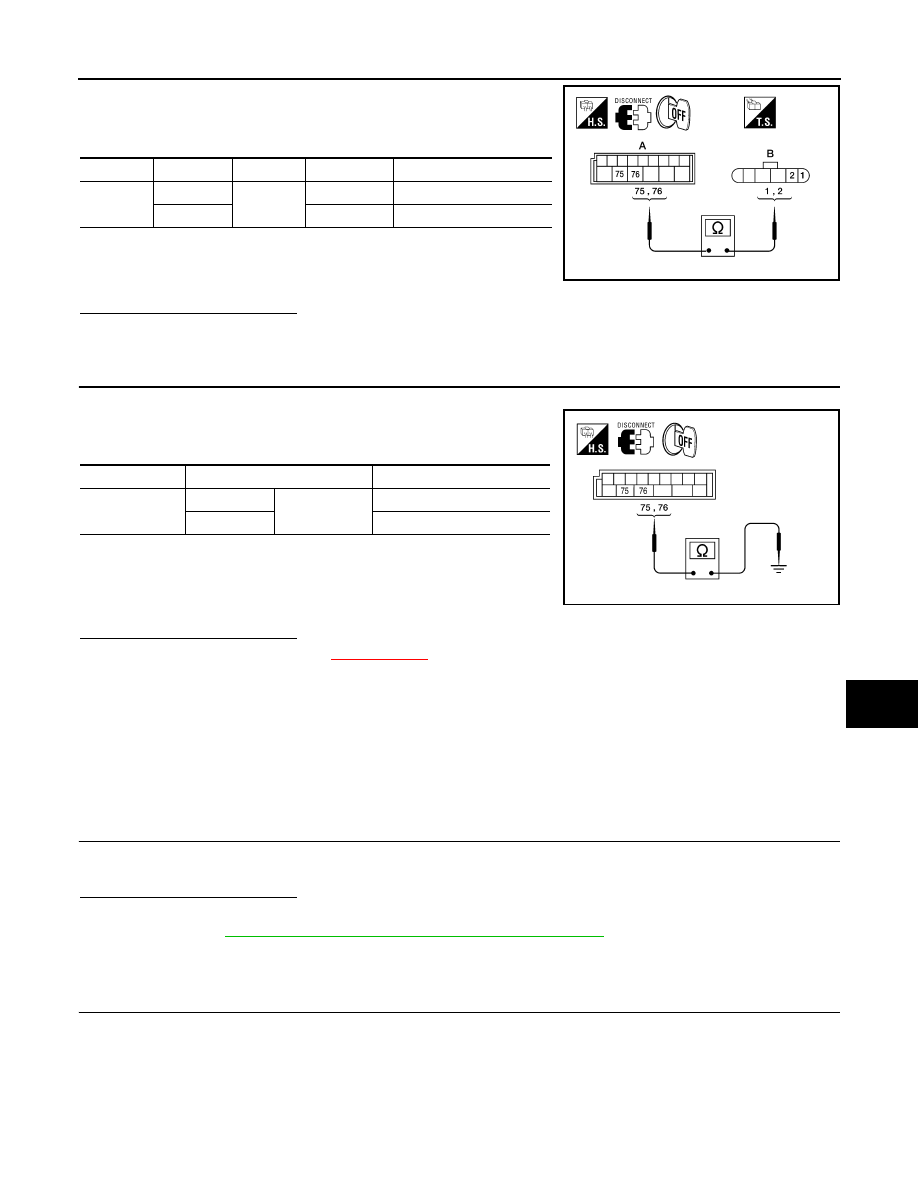

Check continuity between BCM connector (A) M20 terminals 75,
76 and front door lock actuator (driver side) connector (B) D14
terminals 1, 2.

Is the inspection result normal?

YES

>> Replace super lock actuator (driver side).

NO

>> Repair or replace harness.

3.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (driver side).

2.

Check continuity between BCM connector M20 terminals 75, 76
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

PASSENGER SIDE

PASSENGER SIDE : Description

INFOID:0000000001530414

The super lock system is controlled by the BCM.

PASSENGER SIDE : Component Function Check

INFOID:0000000001530415

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test DOOR LOCK.

2.

Touch “LOCK” or “UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Front super lock actuator (passenger side) is OK.

NO

>> Refer to

DLK-341, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000001530416

1.

CHECK FRONT DOOR LOCK ACTUATOR (PASSENGER SIDE) SIGNAL

1.

Turn ignition switch OFF.

Connector

Terminals

Connector

Terminals

Continuity

M20

75

D14

1

Yes

76

2

Yes

ALKIA0823ZZ

Connector

Terminals

Continuity

M20

75

Ground

No

76

No

ALKIA0824ZZ
