DOOR SWITCH

2.

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

CHECK BACK DOOR LOCK ASSEMBLY (DOOR SWITCH)

Check back door lock assembly (door switch).
Refer to

DLK-306, "BACK DOOR : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace back door lock assembly (door switch). Refer to

XX-XX, "*****"

 and

XX-XX, "*****"

.

6.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

BACK DOOR : Component Inspection

INFOID:0000000001530294

1.

CHECK BACK DOOR LOCK ASSEMBLY (DOOR SWITCH)

1.

Turn ignition switch OFF.

2.

Check back door lock assembly (door switch).

Is the inspection result normal?

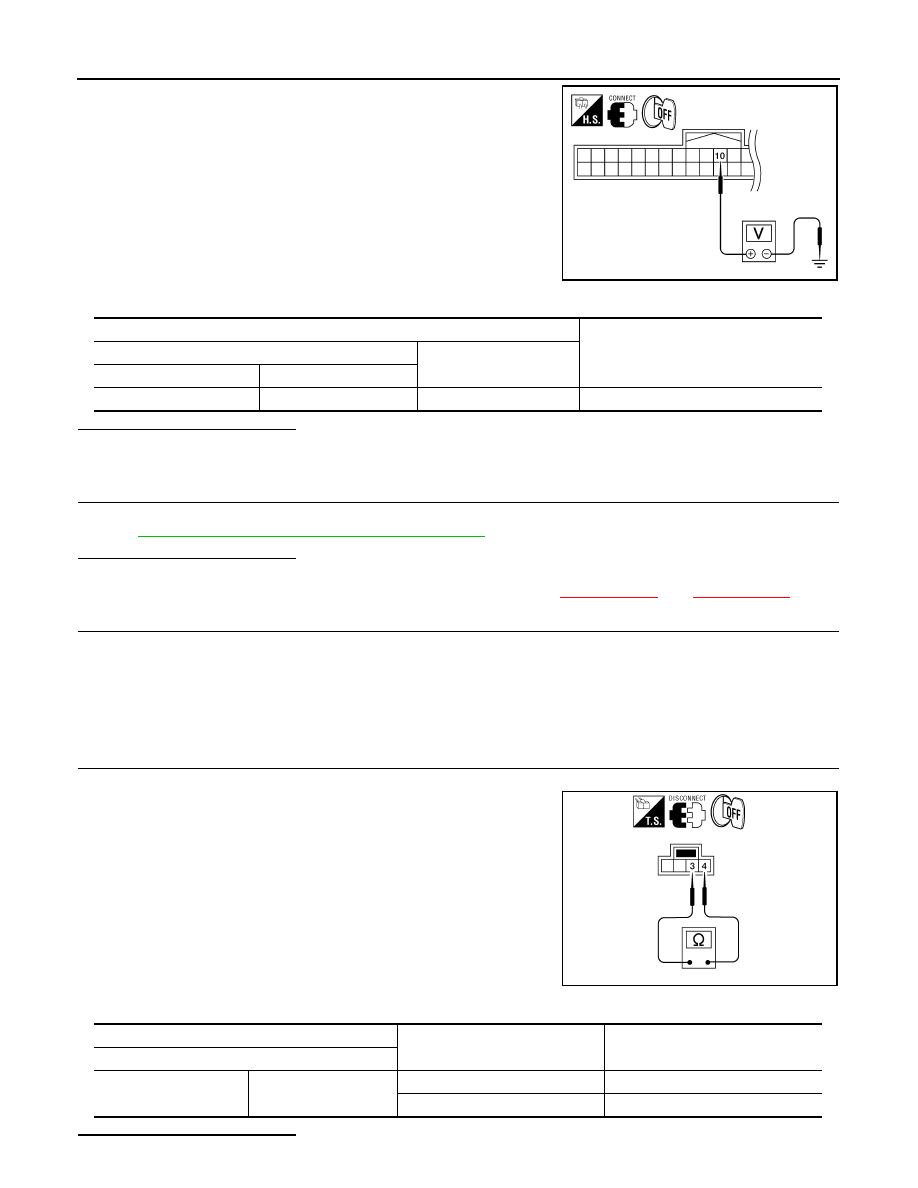

ALKIA0755ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M18

10

Ground

Battery voltage

ALKIA0758ZZ

Terminal

Back door condition

Continuity

Back door lock assembly (door switch)

3

4

OPEN

Yes

CLOSE

No

DOOR SWITCH

DLK-307

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

YES

>> Back door lock assembly (door switch) is OK.

NO

>> Replace back door lock assembly (door switch). Refer to

XX-XX, "*****"

 and

XX-XX, "*****"

.

DLK-308

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

KEY SWITCH

KEY SWITCH

Description

INFOID:0000000001530295

Key switch detects that mechanical key is inserted into the key cylinder, and then transmits the signal to Intel-
ligent Key unit.

Component Function Check

INFOID:0000000001530296

1.

CHECK KEY SWITCH INPUT SIGNAL

Check key switch (“KEY SW”) in “Data Monitor” mode with CONSULT-III. Refer to

DLK-50, "DOOR LOCK :

CONSULT-III Function (BCM - DOOR LOCK)"

.

Is the inspection result normal?

YES

>> Key switch is OK.

NO

>> Refer to

DLK-308, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001530297

1.

CHECK KEY SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect Intelligent Key unit connector.

3.

Check voltage between Intelligent Key unit harness connector
and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

CHECK KEY SWITCH POWER SUPPLY CIRCUIT

1.

Remove mechanical key from key cylinder.

2.

Disconnect key switch and ignition knob switch connector.

Monitor item

Condition

KEY SW

Insert mechanical key into key cylinder

: ON

Remove mechanical key from key cylinder

: OFF

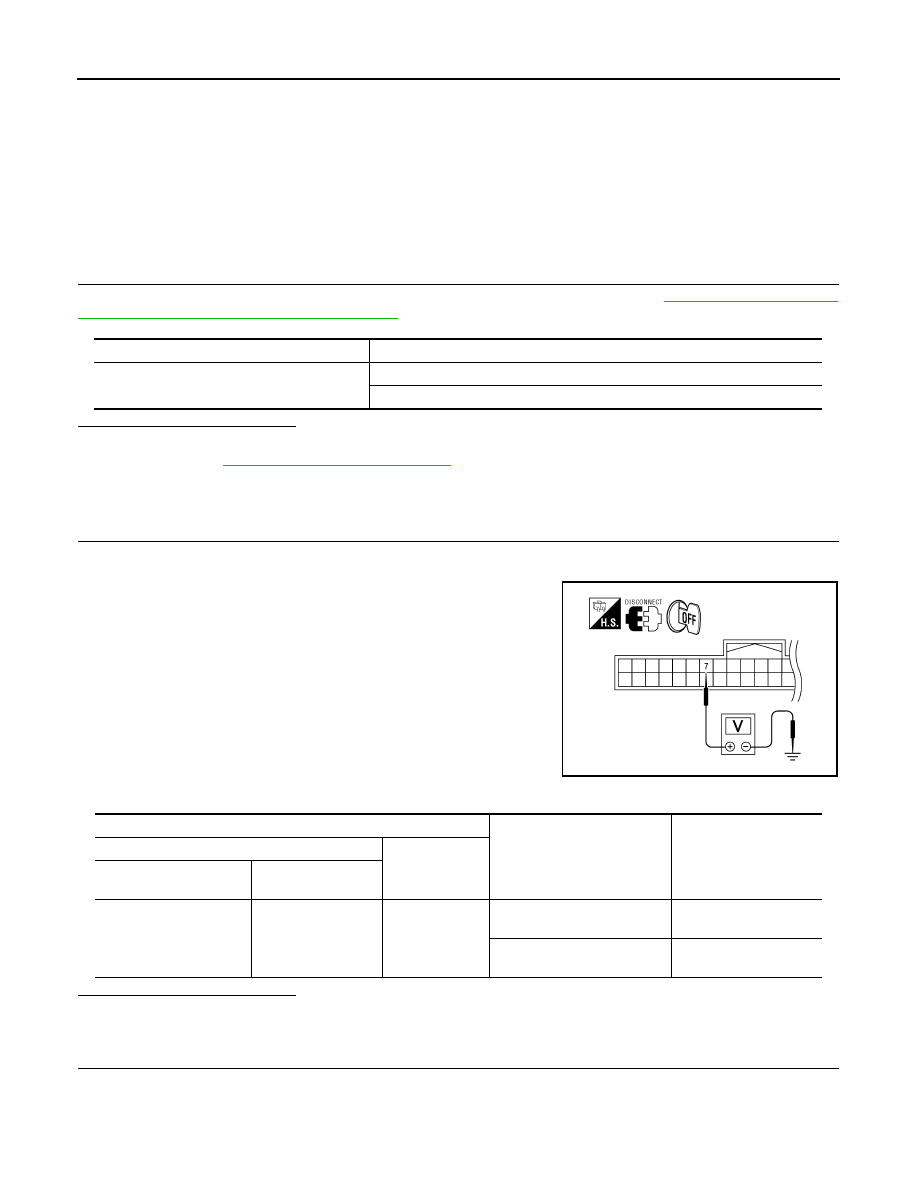

WIIA1173E

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

Intelligent Key unit con-

nector

Terminal

M52

7

Ground

Insert mechanical key into key

cylinder

Battery voltage

Remove mechanical key from

key cylinder

0

KEY SWITCH

DLK-309

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Check voltage between key switch and ignition knob switch con-
nector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK KEY SWITCH SIGNAL CIRCUIT

1.

Check continuity between Intelligent Key unit harness connector
(A) M52 terminal 7 and key switch and ignition knob switch con-
nector (B) M32 terminal 1.

2.

Check continuity between Intelligent Key unit harness connector (A) M52 terminal 7 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK KEY SWITCH

Check key switch function.
Refer to

DLK-310, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace key switch and ignition knob switch.

5.

CHECK INTERMITTENT INCIDENT

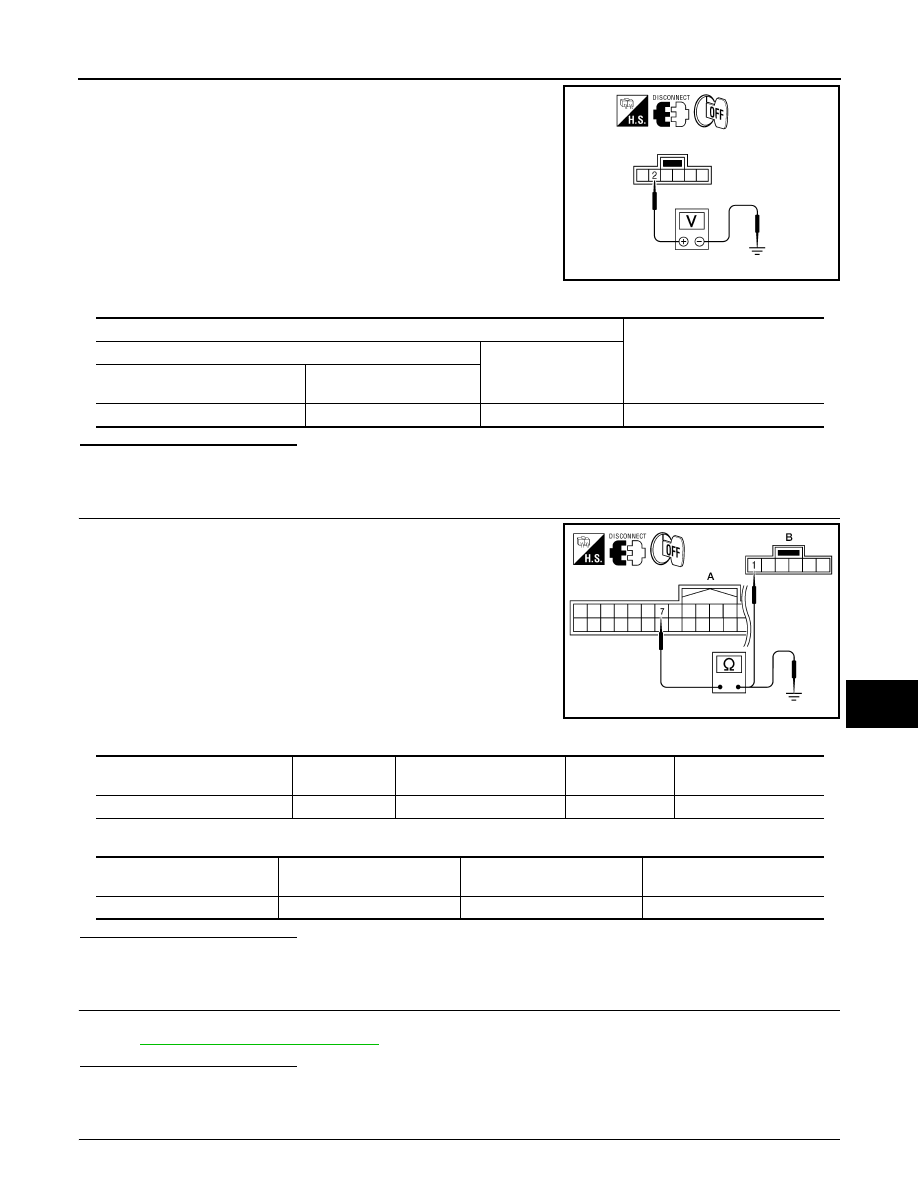

ALKIA0768ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(–)

key switch and ignition knob switch

connector

Terminal

M32

2

Ground

Battery voltage

ALKIA0769ZZ

Intelligent Key unit connector

Terminal

key switch and ignition knob

switch connector

Terminal

Continuity

M52

7

M32

1

Yes

Intelligent Key unit harness

connector

Terminal

Ground

Continuity

M52

7

Ground

No
