DLK-258

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

ALKIA0815ZZ

1.

Combination meter M24

2.

Key warning lamp (combination meter)

3.

Lock warning lamp (combination meter)

4.

Stop lamp switch M203
(view with instrument panel LH re-
moved)

5.

Steering lock solenoid M6
(bottom view of steering column)

6.

Key switch and ignition knob switch (A/
T) M32

7.

Key switch and ignition knob
switch (M/T) M32

8.

Instrument panel antenna M10
(view with glove box removed)

9.

BCM M18, M19, M20

10. Intelligent Key Unit M52

11.  Intelligent key warning buzzer (driver side)

D6 (view with front door finisher removed)

12. Front outside antenna (driver side) D10

(Passenger side) D106

13. Front door request switch (driver

side) D5
(Passenger side) D103

14. Door unlock sensor D14

[Front door lock actuator (driver side)]

15. Front door switch (driver side) B34

(Passenger side) B29

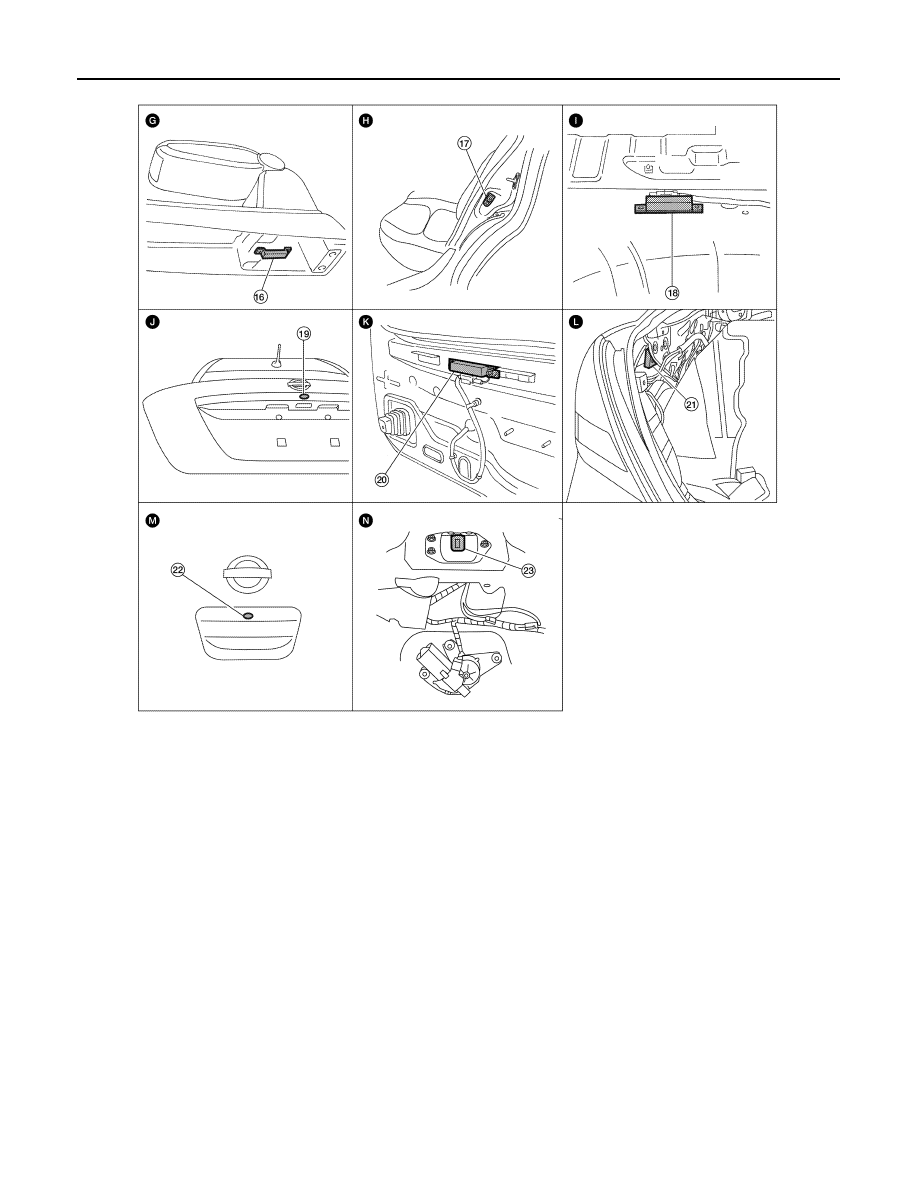

16. Front console antenna B45

(view with front console removed)

17.  Rear door switch LH B71

RH B53

18. Rear floor antenna B46

(behind rear seat)

19. Trunk request switch B67

(sedan)

20. Rear bumper antenna B81

(view with rear fascia removed)

21. Intelligent Key warning buzzer (trunk)

B82 (sedan)
(view with trunk finisher LH removed)

22. Back door request switch D406

(hatchback)

23.  Back door lock assembly (back door switch)

D405 (hatchback view with back door open)

DOOR LOCK FUNCTION

DLK-259

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEY REMINDER : Component Description

INFOID:0000000001396685

Item

Function

Intelligent Key unit

Controls the door lock function with BCM.

BCM

Controls the door lock and unlock operation with Intelligent Key unit.

Door switch

Detects door state (open or close).

Inside key antenna

Detects Intelligent Key is in detection area of inside key antenna.

Intelligent Key

Transmits key ID to Intelligent Key unit when Intelligent Key searching.

Door lock actuator

Receives lock and unlock signal from BCM and locks/unlocks each door.

DLK-260

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

BACK DOOR OPENER FUNCTION

BACK DOOR OPENER FUNCTION

BACK DOOR OPENER SWITCH

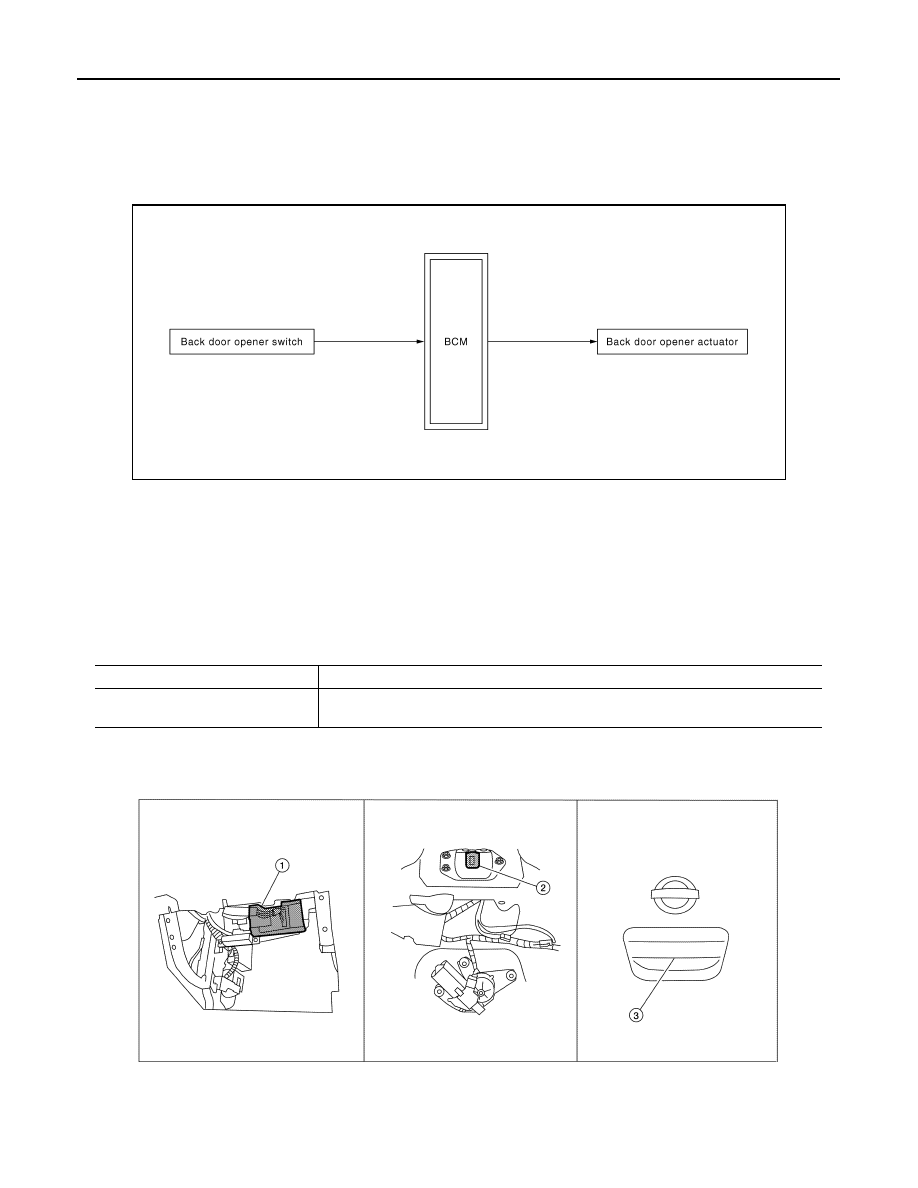

BACK DOOR OPENER SWITCH : System Diagram

INFOID:0000000001396698

BACK DOOR OPENER OPERATION

BACK DOOR OPENER SWITCH : System Description

INFOID:0000000001396699

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM opens back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are not satisfied, back door opener operation is not performed.

BACK DOOR OPENER SWITCH : Component Parts Location

INFOID:0000000001530244

JMKIA0402GB

Back door opener switch operation

Operation condition

Back door open

• Vehicle speed is less than 5 km/h (3 MPH).
• All doors are unlocked.

1.

BCM M18, M20
(view with glove box removed)

2.

Back door lock assembly (back door switch)
D405
(hatchback view with back door open)

3.

Back door opener switch D408

ALKIA0818ZZ

BACK DOOR OPENER FUNCTION

DLK-261

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPENER SWITCH : Component Description

INFOID:0000000001396701

Item

Function

BCM

Controls the back door opener function.

Back door opener switch

Transmits back door opener switch operation signal to BCM.

Back door opener actuator

Opens the back door with the back door open signal from BCM.

Combination meter

Transmits vehicle speed signal to BCM via CAN communication.
