WARNING FUNCTION

Component Parts Location

INFOID:0000000001396496

ALKIA0814ZZ

WARNING FUNCTION

DLK-43

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ALKIA0815ZZ

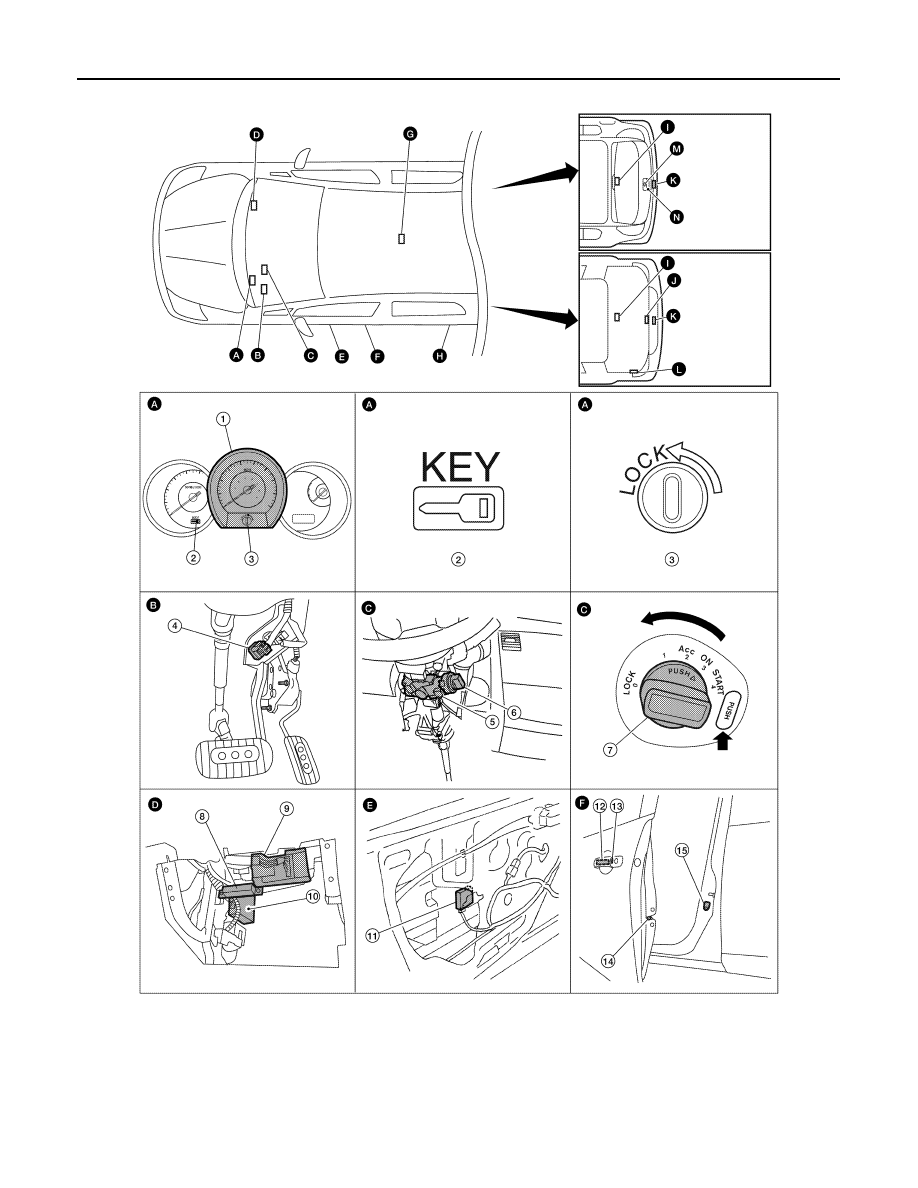

1.

Combination meter M24

2.

Key warning lamp (combination meter)

3.

Lock warning lamp (combination meter)

4.

Stop lamp switch E13
(view with instrument panel LH re-
moved)

5.

Steering lock solenoid M6
(bottom view of steering column)

6.

Key switch and ignition knob switch (A/
T) M32

7.

Key switch and ignition knob
switch (M/T) M32

8.

Instrument panel antenna M10
(view with glove box removed)

9.

BCM M18, M19, M20

10. Intelligent Key Unit M52

11.  Intelligent key warning buzzer (driver side)

D6 (view with front door finisher removed)

12. Front outside antenna (driver side) D10

(Passenger side) D106

13. Front door request switch (driver

side) D5
(Passenger side) D103

14. Door unlock sensor D14

[Front door lock actuator (driver side)]

15. Front door switch (driver side) B34

(Passenger side) B29

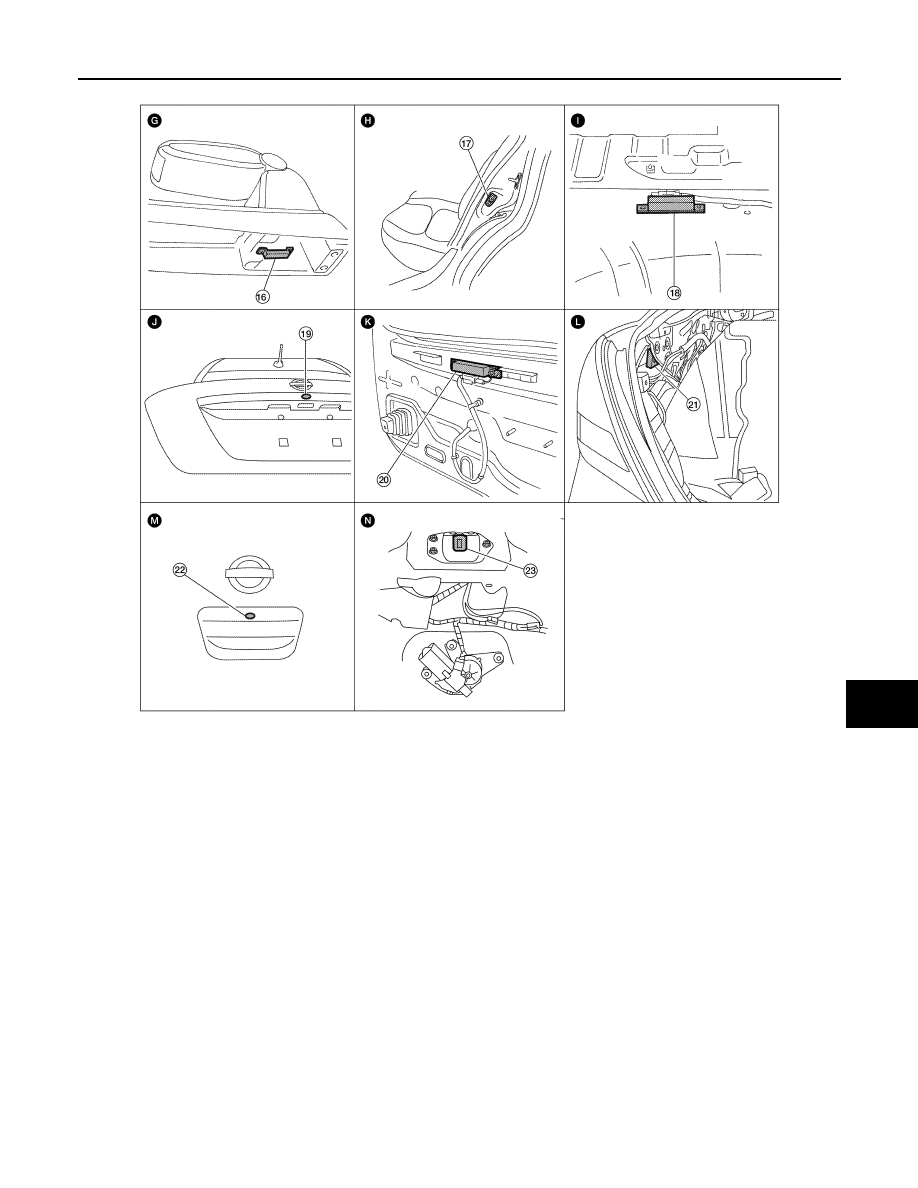

16. Front console antenna B45

(view with front console removed)

17.  Rear door switch LH B71

RH B53

18. Rear floor antenna B46

(behind rear seat)

19. Trunk request switch B67

(sedan)

20. Rear bumper antenna B81

(view with rear fascia removed)

21. Intelligent Key warning buzzer (trunk)

B82 (sedan)
(view with trunk finisher LH removed)

22. Back door request switch D406

(hatchback)

23.  Back door lock assembly (back door switch)

D405 (hatchback view with back door open)

DLK-44

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

WARNING FUNCTION

Component Description

INFOID:0000000001396497

* : Sedan only

**: Hatchback only

Item

Function

BCM

Controls the warning function with Intelligent Key unit.

Intelligent Key unit

Controls the warning function with BCM.

Key switch

Detects that mechanical key is inserted into ignition key cylinder.

Door switch

Detects door state (open or closed).

Door lock and unlock switch

Transmits door lock and unlock signal to BCM.

Intelligent Key unit

Requests to turn ON hazard warning lamp to BCM and turn signal indicator to
combination meter.

Combination meter

Turns ON the LOCK indicator, KEY indicator, turn signal indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.

Intelligent Key warning buzzer (driver side)

Sounds by the request from Intelligent Key unit.

Intelligent Key warning buzzer (trunk)

*

Sounds by the request from Intelligent Key unit.

Back door opener switch

**

Transmits back door open signal to BCM

Trunk lid opener switch

*

Transmits trunk open signal to BCM

HAZARD AND BUZZER REMINDER FUNCTION

DLK-45

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD AND BUZZER REMINDER FUNCTION

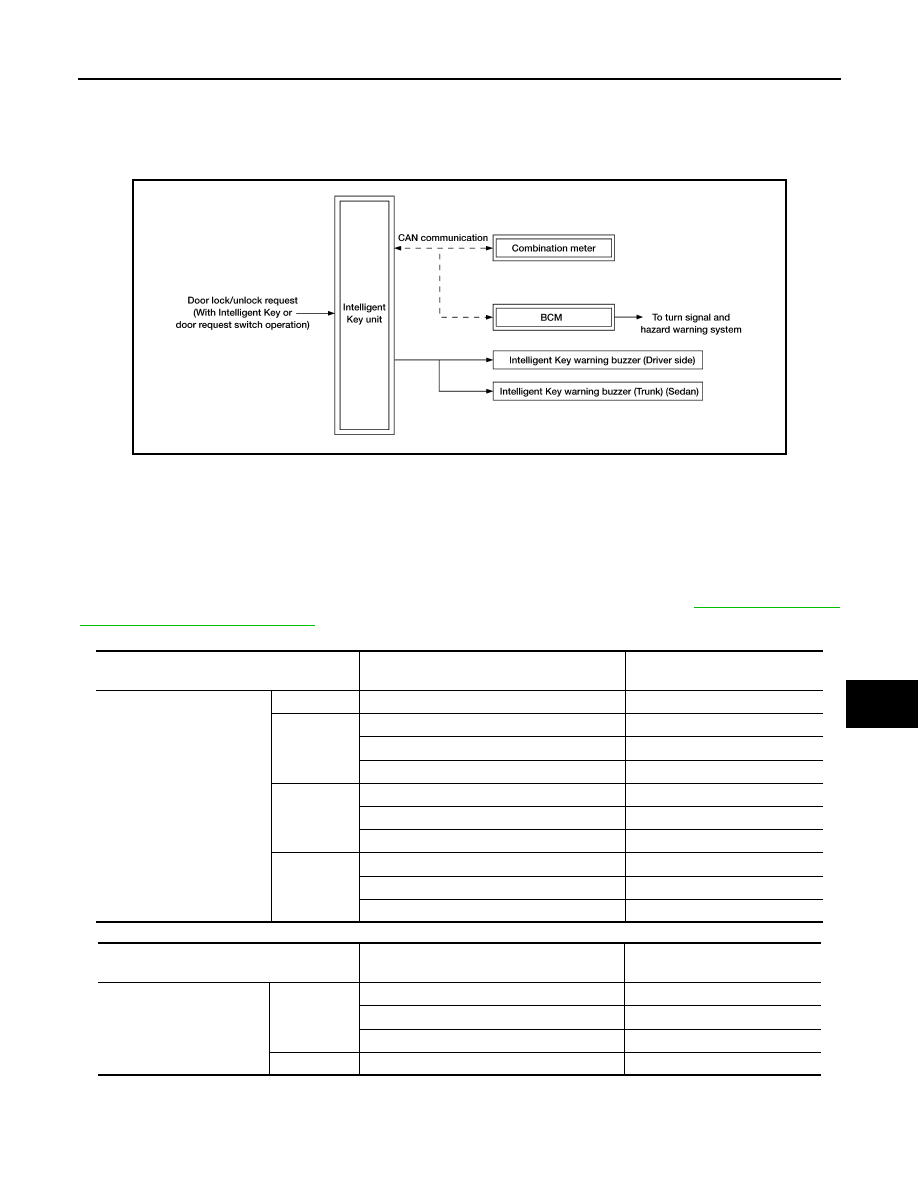

System Diagram

INFOID:0000000001396498

HAZARD & BUZZER REMINDER FUNCTION

System Description

INFOID:0000000001396499

HAZARD AND BUZZER REMINDER FUNCTION

When door is locked or unlocked by Intelligent Key or door request switch, Intelligent Key unit sounds
buzzer(s) and sends hazard request signal to BCM via CAN communication. Then BCM flashes hazard warn-
ing lamps as a reminder.
NOTE:
Hazard and buzzer reminder function mode can be changed with CONSULT-III. Refer to

DLK-53, "CONSULT-

III Function (INTELLIGENT KEY)"

.

Hazard Operation

Buzzer Operation

ALKIA0735GB

Hazard reminder setting

(With CONSULT-III)

Door lock operation

(with Intelligent Key or door request switch)

Hazard warning lamp flash

HAZARD ANSWER BACK

OFF

Any

—

LOCK ONLY

Lock

Once

Unlock

—

Unlock (Anti-hijack)

—

UNLK ONLY

Lock

—

Unlock

Twice

Unlock (Anti-hijack)

Twice (quick)

LOCK/UNLK

Lock

Once

Unlock

Twice

Unlock (Anti-hijack)

Twice (quick)

Buzzer reminder setting

(With CONSULT-III)

Door lock operation

(with Intelligent Key or door request switch)

Buzzer warning sounds

ANSWER BACK WITH
I-KEY
LOCK

BUZZER

Lock

Once

Unlock

Depends on other setting

Unlock (Anti-hijack)

Depends on other setting

OFF

Any

—
