DLK-22

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK FUNCTION

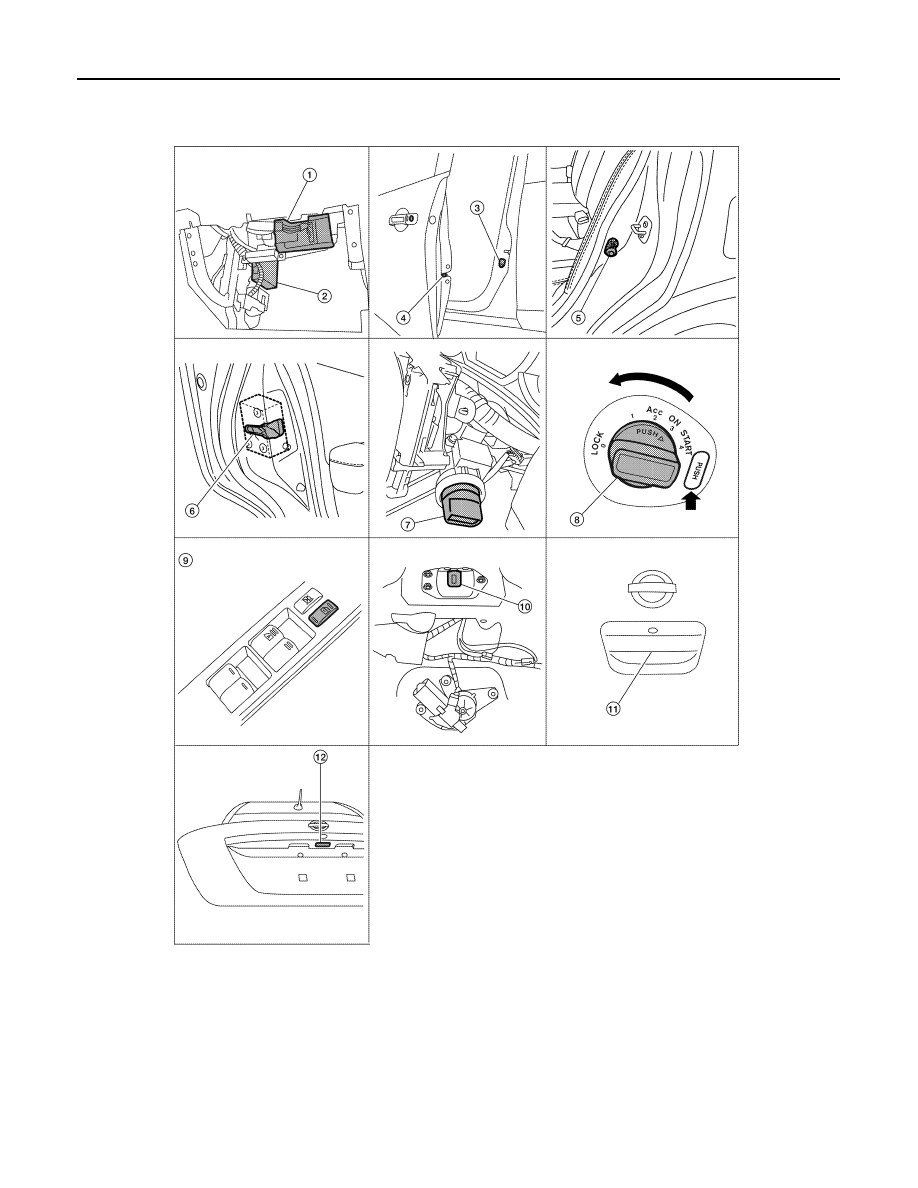

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000001396464

ALKIA0810ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Intelligent Key unit M52

3.

Front door switch (driver side) B34
(Passenger side) B27

4.

Front door lock actuator (driver side) D14
(Passenger side) D114
Door unlock sensor (driver side) D14

5.

Rear door switch LH B71
RH B53

6.

Rear door lock actuator LH D205
RH D305

7.

Key switch and ignition knob switch (A/T)
M32

8.

Key switch and ignition knob switch
(M/T) M32

9.

Main power window and door lock/
unlock switch D7, D8

10. Back door lock assembly (back door switch)

D405 (hatchback view with back door open)

11. Back door opener switch (hatch-

back) D408

12. Trunk lid opener switch (sedan) B61

DOOR LOCK FUNCTION

DLK-23

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000001396465

INTELLIGENT KEY

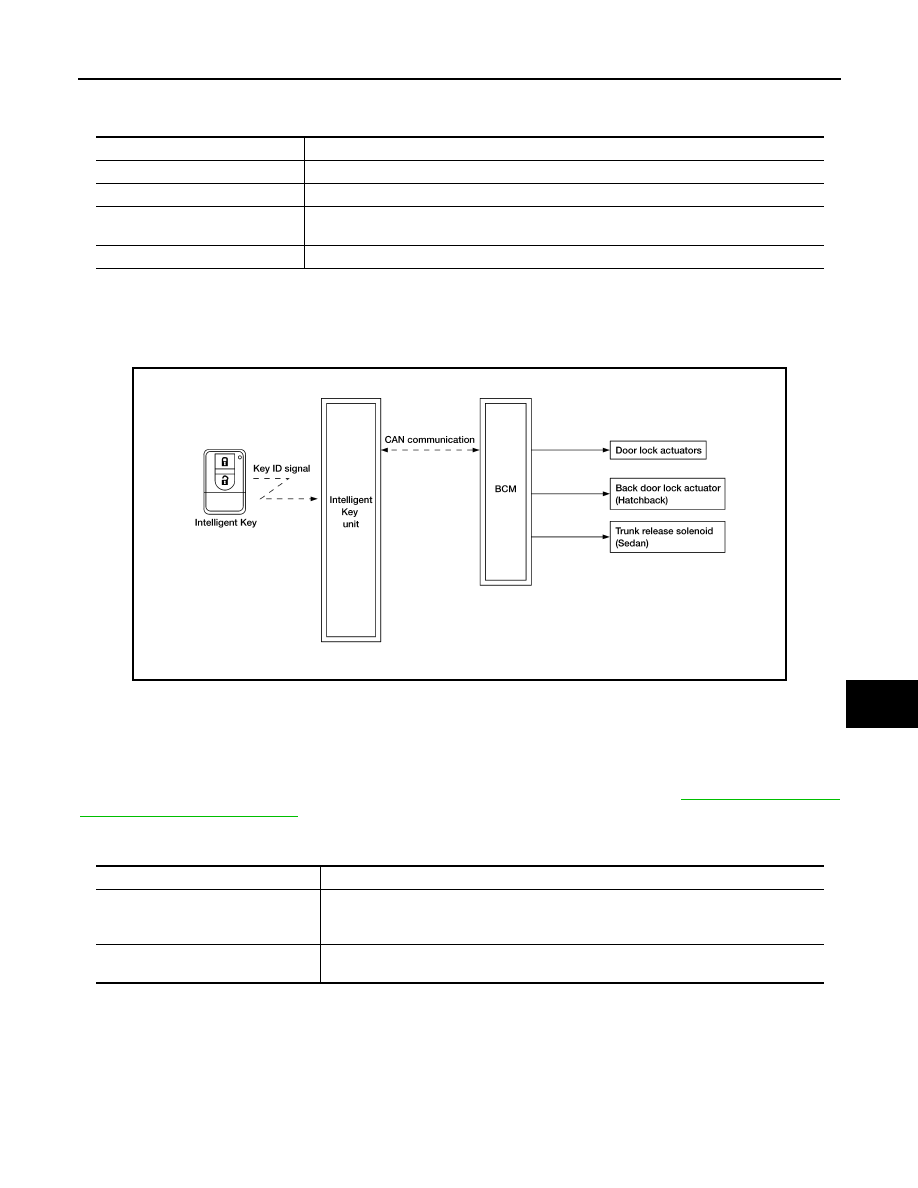

INTELLIGENT KEY : System Diagram

INFOID:0000000001396466

INTELLIGENT KEY OPERATION

INTELLIGENT KEY : System Description

INFOID:0000000001396467

INTELLIGENT KEY OPERATION

The Intelligent Key has the same functions as the remote keyless entry system. In addition to other safety fea-
tures, it can be used to lock and unlock all doors including the back door (hatchback) or the trunk (sedan).
This function can be set to OFF with CONSULT-III. For the setting information, refer to

DLK-53, "CONSULT-III

Function (INTELLIGENT KEY)"

.

OPERATION CONDITION

OPERATION AREA

To ensure that the Intelligent Key works effectively, use within a 100 cm range of each door, however the oper-
able range may differ according to surroundings.

DOOR LOCK AND UNLOCK CONTROL

When door lock and unlock button of the Intelligent Key are pressed, lock signal or unlock signal is transmitted
from Intelligent Key to Intelligent Key unit.
When Intelligent Key unit receives the door lock and unlock signal, it operates door lock actuator.

Item

Function

BCM

Controls the door lock function.

Door switch

Detects door state (open or close).

Door lock and unlock switch

Transmits door lock/unlock signal to BCM. Door lock/unlock switch indicator is built-in door
lock and unlock switch.

Door lock actuator

Receives door lock/unlock signal from BCM and locks/unlocks each door.

ALKIA0711GB

Remote controller operation

Operation condition

Lock

• All doors are closed
• Key switch is OFF (key is removed from ignition key cylinder)
• Ignition knob switch is OFF (Ignition switch is not pressed)

Unlock

• Key switch is OFF (key is removed from ignition key cylinder)
• Ignition knob switch is OFF (Ignition switch is not pressed)

DLK-24

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK FUNCTION

ANTI-HIJACK MODE

When door lock is unlocked, pressing LOCK buttons on Intelligent Key once will lock all doors. When door lock
is locked, pressing UNLOCK button on Intelligent Key once will unlock driver door. Pressing UNLOCK button
on Intelligent Key a second time within 5 seconds from the first time will unlock all doors and back door (hatch-
back) can be opened with back door opener switch or trunk (sedan) can be opened with trunk lid opener
switch.

CONVENIENCE MODE

When door lock is unlocked, pressing LOCK buttons on Intelligent Key once will lock all doors. When door lock
is locked, pressing UNLOCK button on Intelligent Key once will unlock all doors and back door (hatchback)
can be opened with back door opener switch or trunk (sedan) can be opened with trunk lid opener switch.
NOTE:
Anti-hijack mode can be set to ON or OFF with CONSULT-III. Once OFF, the convenience mode will be active.
For setting information with CONSULT-III, refer to

DLK-53, "CONSULT-III Function (INTELLIGENT KEY)"

. For

setting information without CONSULT-III, refer to Owner's Manual.

DOOR LOCK FUNCTION

DLK-25

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

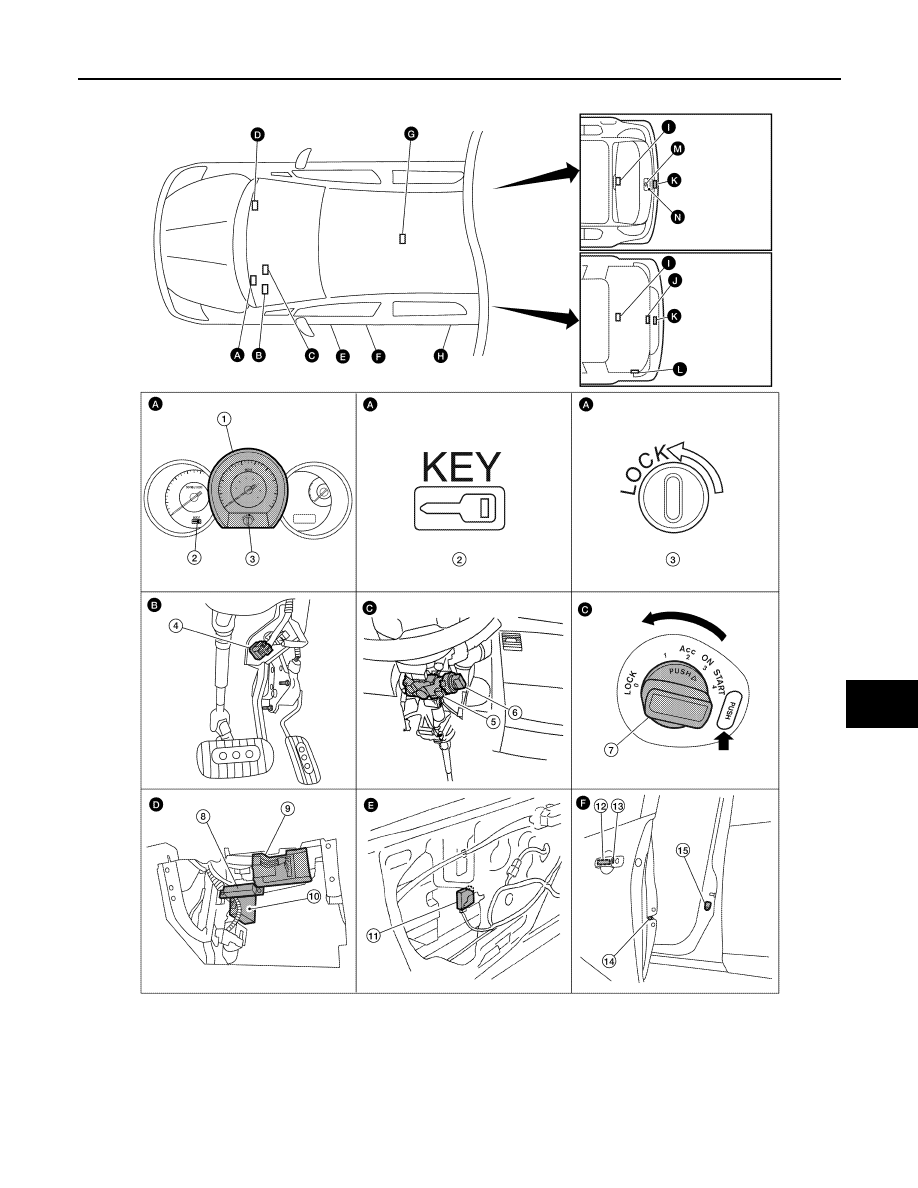

INTELLIGENT KEY : Component Parts Location

INFOID:0000000001396468

ALKIA0814ZZ
