DIAGNOSIS AND REPAIR WORKFLOW

WW-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001381621

DETAILED FLOW

1.

 LISTEN TO CUSTOMER COMPLAINT

Listen to customer complaint. Get detailed information about the conditions and environment when the symp-
tom occurs.

>> GO TO 2

2.

 VERIFY THE SYMPTOM WITH OPERATIONAL CHECK

Verify the symptom with operational check. Refer to

WW-16, "Diagnosis Description"

.

>> GO TO 3

3.

 GO TO APPROPRIATE TROUBLE DIAGNOSIS

Go to appropriate trouble diagnosis. Refer to

WW-54, "Symptom Table"

.

>> GO TO 4

4.

 REPAIR OR REPLACE

Repair or replace the specific parts.

>> GO TO 5

5.

 FINAL CHECK

Final check.
Is the inspection result normal?

YES

>> Inspection End

NO

>> GO TO 3

WW-4

< FUNCTION DIAGNOSIS >

FRONT WIPER AND WASHER SYSTEM

FUNCTION DIAGNOSIS

FRONT WIPER AND WASHER SYSTEM

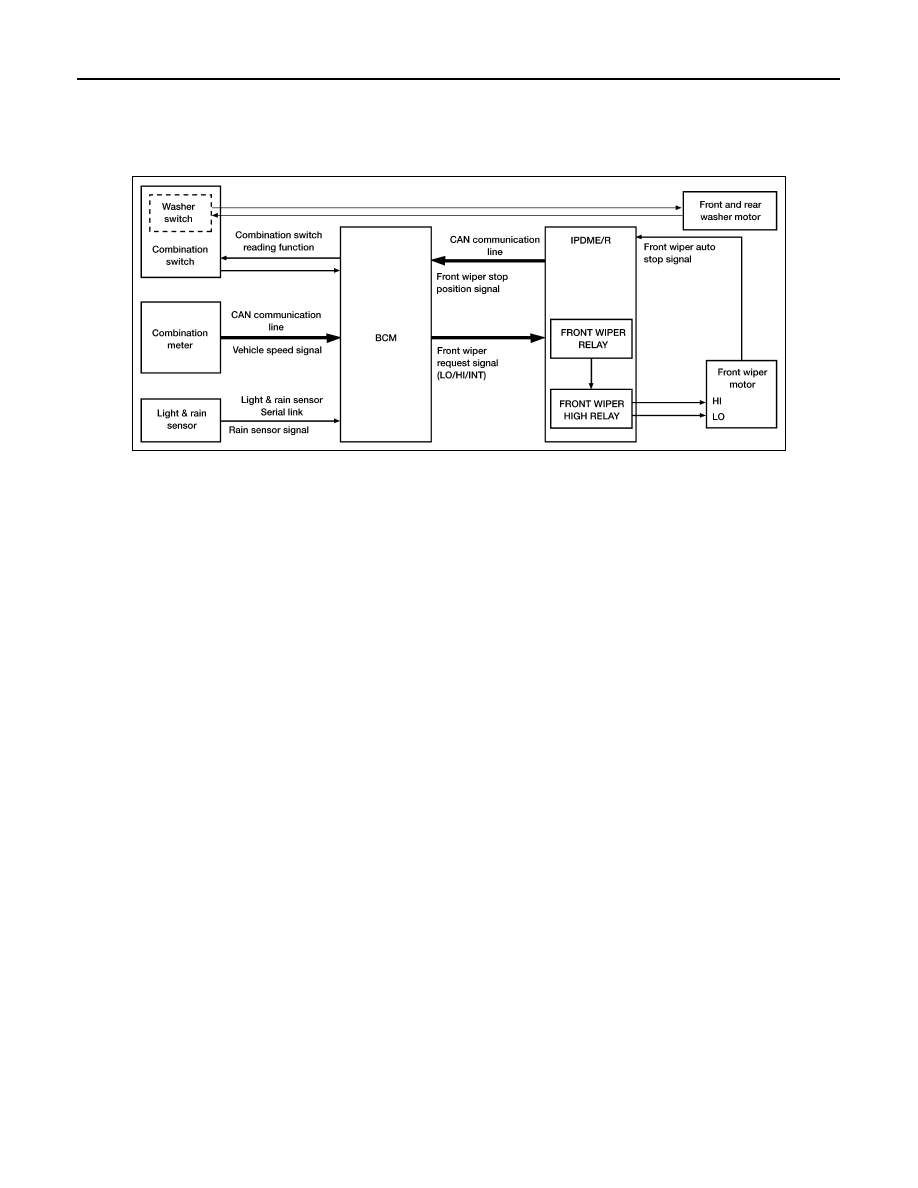

System Diagram

INFOID:0000000001366592

System Description

INFOID:0000000001366593

OUTLINE

The front wiper is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function
• Front wiper control function

Control by IPDM E/R

• Front wiper control function
• Relay control function

FRONT WIPER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the front wiper request signal to IPDM E/R with CAN communication depending on each

operating condition of the front wiper.

• IPDM E/R turns ON/OFF the integrated front wiper relay and the front wiper high relay according to the front

wiper request signal. IPDM E/R provides the power supply to operate the front wiper HI/LO operation.

FRONT WIPER LO OPERATION

• BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the

front wiper LO operating condition.

Front wiper LO operating condition

- Ignition switch ON
- Front wiper switch LO or front wiper switch MIST (while pressing)
• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).

FRONT WIPER HI OPERATION

• BCM transmits the front wiper request signal (HI) to IPDM E/R with CAN communication according to the

front wiper HI operating condition.

Front wiper HI operating condition

- Ignition switch ON
- Front wiper switch HI
• IPDM E/R turns ON the integrated front wiper relay and the front wiper high relay according to the front wiper

request signal (HI).

FRONT WIPER INT OPERATION (LINKED WITH VEHICLE SPEED)

ALLIA0317GB

FRONT WIPER AND WASHER SYSTEM

WW-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

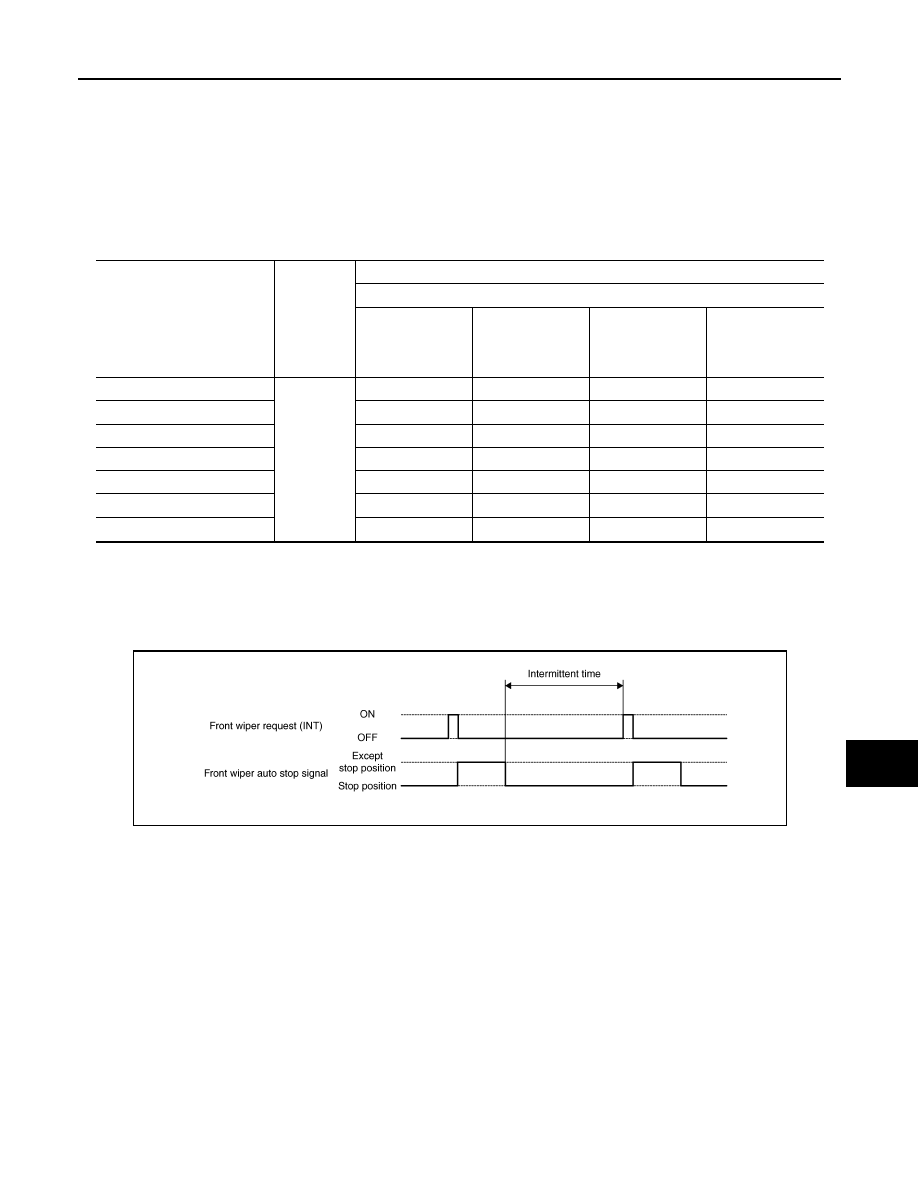

• BCM transmits the front wiper request signal (INT) to IPDM E/R with CAN communication according to the

front wiper INT operation condition and the intermittent operation delay interval judged value.

Front wiper INT operating condition

- Ignition switch ON
- Front wiper switch INT

Intermittent operation delay interval judgment

- BCM calculates the intermittent operation delay interval from the vehicle speed signal received from the

wiper dial position and the combination meter with CAN communication.

• IPDM E/R turns the integrated front wiper relay ON so that the front wiper is operated only once according to

the front wiper request signal (INT).

• BCM detects stop position/except stop position of the front wiper motor according to the front wiper stop

position signal received from IPDM E/R with CAN communication.

• BCM transmits the front wiper request signal (INT) again after the intermittent operation delay interval after

the front wiper motor is stopped.

FRONT WIPER AUTO OPERATION (IF EQUIPPED)

• BCM receives the wiping speed request signal from the rain sensor with the light and rain sensor serial link.
• BCM judges the auto wiping condition depending on the wiping speed request signal and the rain sensor

sensitivity setting under front wiper AUTO operating condition.

• BCM transmits the front wiper request signals (LO or HI) to the IPDM E/R through CAN communication line

according to the auto wiping condition.
NOTE:
When the wiper volume is turned down at 1 level with front wiper AUTO operating condition, BCM transmits
front wiper request signal (LO) to IPDM E/R with CAN communication.

Front wiper AUTO operating condition

- Ignition switch ON
- Front wiper switch AUTO

Rain sensor sensitivity setting

- BCM determines rain sensor sensitivity according to a wiper volume.

Wiper intermittent dial posi-

tion

Intermittent

operation

interval

Intermittent operation delay Interval (s)

Vehicle speed

Vehicle stopped or

less than 5 km/h

(3.1 MPH)

5 km/h (3.1 MPH)

or more or less

than 35 km/h (21.7

MPH)

35 km/h (21.7

MPH) or more or

less than 65 km/h

(40.4 MPH)

65 km/h (40.4

MPH) or more

1

Short

↑

↓

Long

0.8

0.6

0.4

0.24

2

4

3

2

1.2

3

10

7.5

5

3

4

16

12

8

4.8

5

24

18

12

7.2

6

32

24

16

9.6

7

42

31.5

21

12.6

JPLIA0094GB

WW-6

< FUNCTION DIAGNOSIS >

FRONT WIPER AND WASHER SYSTEM

• IPDM E/R turns ON the integrated front wiper relay and front wiper HI relay according to the front wiper

request signal (LO or HI).

• Light and rain sensor transmits rain sensor signal to BCM for HI operation immediately after sensing the

raindrops increase under the wiper motor LO operating with the front wiper switch AUTO.

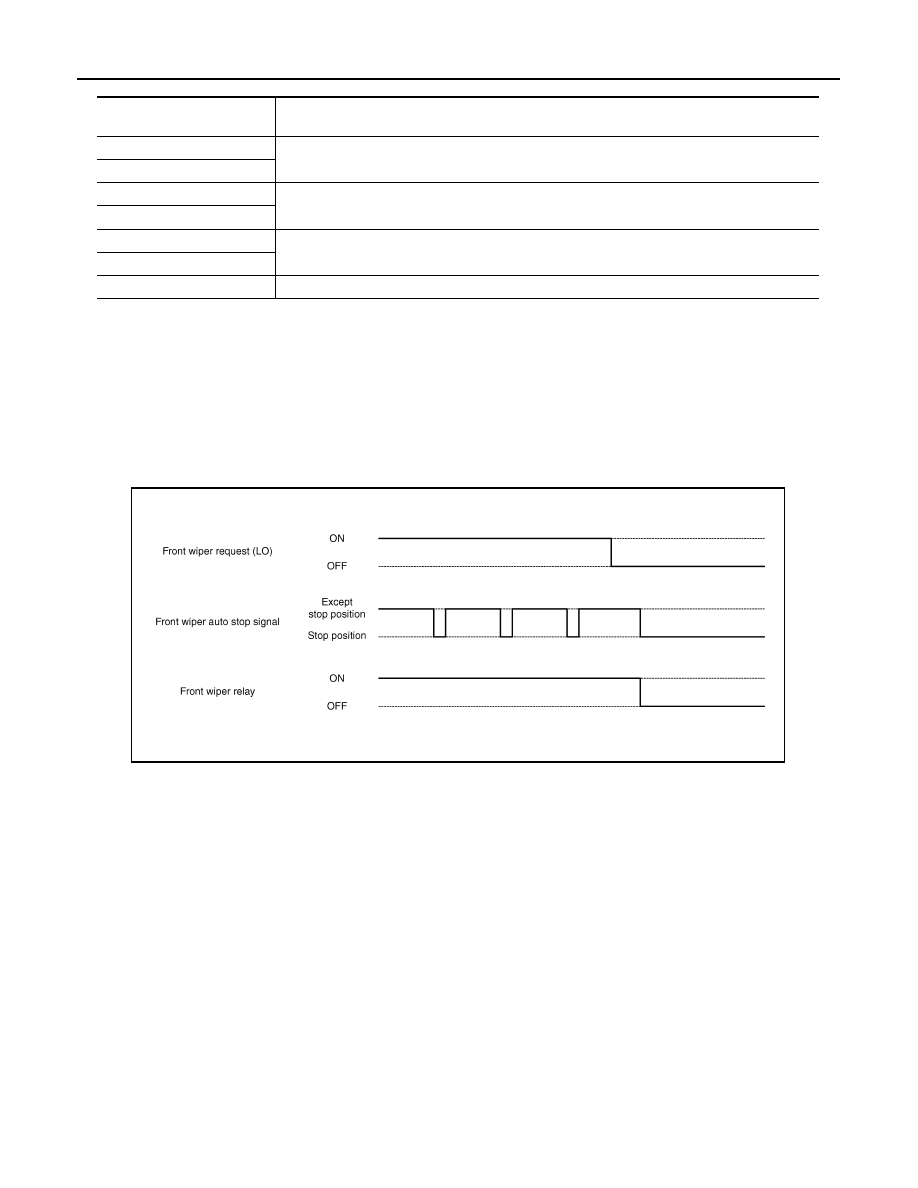

FRONT WIPER AUTO STOP OPERATION

• BCM stops transmitting the front wiper request signal when the front wiper switch is turned OFF.
• IPDM E/R detects the front wiper auto stop signal from the front wiper motor and detects the front wiper

motor position (stop position/except stop position).

• When the front wiper request signal is stopped, IPDM E/R turns ON the front wiper relay until the front wiper

motor returns to the stop position.

NOTE:
• BCM stops the transmitting of the front wiper request signal when the ignition switch is OFF.
• IPDM E/R turns the front wiper relay OFF when the ignition switch is OFF.

FRONT WIPER OPERATION LINKED WITH WASHER

• BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the

washer linked operating condition of the front wiper.

• BCM transmits the front wiper request signal (LO) so that the front wiper operates approximately 3 times

when the front washer switch OFF is detected.

Washer linked operating condition of front wiper

- Ignition switch ON
- Front washer switch ON (0.4 second or more)
• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).
• The front and rear washer motor is grounded through the combination switch with the front washer switch

ON.

FRONT WIPER DROP WIPE OPERATION

• BCM controls the front wiper to operate once according to the conditions of front wiper drop wipe operation.

Front wiper drop wipe operating condition

- Ignition switch ON
- Front wiper switch OFF

Wiper intermittent dial posi-

tion

Sensitivity

1

High sensitivity

2

3

Medium

−

high sensitivity

4

5

Low

−

medium sensitivity

6

7

Low sensitivity

JPLIA0095GB
