PREPARATION

TM-671

< PREPARATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

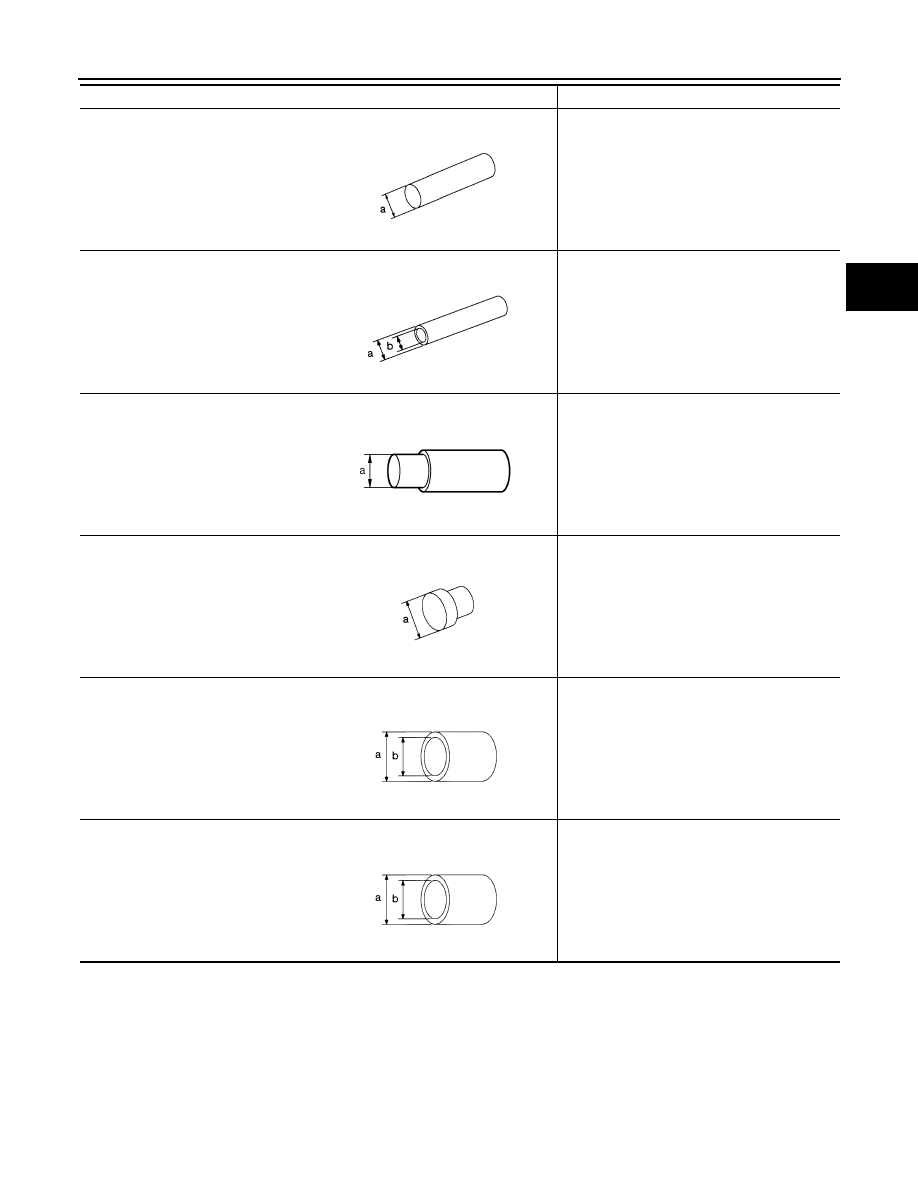

Drift
a: 17 mm (0.67 in) dia.

• Installing bushing
• Installing shifter lever oil seal
• Installing selector lever oil seal

Drift
a: 35 mm (1.38 in) dia.
b: 25 mm (0.98 in) dia.

Installing input shaft front bearing

Drift
a: 24 mm (0.94 in) dia.

Removing input shaft rear bearing

Drift
a: 43 mm (1.69 in) dia.

• Removing differential side bearing inner

race (transaxle case side)

• Installing input shaft rear bearing

Drift
a: 45 mm (1.77 in) dia.
b: 39 mm (1.54 in) dia.

Installing differential side bearing inner race
(clutch housing side)

Drift
a: 52 mm (2.05 in) dia.
b: 45 mm (1.77 in) dia.

Installing differential side bearing inner race
(transaxle case side)

Tool name

Description

S-NT063

S-NT065

PCIB1779E

NT109

S-NT474

S-NT474

TM-672

< ON-VEHICLE MAINTENANCE >

[6MT: RS6F94R]

GEAR OIL

ON-VEHICLE MAINTENANCE

GEAR OIL

Exploded View

INFOID:0000000001381632

Refer to

TM-635, "Exploded View"

.

Draining

INFOID:0000000001381633

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug (1) and then drain oil.

3.

Set a new gasket on drain plug (1) and install it to transaxle and
tighten drain plug to the specified torque. Refer to

TM-683,

"Exploded View"

.

CAUTION:

Do not reuse gasket.

Refilling

INFOID:0000000001381634

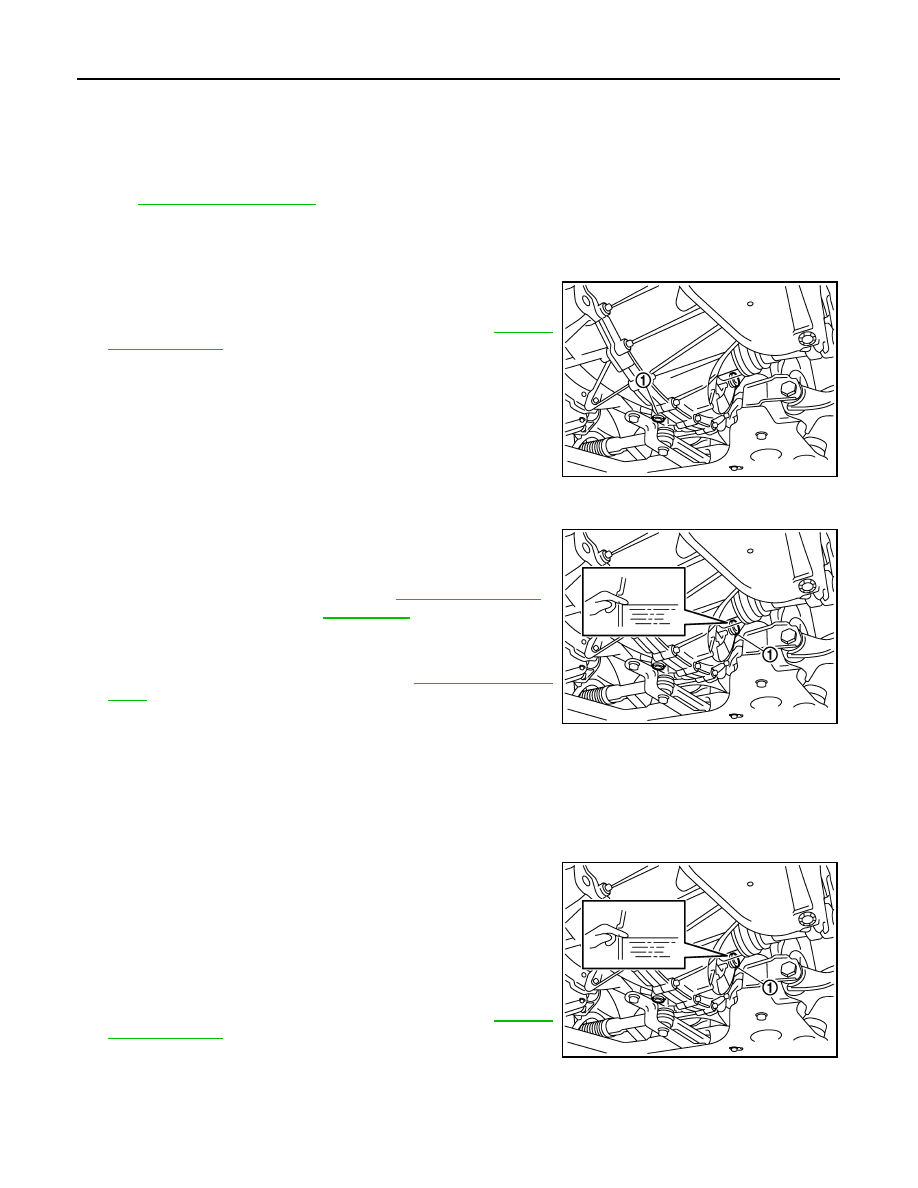

1.

Remove filler plug (1). Fill with new oil until oil level reaches the
specified limit near filler plug hole as shown.

2.

After refilling oil, check oil level.

3.

Set a new gasket on filler plug (1), then install it to transaxle and
tighten to the specified torque. Refer to

TM-683, "Exploded

View"

.

CAUTION:

Do not reuse gasket.

Inspection

INFOID:0000000001381635

LEAKAGE

Make sure that oil is not leaking from transaxle or around it.

LEVEL

1.

Remove filler plug (1) and check oil level at filler plug hole as
shown.

CAUTION:

Do not start engine while checking oil level.

2.

Set a new gasket on filler plug (1) and install it to the transaxle
case.

CAUTION:

Do not reuse gasket.

3.

Tighten filler plug to the specified torque. Refer to

TM-683,

"Exploded View"

.

SCIA7622E

Oil grade and capacity

: Refer to

MA-19, "Fluids and

Lubricants"

.

SCIA7623E

SCIA7623E

SIDE OIL SEAL

TM-673

< ON-VEHICLE REPAIR >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON-VEHICLE REPAIR

SIDE OIL SEAL

Exploded View

INFOID:0000000001381636

Refer to

TM-635, "Exploded View"

.

Removal and Installation

INFOID:0000000001381637

REMOVAL

1.

Remove front drive shafts. Refer to

FAX-10, "Removal and Installation (Left Side)"

 and

FAX-11, "Removal

and Installation (Right Side)"

.

2.

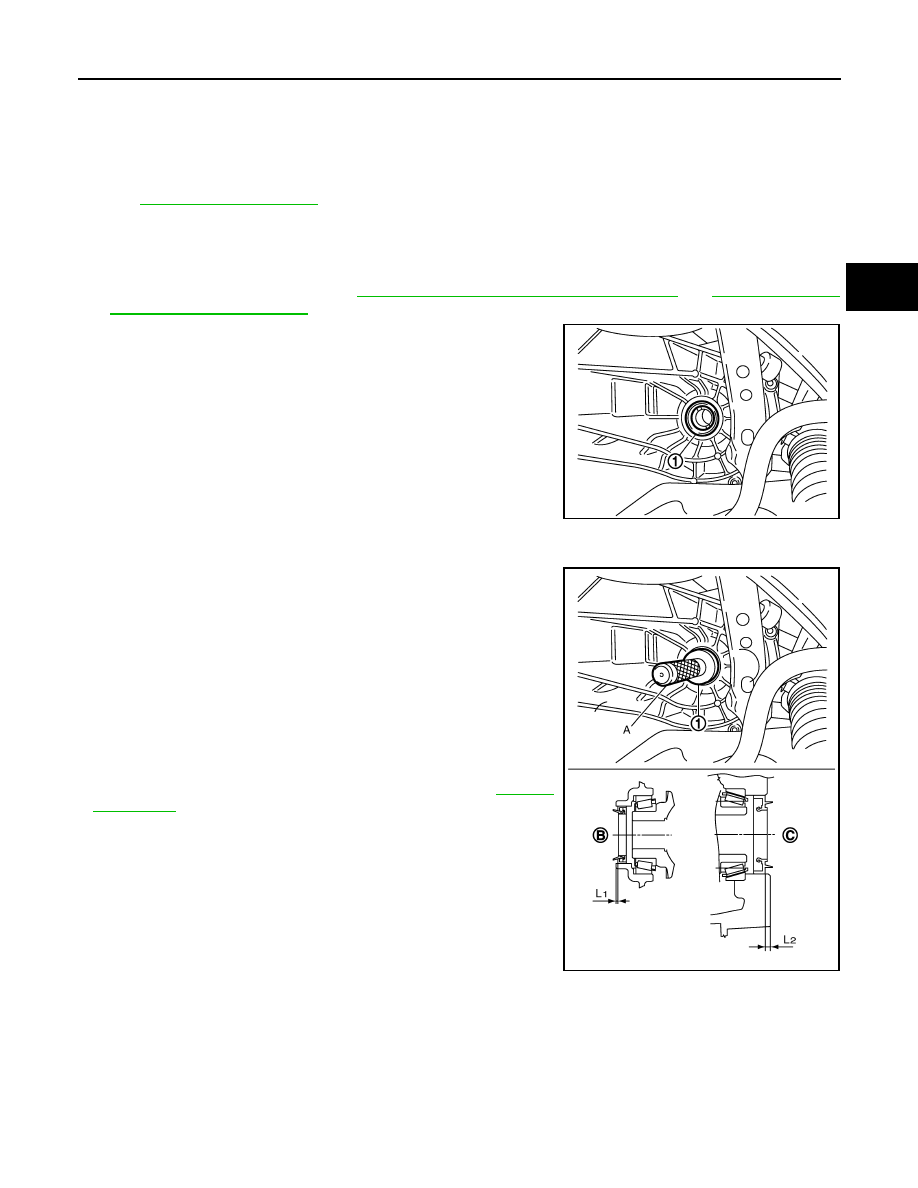

Remove differential side oil seals (1) using a suitable tool.

CAUTION:

Do not damage transaxle case and clutch housing.

INSTALLATION

Installation is in the reverse order of removal.
• Install differential side oil seals (1) to transaxle case side (B) and

clutch housing side (C) using Tool (A).

CAUTION:

• Do not reuse differential side oil seal.
• When installing, never incline differential side oil seal.
• Do not damage clutch housing and transaxle case.

•  Check oil level and oil leakage after installation. Refer to

TM-628,

"Inspection"

.

SCIA7625E

Tool number

: KV38100300

Dimension “L

1

: 1.2 - 1.8 mm (0.047 - 0.071 in)

Dimension “L

2

: 2.7 - 3.3 mm (0.106 - 0.130 in)

JPDIC0120ZZ

TM-674

< ON-VEHICLE REPAIR >

[6MT: RS6F94R]

CONTROL LINKAGE

CONTROL LINKAGE

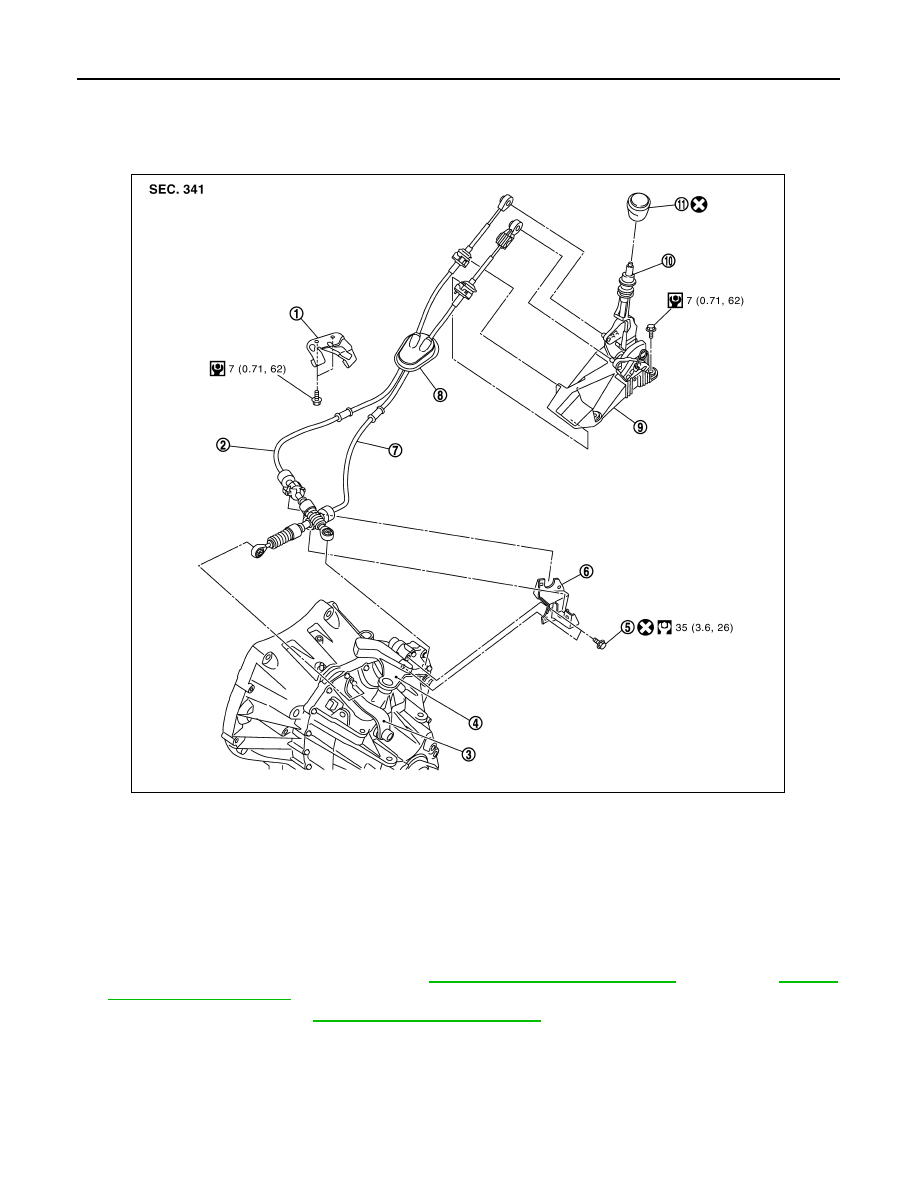

Exploded View

INFOID:0000000001381638

Removal and Installation

INFOID:0000000001381639

REMOVAL

1.

Remove the air cleaner and air duct. Refer to

EM-154, "Removal and Installation"

 (MR18DE) or

EM-269,

"Removal and Installation"

 (K9K).

2.

Remove the battery. Refer to

PG-6, "Removal and Installation"

.

1.

Bracket

2.

Shift cable

3.

Selector lever

4.

Shifter lever

5.

Tapping bolt

6.

Cable mounting bracket

7.

Select cable

8.

Grommet

9.

Control device assembly

10. Control lever

11.

Control lever knob

JPDIC0058GB
