REPAIR FOR COMPONENT PARTS

TM-563

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

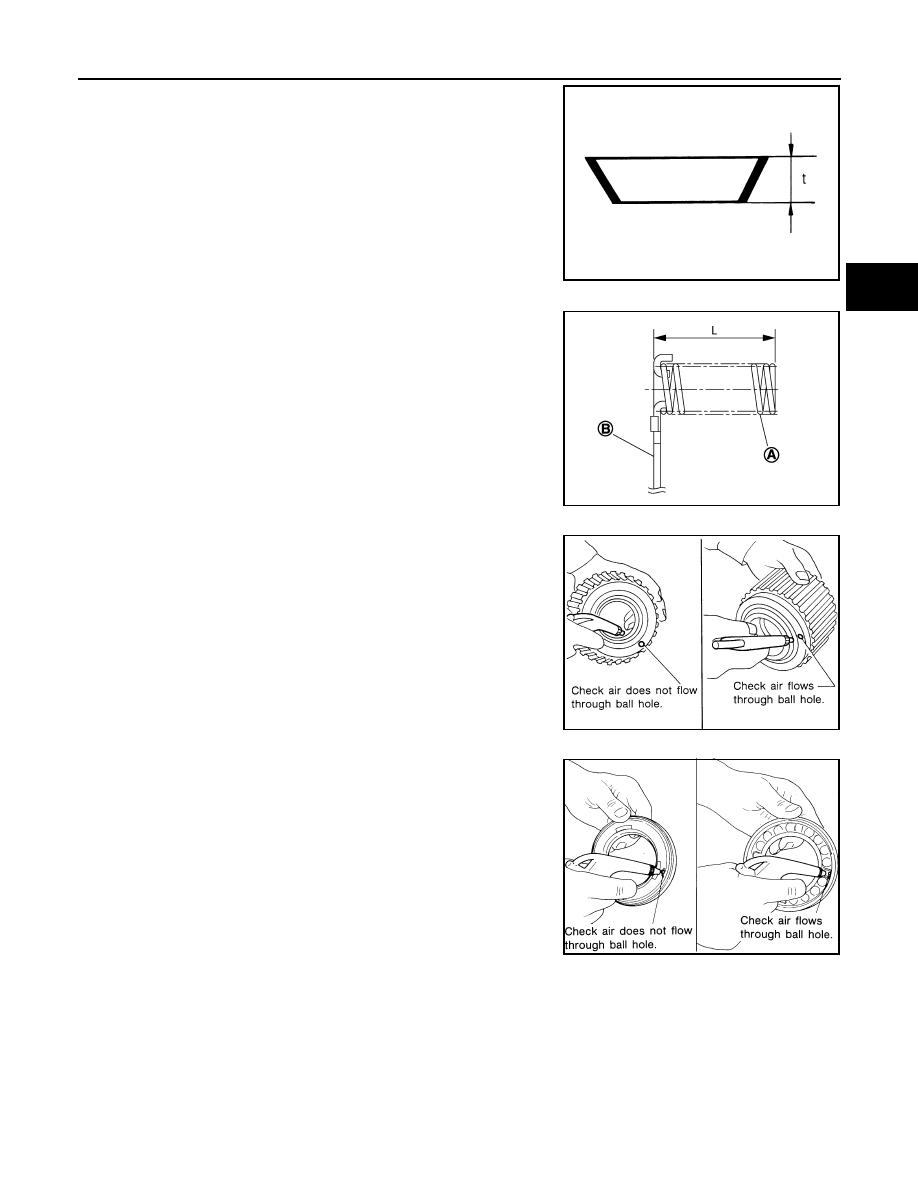

• Measure thickness (t) of dish plate. Replace if damaged, deformed

or worn.

Forward Clutch and Overrun Clutch Spring Retainer Assembly

Check length (L) of spring retainer assembly. Replace if damaged,
deformed or worn.

CAUTION:

Do not remove return springs (A) from spring retainer (B)

Forward Clutch Drum

• Make sure that check balls do not stick.
• Apply compressed air to check ball oil hole from outside of forward

clutch drum. Make sure air leaks past ball.

• Apply compressed air to oil hole from inside of forward clutch

drum. Make sure there is no air leakage.

Overrun Clutch Piston

• Make sure that check balls do not stick.
• Apply compressed air to check ball oil hole opposite return spring.

Make sure there is no air leakage.

• Apply compressed air to oil hole on return spring side. Make sure

that air leaks through ball hole.

ASSEMBLY

Thickness of dish plate (t)

Forward clutch:

2.5 mm (0.098 in)

Overrun clutch:

2.15 mm (0.0846 in)

SAT163D

Length (L):

27.7 mm (0.1091 in)

SCIA7025J

SAT213D

SAT212D

TM-564

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

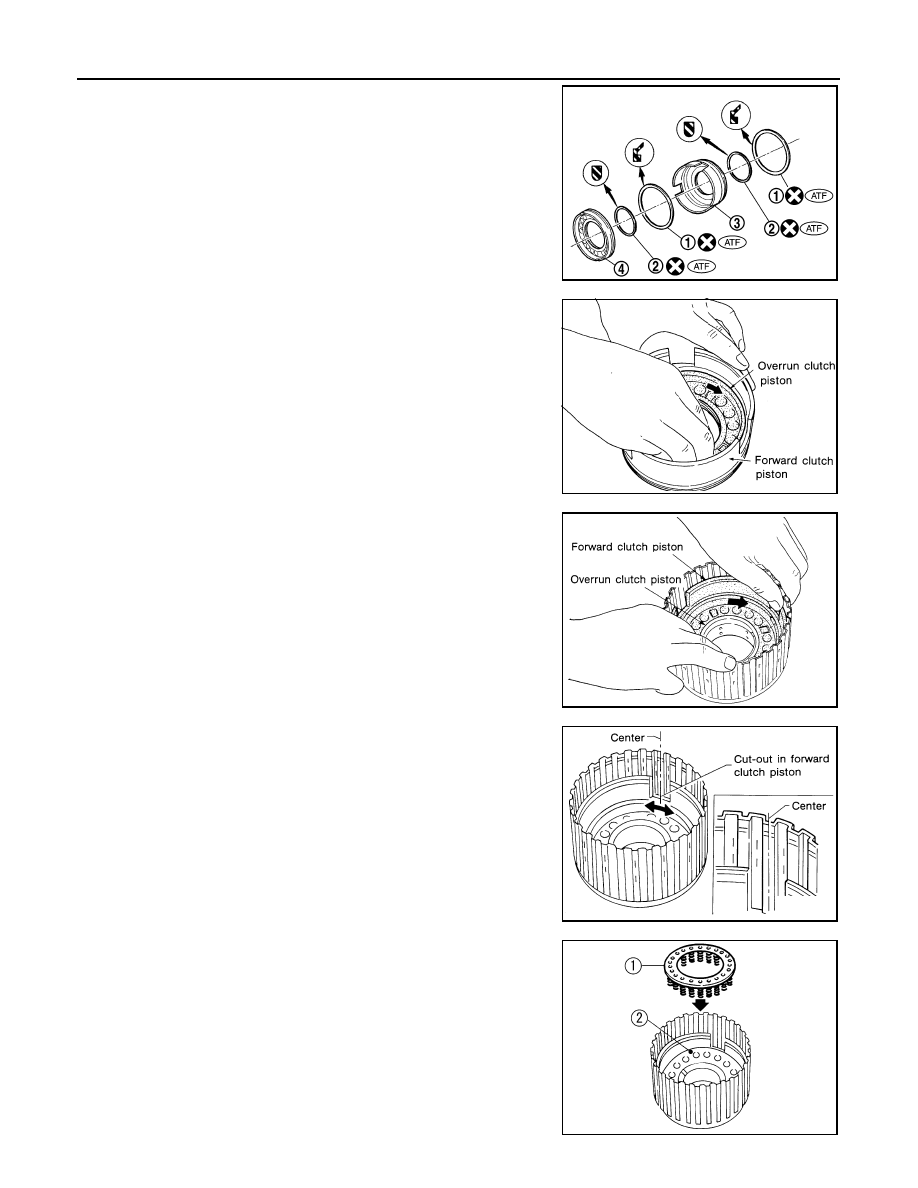

1.

Install seal rings (1) and D-rings (2) on forward clutch piston (3)
and overrun clutch piston (4).

CAUTION:

Be careful with the direction of seal rings (1).

2.

Install overrun clutch piston on forward clutch piston by turning it
slowly.

CAUTION:

Apply ATF to inner surface of forward clutch piston.

3.

Install forward clutch piston with overrun clutch piston on for-
ward clutch drum by turning it slowly.

CAUTION:

Apply ATF to inner surface of forward clutch drum.

4.

Align notch in forward clutch piston with groove in forward clutch
drum.

5.

Install spring retainer assembly (1) on overrun clutch piston (2).

SCIA6005J

SAT215D

SAT216D

SAT217D

SCIA6019J

REPAIR FOR COMPONENT PARTS

TM-565

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

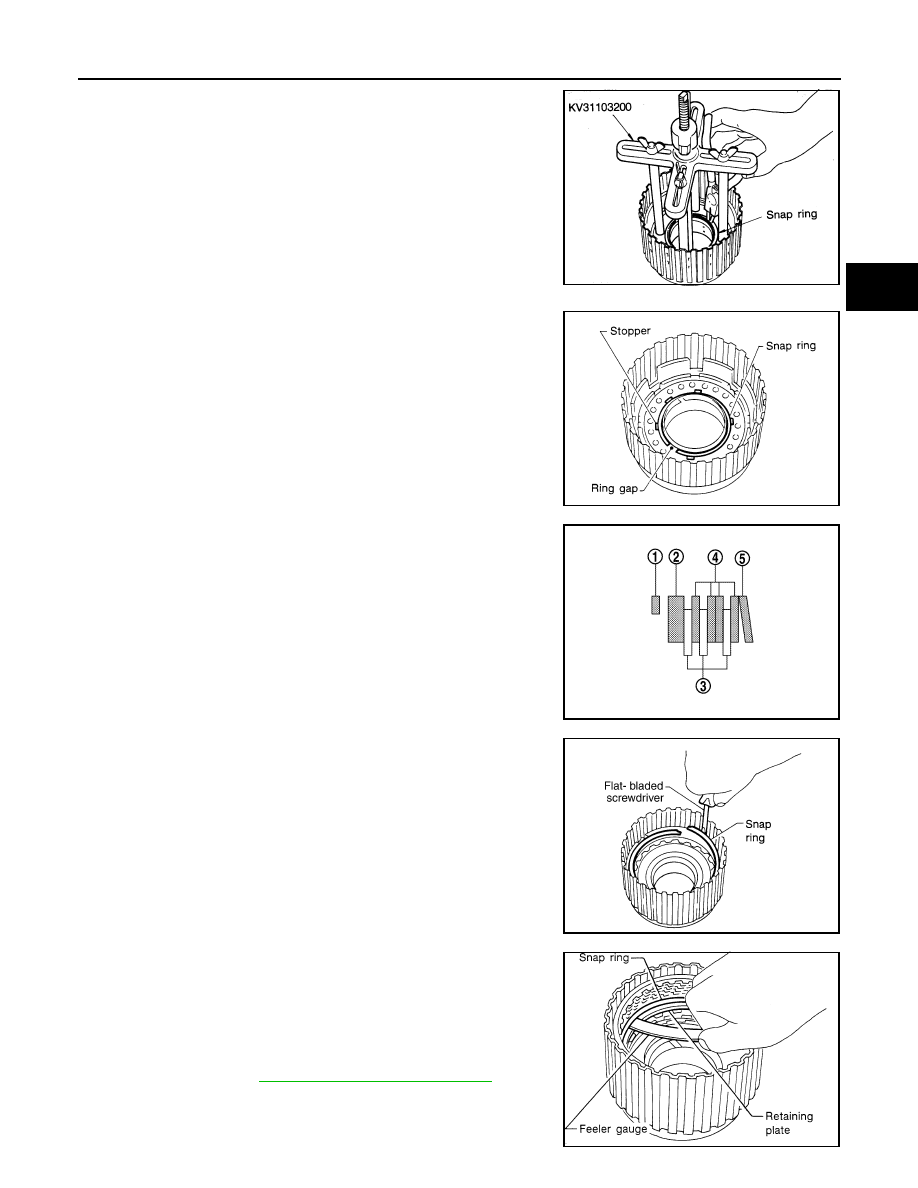

6.

Set Tool on spring retainer assembly, and install snap ring while
compressing spring retainer assembly.

CAUTION:

• Set Tool directly over return springs.
• Do not expand snap ring excessively.

• Do not align snap ring gap with spring retainer assembly

stopper.

7.

Install dish plate (5), driven plates (4), drive plates (3) and retain-
ing plate (2) for overrun clutch.
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Dish plate
Drive plate/Driven plate: 3/4

CAUTION:

Be careful with the order of plates.

8.

Install snap ring for overrun clutch using suitable tool.

9.

Measure clearance between overrun clutch retaining plate and
snap ring using feeler gauge. If not within allowable limit, select
proper retaining plate.

SAT205D

SAT134F

SCIA5993E

SCIA4895E

Specified clearance

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT227D

TM-566

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

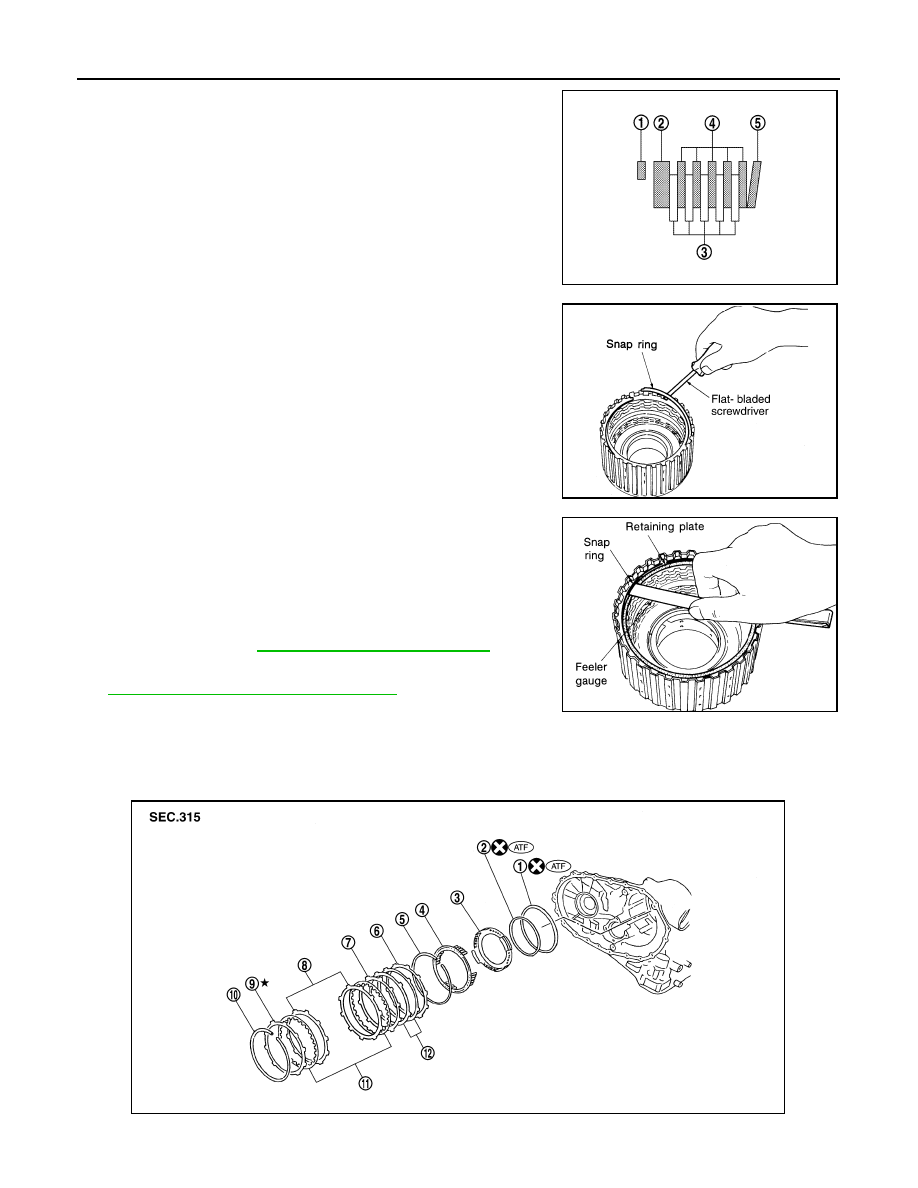

10. Install dish plate (5), driven plates (4), drive plates (3) and retain-

ing plate (2) for forward clutch.
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Dish plate
Drive plate/Driven plate: 5/5

CAUTION:

Be careful with the order of plates.

11. Install snap ring for forward clutch using suitable tool.

12. Measure clearance between forward clutch retaining plate and

snap ring using feeler gauge. If not within allowable limit, select
proper retaining plate.

13. Check operation of forward clutch and overrun clutch. Refer to

TM-267, "Forward and Overrun Clutches"

.

Low & Reverse Brake

INFOID:0000000001731443

COMPONENTS

SCIA5992E

SCIA4894E

Specified clearance

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT228D

SCIA6007J
