REPAIR FOR COMPONENT PARTS

TM-539

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

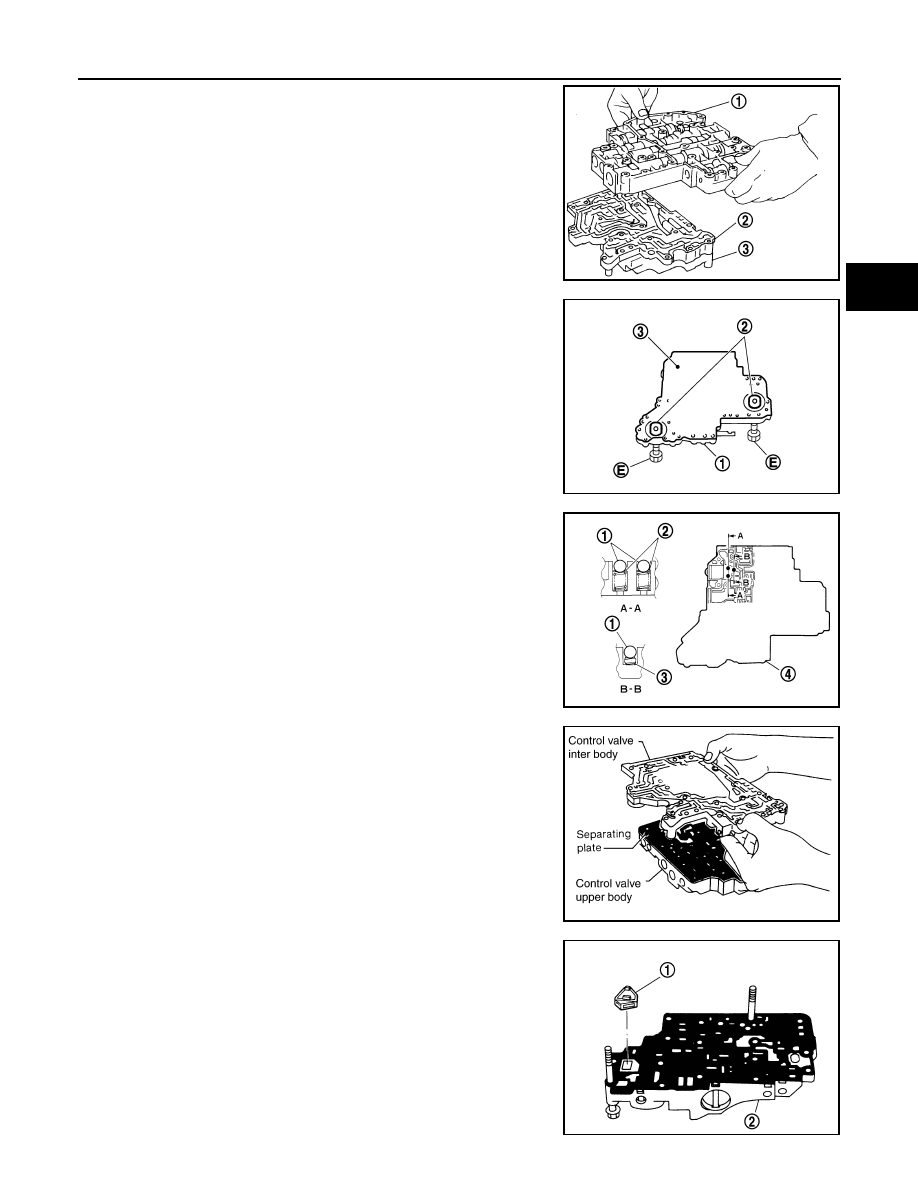

Remove control valve lower body (1) from control valve inter
body (2).
(3): Control valve upper body

6.

Turn over control valve lower body (1).

7.

Remove bolts (E), support plates (2) and separating plate (3)
from control valve lower body (1).

8.

Remove check balls (1), line pressure relief valve springs (2)
and torque converter pressure holding spring (3) from control
valve lower body.

CAUTION:

Do not lose check balls (1), line pressure relief valve
springs (2) and torque converter pressure holding spring
(3).

9.

Remove control valve inter body from control valve upper body.

10. Remove pilot filter (1) from control valve upper body (2).
11. Remove separating plate from control valve upper body (2).

SCIA7181E

SCIA7009E

SCIA6491J

SCIA4977E

SCIA7011E

TM-540

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

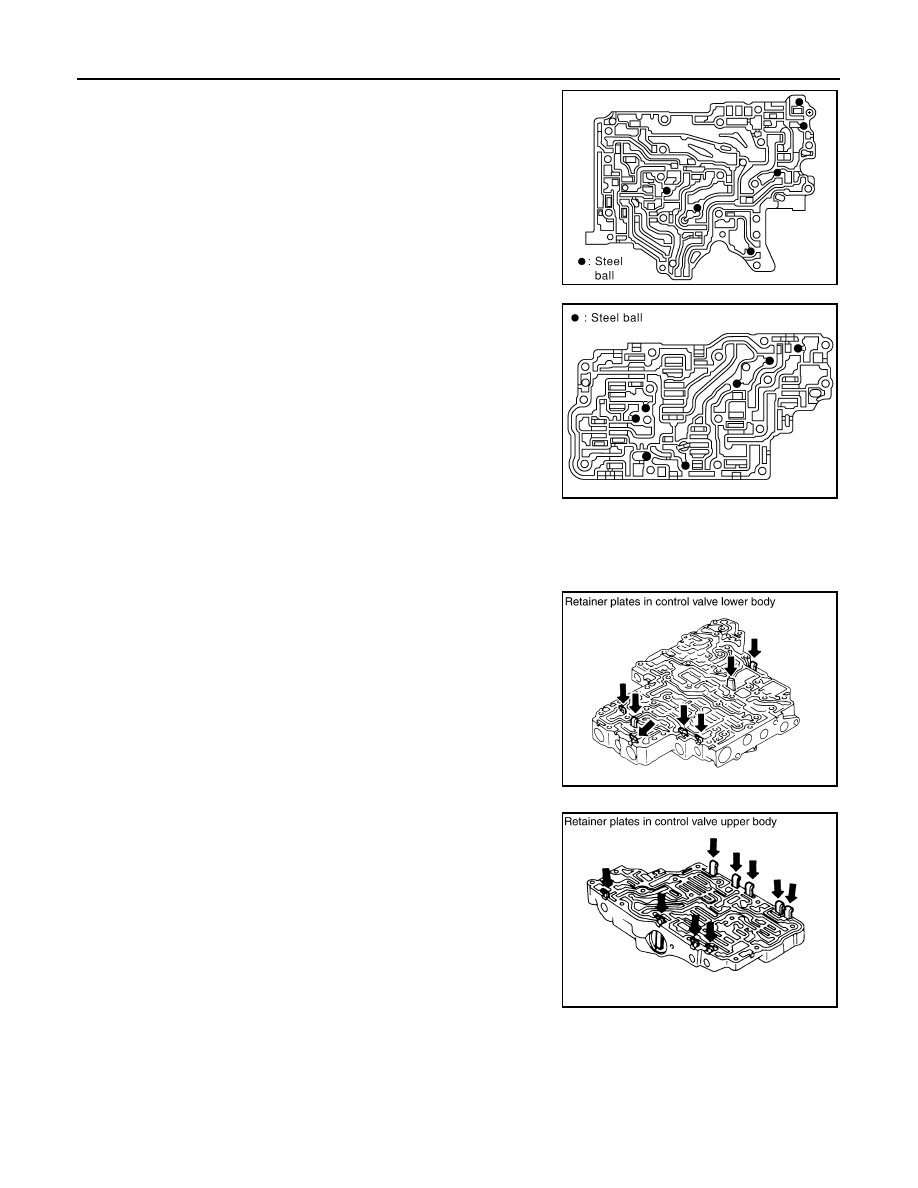

12. Check to see that steel balls are properly positioned in control

valve inter body and then remove them.

CAUTION:

Do not lose steel balls.

13. Check to see that steel balls are properly positioned in control

valve upper body and then remove them.

CAUTION:

Do not lose steel balls.

INSPECTION

Control Valve Lower and Upper Bodies

CAUTION:

Do not lose these parts.
• Check to see that retainer plates are properly positioned in control

valve lower body.

• Check to see that retainer plates are properly positioned in control

valve upper body.

Oil Strainer

SAT870J

SAT871J

SCIA4978E

SCIA4979E

REPAIR FOR COMPONENT PARTS

TM-541

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

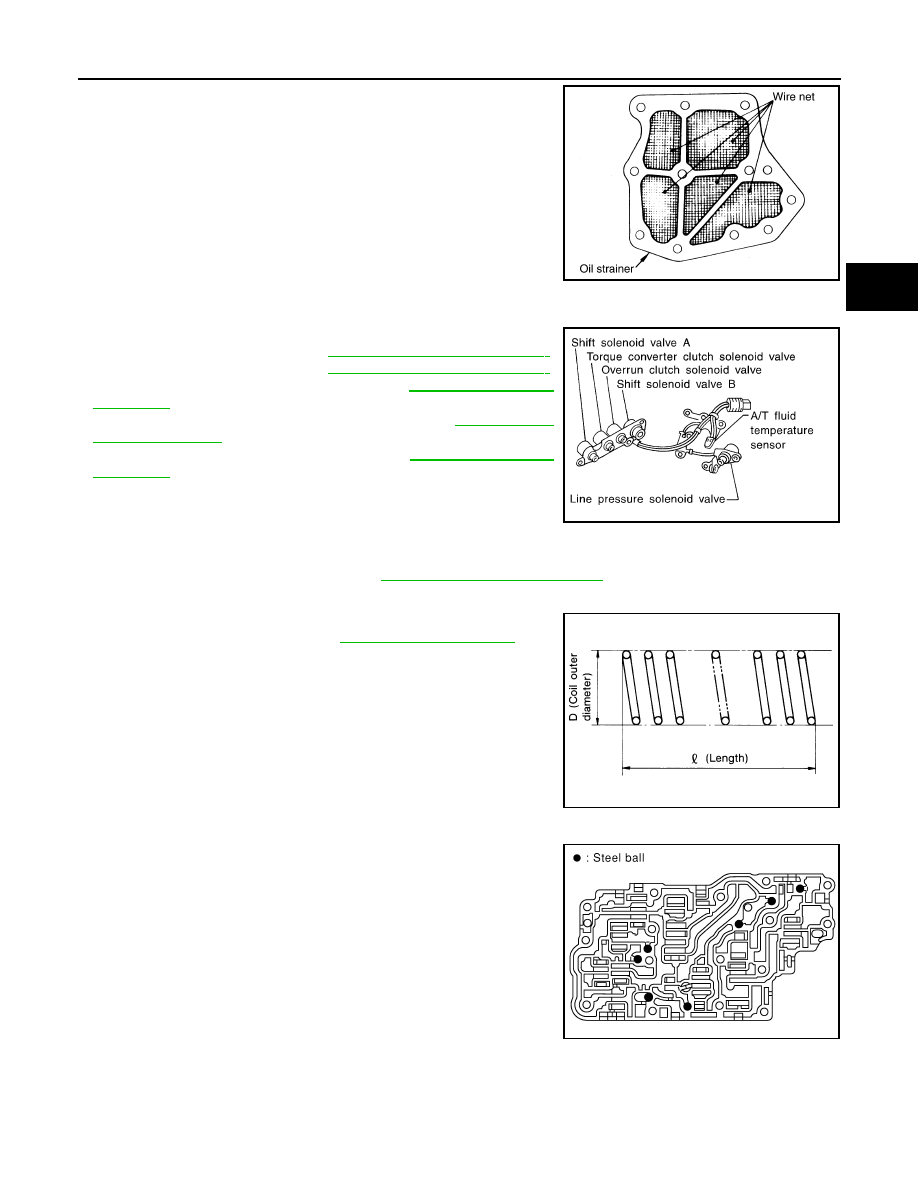

Check wire netting of oil strainer for damage. Replace if necessary.

Shift Solenoid Valves “A” and “B”, Line Pressure Solenoid Valve, Torque Converter Clutch Solenoid Valve and Over-
run Clutch Solenoid Valve

Measure resistance.
• For shift solenoid valve A, refer to

TM-87, "Component Inspection"

.

• For shift solenoid valve B, refer to

TM-91, "Component Inspection"

.

• For line pressure solenoid valve, refer to

TM-84, "Component

Inspection"

.

• For torque converter clutch solenoid valve, refer to

TM-75, "Com-

ponent Inspection"

• For overrun clutch solenoid valve, refer to

TM-75, "Component

Inspection"

.

A/T Fluid Temperature Sensor

Measure resistance.
• For A/T fluid temperature sensor, refer to

TM-50, "Component Inspection"

.

Line Pressure Relief Valve Springs and Torque Converter Pressure Holding Spring

• Check each spring for damage or deformation. Also measure free

length and outer diameter. Refer to

TM-321, "Control Valves"

.

• Replace springs if deformed or fatigued.

ASSEMBLY

1.

Install control valve upper, inter and lower body.

a.

Place oil circuit of control valve upper body face up. Install steel
balls in their proper positions.

SCIA3291E

SCIA3485E

SAT138D

SAT871J

TM-542

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

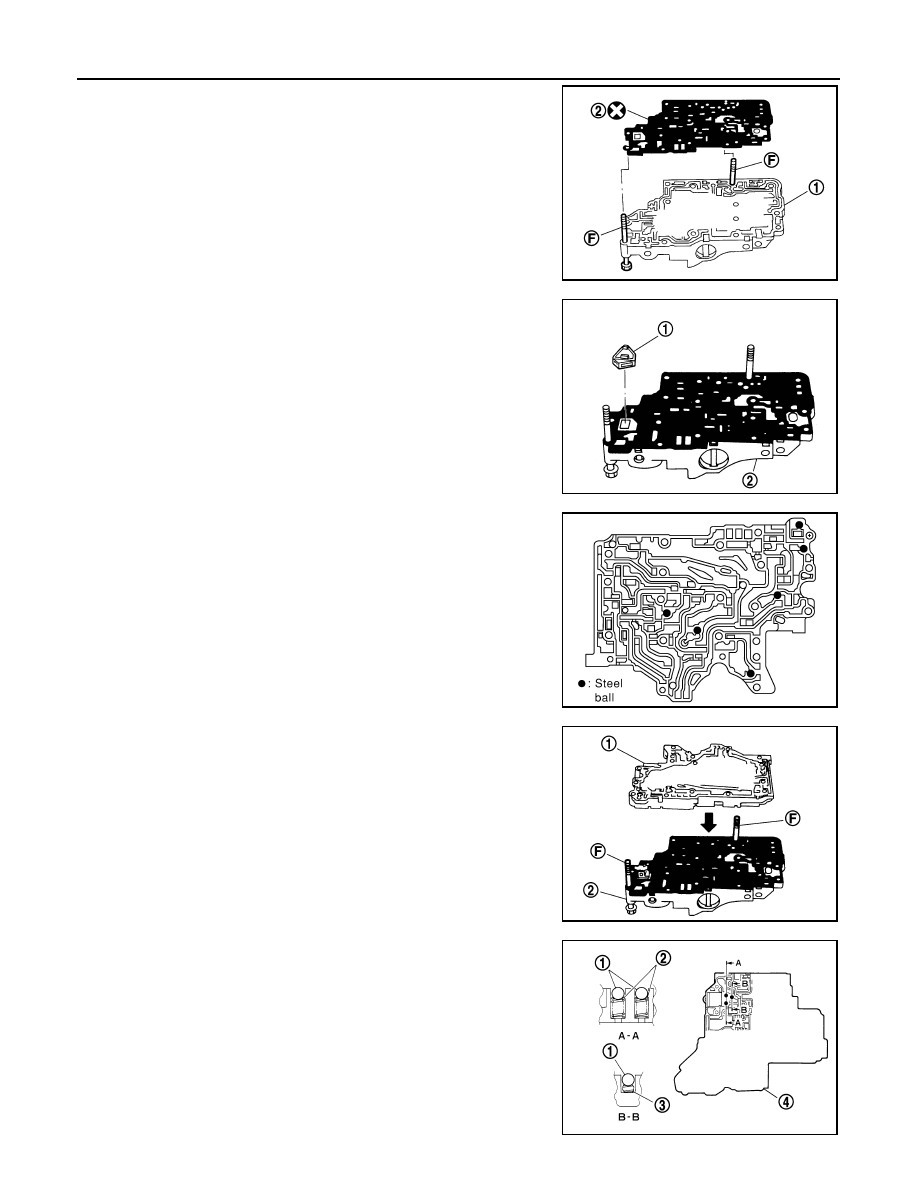

b.

Install reamer bolts (F) from bottom of control valve upper body
(1). Using reamer bolts (F) as guides, install separating plate (2)
as a set.

c.

Install pilot filter (1) on control valve upper body (2).

d.

Place control valve inter body as shown (side of control valve
lower body face up). Install steel balls in their proper positions.

e.

Install control valve inter body (1) on control valve upper body
(2) using reamer bolts (F) as guides.

CAUTION:

Do not dislocate or drop steel balls.

f.

Install check balls (1), line pressure relief valve springs (2) and
torque converter pressure holding spring (3) in their proper posi-
tions in control valve lower body (4).

SCIA7010E

SCIA7011E

SAT870J

SCIA7012E

SCIA6491J
