SHIFT SOLENOID VALVE B

TM-367

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK VALVE RESISTANCE

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly connector in engine room.

3.

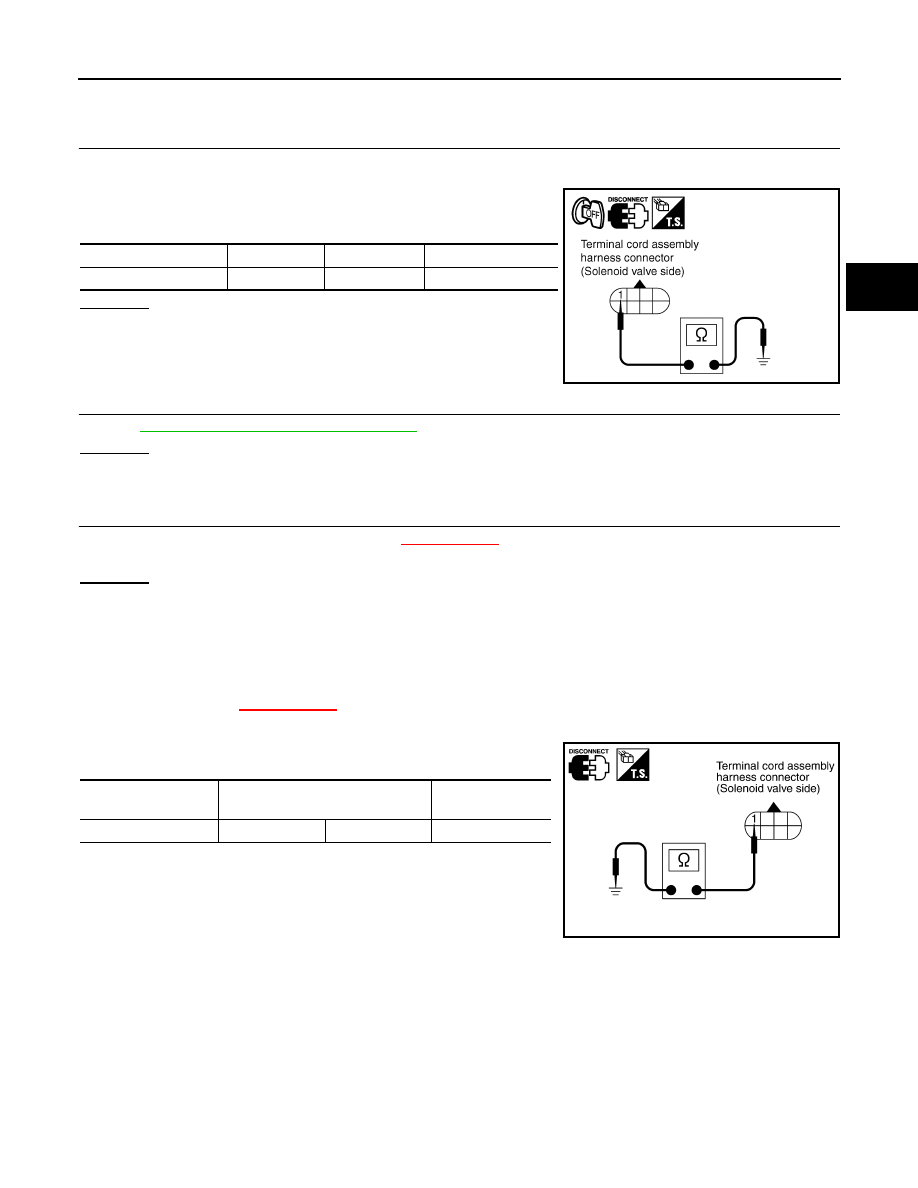

Check resistance between terminal cord assembly harness con-
nector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK DTC

Perform

TM-365, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 6.

6.

CHECK TCM

1.

Check TCM input/output signals. Refer to

XX-XX, "*****"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Component Inspection

INFOID:0000000001713017

SHIFT SOLENOID VALVE B

• For removal, refer to

XX-XX, "*****"

.

Resistance Check

• Check resistance between terminal and ground.

Operation Check

Solenoid valve

Connector

Terminal

Resistance (Approx.)

Shift solenoid valve B

F30

1 - Ground

5 - 20

Ω

SCIA4944E

Solenoid valve

Terminal

Resistance (Ap-

prox.)

Shift solenoid valve B

1

Ground

5 - 20

Ω

SCIA2055E

TM-368

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

SHIFT SOLENOID VALVE B

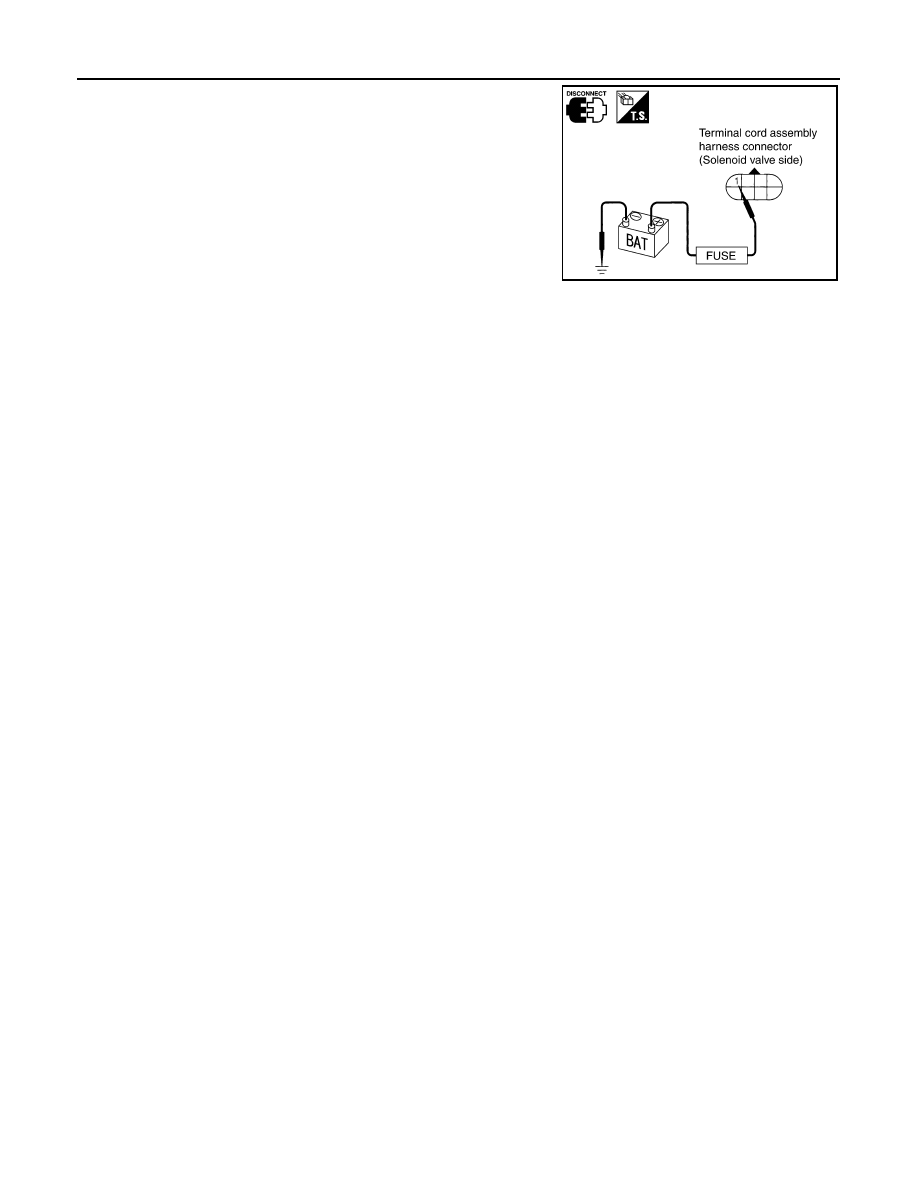

• Check solenoid valve by listening for its operating sound while

applying battery voltage to the terminal and ground.

SCIA2058E

OVERRUN CLUTCH SOLENOID VALVE

TM-369

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OVERRUN CLUTCH SOLENOID VALVE

Description

INFOID:0000000001713018

The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the PNP switch,
overdrive control switch, vehicle speed and ECM (throttle opening). The overrun clutch operation will then be
controlled.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001713019

Remarks: Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001713020

Diagnostic trouble code “OVERRUN CLUTCH S/V” with CONSULT-III or 6th judgement flicker without CON-
SULT-III is detected when TCM detects an improper voltage drop when it tries to operate the solenoid valve.

Possible Cause

INFOID:0000000001713021

• Harness or connector

(Solenoid circuit is open or shorted.)

• Overrun clutch solenoid valve

DTC Confirmation Procedure

INFOID:0000000001713022

CAUTION:

• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at

least 10 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch ON and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

2.

Touch “START”.

3.

Start engine.

4.

Accelerate vehicle to a speed of more than 10 km/h (6 MPH) with “D” position (OD ON).

5.

Release accelerator pedal completely with “D” position (OD OFF).

6.

If the check result is NG, go to

TM-369, "Diagnosis Procedure"

.

 WITHOUT CONSULT-III

1.

Start engine.

2.

Drive vehicle under the following conditions:
Selector lever position: “D” position (OD ON)
Vehicle speed: Higher than 10 km/h (6 MPH)

3.

Perform self-diagnosis. Refer to

TM-38, "Diagnosis Procedure without CONSULT-III"

.

4.

If the check result is NG, go to

TM-369, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001713024

1.

CHECK INPUT SIGNAL

With CONSULT-III

1.

Start engine.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out the value of “OVERRUN/C S/V” while driving.
Check the value changes according to driving speed.

Item name

Condition

Display value

OVERRUN/C S/V

When overrun clutch solenoid valve operates. (When
overrun clutch disengaged. Refer to

XX-XX, "*****"

.)

ON

When overrun clutch solenoid valve does not operate.
(When overrun clutch engaged. Refer to

XX-XX, "*****"

.)

OFF

TM-370

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

OVERRUN CLUTCH SOLENOID VALVE

Without CONSULT-III

1.

Start engine.

2.

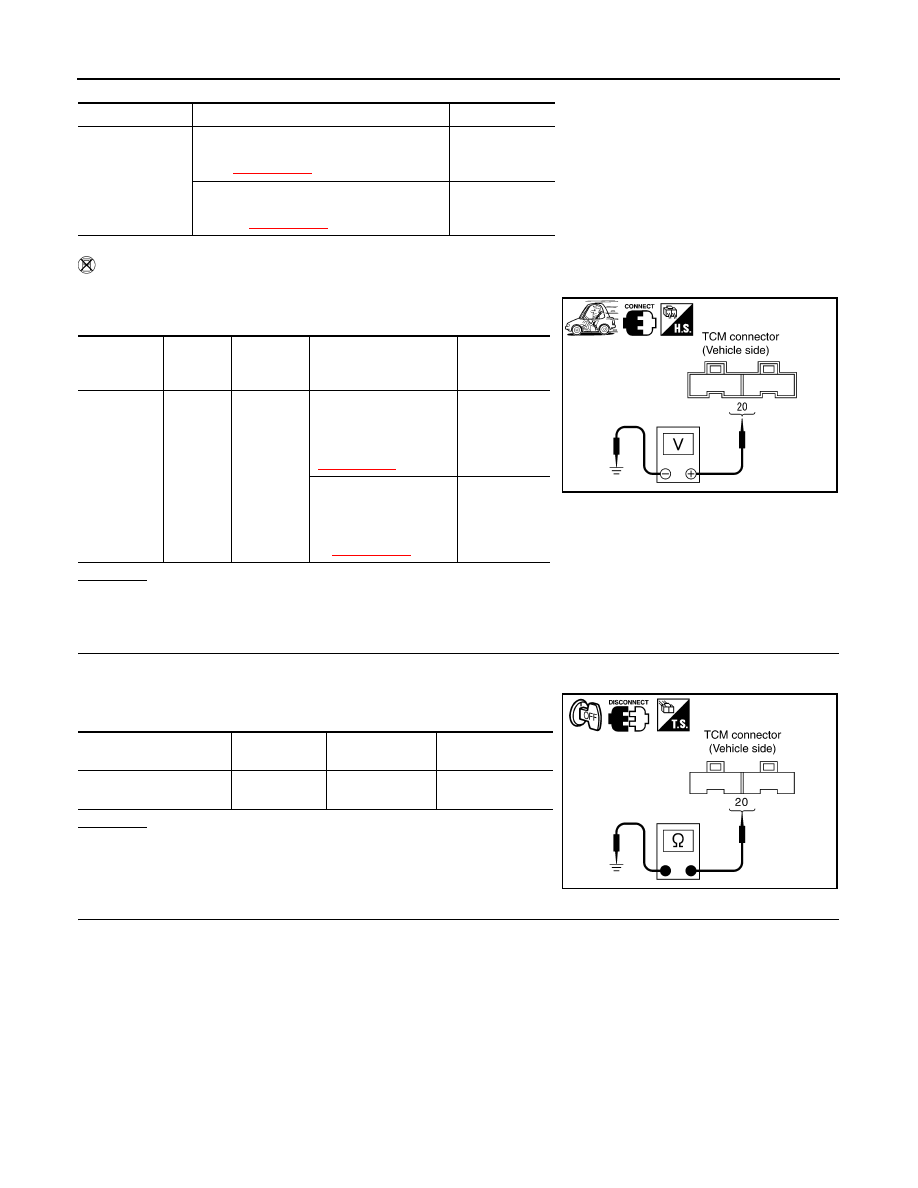

Check voltage between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK OVERRUN CLUTCH SOLENOID VALVE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check resistance between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

3.

 CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly harness connector and TCM connector.

Item name

Condition

Display value

OVERRUN/C S/V

When overrun clutch solenoid valve oper-
ates. (When overrun clutch disengaged. Re-
fer to

XX-XX, "*****"

.)

ON

When overrun clutch solenoid valve dose
not operate. (When overrun clutch engaged.
Refer to

XX-XX, "*****"

.)

OFF

Item

Connec-

tor

Terminal

Condition

Judgement

standard (Ap-

prox.)

Overrun
clutch sole-
noid valve

E31

20 -

Ground

When overrun clutch so-
lenoid valve operates.
(When overrun clutch
disengaged. Refer to

XX-XX, "*****"

.)

Battery volt-

age

When overrun clutch so-
lenoid valve dose not
operate. (When overrun
clutch engaged. Refer
to

XX-XX, "*****"

.)

0V

SCIA3258E

Solenoid Valve

Connector

Terminal

Resistance (Ap-

prox.)

Overrun clutch solenoid
valve

E31

20 - Ground

20 - 30

Ω

SCIA3259E
