REPAIR FOR COMPONENT PARTS

TM-279

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

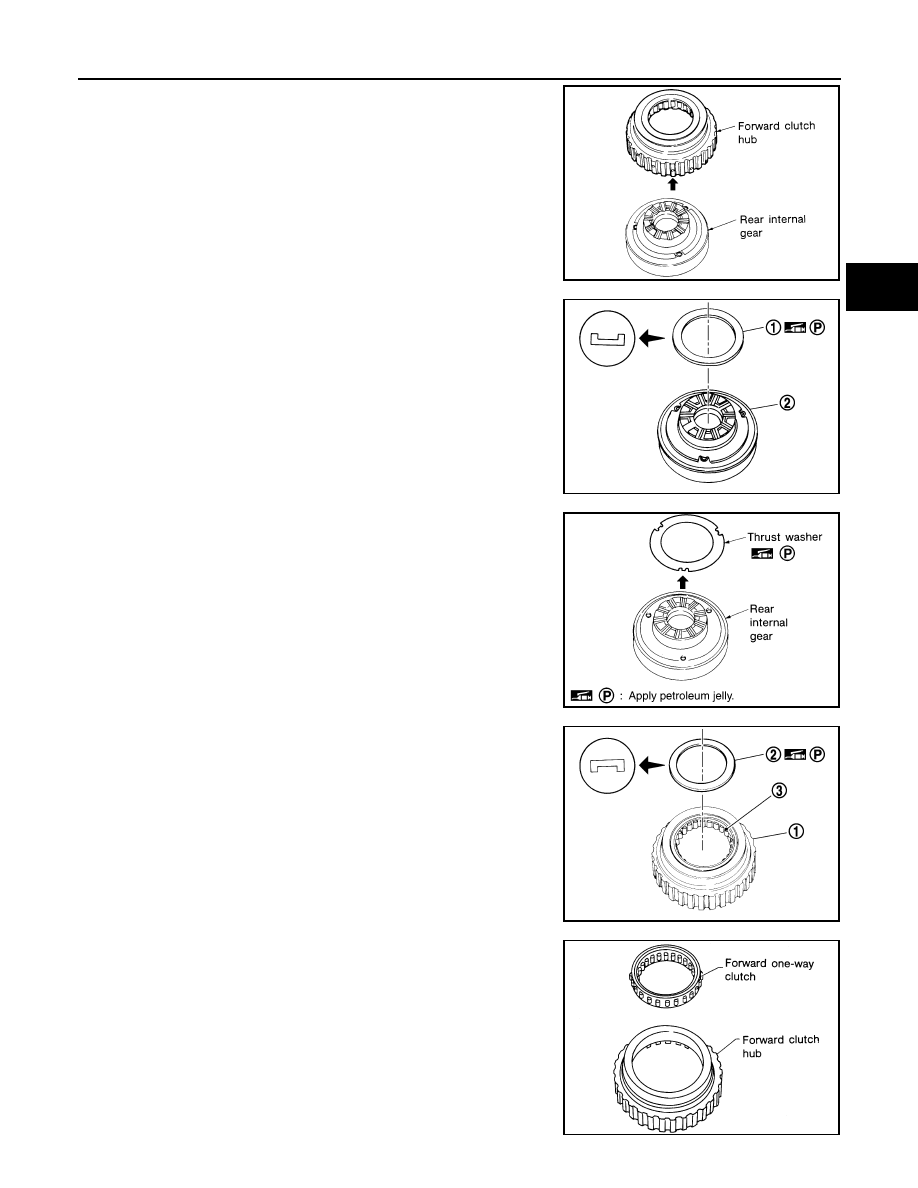

1.

Remove forward clutch hub from rear internal gear.

2.

Remove end bearing (1) from rear internal gear (2).

3.

Remove thrust washer from rear internal gear.

4.

Remove end bearing (2) from forward one-way clutch (3).
(1): Forward clutch hub

5.

Remove forward one-way clutch from forward clutch hub.

SAT251D

SCIA7028E

SCIA3691E

SCIA7026E

SAT255D

TM-280

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

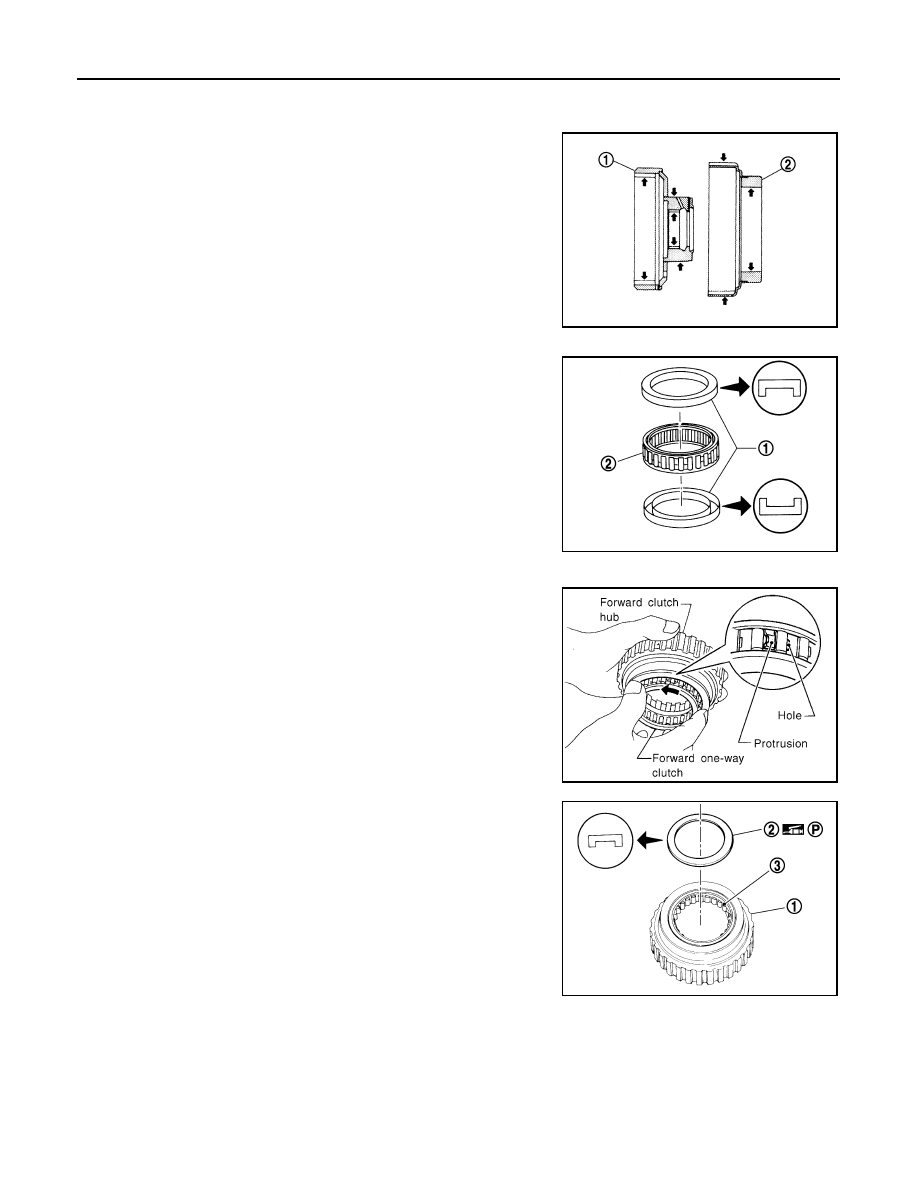

INSPECTION

Rear Internal Gear and Forward Clutch Hub

Check rubbing surfaces for wear or damage. Replace if necessary.
(1): Rear internal gear
(2): Forward clutch hub

End Bearings and Forward One-way Clutch

• Check end bearings (1) for deformation and damage. Replace if

necessary.

• Check forward one-way clutch (2) for wear and damage. Replace if

necessary.

ASSEMBLY

1.

Install forward one-way clutch on forward clutch hub.

CAUTION:

Be careful with the direction of forward one-way clutch.

2.

Install end bearing (2) on forward one-way clutch (3).
(1): Forward clutch hub

SCIA5881J

SCIA7027E

SAT976H

SCIA7026E

REPAIR FOR COMPONENT PARTS

TM-281

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

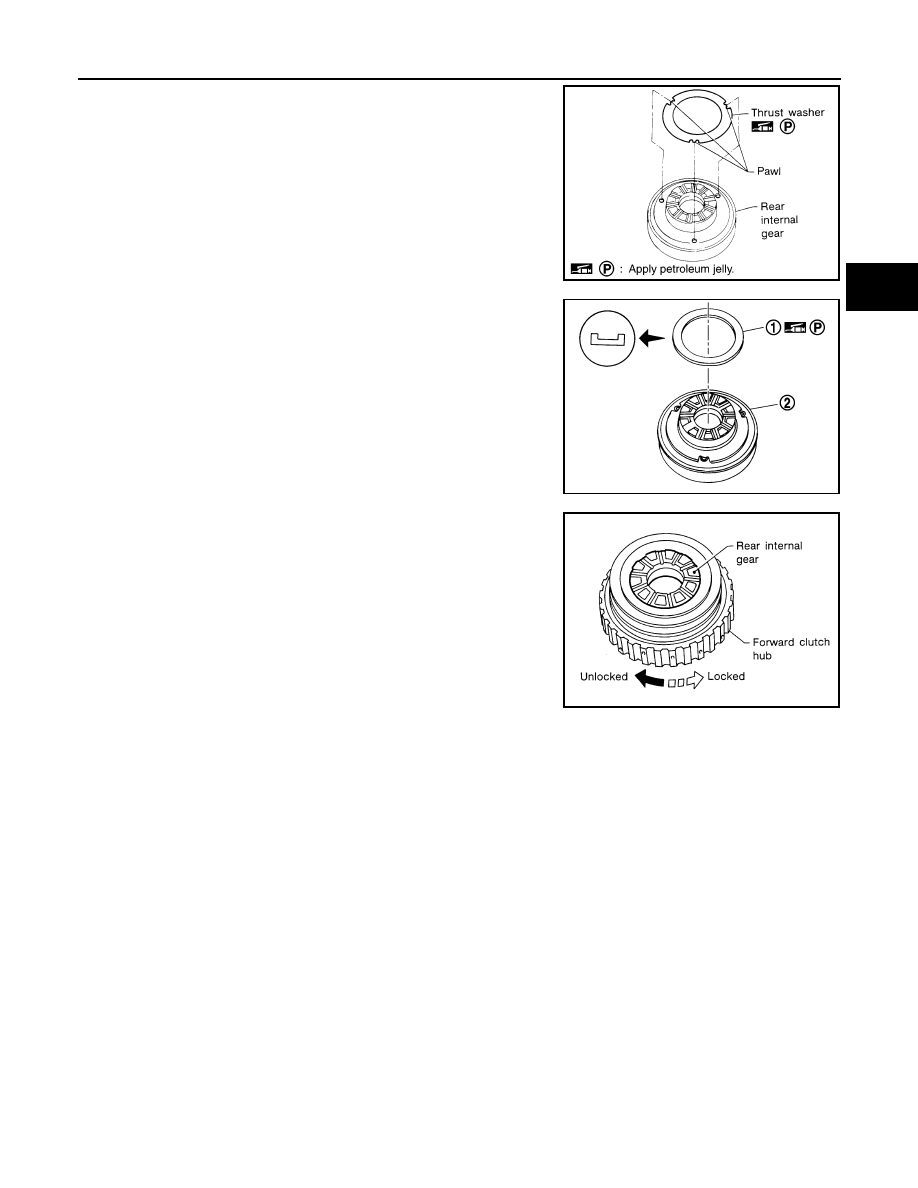

3.

Install thrust washer on rear internal gear.

CAUTION:

Align pawls of thrust washer with holes of rear internal
gear.

4.

Install end bearing (1) on rear internal gear (2).

5.

Install forward clutch hub on rear internal gear.

CAUTION:

• Check operation of forward one-way clutch.

Hold rear internal gear and turn forward clutch hub.
Check forward clutch hub for correct locking and unlock-
ing directions.

• If not as shown, check the installation direction of forward

one-way clutch.

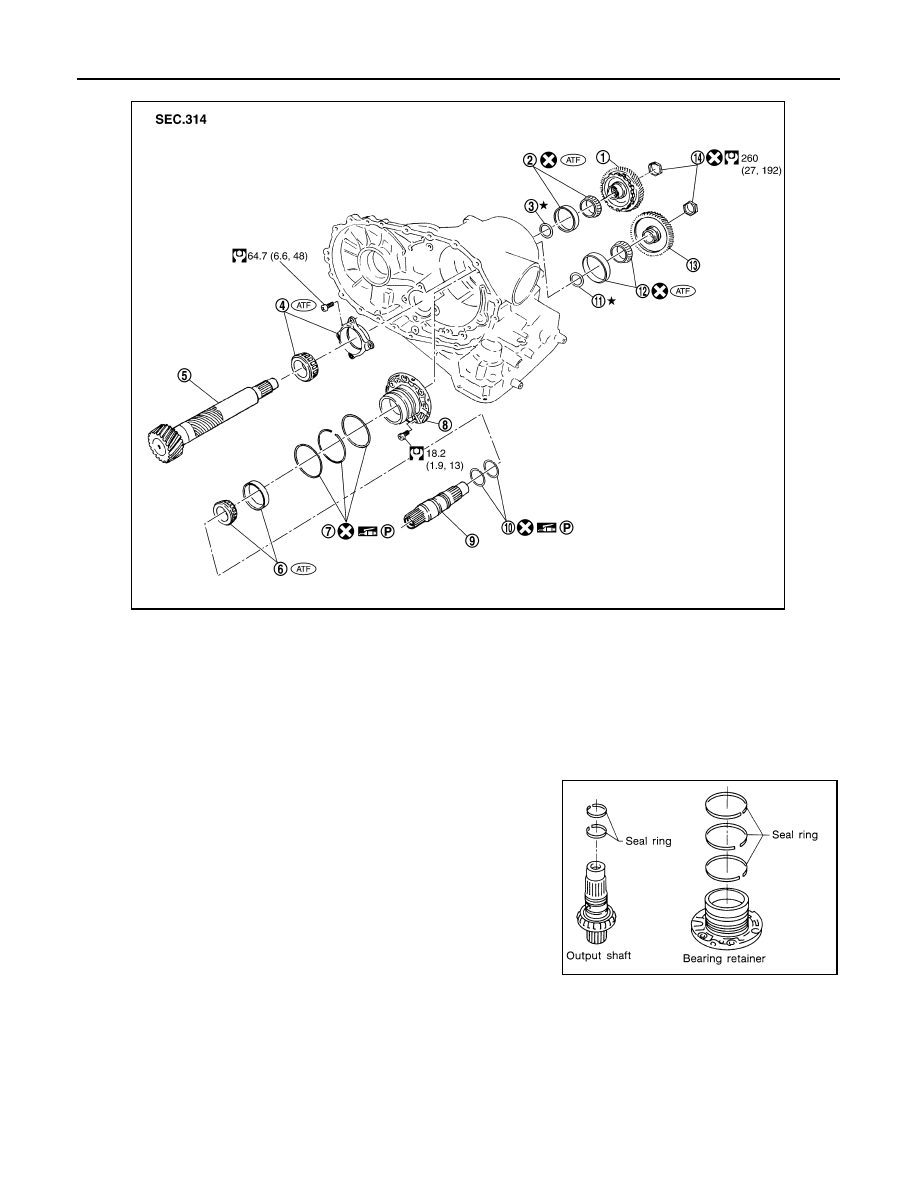

Output Shaft, Output Gear, Idler Gear, Reduction Pinion Gear and Bearing Retainer

INFOID:0000000001730993

COMPONENTS

SCIA3690E

SCIA7028E

AAT426

TM-282

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

DISASSEMBLY

1.

Remove seal rings from output shaft and bearing retainer.

1.

Idler gear

2.

Idler gear bearing

3.

Reduction pinion gear adjusting
shim

4.

Reduction pinion gear bearing

5.

Reduction pinion gear

6.

Output shaft bearing

7.

Seal ring

8.

Bearing retainer

9.

Output shaft

10. Seal ring

11.

Output gear adjusting spacer

12. Output gear bearing

13. Output gear

14. Lock nut

SCIA5883J
