DISASSEMBLY

1.

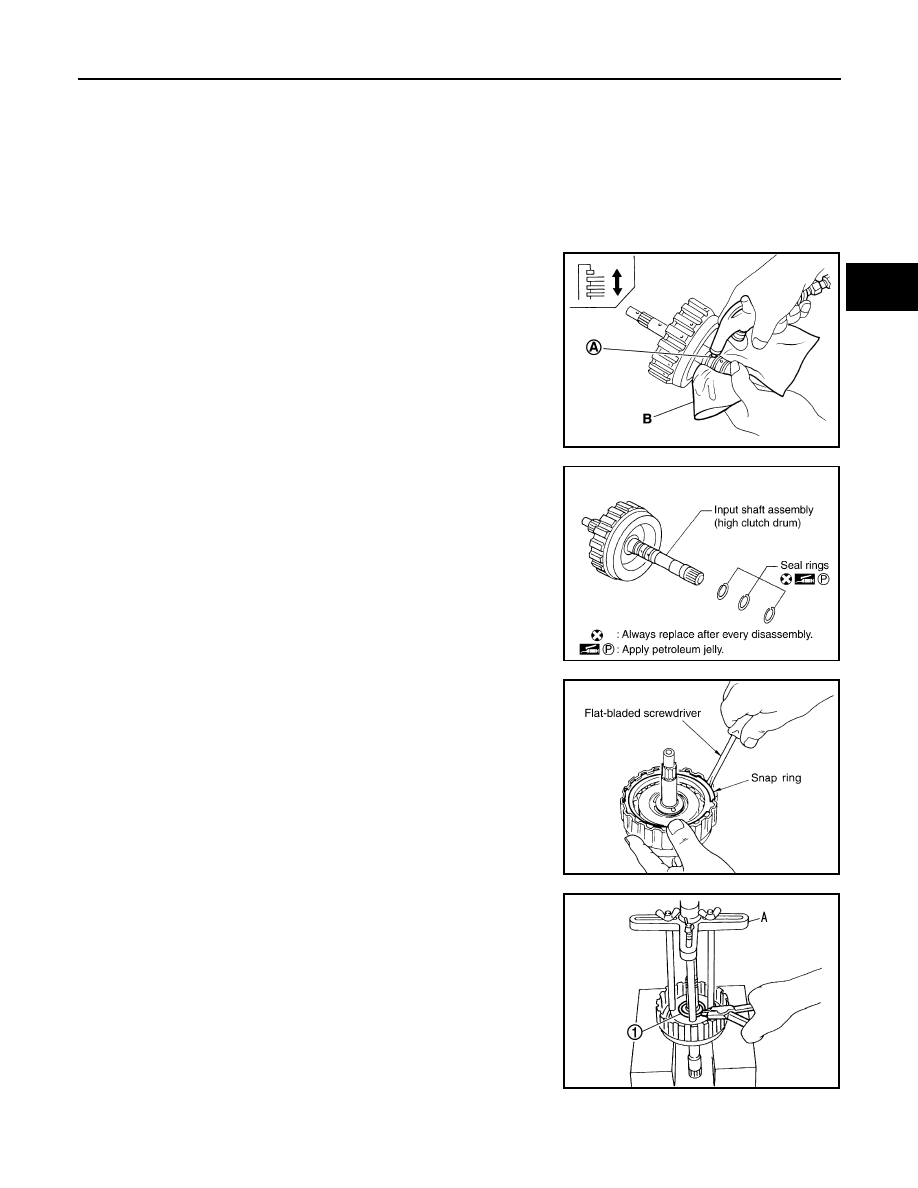

Check operation of high clutch.

a.

Apply compressed air into the oil hole (A) of input shaft assem-
bly (high clutch drum) at the location as shown.

CAUTION:

Block the oil hole (A) on the opposite side with lint-free
cloth (B).

b.

Check to see that retaining plate moves to snap ring.

c.

If retaining plate does not contact snap ring:
• High clutch piston seal might be damaged.

2.

Remove seal rings from input shaft assembly (high clutch drum).

3.

Remove snap ring using suitable tool.

4.

Remove retaining plate, drive plates and driven plates.

5.

Set Tool (A) on cancel cover, and remove snap ring (1) from
input shaft assembly (high clutch drum) while compressing
spring retainer assembly.

CAUTION:

Do not expand snap ring (1) excessively.

1.

Seal ring

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Snap ring

7.

Cancel cover

8.

Spring retainer assembly

9.

High clutch Piston

10. Input shaft assembly (high clutch

drum)

SCIA7032E

SCIA4890E

SCIA4891E

Tool number:

KV31103200

SCIA6001J

TM-264

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

6.

Remove cancel cover (1) and spring retainer assembly (2) from
input shaft assembly (high clutch drum) (3).

CAUTION:

Do not remove return springs from spring retainers.

7.

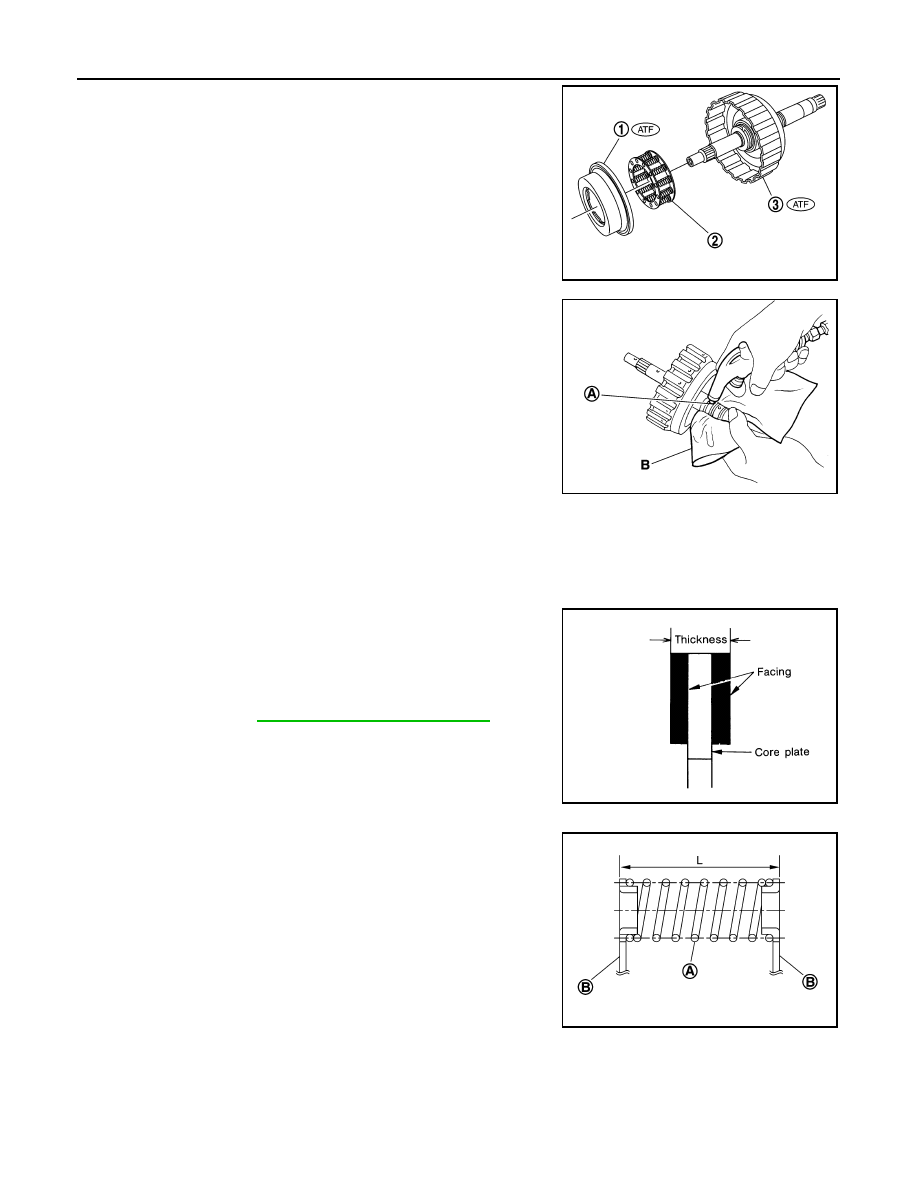

Apply compressed air into the oil hole (A) at the location as
shown to remove high clutch piston from input shaft assembly
(high clutch drum).

CAUTION:

• Do not blow air in too quickly, or high clutch piston and

ATF could jump out. Carefully blow air little by little while
protecting with lint-free cloth (B).

• Block the oil hole on the opposite side with lint-free cloth

(B).

INSPECTION

High Clutch Snap Ring

Check for deformation, fatigue or damage. Replace if necessary.

High Clutch Drive Plates

• Check facing for burns, cracks or damage. Replace if necessary.
• Measure thickness of facing.

CAUTION:

• Measure the thickness at 3 locations and find the average.
• Inspect ALL drive plates.
• Replace if the thickness is below the allowable limit.

High Clutch Spring Retainer Assembly

Check length (L) of springs retainer assembly. Replace if damaged,
deformed or worn.

CAUTION:

Do not remove return springs (A) from spring retainers (B).

High Clutch Piston and Cancel Cover

Check for deformation or damage. Replace if necessary.

Input Shaft Assembly (High Clutch Drum)

Check for deformation or damage. Replace if necessary.

Seal Ring Clearance

SCIA7036E

SCIA7033E

Thickness of drive plate

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT162D

Length (L):

20.6 mm (0.811 in)

SCIA7038E

REPAIR FOR COMPONENT PARTS

TM-265

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

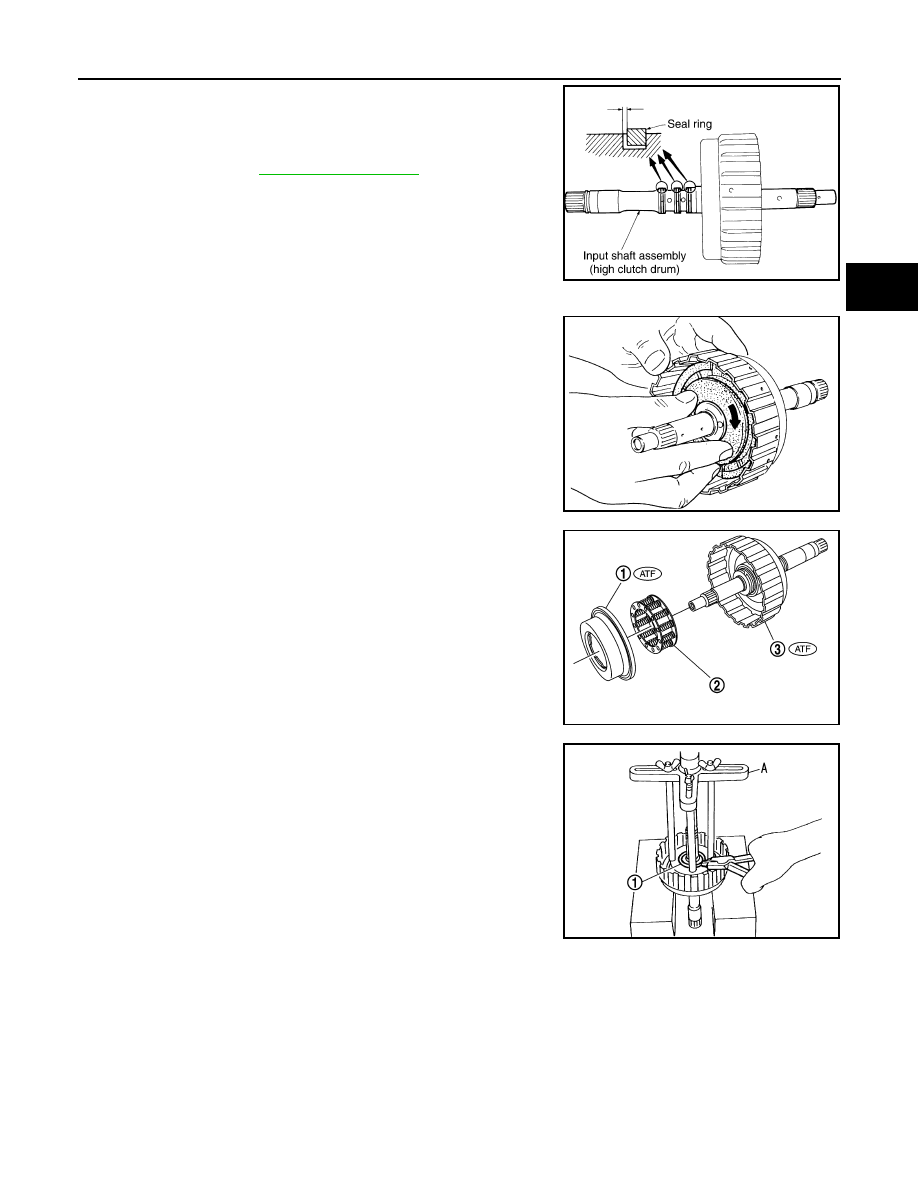

• Install new seal rings onto input shaft assembly (high clutch drum).
• Measure clearance between seal ring and ring groove.

• If not within allowable limit, replace input shaft assembly (high

clutch drum).

ASSEMBLY

1.

Install high clutch piston by turning it slowly.

CAUTION:

Apply ATF to inner surface of input shaft assembly (high
clutch drum) and high clutch piston.

2.

Install spring retainer assembly (2) and cancel cover (1) on input
shaft assembly (high clutch drum) (3).

3.

Set Tool A on cancel cover, and install snap ring (1) to input
shaft assembly (high clutch drum) while slowly compressing
spring retainer assembly.

CAUTION:

• Do not expand snap ring (1) excessively.
• Install spring retainer assembly without tilting.

Standard clearance and allowable limit:

Refer to

TM-323, "Input Shaft"

.

SCIA4901E

SAT111F

SCIA7036E

Tool number:

KV31103200

SCIA6001J

TM-266

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

• Do not align snap ring gap with cancel cover stopper.

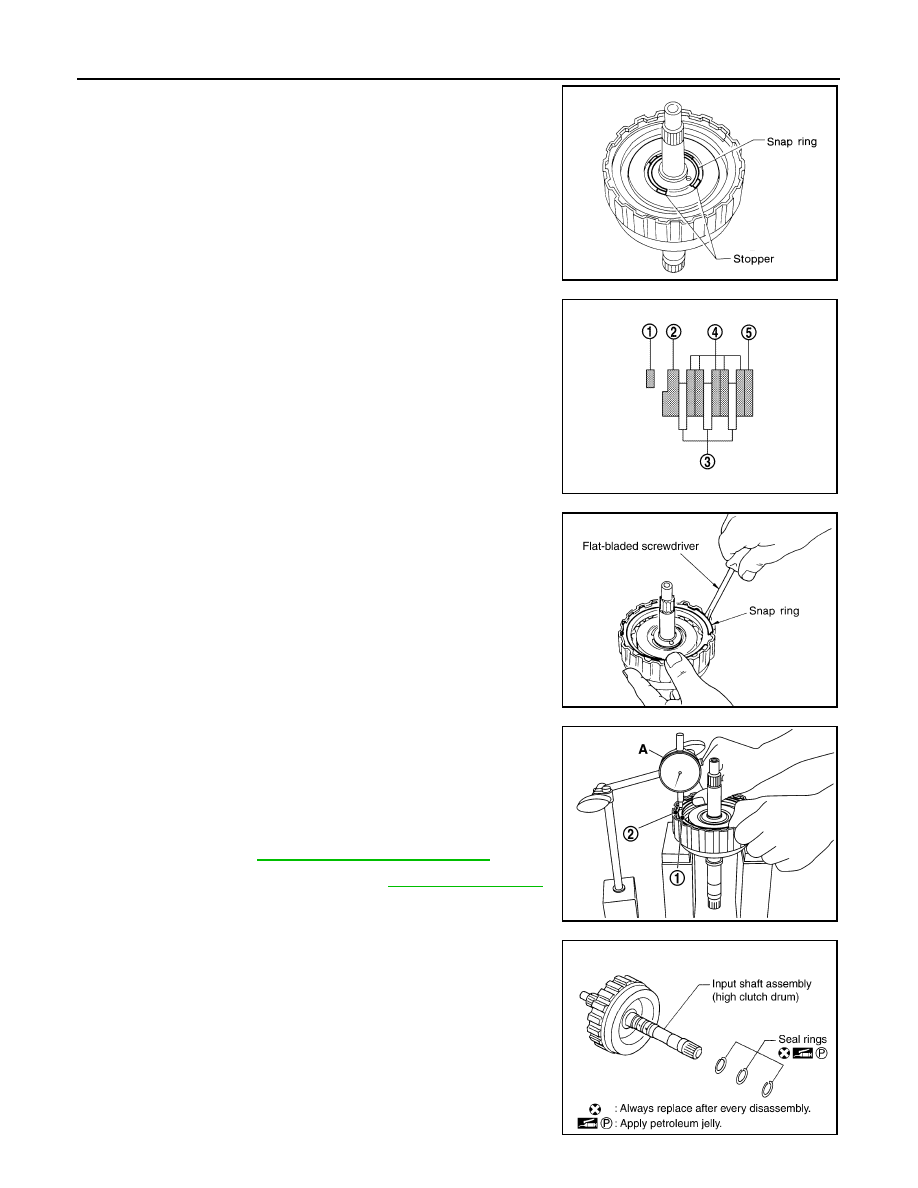

4.

Install driven plates (4), (5), drive plates (3) and retaining plate
(2).
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Driven plate
Drive plate/Driven plate: 3/6 (1+5)

CAUTION:

Be careful with the order and direction of plates.

5.

Install snap ring using suitable tool.

6.

Set dial indicator (A) on retaining plate (1), and measure clear-
ance between retaining plate (1) and snap ring (2). If not within
allowable limit, select proper retaining plate (1).

7.

Check operation of high clutch. Refer to

TM-262, "High Clutch"

.

8.

Install seal rings to input shaft assembly (high clutch drum).

SAT113F

SCIA5996E

SCIA4891E

Specified clearance

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SCIA5858E

SCIA4890E
