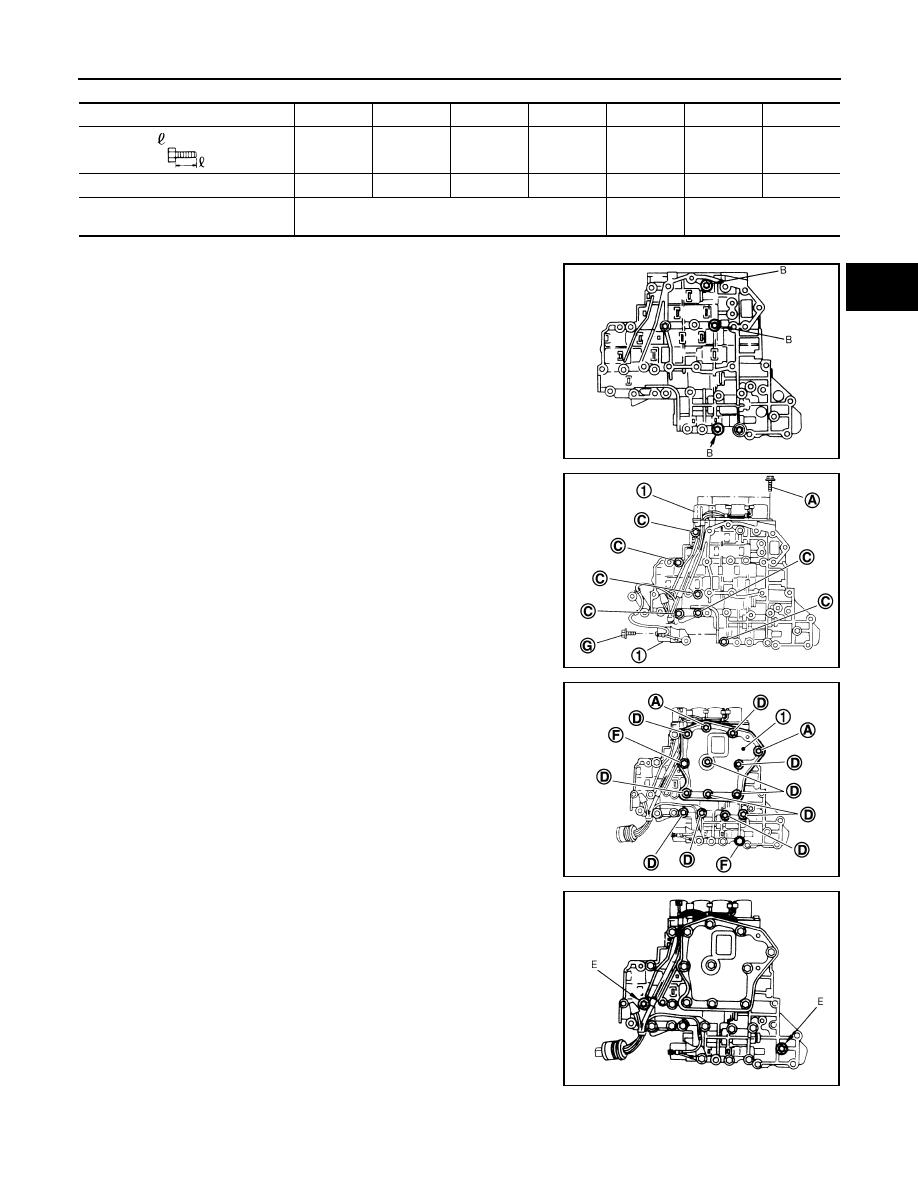

Bolt length, number and location:

*

: Reamer bolt and nut.

a.

Install and tighten bolts (B) to the specified torque.

b.

Install solenoid valve assembly (1) on control valve assembly.

c.

Tighten bolts (A), (C) and (G) to the specified torque.

d.

Remove reamer bolts (F), and then set oil strainer (1) on control
valve assembly

e.

Install and tighten bolts (A), (D), reamer bolts (F) and nuts to the
specified torque.

f.

Tighten bolts (E) to the specified torque.

Bolt symbol

A

B

C

D

E

F

*

G

Bolt length “

” [mm (in)]

13.5

(0.531)

58.0

(2.283)

 40.0

(1.575)

66.0

(2.598)

33.0

(1.299)

78.0

(3.071)

18.0

(0.709)

Number of bolts

6

3

6

11

2

2

1

Tightening torque
 [N·m (kg-m, in-lb)]

7.84 (0.80, 69)

3.92

(0.40, 35)

7.84 (0.80, 69)

Bolts:

7.84 N·m (0.80 kg-m, 69 in-lb)

ATL0032D

Bolts:

7.84 N·m (0.80 kg-m, 69 in-lb)

SCIA7008E

Nuts and bolts:

7.84 N·m (0.80 kg-m, 69 in-lb)

SCIA7131E

Bolts:

3.92 N·m (0.40 kg-m, 35 in-lb)

ATL0035D

TM-252

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

Control Valve Upper Body

INFOID:0000000001730986

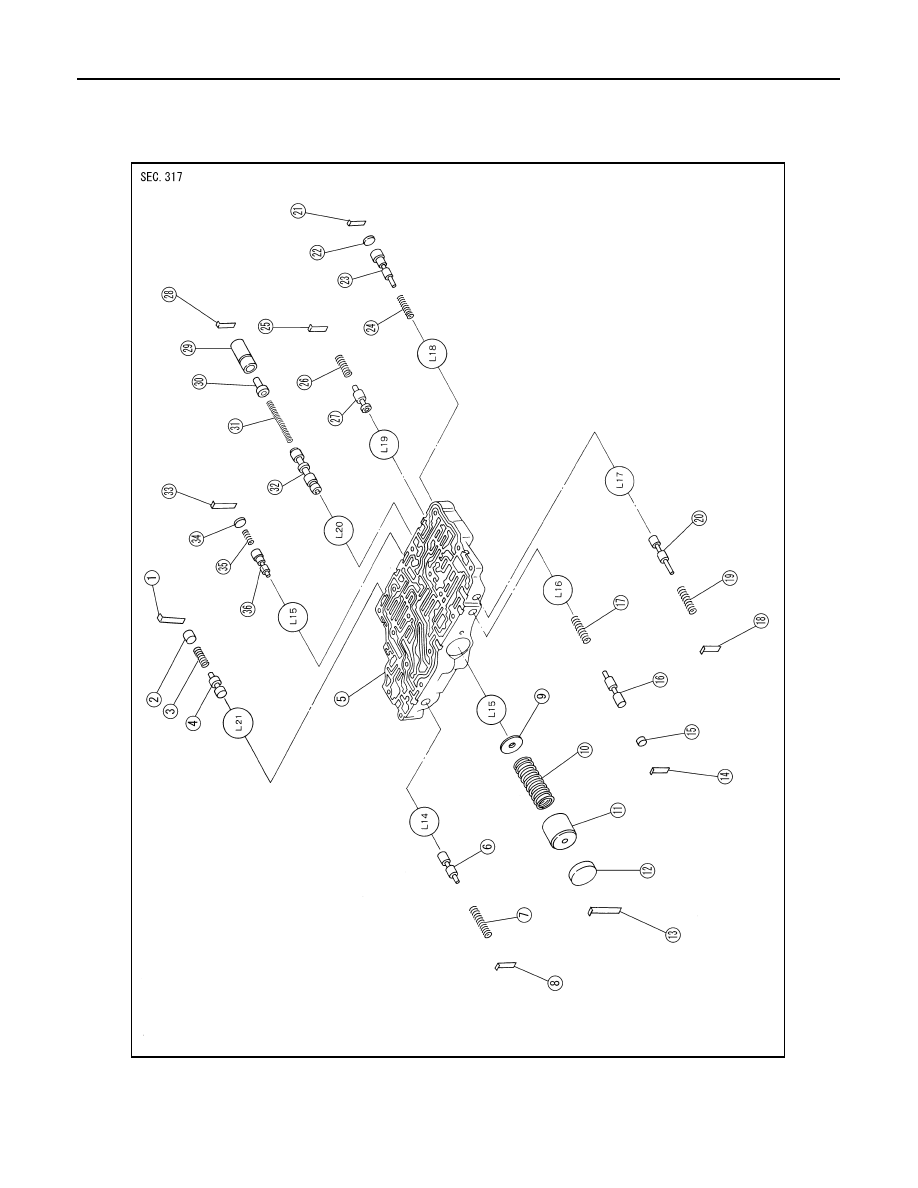

COMPONENTS

1.

Retainer plate

2.

Plug

3.

Cooler check valve spring

4.

Cooler check valve

5.

Control valve upper body

6.

Pilot valve

7.

Pilot valve spring

8.

Retainer plate

9.

1-2 accumulator retainer plate

SCIA2960J

REPAIR FOR COMPONENT PARTS

TM-253

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DISASSEMBLY

1.

Remove valves at retainer plates.

CAUTION:

Do not use a magnetic pick-up tool.

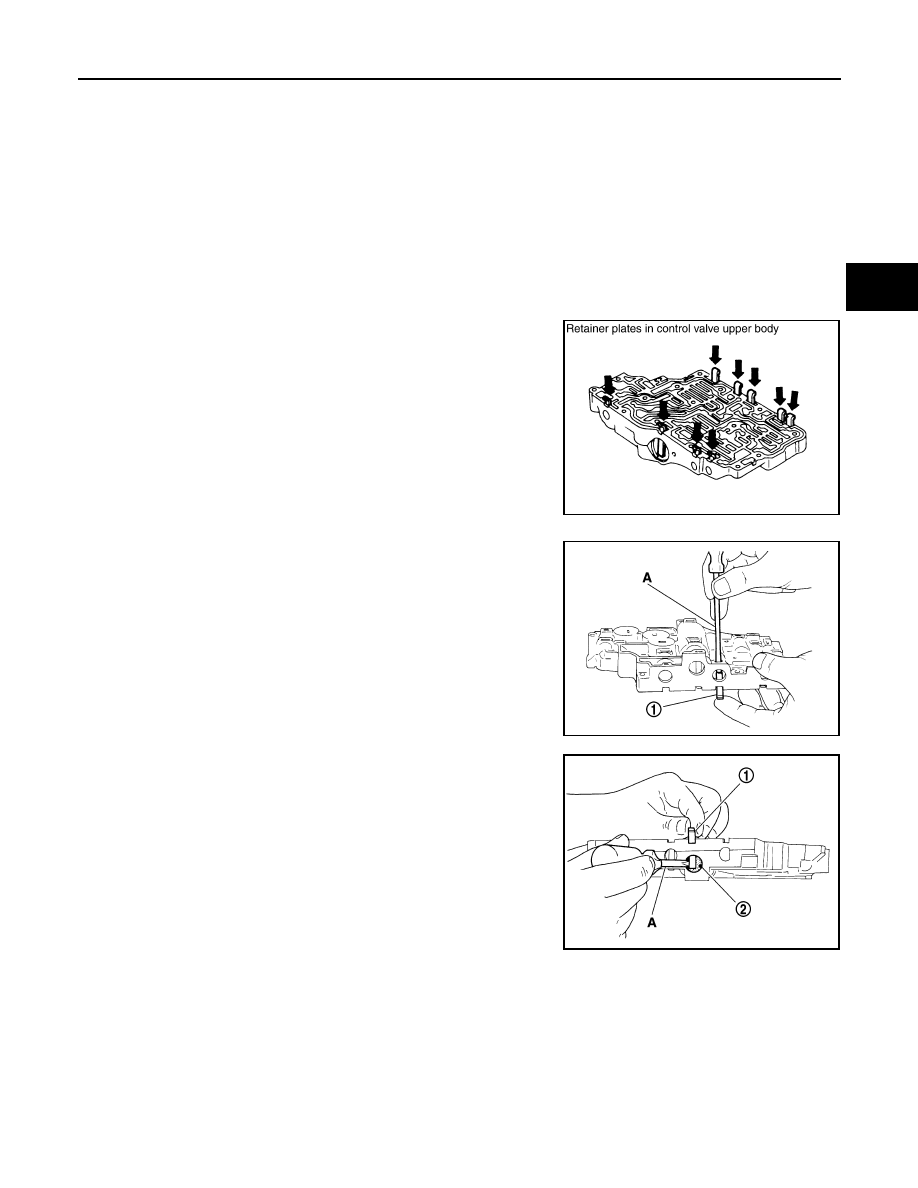

a.

Use suitable tool (A) to remove retainer plates (1).

b.

Remove retainer plates (1) while holding spring, plugs (2) or
sleeves using suitable tool (A).

CAUTION:

Remove plugs (2) slowly to prevent internal parts from
jumping out.

10. 1-2 accumulator piston spring

11.

1-2 accumulator piston

12. Plug

13. Retainer plate

14.

Retainer plate

15. Plug

16. 1st reducing valve

17.

1st reducing valve spring

18. Retainer plate

19. 3-2 timing valve spring

20.

3-2 timing valve

21. Retainer plate

22. Plug

23.

Overrun clutch reducing valve

24. Overrun clutch reducing valve spring

25. Retainer plate

26.

Torque converter relief valve spring 27. Torque converter relief valve

28. Retainer plate

29.

Sleeve

30. Plug

31. Torque converter clutch control valve

spring

32.

Torque converter clutch control
valve

33. Retainer plate

34. Plug

35.

1-2 accumulator valve spring

36. 1-2 accumulator valve

SCIA4979E

SCIA7136E

SCIA7137E

TM-254

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

c.

Place mating surface of valve body face down, and remove
internal parts.

CAUTION:

• If a valve is hard to remove, place valve body face down

and lightly tap it with a soft hammer.

• Do not drop or damage valves and sleeves.

INSPECTION

Valve Springs

• Check each valve spring for damage or deformation. Also measure

free length and outer diameter. Refer to

TM-321, "Control Valves"

.

• Replace valve springs if deformed or fatigued.

Control Valves

Check sliding surfaces of valves, sleeves and plugs. Replace if necessary.

ASSEMBLY

CAUTION:

• Apply ATF to all components before installation.
• Lay control valve body down when installing valves. Do not

stand control valve body upright.

Lubricate control valve body and all valves with ATF. Install control
valves by sliding them carefully into their bores.

CAUTION:

• Install each control valve one by one.
• Install control valves after checking, because some of them

are similar.

• Do not scratch or damage valve body.

SAT137D

SAT138D

SAT139D

SAT140DA
