DTC P0755 SHIFT SOLENOID VALVE B

TM-91

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

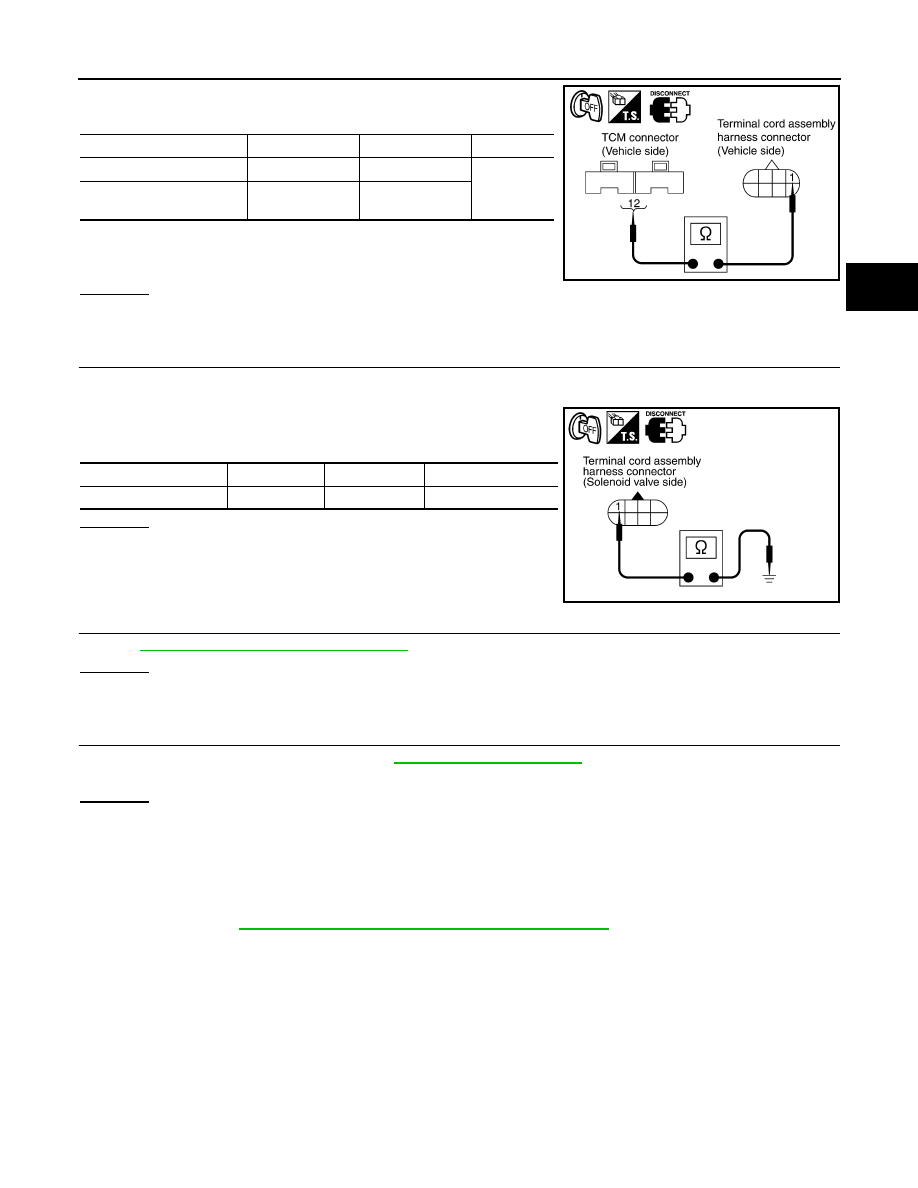

Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.

4.

If OK, check harness for short to ground and short to power.

5.

If OK, check continuity between ground and transaxle assembly.

6.

Reinstall any part removed.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK VALVE RESISTANCE

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly connector in engine room.

3.

Check resistance between terminal cord assembly harness con-
nector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK DTC

Perform

TM-89, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 6.

6.

CHECK TCM

1.

Check TCM input/output signal. Refer to

TM-119, "Reference Value"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Component Inspection

INFOID:0000000001694371

SHIFT SOLENOID VALVE B

• For removal, refer to

TM-191, "Control Valve Assembly and Accumulators"

.

Resistance Check

Item

Connector

Terminal

Continuity

TCM

E101

12

Yes

Terminal cord assembly
harness connector

F30

1

SCIA3255E

Solenoid valve

Connector

Terminal

Resistance (Approx.)

Shift solenoid valve B

F30

1 - Ground

5 - 20

Ω

SCIA3454E

TM-92

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

DTC P0755 SHIFT SOLENOID VALVE B

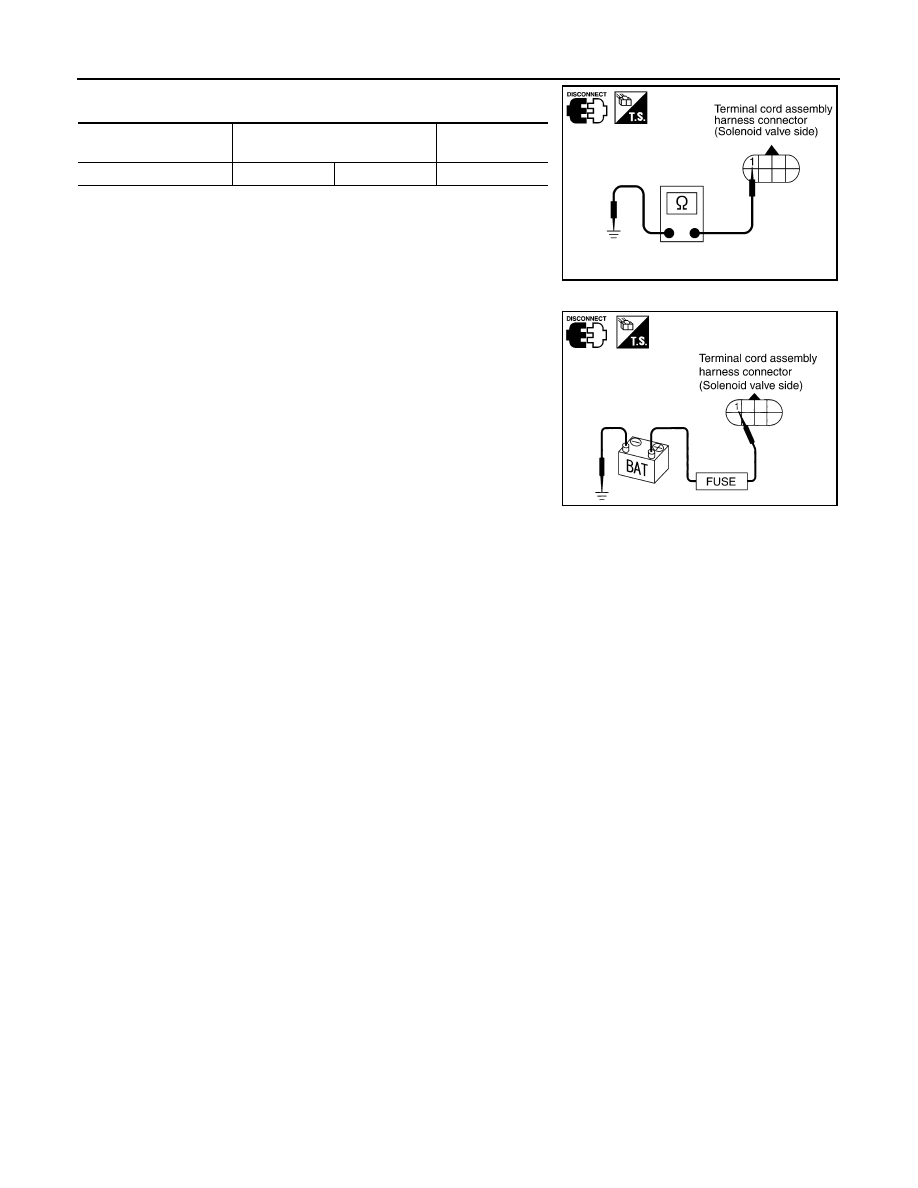

• Check resistance between terminal and ground.

Operation Check

• Check solenoid valve by listening for its operating sound while

applying battery voltage to the terminal and ground.

Solenoid valve

Terminal

Resistance (Ap-

prox.)

Shift solenoid valve B

1

Ground

5 - 20

Ω

SCIA2055E

SCIA2058E

DTC P1760 OVERRUN CLUTCH SOLENOID VALVE

TM-93

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DTC P1760 OVERRUN CLUTCH SOLENOID VALVE

Description

INFOID:0000000001694378

The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the PNP switch,
overdrive control switch, vehicle speed and ECM (throttle opening). The overrun clutch operation will then be
controlled.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001694379

Remarks: Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001694380

• This is an OBD self-diagnostic item.
• Diagnostic trouble code “P1760 OVERRUN CLUTCH S/V” with CONSULT-III or 6th judgement flicker with-

out CONSULT-III is detected when TCM detects an improper voltage drop when it tries to operate solenoid
valve.

Possible Cause

INFOID:0000000001694381

• Harness or connector

(The solenoid circuit is open or shorted.)

• Overrun clutch solenoid valve

DTC Confirmation Procedure

INFOID:0000000001694382

CAUTION:

• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at

least 10 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch ON and select “DATA MONITOR” mode for “A/T” with CONSULT-III.

2.

Touch “START”.

3.

Start engine.

4.

Accelerate vehicle to a speed of more than 10 km/h (6 MPH) with “D” position (OD ON).

5.

Release accelerator pedal completely with “D” position (OD OFF).

6.

If the check result is NG, go to

TM-93, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-III”.

 WITHOUT CONSULT-III

1.

Start engine.

2.

Drive vehicle under the following conditions:
Selector lever position: “D” position (OD ON)
Vehicle speed: Higher than 10 km/h (6 MPH)

3.

Perform self-diagnosis. Refer to

TM-38, "Diagnosis Procedure without CONSULT-III"

.

4.

If the check result is NG, go to

TM-93, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001694384

1.

CHECK INPUT SIGNAL

With CONSULT-III

Item name

Condition

Display value

OVERRUN/C S/V

When overrun clutch solenoid valve operates. (When
overrun clutch disengaged. Refer to

TM-14

.)

ON

When overrun clutch solenoid valve does not operate.
(When overrun clutch engaged. Refer to

TM-14

.)

OFF

TM-94

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

DTC P1760 OVERRUN CLUTCH SOLENOID VALVE

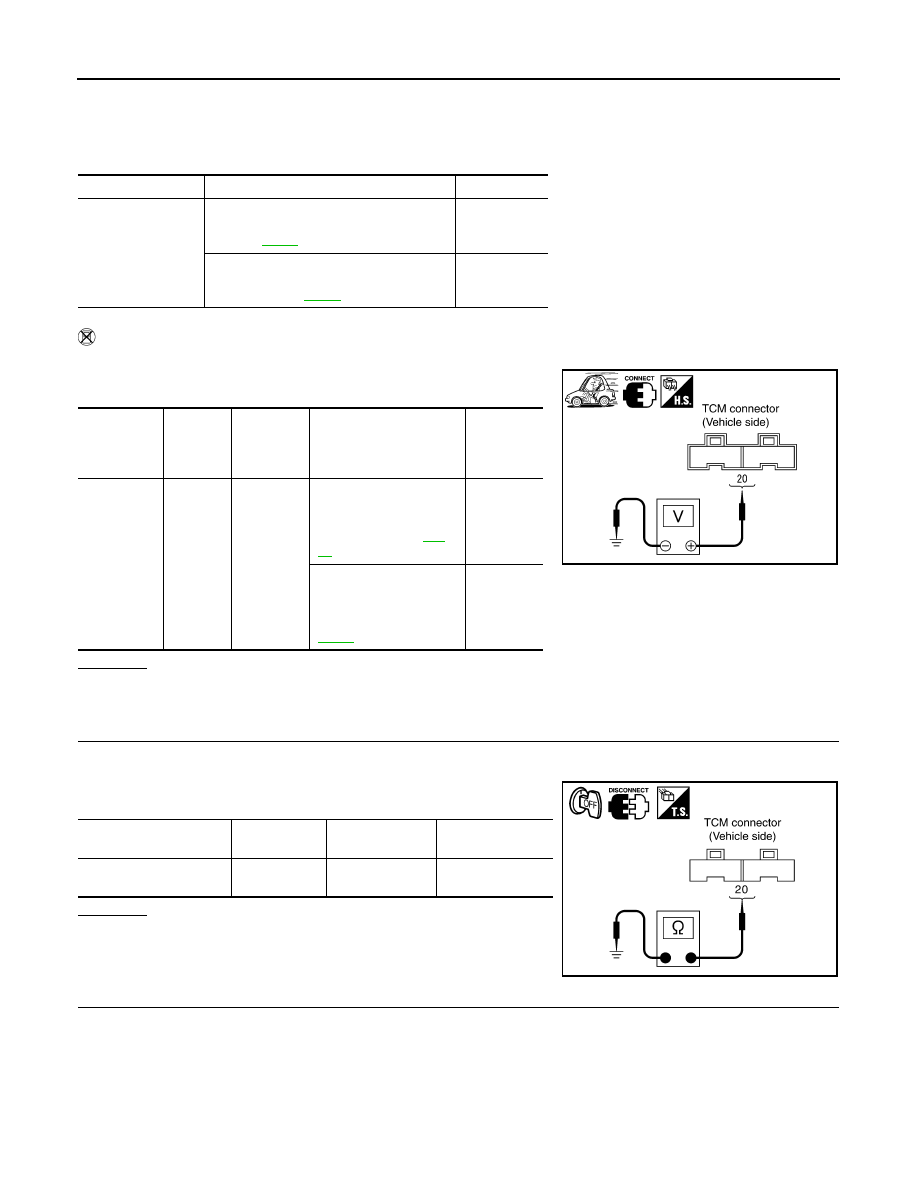

1.

Start engine.I

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Read out the value of “OVERRUN/C S/V” while driving.
Check the value changes according to driving speed.

Without CONSULT-III

1.

Start engine.

2.

Check voltage between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK OVERRUN CLUTCH SOLENOID VALVE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check resistance between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

3.

 CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly harness connector and TCM connector.

Item name

Condition

Display value

OVERRUN/C S/V

When overrun clutch solenoid valve oper-
ates. (When overrun clutch disengaged.
Refer to

TM-14

.)

ON

When overrun clutch solenoid valve does
not operate. (When overrun clutch en-
gaged. Refer to

TM-14

.)

OFF

Item

 Connec-

tor

Terminal

 Condition

Judge-

ment stan-

dard

(Approx.)

Overrun
clutch sole-
noid valve

 E31

 20 -

Ground

When overrun clutch so-
lenoid valve operates.
(When overrun clutch dis-
engaged. Refer to

TM-

14

.)

Battery
voltage

When overrun clutch so-
lenoid valve dose not op-
erate. (When overrun
clutch engaged. Refer to

TM-14

.)

0V

SCIA3258E

Solenoid Valve

 Connector

Terminal

Resistance (Ap-

prox.)

Overrun clutch solenoid
valve

 E31

 20 - Ground

20 - 30

Ω

SCIA3259E
