STR-34

< PRECAUTION >

[K9K]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001689456

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

STARTER MOTOR

STR-35

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ON-VEHICLE REPAIR

STARTER MOTOR

Removal and Installation

INFOID:0000000001689441

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove “S” terminal nut and “S” terminal harness.

3.

Remove “B” terminal nut and “B” terminal harness.

4.

Remove starter motor bolts.

5.

Remove starter motor upward from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to tighten “B” terminal nut carefully.

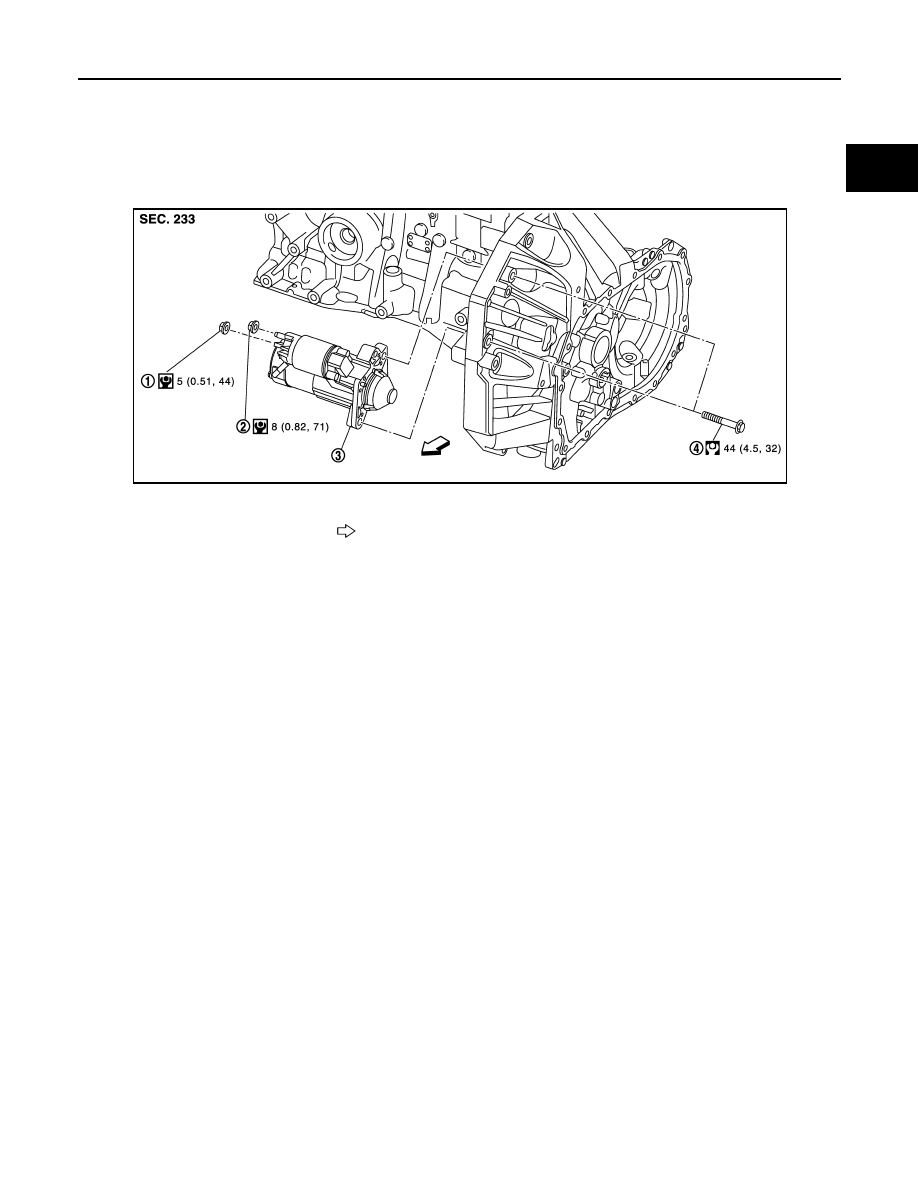

1.

“S” terminal nut

2.

“B” terminal nut

3.

Starter motor

4.

Starter motor bolt

Vehicle front

JPBIA0519GB

TM-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

TM

A

B

TM

N

O

P

CONTENTS

TRANSAXLE & TRANSMISSION

TYPE 1 (4AT: RE4F03B)

BASIC INSPECTION  ...................................

10

DIAGNOSIS AND REPAIR WORKFLOW  .........

10

Work Flow  ...............................................................

10

Diagnostic Work Sheet ............................................

11

FUNCTION DIAGNOSIS ..............................

13

A/T CONTROL SYSTEM ....................................

13

Cross-Sectional View  ..............................................

13

Shift Mechanism ......................................................

14

TCM Function ..........................................................

21

CAN Communication ...............................................

22

Input/Output Signal of TCM .....................................

22

Line Pressure Control  .............................................

23

Shift Control  ............................................................

24

Lock-up Control .......................................................

25

Engine Brake Control (Overrun Clutch Control)  ......

26

Control Valve ...........................................................

28

Centrifugal Cancel Mechanism  ...............................

28

Component Parts Location ......................................

30

A/T SHIFT LOCK SYSTEM ................................

31

System Description  .................................................

31

Component Parts Location ......................................

31

ON BOARD DIAGNOSTIC (OBD) SYSTEM ......

32

Introduction .............................................................

32

OBD Function for A/T System  .................................

32

One or Two Trip Detection Logic of OBD ................

32

OBD Diagnostic Trouble Code (DTC)  .....................

32

Malfunction Indicator Lamp (MIL) ............................

33

DIAGNOSIS SYSTEM (TCM)  .............................

35

CONSULT-III Function (TRANSMISSION)  .............

35

Diagnosis Procedure without CONSULT-III  ............

38

COMPONENT DIAGNOSIS  .........................

43

DTC U1000 CAN COMMUNICATION LINE .......

43

Description ...............................................................

43

On Board Diagnosis Logic .......................................

43

Possible Cause ........................................................

43

DTC Confirmation Procedure  ..................................

43

Diagnosis Procedure  ...............................................

43

DTC P0705 PARK/NEUTRAL POSITION
(PNP) SWITCH ..................................................

44

Description ...............................................................

44

CONSULT-III Reference Value in Data Monitor
Mode ........................................................................

44

On Board Diagnosis Logic .......................................

44

Possible Cause ........................................................

44

DTC Confirmation Procedure  ..................................

44

Diagnosis Procedure  ...............................................

44

Component Inspection .............................................

46

DTC P0710 A/T FLUID TEMPERATURE SEN-
SOR CIRCUIT  ...................................................

48

Description ...............................................................

48

CONSULT-III Reference Value in Data Monitor
Mode ........................................................................

48

On Board Diagnosis Logic .......................................

48

Possible Cause ........................................................

48

DTC Confirmation Procedure  ..................................

48

Diagnosis Procedure  ...............................................

48

Component Inspection .............................................

50

DTC P0720 VEHICLE SPEED SENSOR·A/T
(REVOLUTION SENSOR) .................................

52

Description ...............................................................

52

CONSULT-III Reference Value in Data Monitor
Mode ........................................................................

52

On Board Diagnosis Logic .......................................

52

Possible Cause ........................................................

52

DTC Confirmation Procedure  ..................................

52

Diagnosis Procedure  ...............................................

53

DTC P0725 ENGINE SPEED SIGNAL  .............

56

Description ...............................................................

56
