ST-18

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

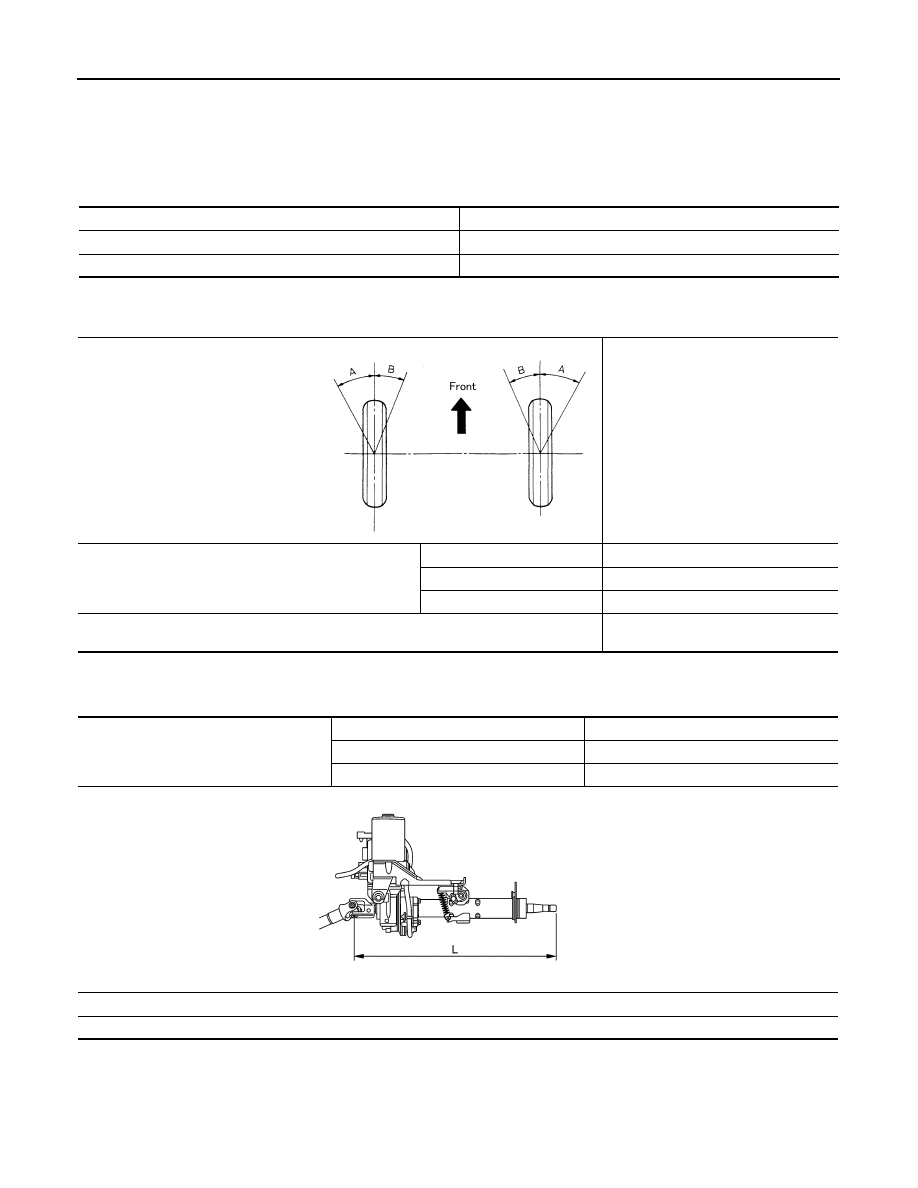

Steering Wheel

INFOID:0000000001282491

Steering Angle

INFOID:0000000001282492

Steering Column

INFOID:0000000001282493

Steering wheel axial end play

0 mm (0 in)

Steering wheel play

0 - 35 mm (0 - 1.38 in)

Steering wheel turning force

Less than 36 N (3.7 kg-f, 8.2 lb-f)

Inner wheel (Angle:A)
Degree minute (Decimal degree)

Minimum

35

°

 00

′

 (35.0

°

)

Nominal

38

°

 00

′

 (38.0

°

)

Maximum

39

°

 00

′

 (39.0

°

)

Outer wheel (Angle: B)
Degree minute (Decimal degree)

33

°

 00

′

 (33.0

°

)

SGIA0055E

Steering column length “L”

Minimum

462.1 mm (18.19 in)

Nominal

464.1 mm (18.27 in)

Maximum

466.1 mm (18.35 in)

Steering column assembly rotating torque

0 - 2.1 N·m (0 - 0.21 kg-m, 0 - 18 in-lb)

Tilt operating range

20 mm (0.79 in)

SGIA1293E

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-19

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

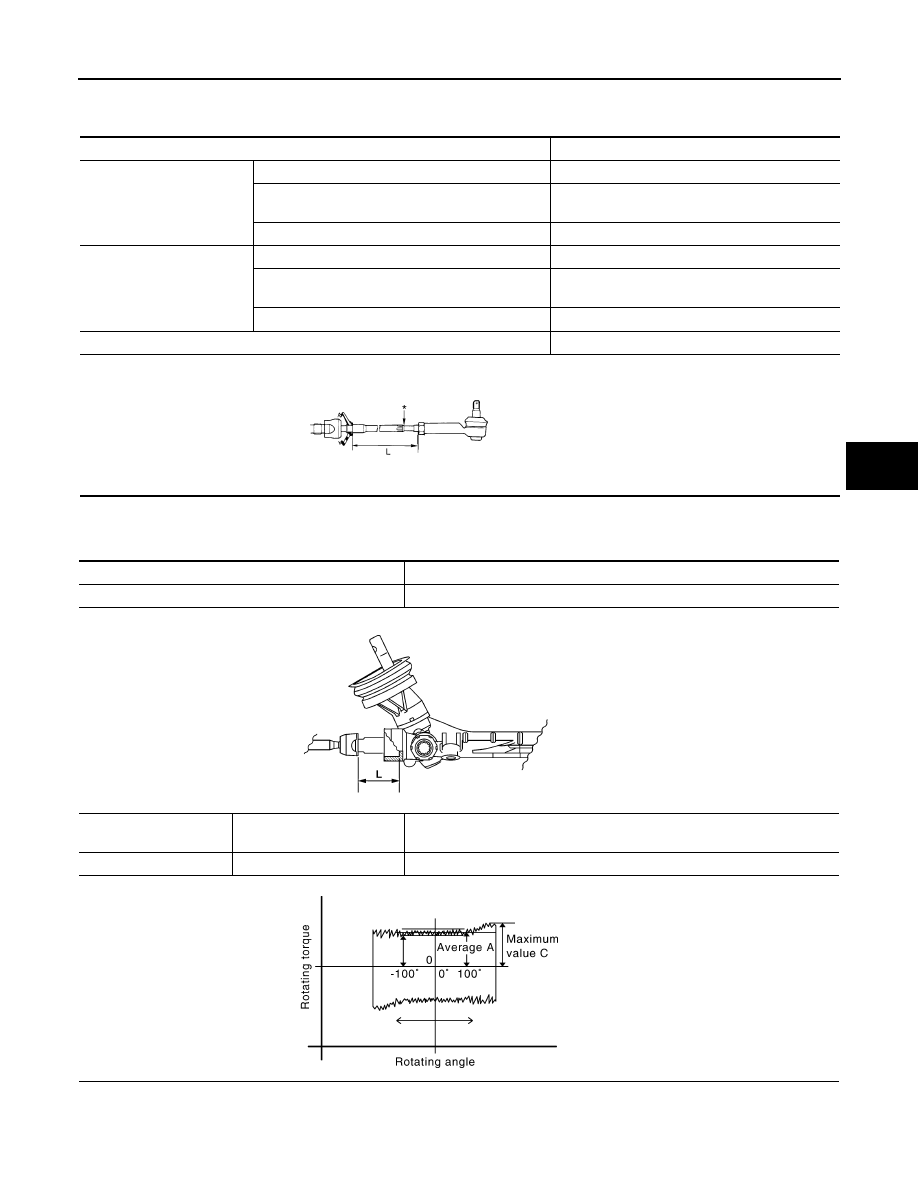

Steering Outer Socket and Inner Socket

INFOID:0000000001282494

Steering Gear

INFOID:0000000001282495

Steering gear type

R24K

Outer socket ball stud

Swinging torque

0.3 - 2.9 N·m (0.03 - 0.29 kg-m, 3.0 - 25 in-lb)

Measurement on spring balance
Measuring point: ball stud upper side

6.0 - 58 N (0.61 - 5.91 kg-f, 1.35 - 13.03 lb-f)

Axial end play

0.5 mm (0.020 in) or less

Inner socket ball joint

Swinging torque

0.5 - 5.0 N·m (0.06 - 0.51 kg-m, 5 - 44 in-lb)

• Measurement on spring balance
• Measuring point at *mark shown

4.3 - 43.5 N (0.44 - 4.44 kg-f, 0.97 - 9.79 lb-f)

Axial end play

0.2 mm (0.008 in) or less

Inner socket length “L”

57.8 mm (2.276 in)

SGIA0950E

Steering gear model

R24K

Rack neutral position, dimension “L” (rack stroke)

65.0 mm (2.559 in)

Pinion rotating torque
standard

Around neutral position
(within

±

 100

°

) Average A

0.3 - 1.5 N·m (0.03 - 0.15 kg-m, 3 - 13 in-lb)

Maximum variation C

1.86 N·m (0.19 kg-m, 16 in-lb)

AWGIA0016ZZ

MGIA0017E

STC-1

STEERING

C

D

E

F

H

I

J

K

L

M

SECTION

STC

A

B

STC

N

O

P

CONTENTS

STEERING CONTROL SYSTEM

EPS

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

4

EPS SYSTEM  ......................................................

4

System Diagram ........................................................

4

System Description  ...................................................

4

Component Parts Location ........................................

5

Component Description .............................................

6

CAN Communication .................................................

6

DIAGNOSIS SYSTEM (EPS CONTROL UNIT)

.....

7

CONSULT-III Function (EPS)  ...................................

7

COMPONENT DIAGNOSIS  ..........................

9

C1601 BATTERY POWER SUPPLY  ..................

9

Description ................................................................

9

DTC Logic  .................................................................

9

Diagnosis Procedure .................................................

9

Special Repair Requirement (Models with ESP) .....

10

C1604 TORQUE SENSOR  .................................

11

Description ..............................................................

11

DTC Logic  ...............................................................

11

Diagnosis Procedure ...............................................

11

Special Repair Requirement (Models with ESP) .....

12

C1606 EPS MOTOR ...........................................

13

Description ..............................................................

13

DTC Logic  ...............................................................

13

Diagnosis Procedure ...............................................

13

Special Repair Requirement (Models with ESP) .....

14

C1607 EEPROM .................................................

15

Description ..............................................................

15

DTC Logic ................................................................

15

Diagnosis Procedure  ...............................................

15

Special Repair Requirement (Models with ESP)  .....

15

C1608 EPS CONTROL UNIT ............................

16

Description ...............................................................

16

DTC Logic ................................................................

16

Diagnosis Procedure  ...............................................

16

Special Repair Requirement (Models with ESP)  .....

16

C1609 CAN VHCL SPEED  ...............................

17

Description ...............................................................

17

DTC Logic ................................................................

17

Diagnosis Procedure  ...............................................

17

Special Repair Requirement (Models with ESP)  .....

18

C1610 CAN ENG RPM ......................................

19

Description ...............................................................

19

DTC Logic ................................................................

19

Diagnosis Procedure  ...............................................

19

Special Repair Requirement (Models with ESP)  .....

19

U1000 CAN COMM CIRCUIT  ...........................

21

Description ...............................................................

21

DTC Logic ................................................................

21

Diagnosis Procedure  ...............................................

21

Special Repair Requirement (Models with ESP)  .....

21

ECU DIAGNOSIS .........................................

22

EPS CONTROL UNIT  .......................................

22

EPS Control Unit Input/Output Signal Reference
Value .......................................................................

22

Wiring Diagram - EPS -  ...........................................

24

Fail-Safe Function  ...................................................

27

DTC Index  ...............................................................

28

SYMPTOM DIAGNOSIS  ..............................

29

EPS SYSTEM SYMPTOMS  ..............................

29

Symptom Chart ........................................................

29
