Nissan Tiida C11. Manual - part 1212

SRC-76

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

Trouble Diagnosis with CONSULT-III

INFOID:0000000001396411

DIAGNOSTIC CODE CHART

NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT-III each time repair is finished. If malfunction is still
observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

ALHIA0081GB

DIAGNOSIS SENSOR UNIT

SRC-77

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

CONSULT-III name

DTC

DTC detecting condition

Repair order

DRIVER AIRBAG MODULE

[OPEN]

B1049

Driver air bag module circuit (DR1) is
open
(including the spiral cable).

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the driver air bag module.

4.

Replace the spiral cable.

5.

Replace the air bag diagnosis sensor unit.

6.

Replace the related harness.

DRIVER AIRBAG MODULE

[VB-SHORT]

B1050

Driver air bag module circuit (DR1) is
shorted to a power supply circuit
(including the spiral cable).

DRIVER AIRBAG MODULE

[GND-SHORT]

B1051

Driver air bag module circuit (DR1) is
shorted to ground
(including the spiral cable).

DRIVER AIRBAG MODULE

[SHORT]

B1052

Driver air bag module circuits (DR1) are
shorted to each other
(including the spiral cable).

ASSIST A/B MODULE

[OPEN]

B1065

Front passenger air bag module circuit
(AS1) is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front passenger air bag module.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

ASSIST A/B MODULE

[VB-SHORT]

B1066

Front passenger air bag module circuit
(AS1) is shorted to a power supply cir-
cuit.

ASSIST A/B MODULE

[GND-SHORT]

B1067

Front passenger air bag module circuit
(AS1) is shorted to ground.

ASSIST A/B MODULE

[SHORT]

B1068

Front passenger air bag module circuits
(AS1) are shorted to each other.

SIDE MODULE LH

[OPEN]

B1134

Front LH side air bag module circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front LH seat back assembly.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

SIDE MODULE LH

[VB-SHORT]

B1135

Front LH side air bag module circuit is
shorted to a power supply circuit.

SIDE MODULE LH

[GND-SHORT]

B1136

Front LH side air bag module circuit is
shorted to ground.

SIDE MODULE LH

[SHORT]

B1137

Front LH side air bag module circuits are
shorted to each other.

SIDE MODULE RH

[OPEN]

B1129

Front RH side air bag module circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front RH seat back assembly.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

SIDE MODULE RH

[VB-SHORT]

B1130

Front RH side air bag module circuit is
shorted to a power supply circuit.

SIDE MODULE RH

[GND-SHORT]

B1131

Front RH side air bag module circuit is
shorted to ground.

SIDE MODULE RH

[SHORT]

B1132

Front RH side air bag module circuits
are shorted to each other.

CURTAIN MODULE LH

[OPEN]

B1150

LH side curtain air bag module circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the LH side curtain air bag module.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

CURTAIN MODULE LH

[VB-SHORT]

B1151

LH side curtain air bag module circuit is
shorted to a power supply circuit.

CURTAIN MODULE LH

[GND-SHORT]

B1152

LH side curtain air bag module circuit is
shorted to ground.

CURTAIN MODULE LH

[SHORT]

B1153

LH side curtain air bag module circuits
are shorted to each other.

CURTAIN MODULE RH

[OPEN]

B1145

RH side curtain air bag module circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the RH side curtain air bag module.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

CURTAIN MODULE RH

[VB-SHORT]

B1146

RH side curtain air bag module circuit is
shorted to a power supply circuit.

CURTAIN MODULE RH

[GND-SHORT]

B1147

RH side curtain air bag module circuit is
shorted to ground.

CURTAIN MODULE RH

[SHORT]

B1148

RH side curtain air bag module circuits
are shorted to each other.

SRC-78

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

Trouble Diagnosis without CONSULT-III

INFOID:0000000001396412

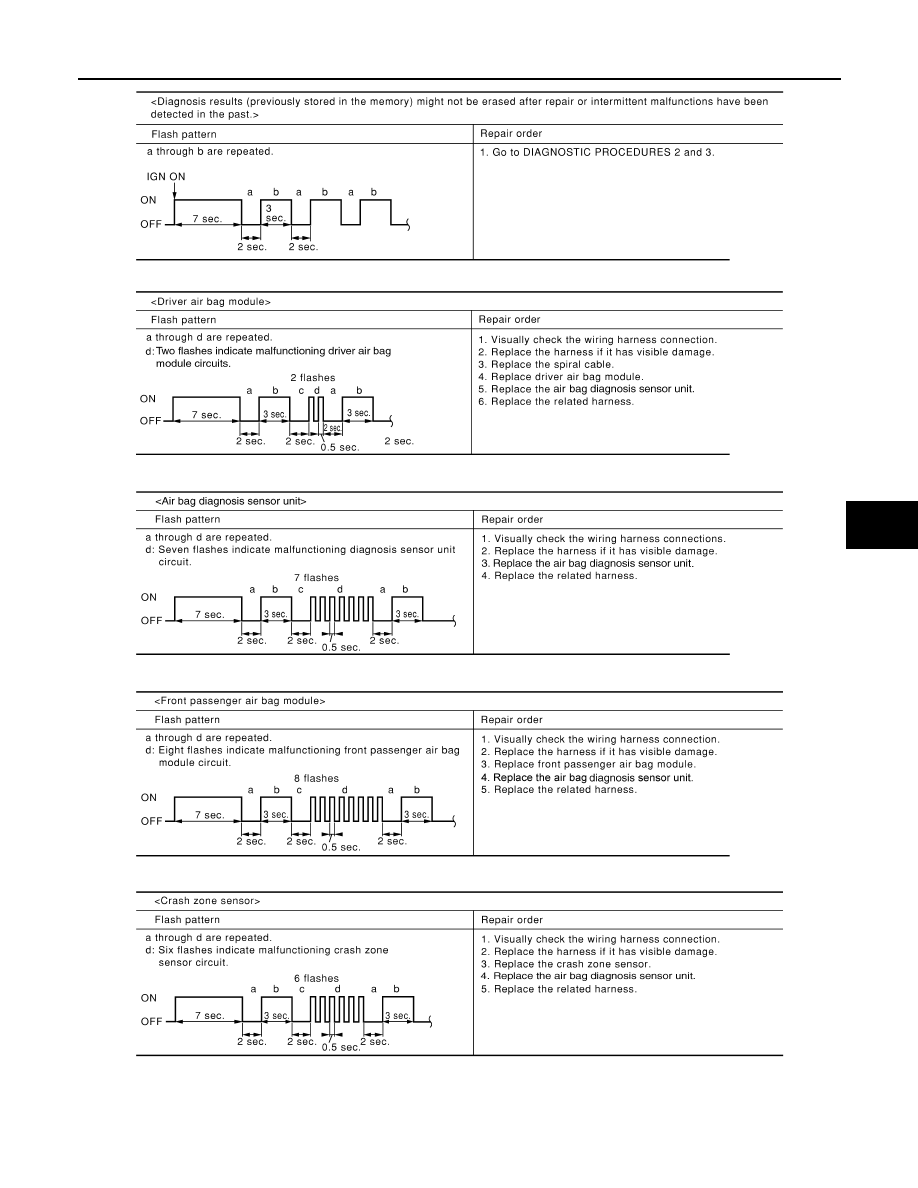

WARNING LAMP FLASH CODE CHART

NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to
the next step. When malfunction is eliminated, further repair work is not required.

PRE-TEN FRONT LH

[OPEN]

B1086

LH seat belt pre-tensioner circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front LH seat belt pre-tensioner.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

PRE-TEN FRONT LH

[VB-SHORT]

B1087

LH seat belt pre-tensioner circuit is
shorted to a power supply circuit.

PRE-TEN FRONT LH

[GND-SHORT]

B1088

LH seat belt pre-tensioner circuit is
shorted to ground.

PRE-TEN FRONT LH

[SHORT]

B1089

LH seat belt pre-tensioner circuits are
shorted to each other.

PRE-TEN FRONT RH

[OPEN]

B1081

RH seat belt pre-tensioner circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front RH seat belt pre-tensioner.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

PRE-TEN FRONT RH

[VB-SHORT]

B1082

RH seat belt pre-tensioner circuit is
shorted to a power supply circuit.

PRE-TEN FRONT RH

[GND-SHORT]

B1083

RH seat belt pre-tensioner circuit is
shorted to ground.

PRE-TEN FRONT RH

[SHORT]

B1084

RH seat belt pre-tensioner circuits are
shorted to each other.

PRE-TEN2 FRONT LH

[OPEN]

B1182

Lap seat belt pre-tensioner circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front lap seat belt pre-tensioner.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

PRE-TEN2 FRONT LH

[VB-SHORT]

B1183

Lap seat belt pre-tensioner circuit is
shorted to a power supply circuit.

PRE-TEN2 FRONT LH

[GND-SHORT]

B1184

Lap seat belt pre-tensioner circuit is
shorted to ground.

PRE-TEN2 FRONT LH

[SHORT]

B1185

Lap seat belt pre-tensioner circuits are
shorted to each other.

CRASH ZONE SEN

[UNIT FAIL]

B1033

Crash zone sensor has malfunctioned.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the crash zone sensor.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

B1034

CRASH ZONE SEN

[COMM FAIL]

B1035

Crash zone sensor communication er-
ror.

SATELLITE SENS LH

[UNIT FAIL]

B1118

LH side air bag satellite sensor has mal-
functioned.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the LH side air bag satellite sensor.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

B1119

SATELLITE SENS LH

[COMM FAIL]

B1120

LH side air bag satellite sensor commu-
nication error.

SATELLITE SENS RH

[UNIT FAIL]

B1113

RH side air bag satellite sensor has mal-
functioned.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the RH side air bag satellite sensor.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

B1114

SATELLITE SENS RH

[COMM FAIL]

B1115

RH side air bag satellite sensor commu-
nication error.

CONTROL UNIT

B1XXX

Air bag diagnosis sensor unit is malfunc-
tioning.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the air bag diagnosis sensor unit.

4.

Replace the related harness.

FRONTAL COLLISION DE-

TECTION

B1209

Driver and/or front passenger air bag
modules are deployed.

Refer to

SR-23, "For Frontal Collision"

.

SIDE COLLISION DETEC-

TION

B1210

Side and/or curtain air bag modules are
deployed.

Refer to

SR-24, "For Side and Rollover Collision"

.

CONSULT-III name

DTC

DTC detecting condition

Repair order

DIAGNOSIS SENSOR UNIT

SRC-79

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

SHIA0026E

WHIA0260E

WHIA0198E

WHIA0261E

WHIA0200E
