SRC-36

< COMPONENT DIAGNOSIS >

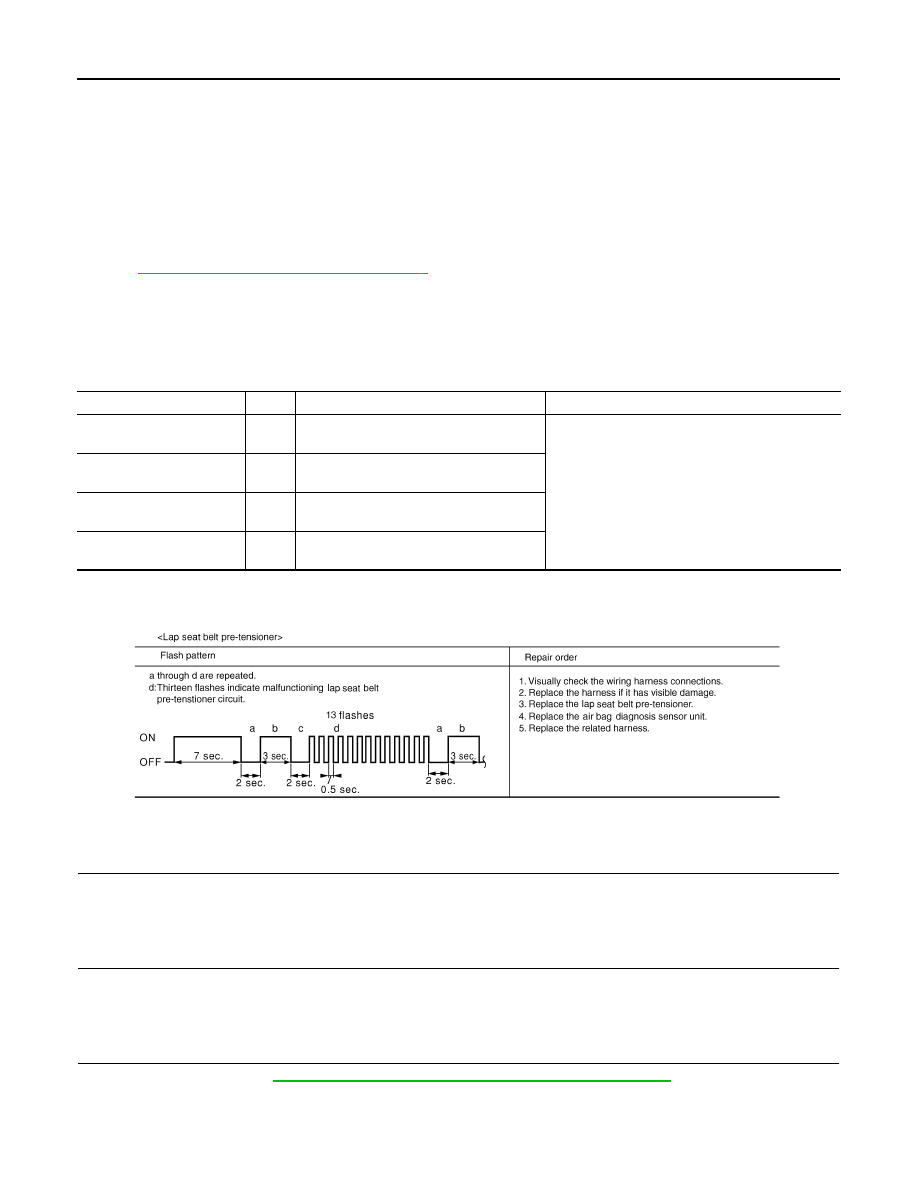

B1182 - B1185 LAP SEAT BELT PRE-TENSIONER

B1182 - B1185 LAP SEAT BELT PRE-TENSIONER

Description

INFOID:0000000001404240

DTC B1182 – B1185 LAP SEAT BELT PRE-TENSIONER

The lap seat belt pre-tensioner is wired to the air bag diagnosis sensor unit.  The air bag diagnosis sensor unit
will monitor for opens and shorts in detected lines to the lap seat belt pre-tensioner.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000001404241

DTC DETECTION LOGIC

With CONSULT-lll

Without CONSULT-lll

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

CONSULT-III

Select "DIAG MODE".

>> GO TO 3

3.

DTC

If DTC is detected. Refer to

SRC-37, "Diagnosis Procedure (Component diagnosis)"

.

>> END

CONSULT-III name

DTC

DTC detecting condition

Repair order

PRE-TEN2 FRONT LH

[OPEN]

B1182

Lap seat belt pre-tensioner circuit is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front lap seat belt pre-tensioner.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

PRE-TEN2 FRONT LH

[VB-SHORT]

B1183

Lap seat belt pre-tensioner circuit is short-
ed to a power supply circuit.

PRE-TEN2 FRONT LH

[GND-SHORT]

B1184

Lap seat belt pre-tensioner circuit is short-
ed to ground.

PRE-TEN2 FRONT LH

[SHORT]

B1185

Lap seat belt pre-tensioner circuits are
shorted to each other.

ALHIA0070GB

B1182 - B1185 LAP SEAT BELT PRE-TENSIONER

SRC-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE:
SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-13, "Trouble Diag-

nosis without CONSULT-III"

.

>> END

Diagnosis Procedure (Component diagnosis)

INFOID:0000000001404242

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?

YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

LAP SEAT BELT PRE-TENSIONER

Replace the lap seat belt pre-tensioner.  Refer to

SB-6, "Removal and Installation of Front Seat Belt"

.

>> GO TO 4

4.

AIR BAG DIAGNOSIS SENSOR UNIT

SRC-38

< COMPONENT DIAGNOSIS >

B1182 - B1185 LAP SEAT BELT PRE-TENSIONER

Replace the air bag diagnosis sensor unit.  Refer to

SR-15, "Removal and Installation"

.

>> GO TO 5

5.

RELATED HARNESS

Replace the related harness.

>> END

B1081 – B1084 SEAT BELT PRE-TENSIONER RH

SRC-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

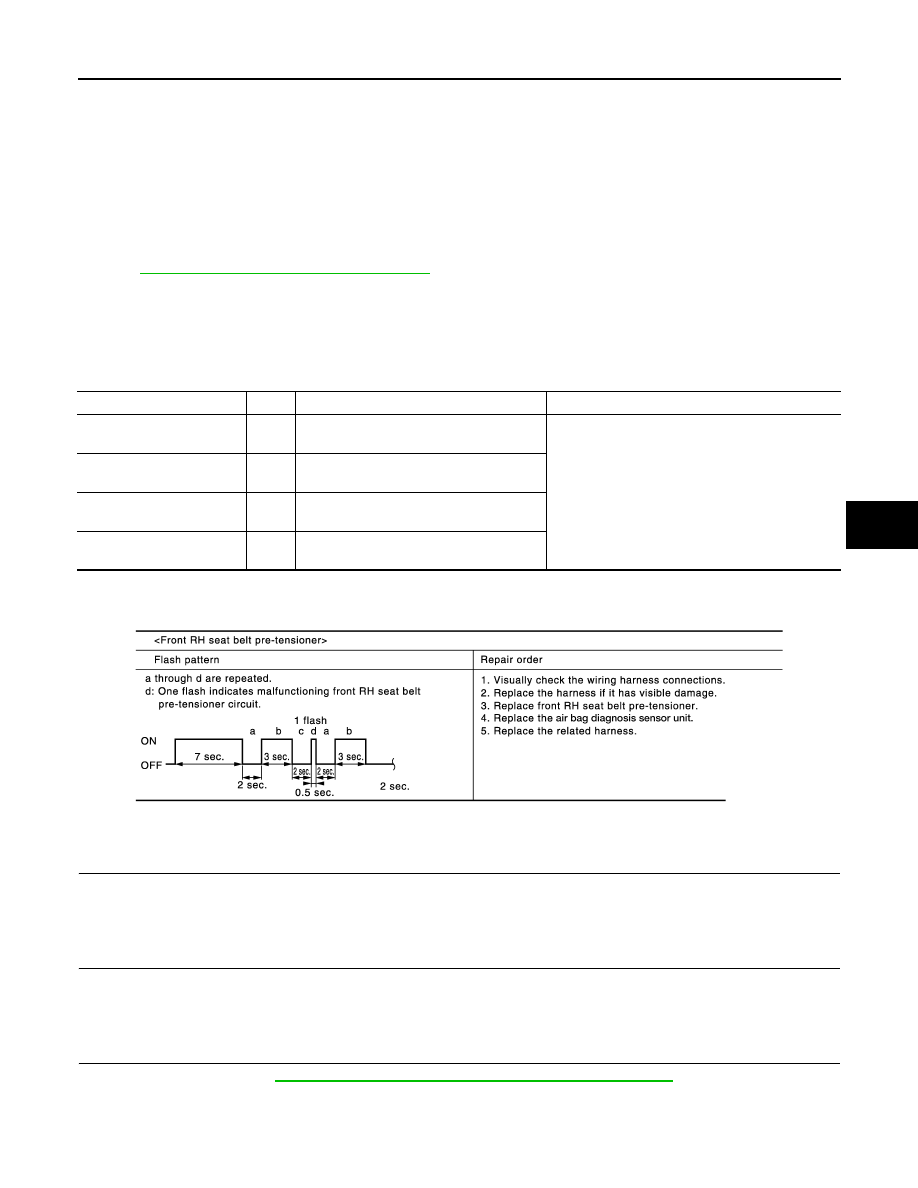

B1081 – B1084 SEAT BELT PRE-TENSIONER RH

Description

INFOID:0000000001396386

DTC B1081 – B1084 SEAT BELT PRE-TENSIONER RH

The seat belt pre-tensioner RH is wired to the air bag diagnosis sensor unit.  The air bag diagnosis sensor unit
will monitor for opens and shorts in detected lines to the seat belt pre-tensioner RH.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000001396387

DTC DETECTION LOGIC

With CONSULT-lll

Without CONSULT-lll

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

CONSULT-III

Select "DIAG MODE".

>> GO TO 3

3.

DTC

If DTC is detected. Refer to

SRC-40, "Diagnosis Procedure (Component diagnosis)"

.

>> END

CONSULT-III name

DTC

DTC detecting condition

Repair order

PRE-TEN FRONT RH

[OPEN]

B1081

RH seat belt pre-tensioner circuit is open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the front RH seat belt pre-tensioner.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

PRE-TEN FRONT RH

[VB-SHORT]

B1082

RH seat belt pre-tensioner circuit is short-
ed to a power supply circuit.

PRE-TEN FRONT RH

[GND-SHORT]

B1083

RH seat belt pre-tensioner circuit is short-
ed to ground.

PRE-TEN FRONT RH

[SHORT]

B1084

RH seat belt pre-tensioner circuits are
shorted to each other.

WHIA0262E
