Nissan Tiida C11. Manual - part 1187





SR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001404297

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for SRS "AIR BAG" and "SEAT BELT PRE-TENSIONER" Service

INFOID:0000000001404298

• Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
• Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-

utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-
tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes have
passed.

• The air bag diagnosis sensor unit must always be installed with the arrow mark “

” pointing toward the front

of the vehicle for proper operation. Also check air bag diagnosis sensor unit for cracks, deformities or rust
before installation and replace as required.

• The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to

turn steering wheel or column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.

PREPARATION

SR-3

< PREPARATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

PREPARATION

PREPARATION

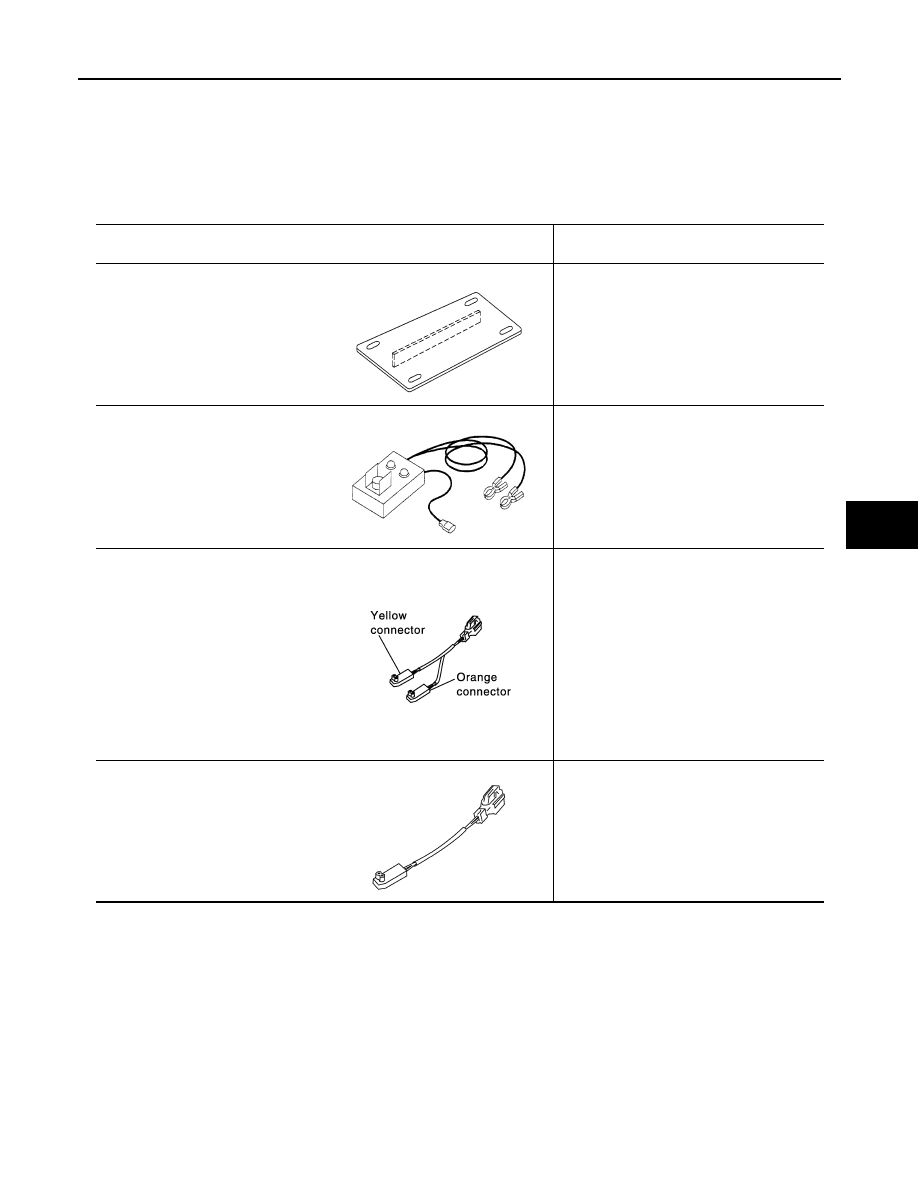

Special Service Tool

INFOID:0000000001404303

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
Tool name

Description

KV99105300
Air bag module bracket

Anchoring air bag module

KV99106400
Deployment tool

Disposing of air bag module and front seat
belt pre-tensioner

KV99110500
• Deployment tool adapter for driver

air bag module (Yellow and or-
ange connectors)

• Deployment tool adapter for seat

belt pre-tensioner (Yellow connec-
tor)

• Deployment tool adapter for seat

belt pre-tensioner2 (Orange con-
nector)

• Deployment tool adapter for front

passenger air bag module (Yellow
and orange connector)

• Connecting between the deployment tool

and driver air bag module

• Connecting between the deployment tool

and front seat belt pre-tensioner

• Connecting between the deployment tool

and seat belt pre-tensioner2

• Connecting between the deployment tool

and front passenger air bag module

KV99109800
Deployment tool adapter for front
side air bag module, side curtain air
bag module

Connecting between the deployment tool
and front side air bag module, side curtain
air bag module

S-NT354

S-NT357

PHIA0184E

MHIB0112E

SR-4

< ON-VEHICLE REPAIR >

DRIVER AIR BAG MODULE

ON-VEHICLE REPAIR

DRIVER AIR BAG MODULE

Removal and Installation

INFOID:0000000001404299

REMOVAL

WARNING:

• When servicing the SRS, do not work from directly in front of air bag module.
• Always place air bag module with pad side facing upward.

CAUTION:

• Before servicing the SRS, turn ignition switch OFF, discon-

nect both battery cables, then wait at least 3 minutes.

• Do not attempt to repair or replace damaged direct-connect

SRS component connectors. If a driver air bag direct-connect
harness connector is damaged, the spiral cable must be
replaced.

• Do not insert any foreign objects (screwdriver, etc.) into air

bag module or harness connectors.

• Do not disassemble air bag module.
• Do not expose the air bag module to temperatures exceeding

90

°

C (194

°

F).

• Replace the air bag module if it has been dropped or sus-

tained an impact.

• Do not allow oil, grease or water to come in contact with the

air bag module.

1.

Disconnect the negative and positive battery cables, then wait at least 3 minutes.

2.

Remove the covers RH/LH.

3.

Place the steering wheel in the straight ahead position.

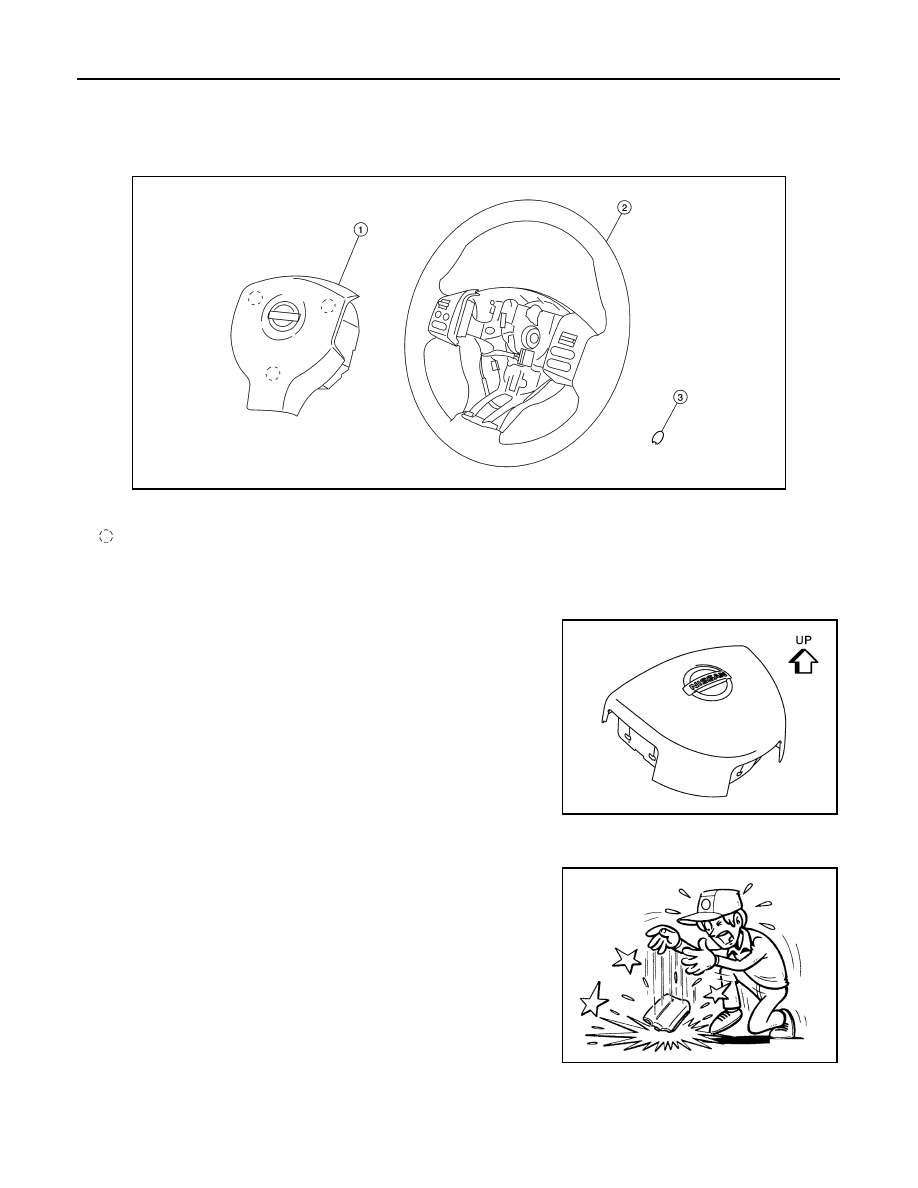

LHIA0108E

1. Driver air bag module

2. Steering wheel

3. Cover

Pawl

PHIA0291E

WHIA0321E

DRIVER AIR BAG MODULE

SR-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

4.

Release the driver air bag module retaining clips RH/LH.

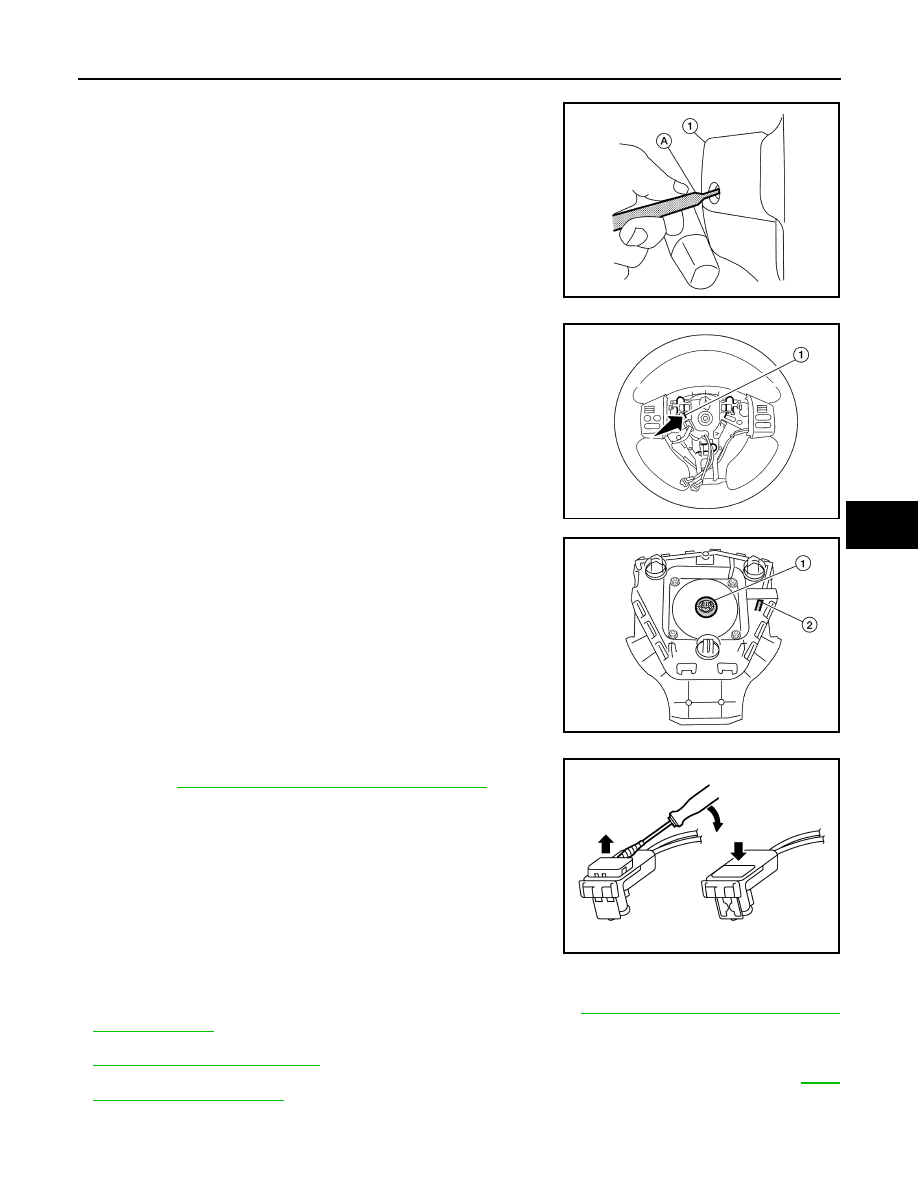

• Insert suitable 4mm - 6mm blunt tool (A) through LH access

hole on back side of steering wheel (1) and contact retaining
clip.

CAUTION:

Do not use sharp edged objects such as screwdrivers to
release driver air bag module from steering wheel, SRS
components may be unintentionally damaged.

• Press tool inward with sufficient force on retaining clip (1) to

release LH pawl of driver air bag module from steering wheel.

• Repeat for RH pawl of driver air bag module from steering

wheel.

• Tilt top edge away from steering wheel, then lift upward releas-

ing lower pawl of driver air bag module from steering wheel.

5.

Disconnect driver air bag module connector (1) and horn con-
nector (2).

• For removal/installation of the direct-connect SRS connectors,

refer to

SRC-13, "CONSULT-III Function (AIR BAG)"

.

INSTALLATION

Installation is in the reverse order of removal.
• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

.

• If driver air bag module is being replaced due to deployment, spiral cable must also be replaced. Refer to

SR-7, "Removal and Installation"

.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

11, "SRS Operation Check"

.

CAUTION:

LHIA0109E

LHIA0110E

WHIA0337E

PHIA0953J
