SEC-20

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)

*1

: The item is only for M/T model.

INDICATOR

This test is able to check warning lamp operation.
• BLUE  ON:  Key  warning  lamp (green) illuminates.
• RED ON: Key warning lamp (red) illuminates.
• KNOB ON: Lock warning lamp illuminates.
• BLUE IND: Key warning lamp (green) flashes.
• RED IND: Key warning lamp (red) flashes.
• KNOB IND: Lock warning lamp flashes.
• OFF

KEY LOCK SOLENOID

*1

This test is able to check key interlock operation.
• LOCK: Key interlock is active.
• UNLOCK: Key interlock is inactive.

Test item

Description

U1000 CAN COMM CIRCUIT

SEC-21

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000001404050

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart, refer to

XX-XX, "*****"

.

DTC Logic

INFOID:0000000001404051

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000001404052

1.

PERFORM SELF DIAGNOSTIC

1.

Turn ignition switch ON and wait for 2 seconds or more.

2.

Check “Self Diagnostic Result”.

Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

XX-XX, "*****"

.

NO

>> Refer to

XX-XX, "*****"

.

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When Intelligent Key unit cannot communi-
cate CAN communication signal continuous-
ly for 2 seconds or more.

In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
• Transmission
• Receiving (BCM)
• Receiving (ECM)
• Receiving (METER/M&A)

SEC-22

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

Description

INFOID:0000000001404053

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart, refer to

XX-XX, "*****"

.

DTC Logic

INFOID:0000000001404054

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000001404055

1.

REPLACE INTELLIGENT KEY UNIT

When DTC [U1010] is detected, replace Intelligent Key unit.

>> Replace Intelligent Key unit.

Special Repair Requirement

INFOID:0000000001404056

1.

REQUIRED WORK WHEN REPLACING INTELLIGENT KEY UNIT

Initialize control unit. Refer to CONSULT-III Operation Manual.

>> Work end.

DTC

CONSULT-III display de-

scription

DTC Detection Condition

Possible cause

U1010

CONTROL UNIT (CAN)

When detecting error during the initial diagnosis of CAN control-
ler of Intelligent Key unit.

Intelligent Key unit

B2013 ID DISCORD I-KEY-STRG

SEC-23

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

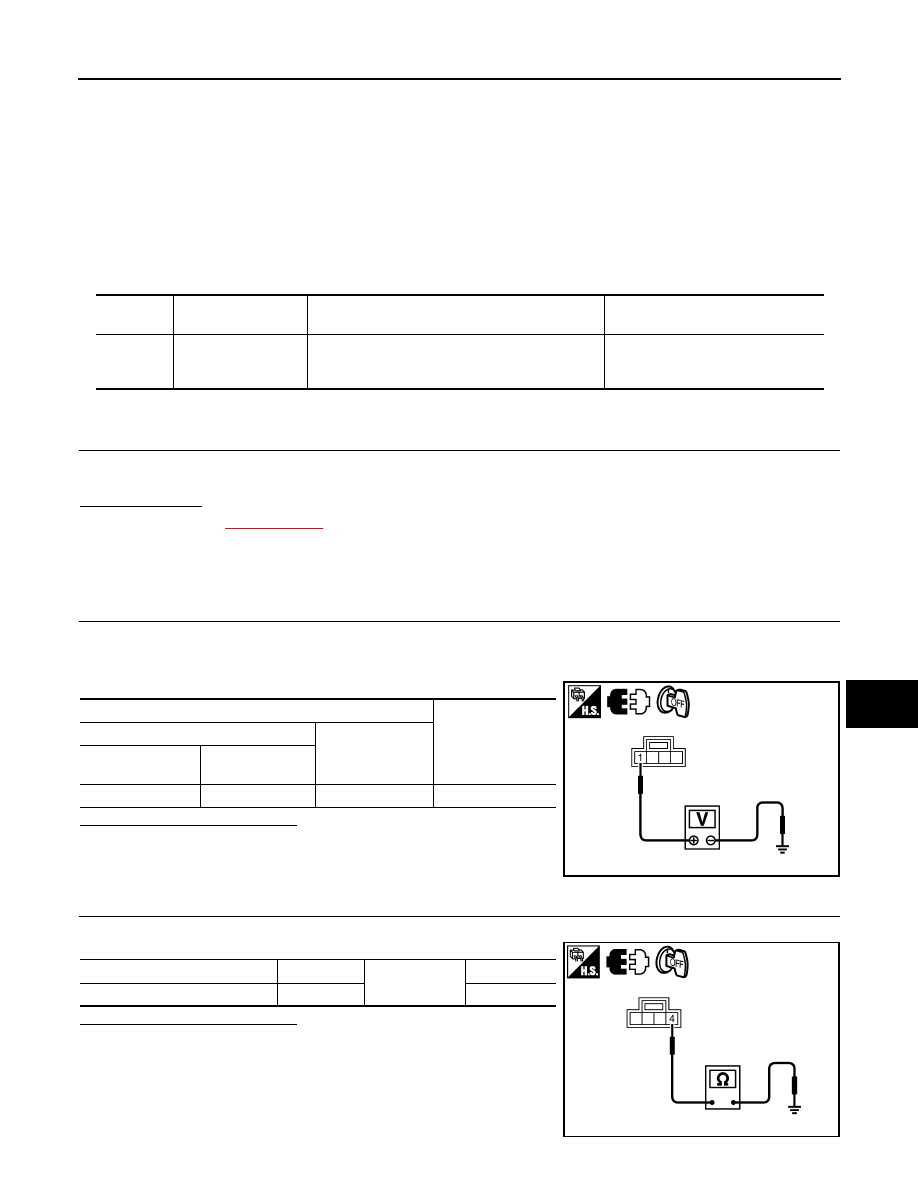

B2013 ID DISCORD I-KEY-STRG

Description

INFOID:0000000001404057

Intelligent Key unit performs the ID verification with the steering lock unit and releases the steering lock if both
Intelligent Key unit and steering lock unit ID are same. Intelligent Key unit starts the communication with the
steering lock unit when Intelligent Key is carried into the vehicle and the ignition knob switch is pressed.

DTC Logic

INFOID:0000000001404058

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Press the ignition knob switch

2.

Check “Self diagnostic result” with CONSULT-III.

Is DTC detected?

YES

>> Refer to

XX-XX, "*****"

.

NO

>> INSPECTION END.

Diagnosis Procedure

INFOID:0000000001532028

1.

CHECK STEERING LOCK SOLENOID POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect steering lock solenoid connector.

3.

Check voltage between steering lock solenoid and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace steering lock solenoid power supply

circuit.

2.

CHECK STEERING LOCK SOLENOID GROUND CIRCUIT

Check continuity between steering lock solenoid and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 6.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2013

STRG COMM 1

The ID verification results between Intelligent Key
unit and steering control unit are NG. The registra-
tion is necessary.

Steering lock unit

Terminals

Voltage (V)

(Approx.)

(+)

(–)

Steering lock sole-

noid

Terminal

M6

1

Ground

Battery voltage

PIIB6632E

Steering lock solenoid connector

Terminal

Ground

Continuity

M6

4

Yes

PIIB6633E
