The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution

INFOID:0000000001724595

• When installing each rubber part, final tightening must be car-

ried out under unladen condition* with tires on ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.

• Use flare nut wrench when removing or installing brake tubes.
• After installing removed suspension parts, check wheel align-

ment.

• Do not jack up at the trailing arm and lateral link.
• Always torque brake lines when installing.

SBR686C

RAX-4

< PREPARATION >

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000001724592

Tool name

Description

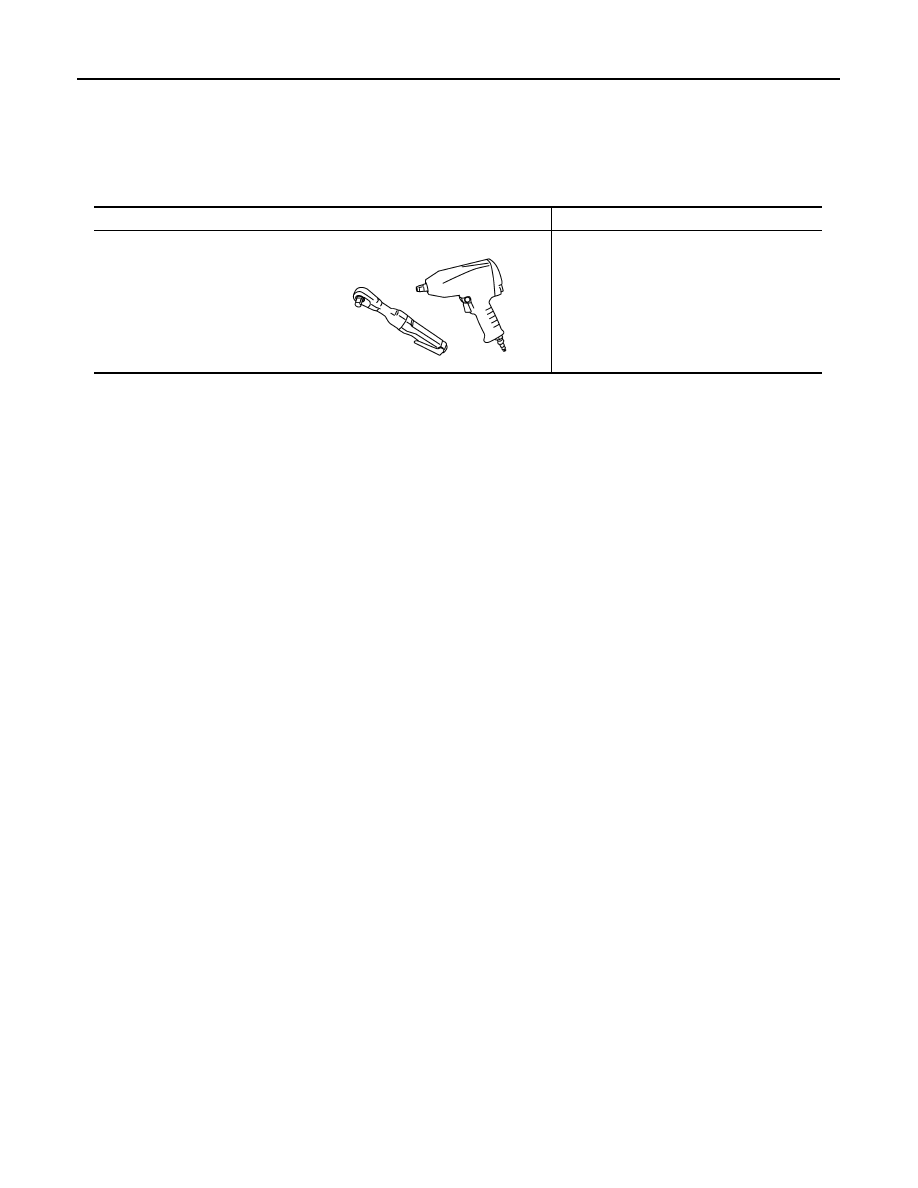

Power tool

Removing wheel nuts

PBIC0190E

WHEEL HUB

RAX-5

< ON-VEHICLE MAINTENANCE >

RAX

ON-VEHICLE MAINTENANCE

WHEEL HUB

On-Vehicle Inspection and Service

INFOID:0000000001724590

• Check the axle and suspension parts for excessive play, wear, or damage.

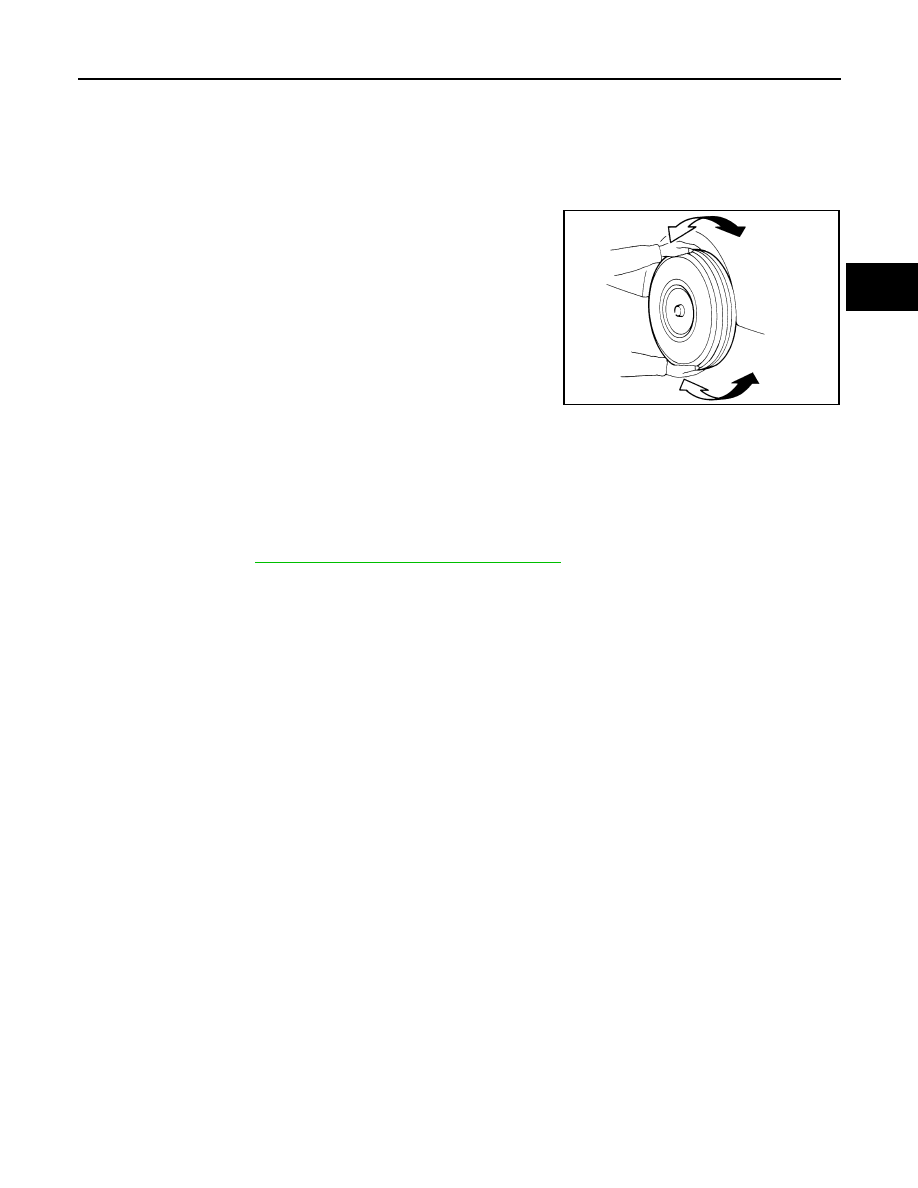

• Shake each rear wheel to check for excessive play as shown.

REAR WHEEL BEARING INSPECTION

• Move wheel hub and bearing assembly in the axial direction by hand. Make sure the axial end play is within

specification.

• Check that the wheel hub bearing operates smoothly.
• Replace the wheel hub assembly if the axial end play exceeds specification, or if the wheel bearing does not

turn smoothly. Refer to

RAX-5, "On-Vehicle Inspection and Service"

CAUTION:

The wheel hub assembly does not require maintenance. If any of the following symptoms are noted,
replace the wheel hub assembly.
• Growling noise is emitted from the wheel hub bearing during operation.
• Wheel hub bearing drags or turns roughly.

SMA525A

Axial end play

: 0.05 mm (0.002 in) or less
