PWC-36

< ECU DIAGNOSIS >

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000001696345

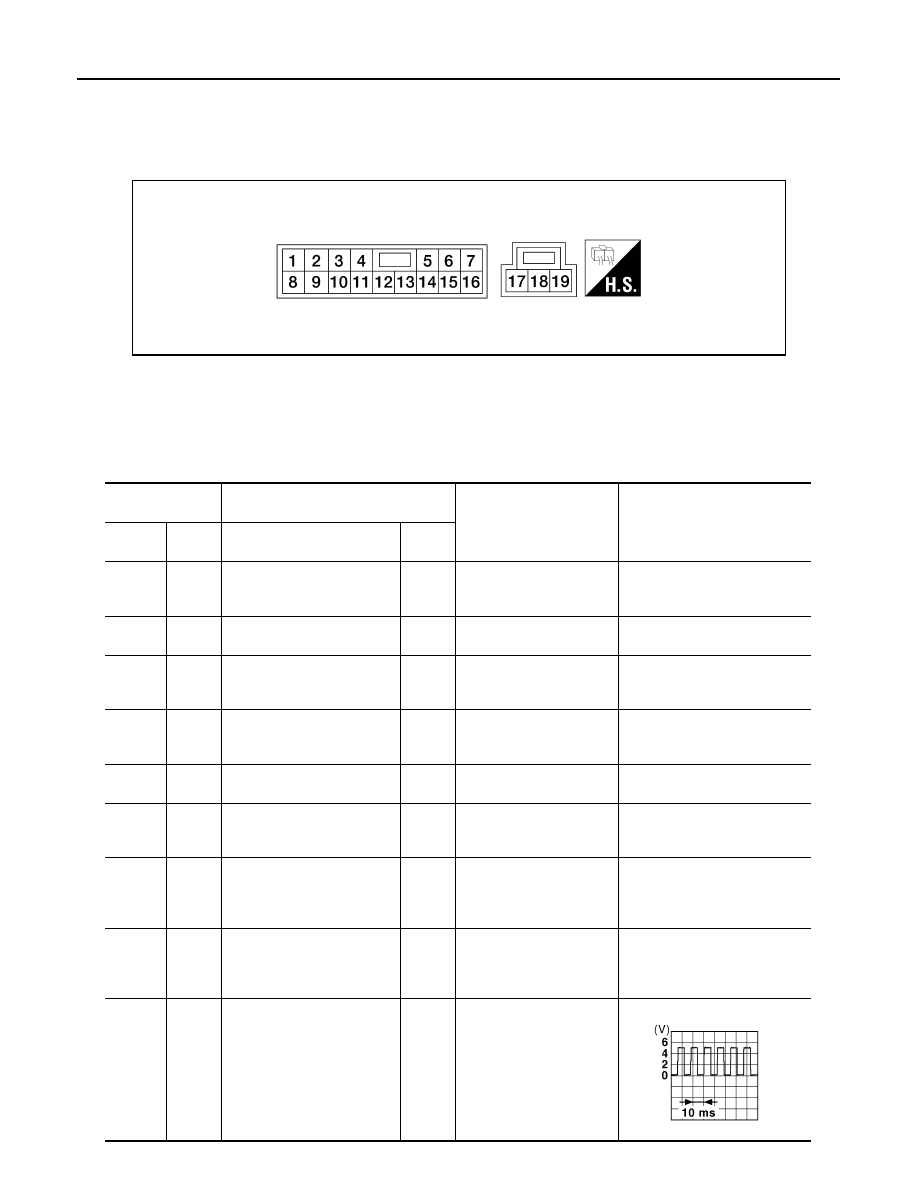

TERMINAL LAYOUT

PHYSICAL VALUES

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

LIIA2455E

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

–

Signal name

Input/

Output

1

(R)

Ground

Rear power window motor LH
UP signal

Output

When rear LH switch in
power window main switch
is operated UP.

Battery voltage

2

(LG)

Ground

Encoder ground

—

—

0

3

(O)

Ground

Rear power window motor LH
DOWN signal

Output

When rear LH switch in
power window main switch
is operated DOWN.

Battery voltage

5

(Y)

Ground

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is operated DOWN.

Battery voltage

6

(V)

Ground

Door key cylinder switch
UNLOCK signal

Input

Key position
(Neutral

→

 Unlocked)

5

→

 0

7

(LG)

Ground

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is operated UP.

Battery voltage

8

1

(R)

12

Front power window motor
(driver side) UP signal

Output

When front (driver side)
switch in power window
main switch is operated
UP.

 Battery voltage

8

2

(R)

11

Front power window motor
(passenger side) UP signal

Output

When front (passenger
side) switch in power win-
dow main switch is operat-
ed UP.

 Battery voltage

9

(P)

2

Encoder pulse signal 2

Input

When power window mo-
tor operates.

JMKIA0070GB

POWER WINDOW MAIN SWITCH

PWC-37

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

1: LHD

2: RHD

10

(L)

Ground

RAP signal

Input

IGN SW ON

Battery voltage

Within 45 second after ig-
nition switch is turned to
OFF.

Battery voltage

When driver side or pas-
senger side door is opened
during retained power op-
eration.

0

11

1

(GR)

8

Front power window motor
(driver side) DOWN signal

Output

When front (driver side)
switch in power window
main switch is operated
DOWN.

 Battery voltage

11

2

(SB)

8

Front power window motor
(passenger side) DOWN sig-
nal

Output

When front (passenger
side) switch in power win-
dow main switch is operat-
ed DOWN.

 Battery voltage

12

1

(SB)

16

Front power window motor
(passenger side) DOWN sig-
nal

Output

When front (passenger
side) switch in power win-
dow main switch is operat-
ed DOWN.

 Battery voltage

12

2

(GR)

16

Front power window motor
(driver side) DOWN signal

Output

When front (driver side)
switch in power window
main switch is operated
DOWN.

 Battery voltage

13

(W)

2

Encoder pulse signal 1

Input

When power window mo-
tor operates.

15

(G)

Ground

Encoder power supply

Output

When ignition switch ON or
power window timer oper-
ates.

10

16

1

(R)

12

Front power window motor
(passenger side) UP signal

Output

When front (passenger
side) switch in power win-
dow main switch is operat-
ed UP.

 Battery voltage

16

2

(R)

12

Front power window motor
(driver side) UP signal

Output

When front (driver side)
switch in power window
main switch is operated
UP.

 Battery voltage

17

(B)

Ground

Ground

—

—

0

19

(P)

Ground

Battery power supply

Input

—

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

–

Signal name

Input/

Output

JMKIA0070GB

PWC-38

< ECU DIAGNOSIS >

POWER WINDOW MAIN SWITCH

Wiring Diagram - LHD -

INFOID:0000000001696346

ALKWA0178GB

POWER WINDOW MAIN SWITCH

PWC-39

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

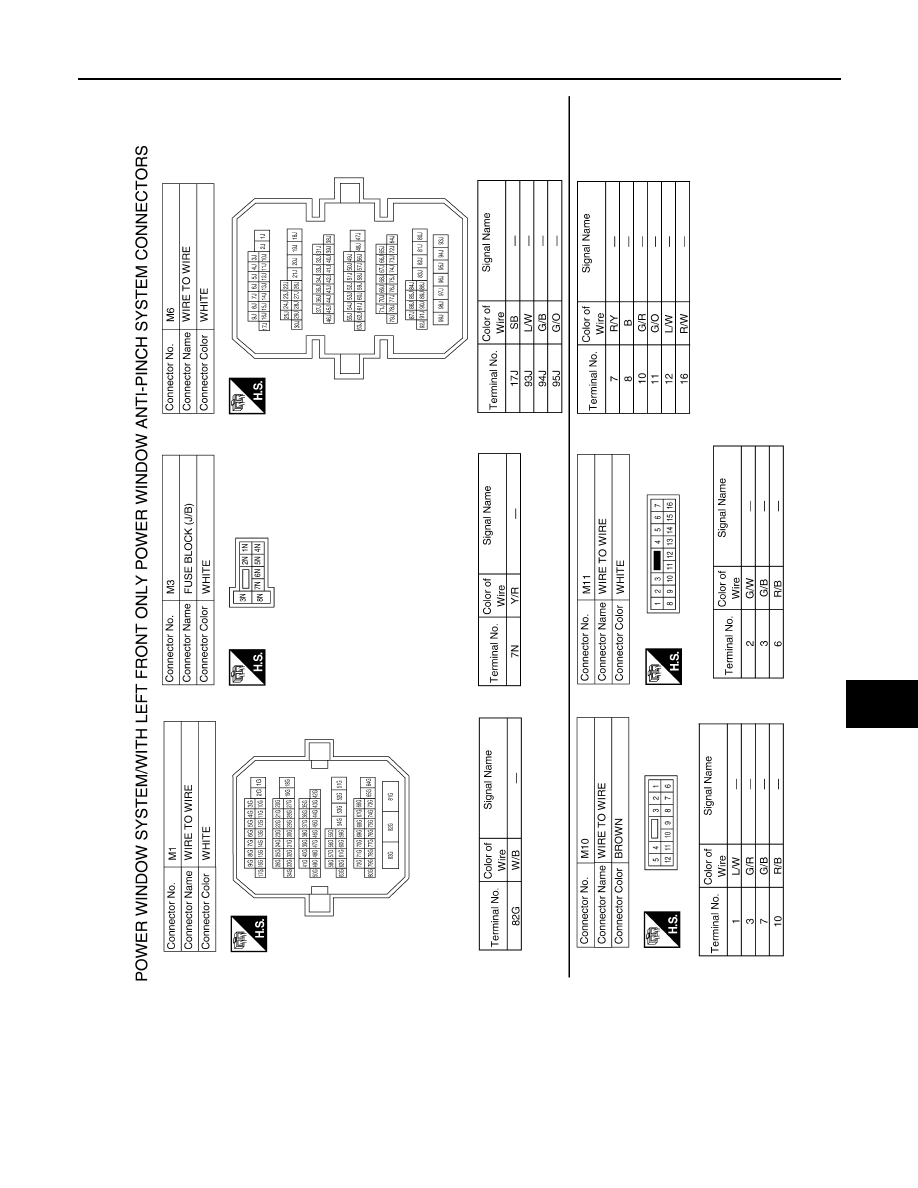

ALKIA0316GB
