PWC-24

< COMPONENT DIAGNOSIS >

POWER WINDOW MOTOR

PASSENGER SIDE

PASSENGER SIDE : Description

INFOID:0000000001696321

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or
power window and door lock/unlock switch (passenger side).

PASSENGER SIDE : Component Function Check

INFOID:0000000001696322

1.

 CHECK FRONT POWER WINDOW MOTOR (PASSENGER SIDE) CIRCIUT

Does front power window motor (passenger side) operate with main power window and door lock/unlock
switch or power window and door lock/unlock switch?
Is the inspection result normal?

YES

>> Front power window motor (passenger side) is OK.

NO

>> Refer to

PWC-24, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000001696323

Front Power Window Motor (Passenger Side) Circuit Check

1.

 CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH (PASSENGER SIDE) OUTPUT SIG-

NAL

1.

Disconnect front power window motor (passenger side).

2.

Turn ignition switch ON.

3.

Check voltage between front power window motor (passenger
side) connector and ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> Replace power window and door lock/unlock switch (passenger side). Refer to

INT-13, "Removal

and Installation"

.

2.

 CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect power window and door lock/unlock switch (passenger side).

3.

Check continuity between power window and door lock/unlock switch (passenger side) connector and
front power window motor (passenger side) connector.

4.

Check continuity between power window and door lock/unlock switch connector (A) and ground.

Terminal

Front power

window motor

RH condition

Voltage (V)

(Approx.)

(+)

(–)

Front power window

motor (passenger

side) connector

Terminal

D104

1

Ground

UP

Battery voltage

DOWN

0

2

UP

0

DOWN

Battery voltage

LIIA2431E

Power window and

door lock/unlock-

switch (passenger

side) connector

Terminal

Front power window

motor (passenger

side) connector

Terminal

Continuity

D105

4 (6)

D104

1

Yes

5 (7)

2

POWER WINDOW MOTOR

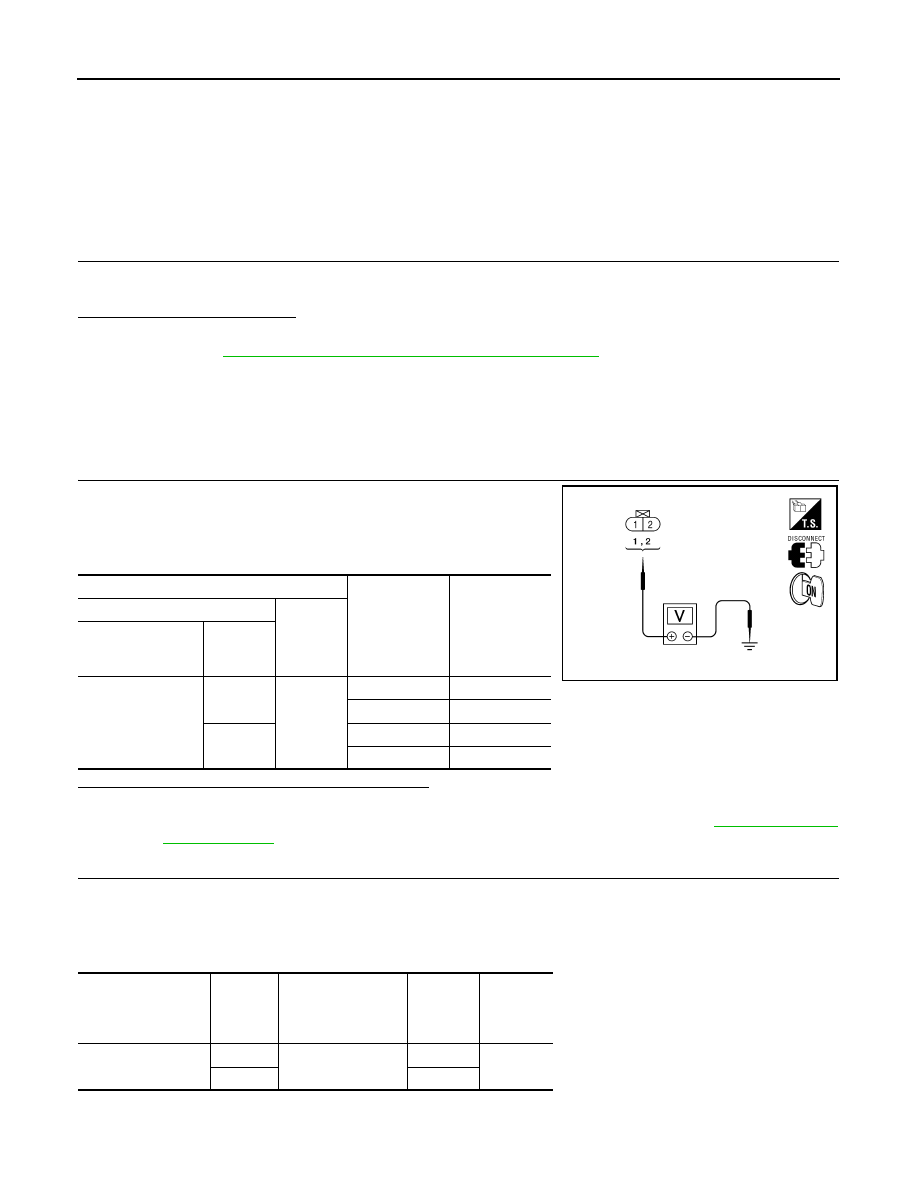

PWC-25

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK FRONT POWER WINDOW MOTOR (PASSENGER SIDE)

Check front power window motor (passenger side).
Refer to

PWC-25, "PASSENGER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-55, "Intermittent Incident"

.

NO

>> Replace front power window motor (passenger side). Refer to

GW-14, "Removal and Installation"

.

PASSENGER SIDE : Component Inspection

INFOID:0000000001696324

COMPONENT INSPECTION

COMPONENT INSPECTION

1.

 CHECK FRONT POWER WINDOW MOTOR (PASSENGER SIDE)

Does motor operate by connecting the battery voltage directly to front power window motor (passenger side)?

Is the inspection result normal?

YES

>> Power window motor is OK.

NO

>> Replace front power window motor (passenger side). Refer to

GW-14, "Removal and Installation"

.

REAR LH

REAR LH : Description

INFOID:0000000001696325

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or
rear power window  switch LH.

REAR LH : Component Function Check

INFOID:0000000001696326

1.

 CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

Does rear power window motor LH operate with main power window and door lock/unlock switch or rear
power window switch LH?

Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Refer to

PWC-25, "REAR LH : Diagnosis Procedure"

REAR LH : Diagnosis Procedure

INFOID:0000000001696327

Rear Power Window Motor LH Circuit Check

1.

 CHECK REAR POWER WINDOW SWITCH LH OUTPUT SIGNAL

Power window and door lock/

unlock switch (passenger

side) connector

Terminal

Ground

Continuity

D105

4 (6)

No

5 (7)

Terminal

Motor condition

(+)

(–)

1

2

DOWN

2

1

UP

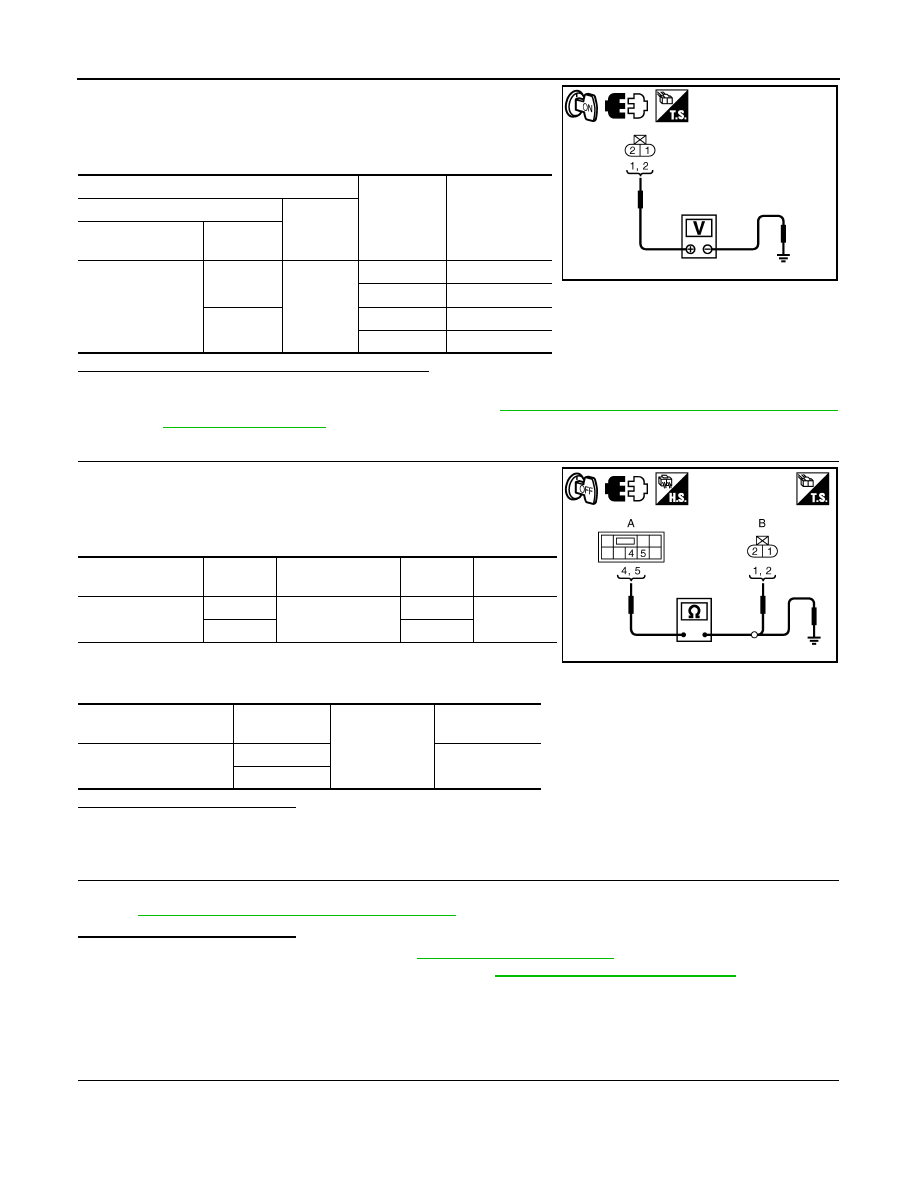

PWC-26

< COMPONENT DIAGNOSIS >

POWER WINDOW MOTOR

1.

Disconnect rear power window motor LH.

2.

Turn ignition switch ON.

3.

Check voltage between rear power window motor LH connector
and ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> Check rear power window switch LH. Refer to

PWC-21, "REAR POWER WINDOW SWITCH :

Component Inspection"

.

2.

 CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch LH.

3.

Check continuity between rear power window switch LH connec-
tor (A) and rear power window motor LH connector (B).

4.

Check continuity between rear power window switch LH connec-
tor (A) and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK REAR POWER WINDOW MOTOR LH

Check rear power window motor LH.
Refer to

PWC-26, "REAR LH : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-55, "Intermittent Incident"

.

NO

>> Replace rear power window motor LH. Refer to

GW-21, "Removal and Installation"

.

REAR LH : Component Inspection

INFOID:0000000001696328

COMPONENT INSPECTION

1.

 CHECK REAR POWER WINDOW MOTOR LH

Does motor operate by connecting the battery voltage directly to rear power window motor LH?

Terminal

Window

condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window
motor LH connector

Terminal

D204

1

Ground

UP

Battery voltage

DOWN

0

2

UP

0

DOWN

Battery voltage

PIIB6431E

Rear power window

switch LH connector

Terminal

Rear power window
motor LH connector

Terminal

Continuity

D203 (A)

5

D204 (B)

2

Yes

4

1

Rear power window

switch LH connector

Terminal

Ground

Continuity

D203 (A)

5

No

4

PIIB6432E

POWER WINDOW MOTOR

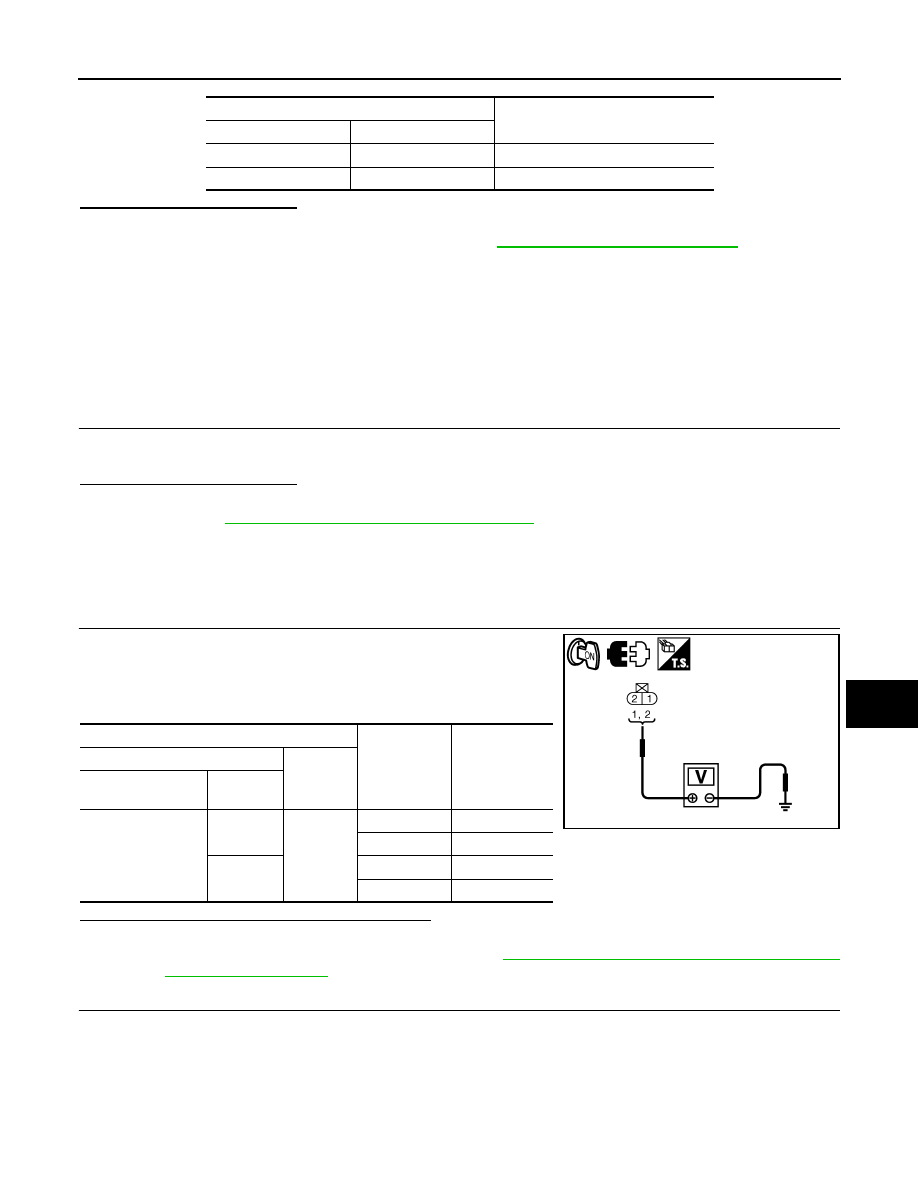

PWC-27

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Replace rear power window motor LH. Refer to

GW-21, "Removal and Installation"

.

REAR RH

REAR RH : Description

INFOID:0000000001696329

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or
rear power window switch RH.

REAR RH : Component Function Check

INFOID:0000000001696330

1.

 CHECK POWER WINDOW MOTOR CIRCUIT

Does rear power window motor RH operate with operating main power window and door lock/unlock switch or
rear power window switch RH?
Is the inspection result normal?

YES

>> Power window motor is OK.

NO

>> Refer to

PWC-27, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000001696331

Rear Power Window Motor RH Circuit Check

1.

 CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

1.

Disconnect rear power window motor RH.

2.

Turn ignition switch ON.

3.

Check voltage between rear power window motor RH connector
and ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> Check rear power window switch RH. Refer to

PWC-21, "REAR POWER WINDOW SWITCH :

Component Inspection"

.

2.

 CHECK HARNESS CONTINUITY

Terminal

Motor condition

(+)

(–)

2

1

DOWN

1

2

UP

Terminal

Rear power

window switch

RH condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window

motor RH connector

Terminal

D304

1

Ground

UP

Battery voltage

DOWN

0

2

UP

0

DOWN

Battery voltage

PIIB6431E
