METER SYSTEM

The distance to empty indication provides the driver with an estimation of the distance that can be driven
before refueling. The distance to empty is calculated using signals from the fuel level sensor unit (fuel remain-
ing), ECM (fuel consumption) and vehicle speed signals from the ABS actuator and electric unit (control unit).

JOURNY TIME

The travel time since last reset is displayed.

AVERAGE FUEL CONSUMTION

Average fuel consumption indication is calculated using vehicle speed signals from the ABS actuator and elec-
tric unit (control unit) and fuel consumption information from the ECM.

AVERAGE SPEED

The average speed mode can be selected to display the average speed since last reset. The indications are
calculated using vehicle speed signals from the ABS actuator and electric unit (control unit).

OUTSIDE AIR TEMPERATURE

The combination meter indicates the outside air temperature calculated by the temperature signal received
from the ambient sensor.
The indicated temperature is not readily affected by engine heat. It changes only when one of the following
conditions is present.
• The temperature detected by the ambient sensor is lower than the indicated temperature
• The vehicle speed is greater than 20 km/h (13 MPH)

(This is to prevent the indicated temperature from being affected by engine heat during low-speed driving.)

• The ignition switch has been turned to the OFF position for more than 3.5 hours. (The engine is cold.)
When the ambient air temperature falls below 3

°

C (37

°

F), the display starts flashing. Approximately 20 sec-

onds later, only “

°

C” flashes.

NOTE:
On vehicles equipped with auto A/C, the ambient sensor signal is shared with the front air control. The combi-
nation meter is notified of the signal sharing via the auto A/C sense circuit.

MWI

METER SYSTEM

MWI-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

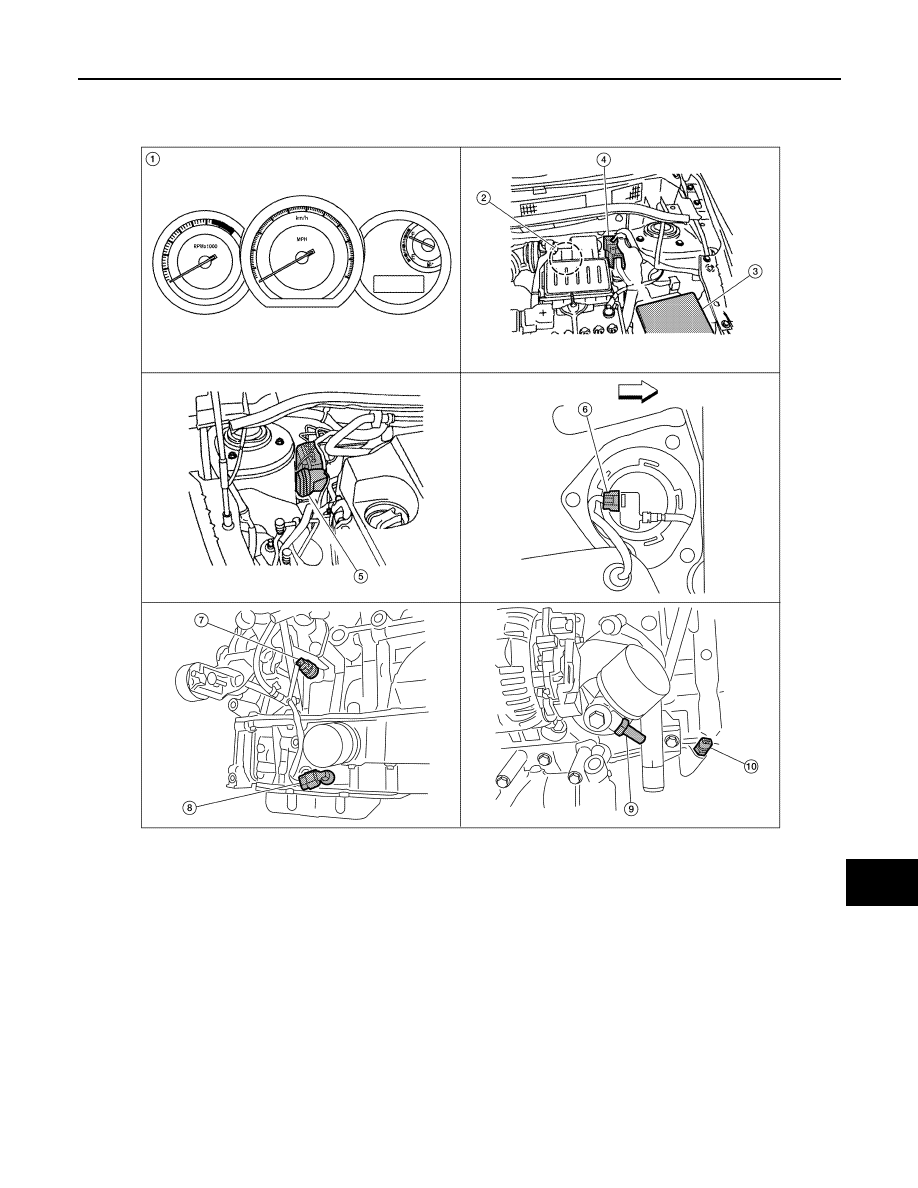

INFORMATION DISPLAY : Component Parts Location

INFOID:0000000001537312

INFORMATION DISPLAY : Component Description

INFOID:0000000001537301

1.

Combination meter M24

2.

ABS actuator and electric unit (control
unit) E33 (RHD models) (MR18DE
shown, HR16DE and K9K similar)

3.

IPDM E/R E43, E46, E48 (MR18DE
shown, HR16DE and K9K similar)

4.

ECM E16 (MR18DE shown, HR16DE
and K9K similar)

5.

ABS actuator and electric unit (control
unit) E33 (LHD models)

6.

Fuel level sensor unit and fuel pump
B40 (view with rear seat and inspection
hole cover removed)

⇐

: Front

7.

Oil pressure switch F32 (HR16DE and
MR18DE models) (view with engine re-
moved)

8.

Oil level sensor F60 (HR16DE and
MR18DE models) (view with engine re-
moved)

9.

Oil pressure switch F32 (K9K models)
(view with engine removed)

10. Oil level sensor F60 (K9K models)

(view with engine removed)

ALNIA0624ZZ

MWI-20

< FUNCTION DIAGNOSIS >

METER SYSTEM

Unit

Description

Combination meter

Controls the information display according to the signal received from each unit.

Fuel level sensor unit

Refer to

MWI-29, "Description"

.

ECM

Transmits the following signals to the combination meter via CAN communication line.

• Engine speed signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication line.

Ambient sensor

Refer to

MWI-34, "Description"

.

Oil level sensor

Refer to

MWI-32, "Description"

.

MWI

DIAGNOSIS SYSTEM (METER)

MWI-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (METER)

Diagnosis Description

INFOID:0000000001374681

SELF-DIAGNOSIS MODE

• Self-diagnosis can check for continuity between meter control circuit and each meter (speedometer, tachom-

eter and fuel gauge).

• Self-diagnosis can check for odo/trip meter and information display segment, low-fuel level warning lamp,

low water temperature indicator lamp, and high water temperature warning lamp.

NOTE:
This combination meter has no capability to perform on-board data checking and CONSULT type active tests
as seen in other Nissan combination meters. For additional combination meter diagnostic functions refer to

MWI-22, "CONSULT-III Function (METER/M&A)"

.

OPERATION PROCEDURE

1.

Turn ignition switch OFF.

2.

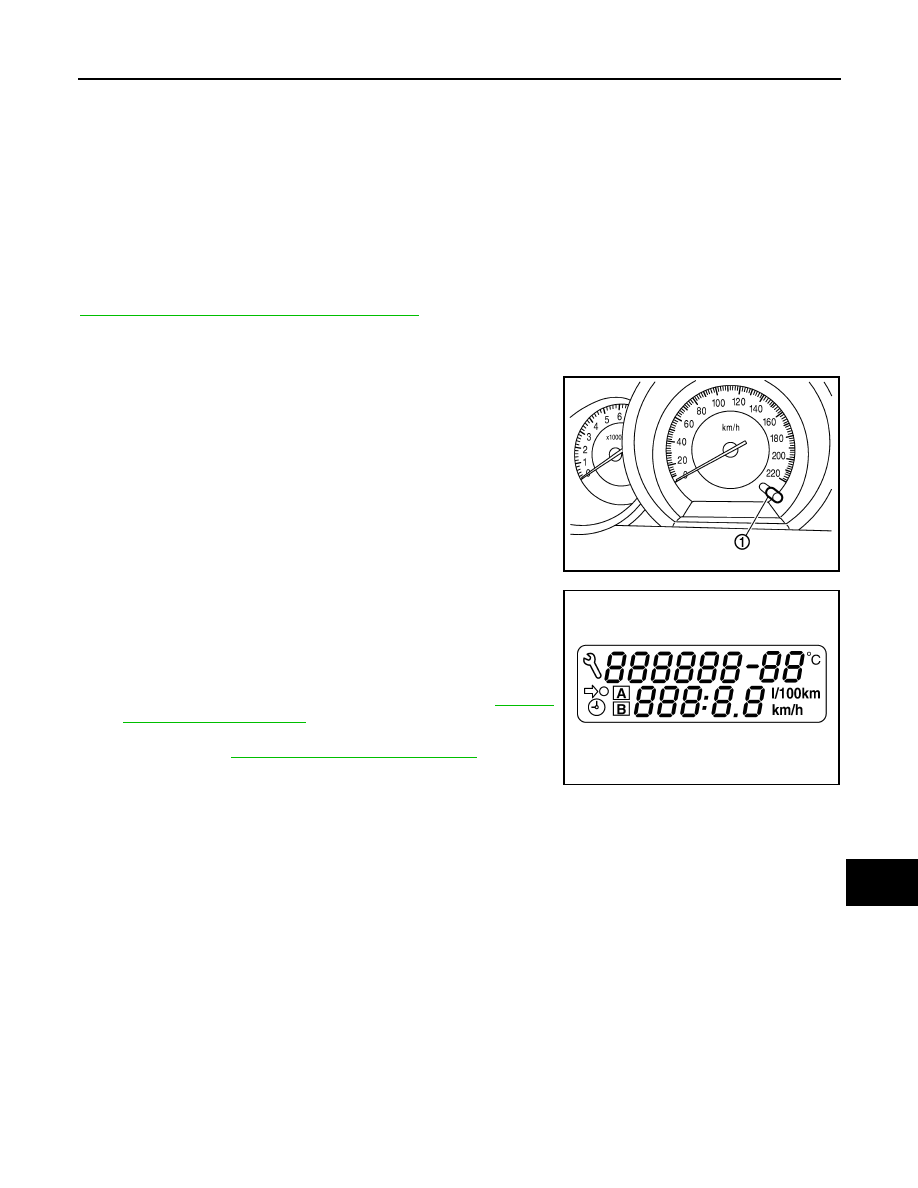

While pressing the odo/trip meter switch (1), turn the ignition
switch ON.

3.

Press and release the odo/trip meter switch at least 3 times.
(Within 7 seconds after the ignition switch is turned ON.)

4.

All the segments on the odo/trip meter, and simultaneously the
low-fuel warning lamp indicator illuminates. At this time, the uni-
fied meter control unit is turned to self-diagnosis mode.
NOTE:
• Check combination meter power supply and ground circuit

when self-diagnosis mode of combination meter does not
start. Replace combination meter if normal. Refer to

MWI-94,

"Removal and Installation"

.

• If any of the segments is not displayed, replace combination

meter. Refer to

MWI-94, "Removal and Installation"

.

PKIC1031E

ALNIA0625ZZ
