LU-18

< ON-VEHICLE MAINTENANCE >

[MR18DE]

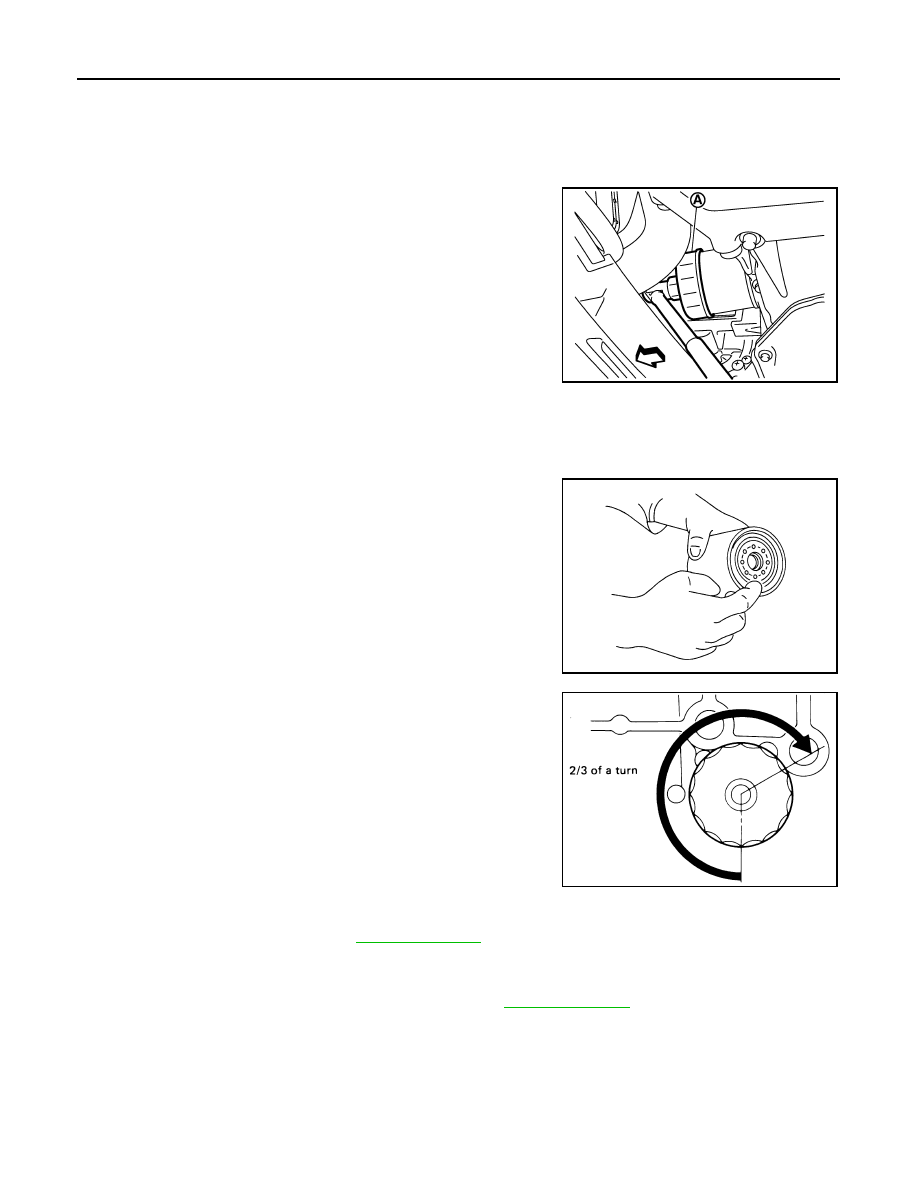

OIL FILTER

OIL FILTER

Removal and Installation

INFOID:0000000001337829

REMOVAL

1.

Remove oil filter using Tool (A).

•

⇐

 Front

CAUTION:

• Oil filter is provided with relief valve. Use Genuine NIS-

SAN Oil Filter or equivalent.

• Be careful not to get burned when engine and engine oil

may be hot.

• When removing, prepare a shop cloth to absorb any

engine oil leakage or spillage.

• Do not allow engine oil to adhere to drive belt.
• Completely wipe off any engine oil that adheres to engine and vehicle.

INSTALLATION

1.

Remove foreign materials adhering to the oil filter installation surface.

2.

Apply new engine oil to the oil seal contact surface of new oil fil-
ter.

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-6, "Inspection"

.

2.

Start engine, and make sure there is no leaks of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check the engine oil level and adjust engine oil. Refer to

LU-6, "Inspection"

.

Tool number

: KV10115801 (J-38956)

PBIC3818E

SMA010

Oil filter:

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA229B

OIL COOLER

LU-19

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

ON-VEHICLE REPAIR

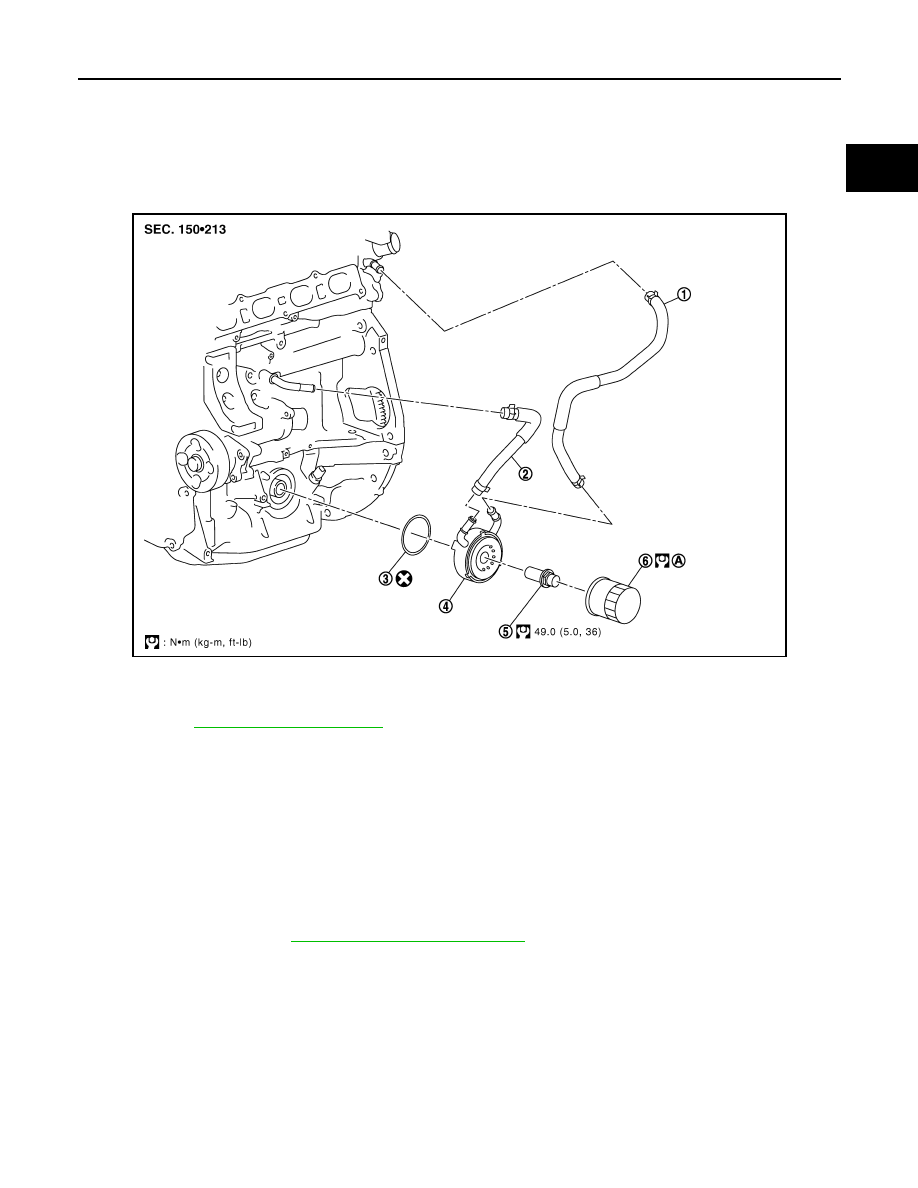

OIL COOLER

Components

INFOID:0000000001532089

Removal and Installation

INFOID:0000000001532090

REMOVAL

WARNING:

Make sure engine is cool before performing this operation.
1.

Remove engine undercover using power tool.

2.

Remove coolant hoses from oil cooler.
NOTE:
Pinch hoses to prevent coolant leaking.

3.

Remove oil filter. Refer to

LU-18, "Removal and Installation"

.

4.

Remove connector bolt and oil cooler.

INSTALLATION

Installation is in the reverse order of removal.

PBIC4487E

1.

Oil cooler hose

2.

Oil cooler hose

3.

O-ring

4.

Oil cooler

5.

Connector bolt

6.

Oil filter

A.

Refer to

LU-19, "Removal and Installation"

LU-20

< ON-VEHICLE REPAIR >

[MR18DE]

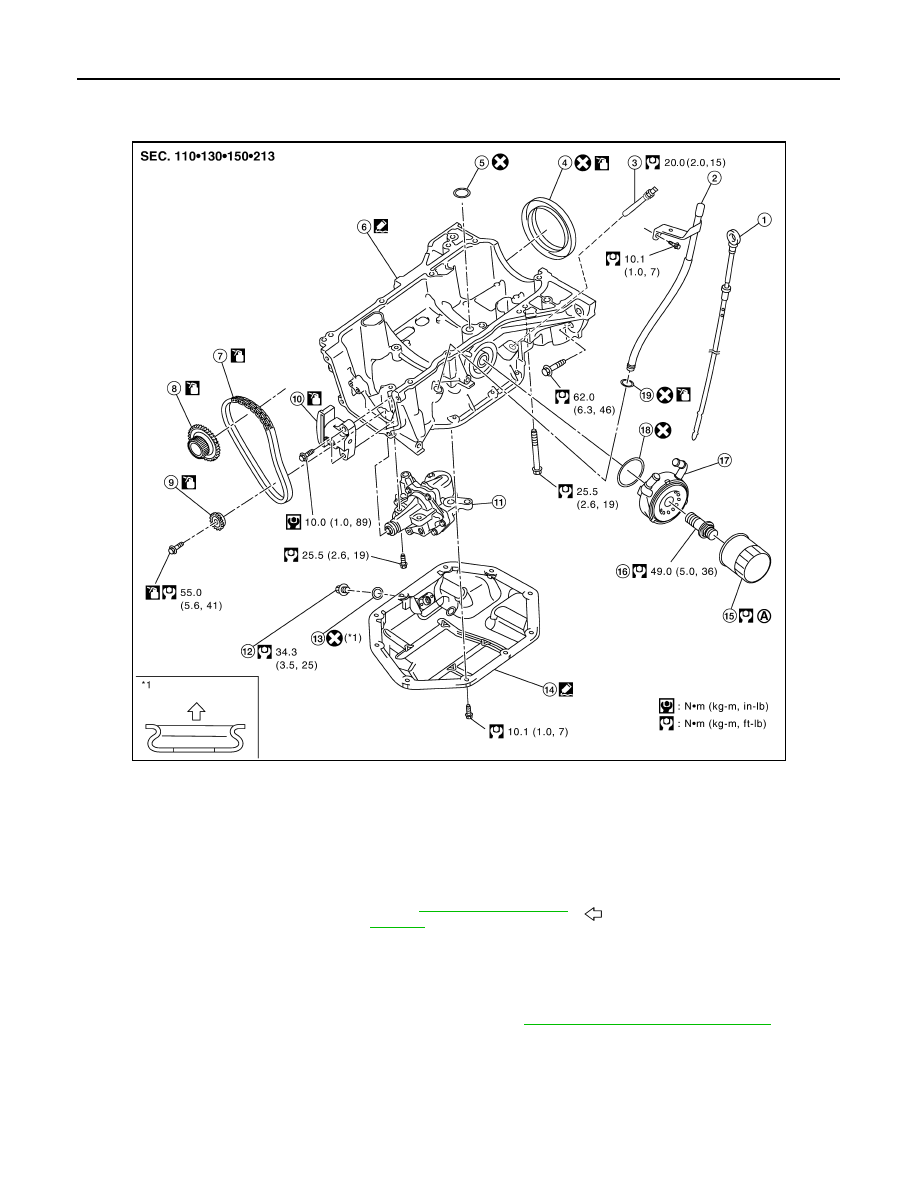

OIL PUMP

OIL PUMP

Components

INFOID:0000000001337951

Removal and Installation

INFOID:0000000001337952

REMOVAL

1.

Remove the timing chain and oil pump drive chain. Refer to

EM-177, "Removal and Installation"

.

AWBIA0156GB

1.

Oil level gauge

2.

Oil level gauge guide

3.

Oil level sensor

4.

Rear oil seal

5.

O-ring

6.

Oil pan (upper)

7.

Oil pump drive chain

8.

Crankshaft sprocket

9.

Oil pump sprocket

10. Timing chain tensioner (for oil pump) 11.

Oil pump

12. Drain plug

13. Drain plug washer

14. Oil pan (lower)

15. Oil filter

16. Connector bolt

17. Oil cooler

18. O-ring

19. O-ring

A.

Refer to

EM-166, "Removal and In-

stallation"

:Oil pan side

OIL PUMP

LU-21

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

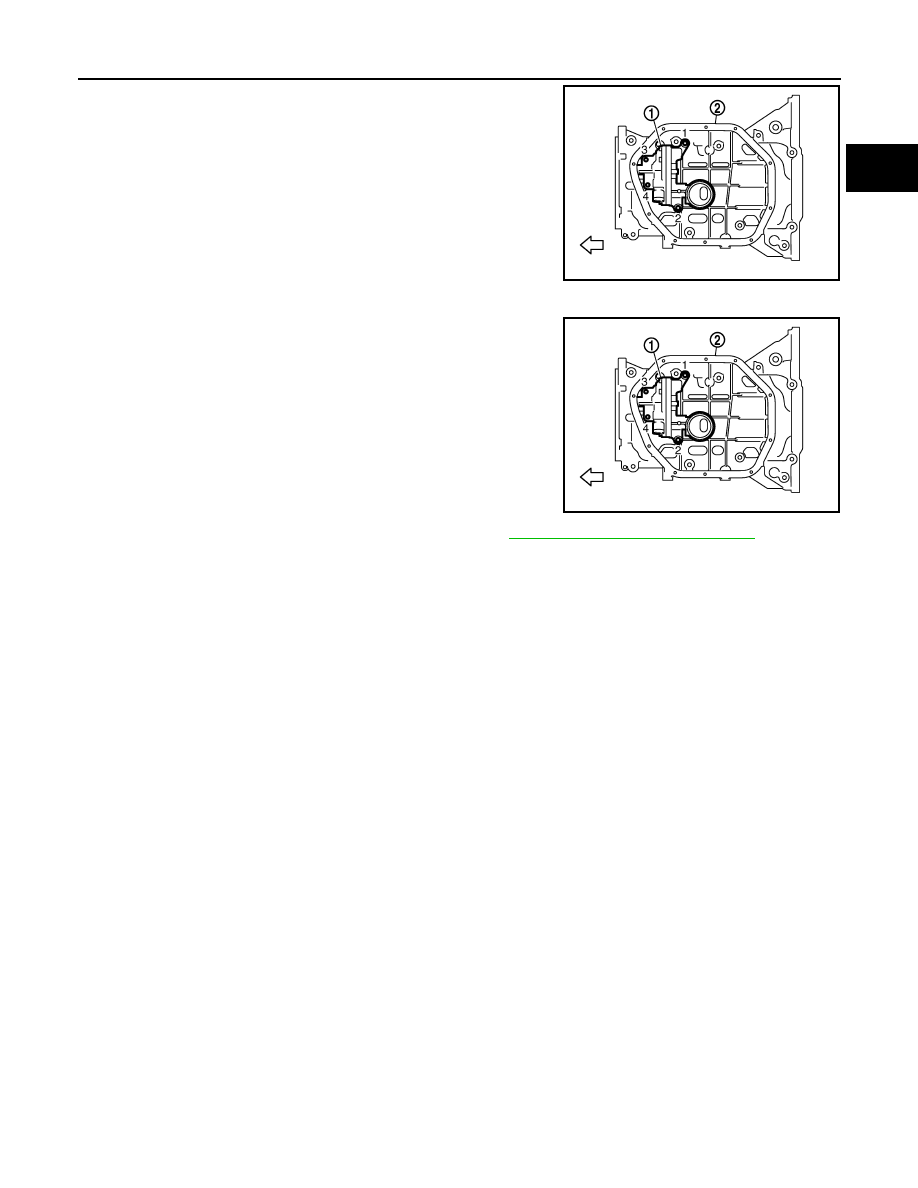

2.

Remove oil pump.
• Loosen bolts in reverse order as shown.

INSTALLATION

1.

Install oil pump.
• Tighten bolts in numerical order as shown.

2.

Install the timing chain and oil pump drive chain. Refer to

EM-177, "Removal and Installation"

.

1

: Oil pump

2

: Oil pan (upper)

⇐

: Engine front

PBIC3532J

1

: Oil pump

2

: Oil pan (upper)

⇐

: Engine front

PBIC3532J
